To fit

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the control module.

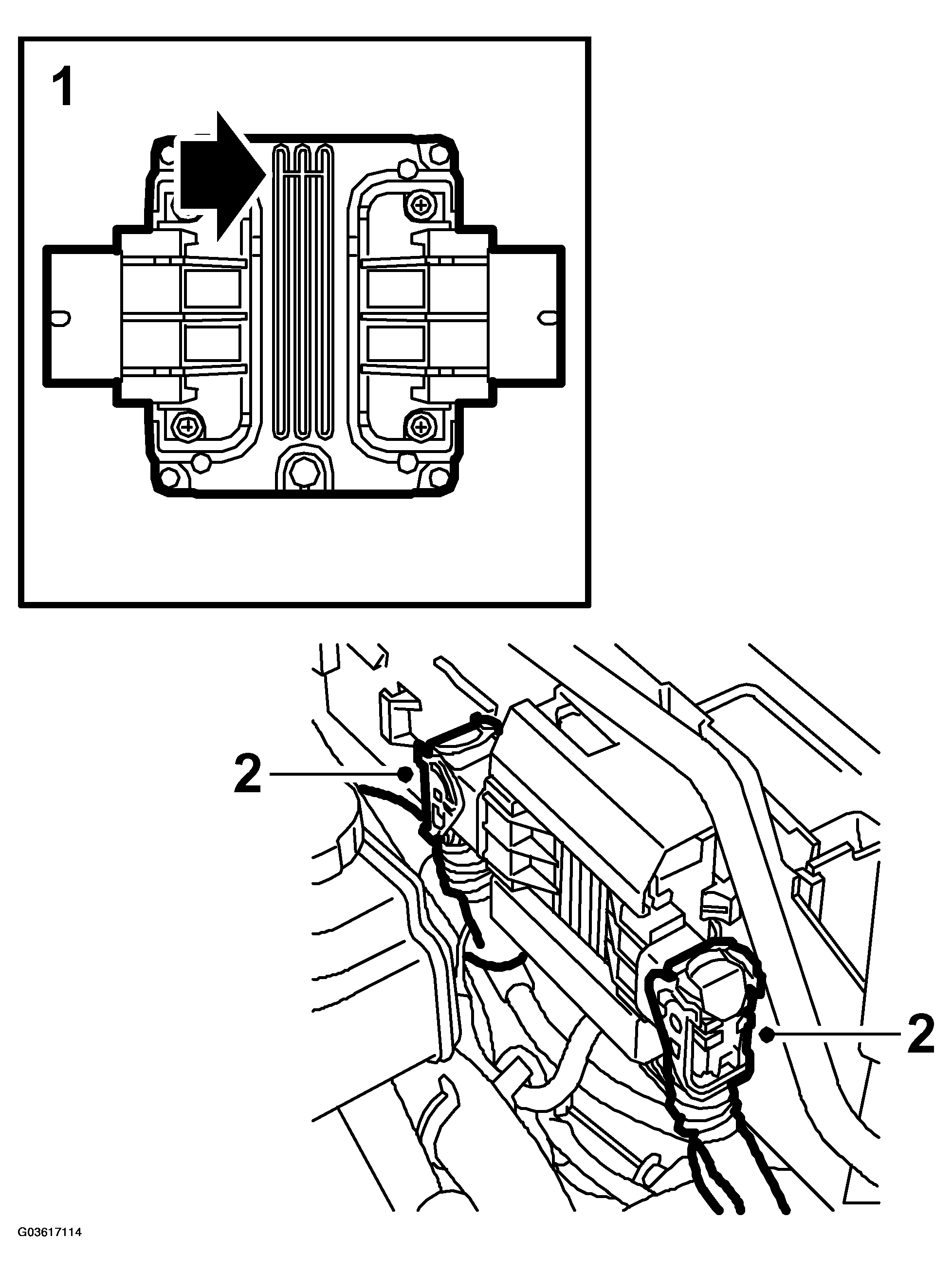

    Fig 1: Illustration For Step 2
    G03617114Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
  2. Plug in the connectors.
  3. Fit the battery cooling pipe.

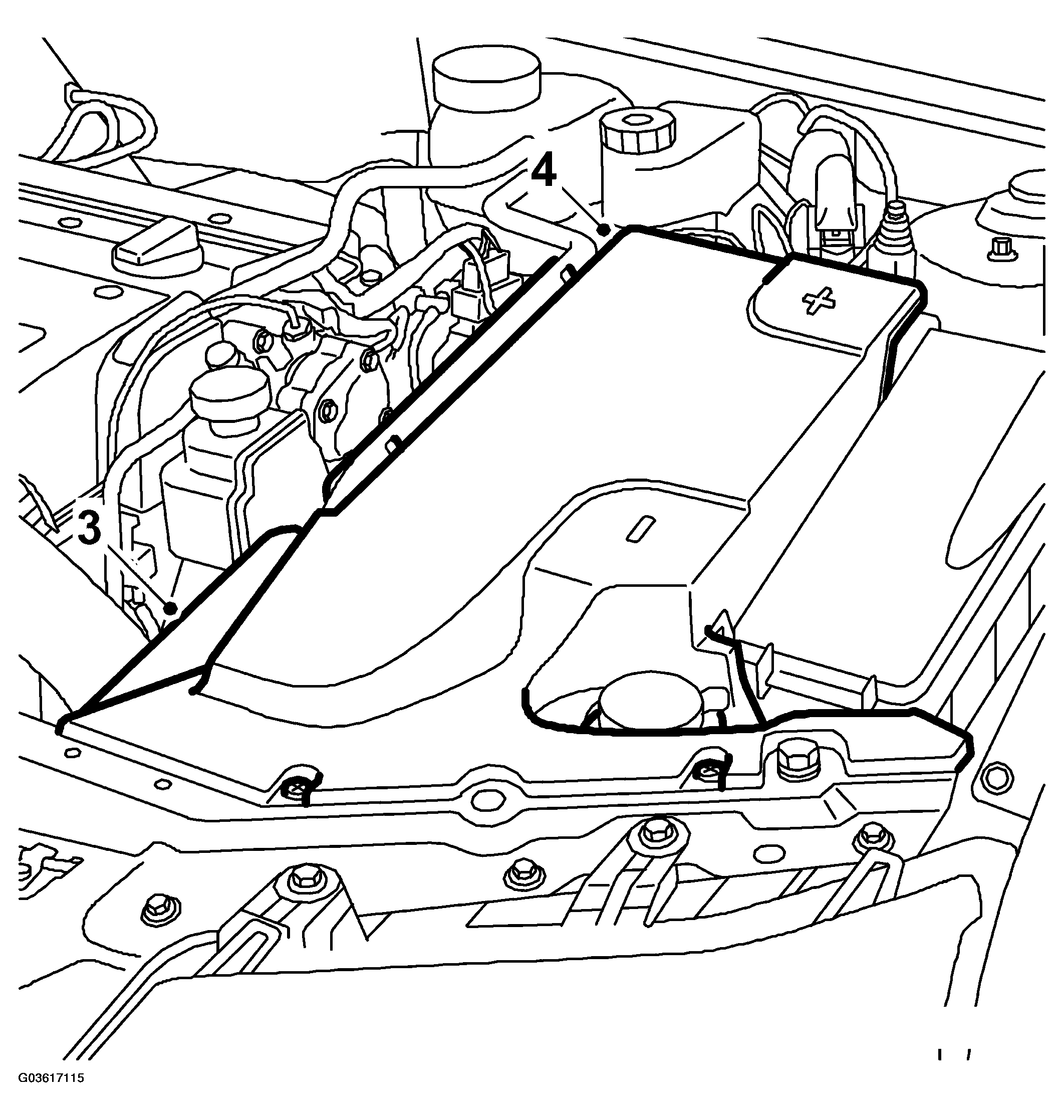

    Fig 2: Illustration For Step 3 And 4
    G03617115Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the battery cover.
  5. Perform Procedures after fitting the control module and service programming, if necessary.
  6. If a new control module has been fitted, it must be adapted, see PROCEDURE AFTER CHANGING THE CONTROL MODULE .
