To remove

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. If a new control module is to be fitted:  Carry out procedures before fitting a control module.
  2. Remove the LH cover from the center console.

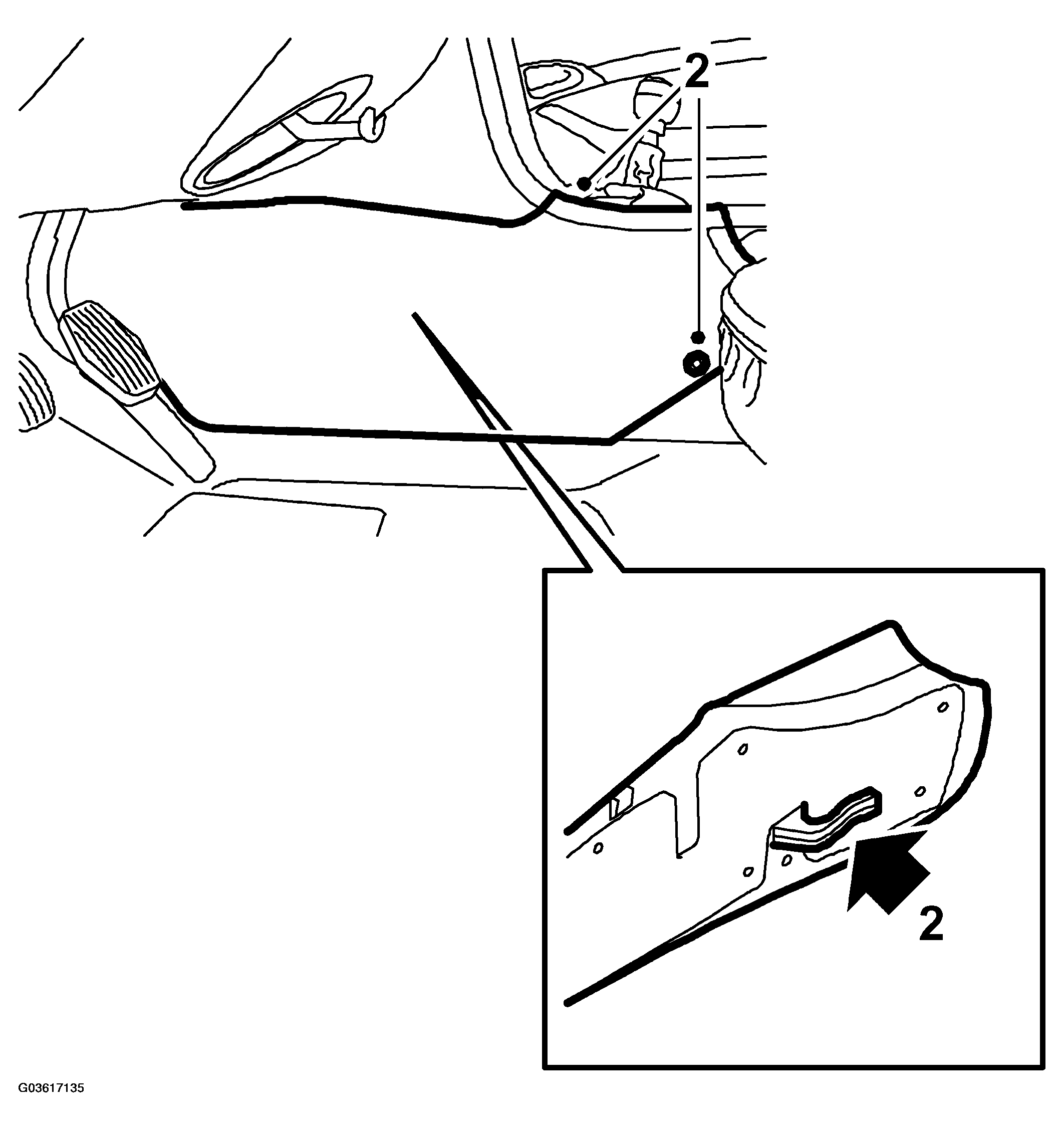

    Fig 1: Illustration For Step 2
    G03617135Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the holder with the receiver.

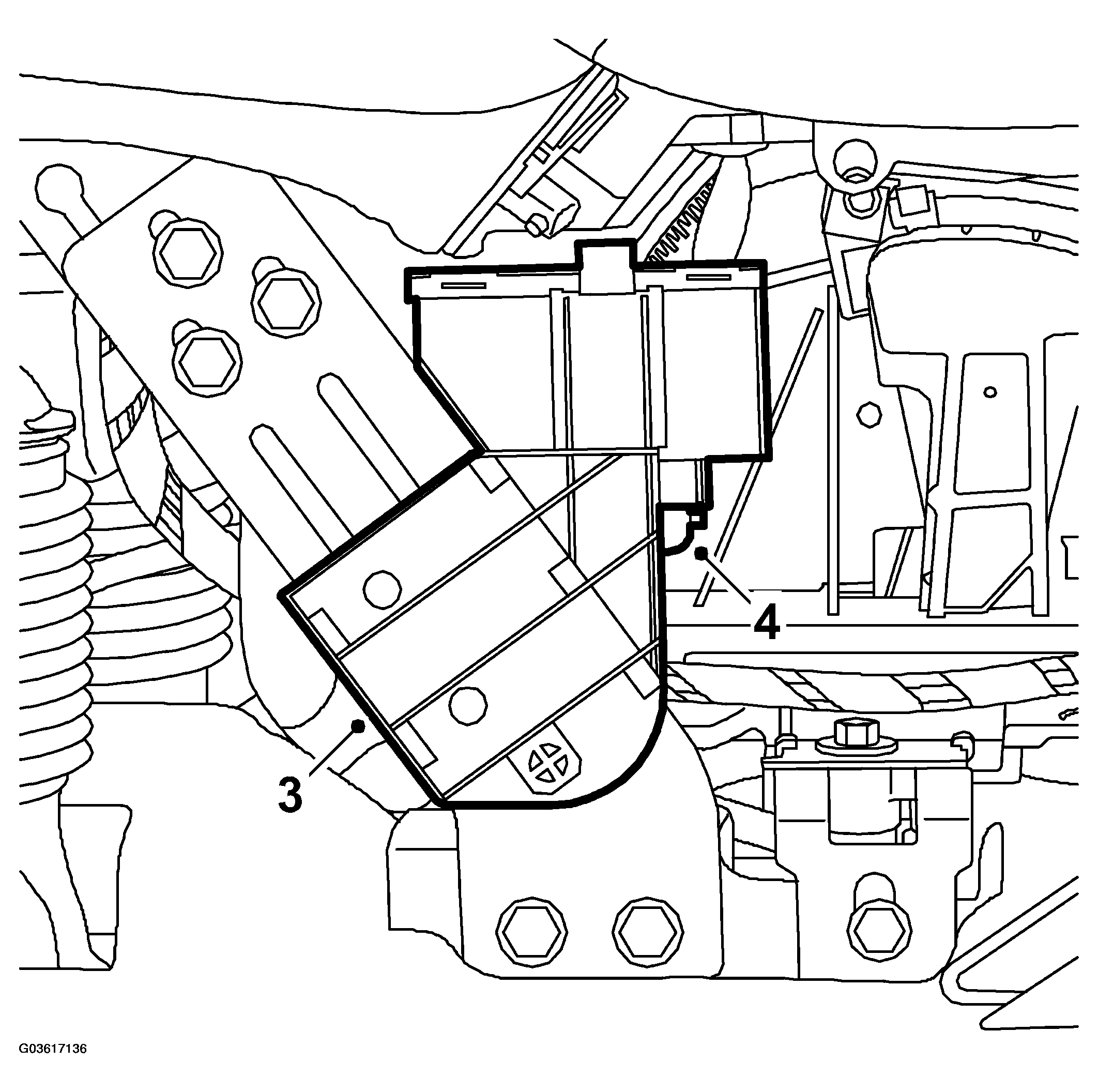

    Fig 2: Illustration For Step 3 And 4
    G03617136Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
  4. Remove the connector.
  5. Remove the receiver from the holder.

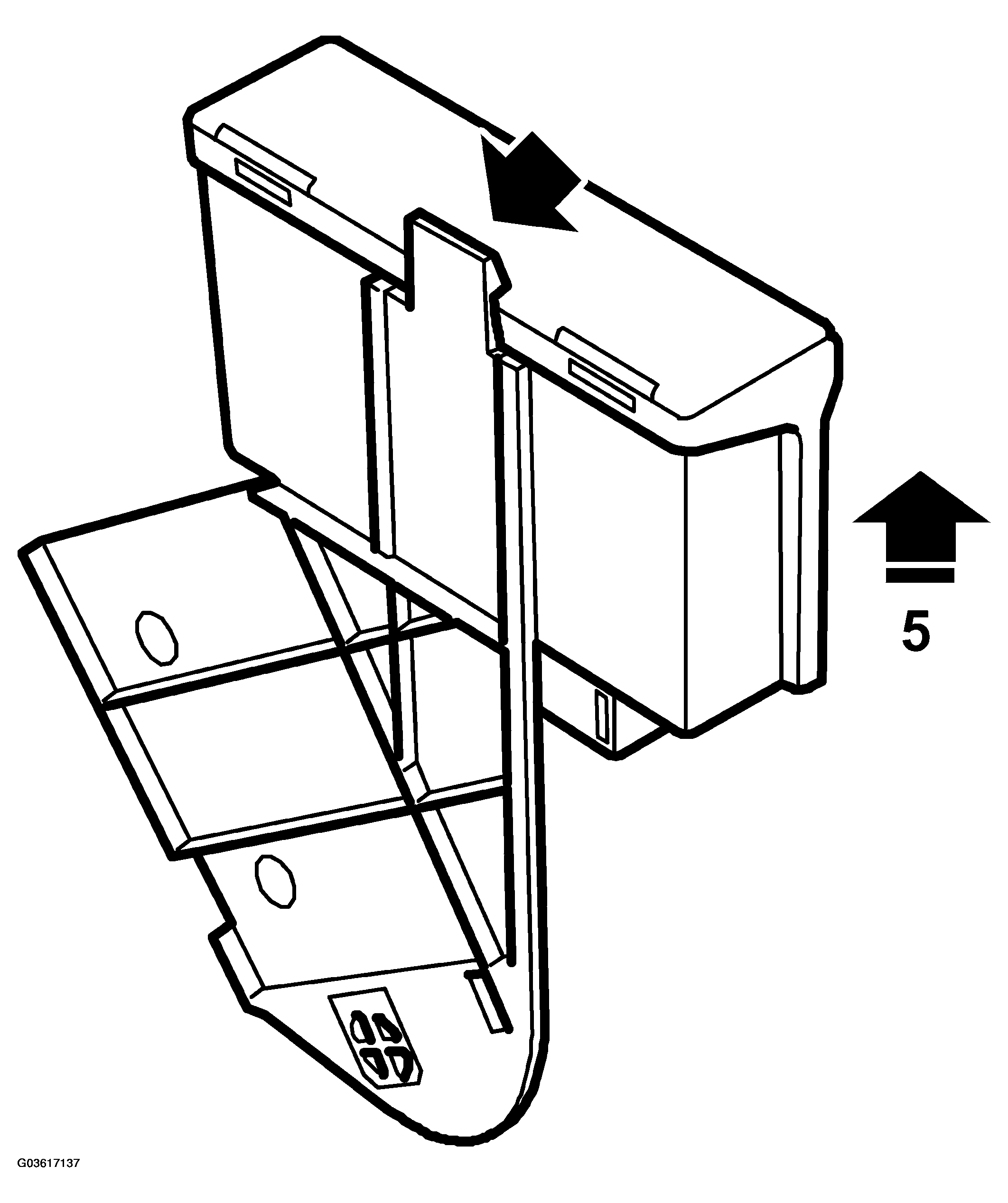

    Fig 3: Illustration For Step 5
    G03617137Courtesy of SAAB-SCANIA OF AMERICA, INC.
