To remove

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Carry out procedures before removing a control module.

  1. Remove the center air vent from the instrument panel by carefully bending the hooks that are accessible through the grille.

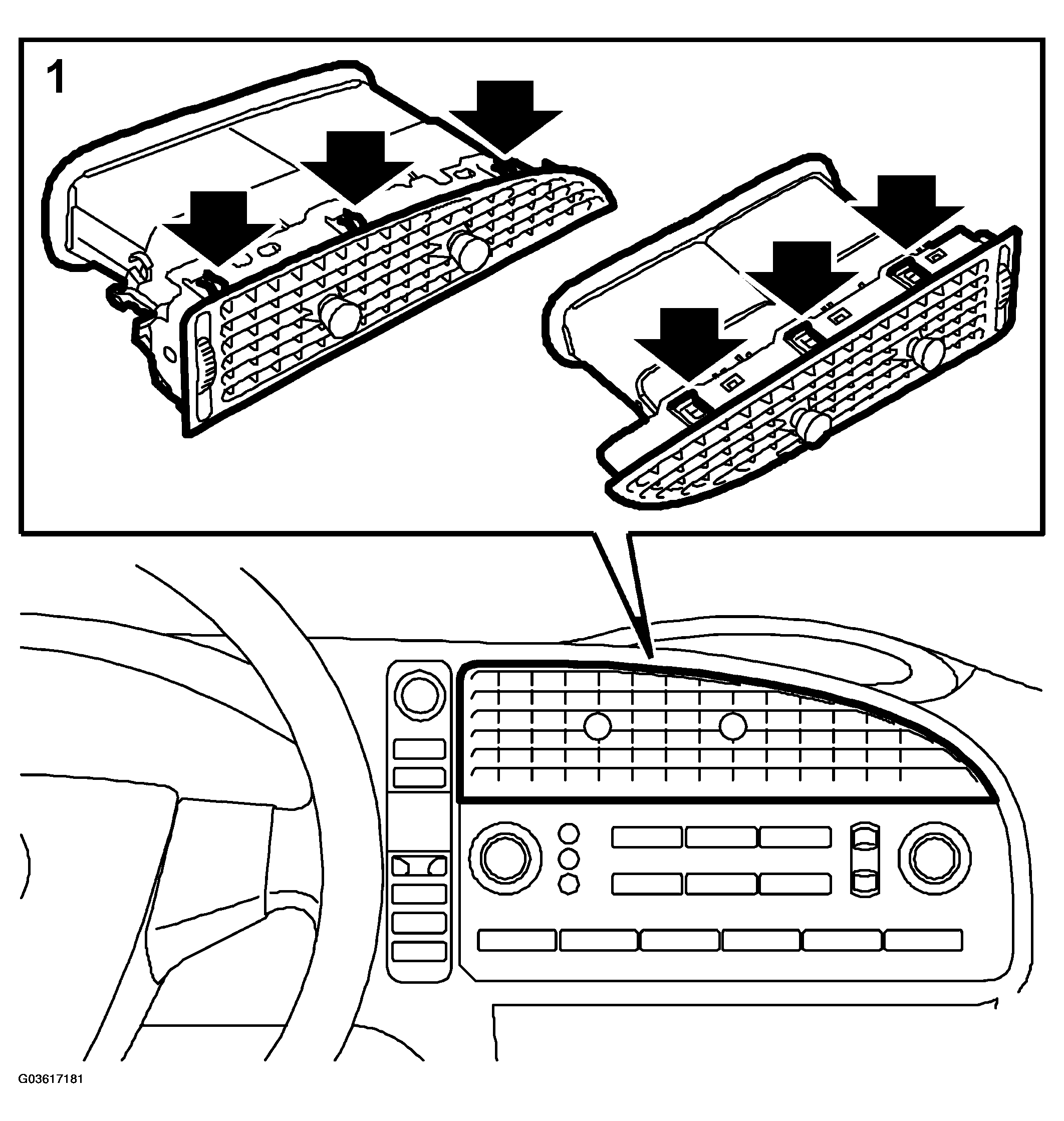

    Fig 1: Removing Center Air Vent From Instrument Panel
    G03617181Courtesy of SAAB-SCANIA OF AMERICA, INC.
    NOTE: It is essential the correct hooks are bent as the hooks holding together the air vent are also visible through the grille.
  2. Remove the ICM retaining screws.

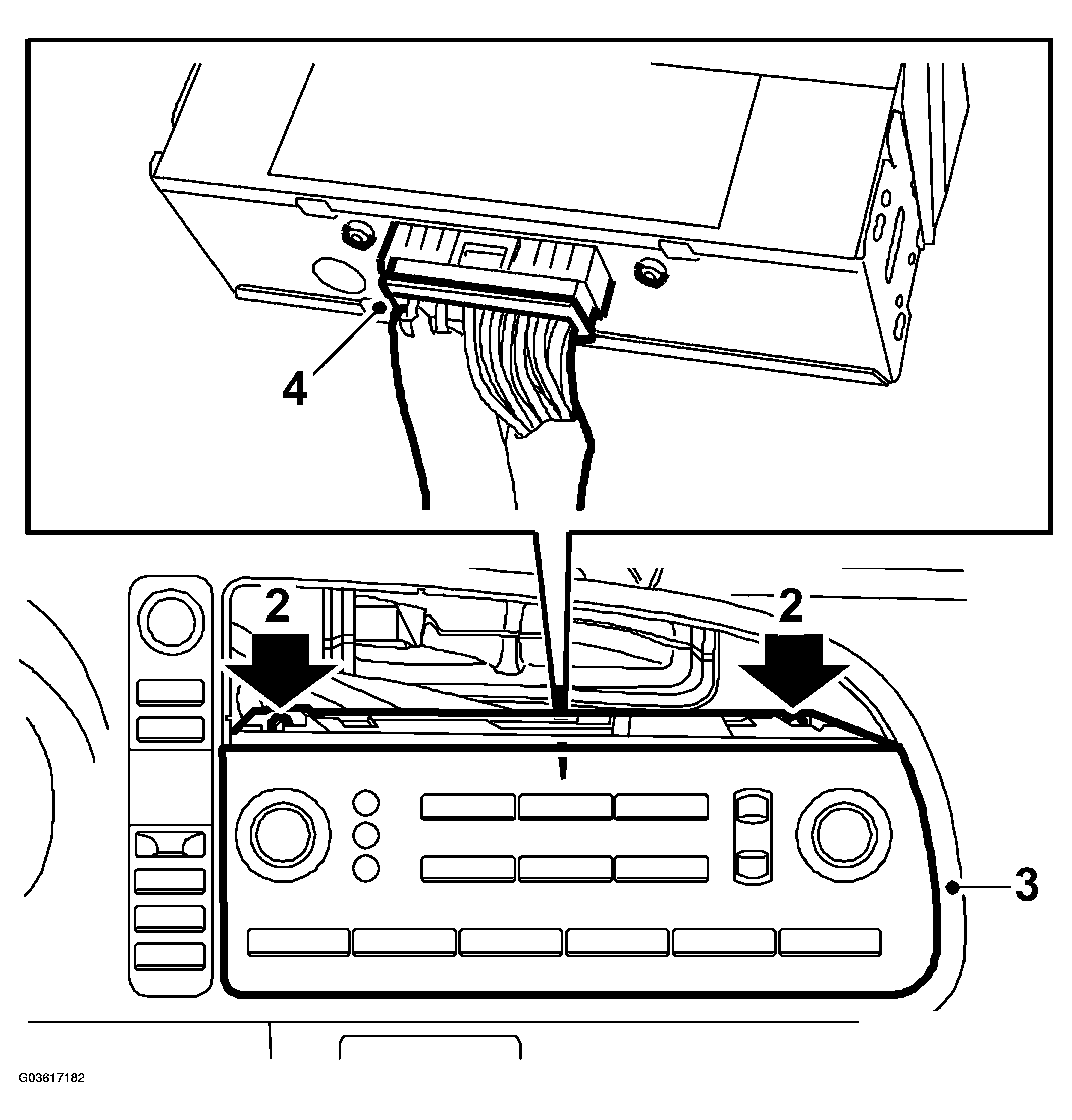

    Fig 2: Illustration For Step 2 To 4
    G03617182Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the ICM unit.
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
  4. Unplug the connector.
