To remove

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform Preparations prior to removing a control module.
  2. Remove the Front door trim.
  3. Lay the side of the door on a clean and soft surface.
  4. When changing the driver door module:  Remove the cell block from under the door module.
  5. When changing the driver door module:  Remove door trim screw.

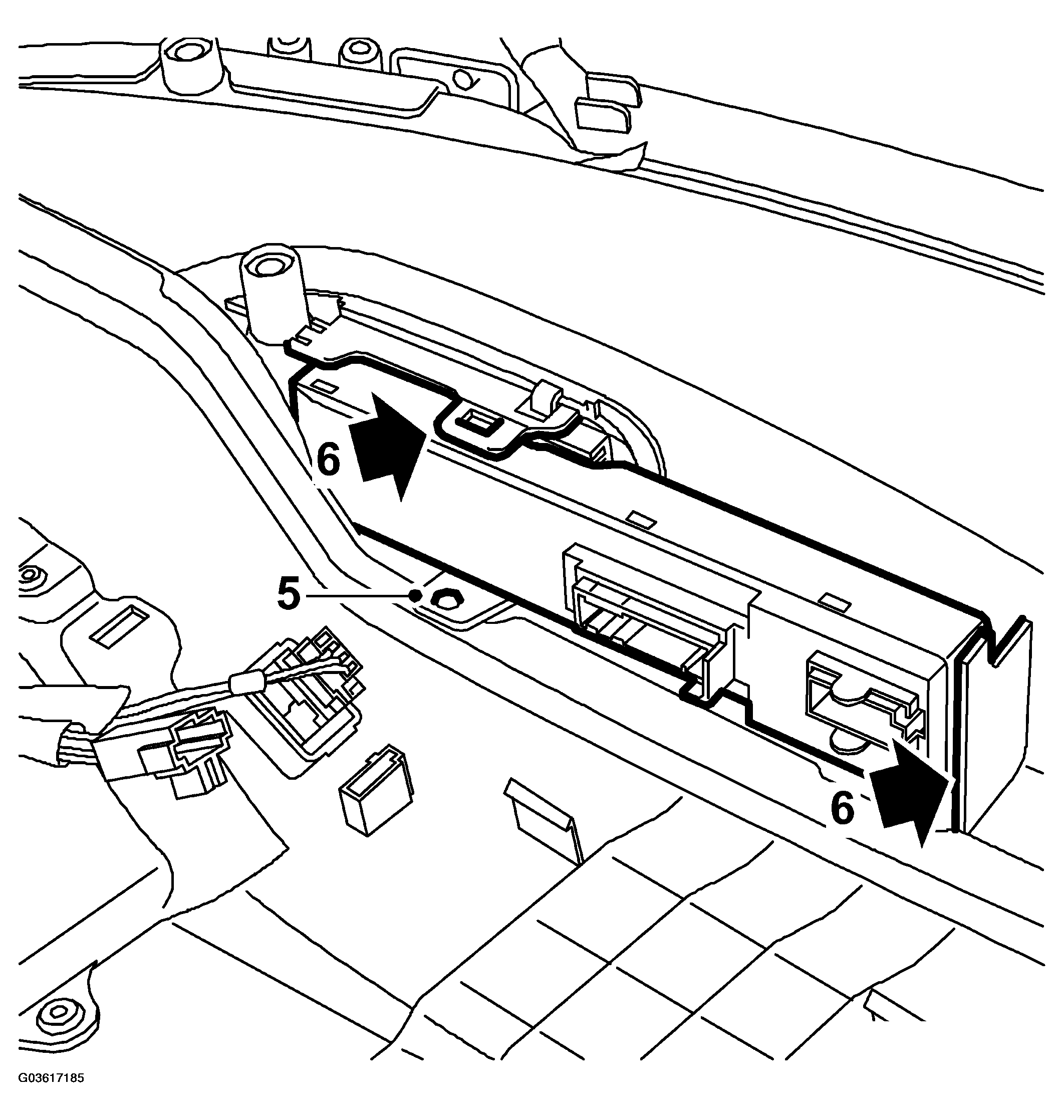

    Fig 1: Illustration For Step 5 And 6
    G03617185Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the door module using a screwdriver. First undo the rear clip.

    Then undo the clips on the outer and inner sides of the door module. Pull the module carefully back/down.
