To fit

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the door module pressing it obliquely upward so that the clip engages.

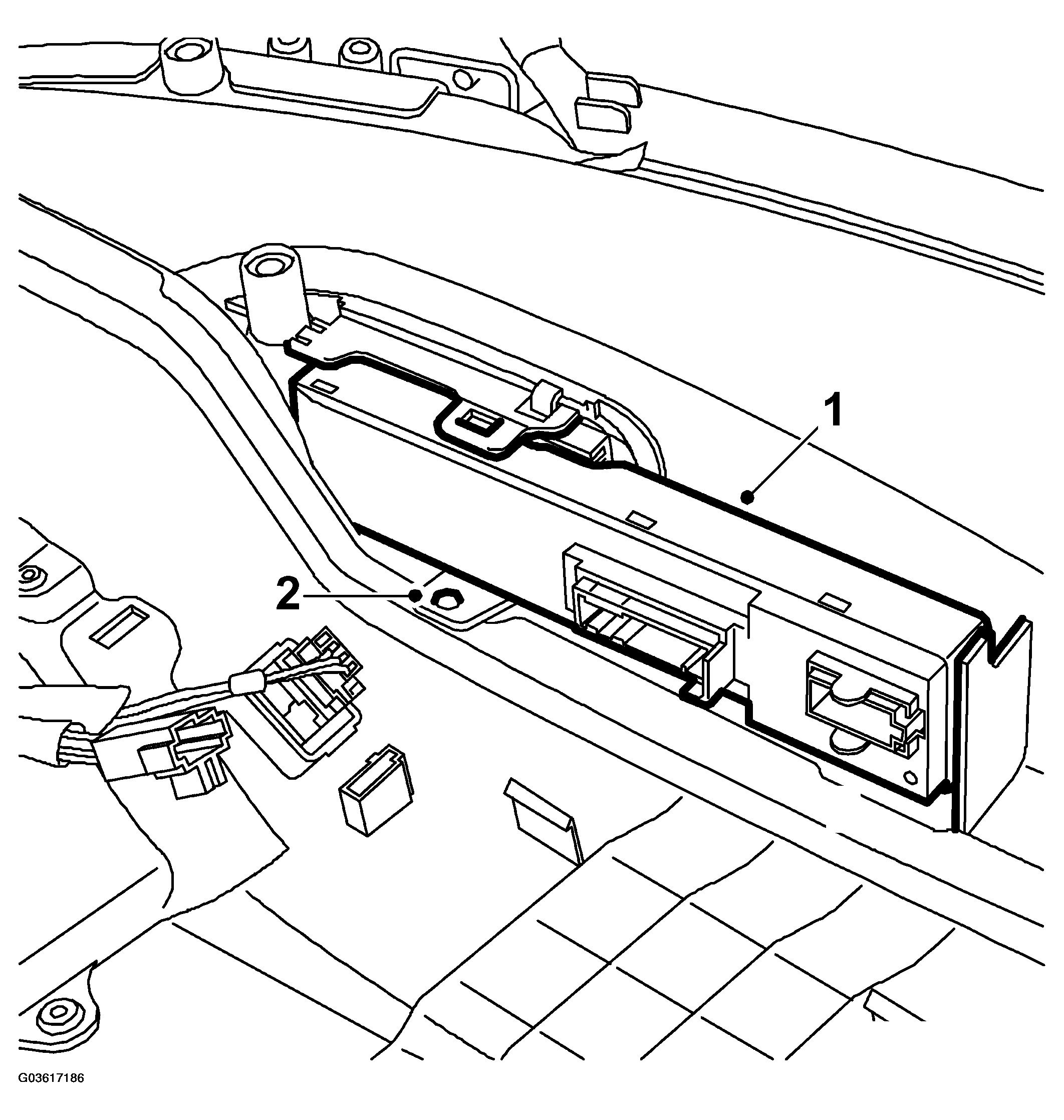

    Fig 1: Illustration For Step 1 And 2
    G03617186Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. When changing the driver door module:  Fit the door trim screw.
  3. When changing the driver door module:  Affix the cell block with double-sided tape.

    The use of 16-30 20 807 is recommended.

  4. Make sure the door trim clips are in place and intact. Replace the clips if necessary.
  5. Fit the door trim.
  6. Cars with pinch protection:  Perform Programming of the pinch protection.
  7. If the control module has been changed  , perform Measures after changing the control module
