To fit

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
  1. Plug in the connector.

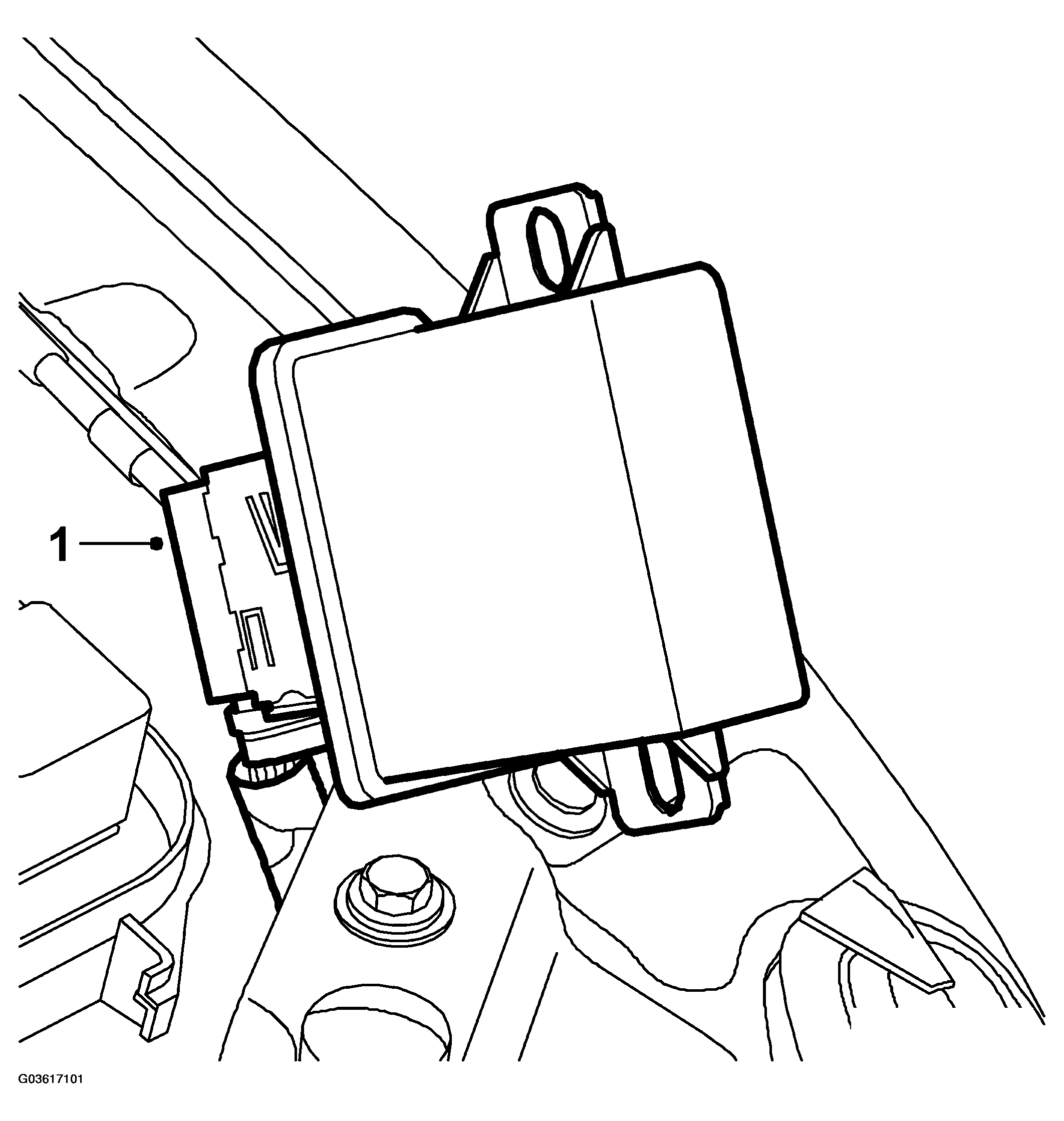

    Fig 1: Illustration For Step 1
    G03617101Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the control module.

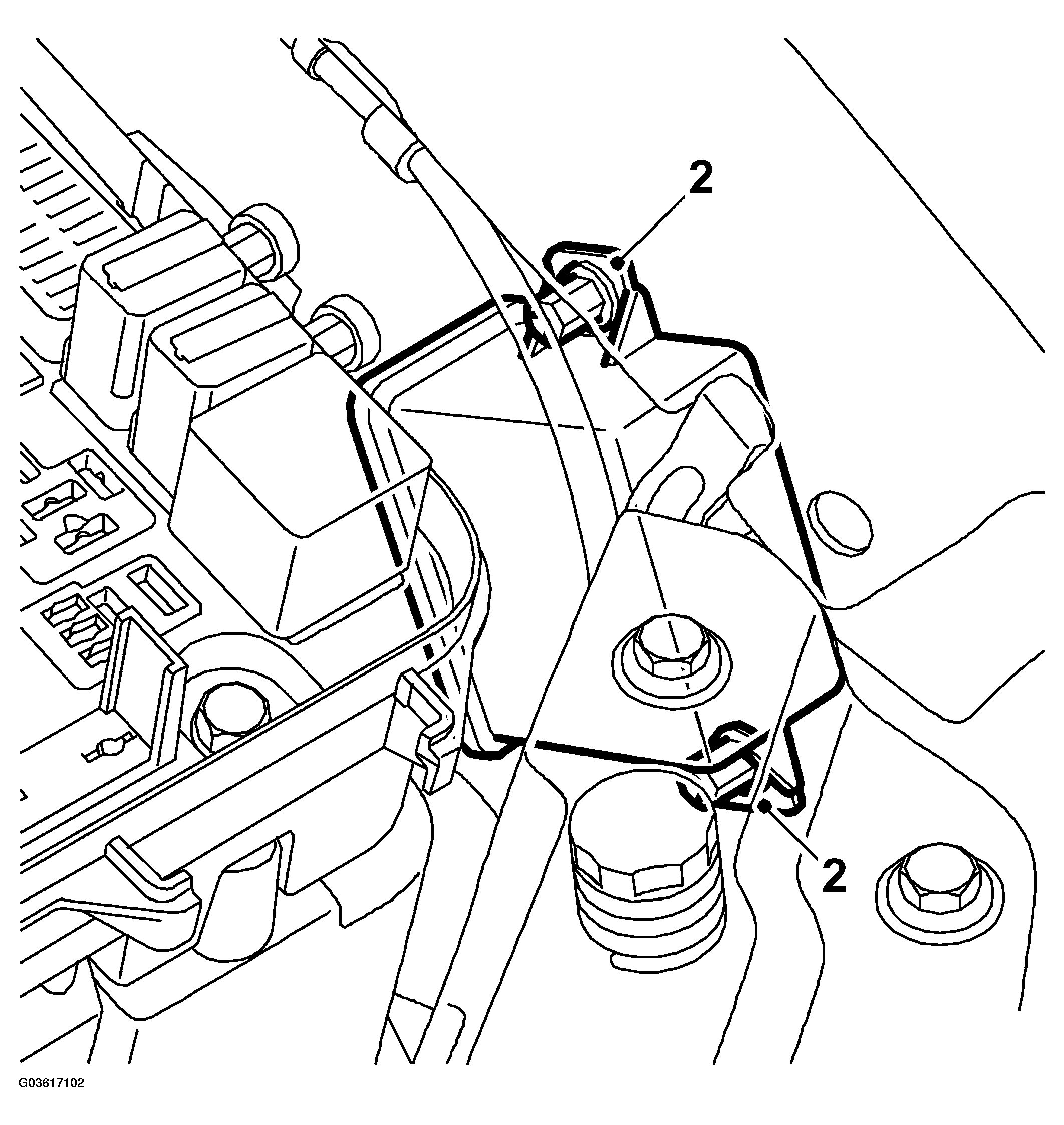

    Fig 2: Illustration For Step 2
    G03617102Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the main fuse box cover.

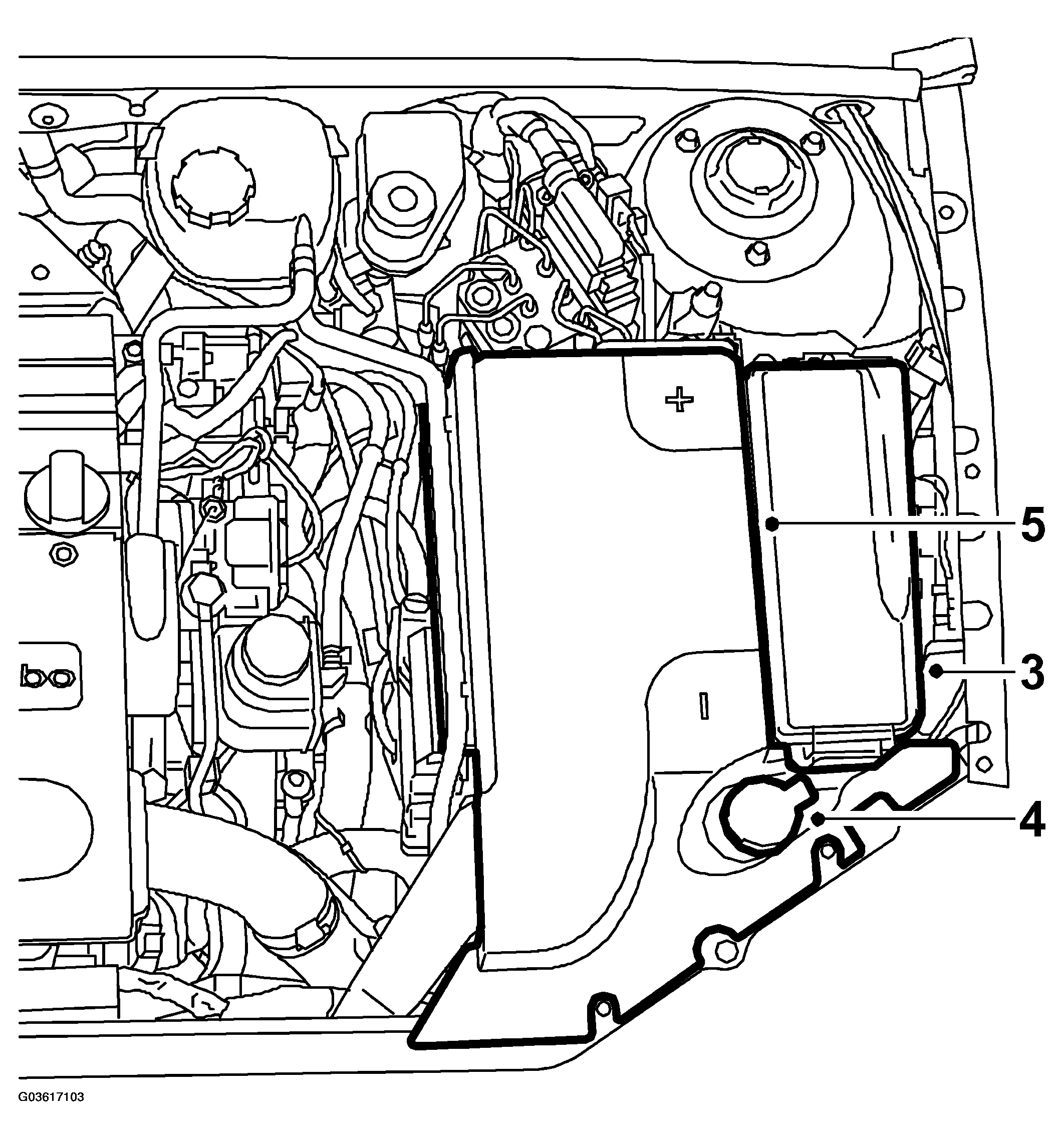

    Fig 3: Illustration For Step 3 To 5
    G03617103Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the filler pipe of the washer reservoir.
  5. Fit the battery cover lid.
  6. Carry out actions after replacement of control module. The control module is calibrated when "Add" is carried out, see calibration of AHL control module using Tech 2.
