To remove

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carry out procedures before removing a control module.
  2. Remove the lower section of the dashboard

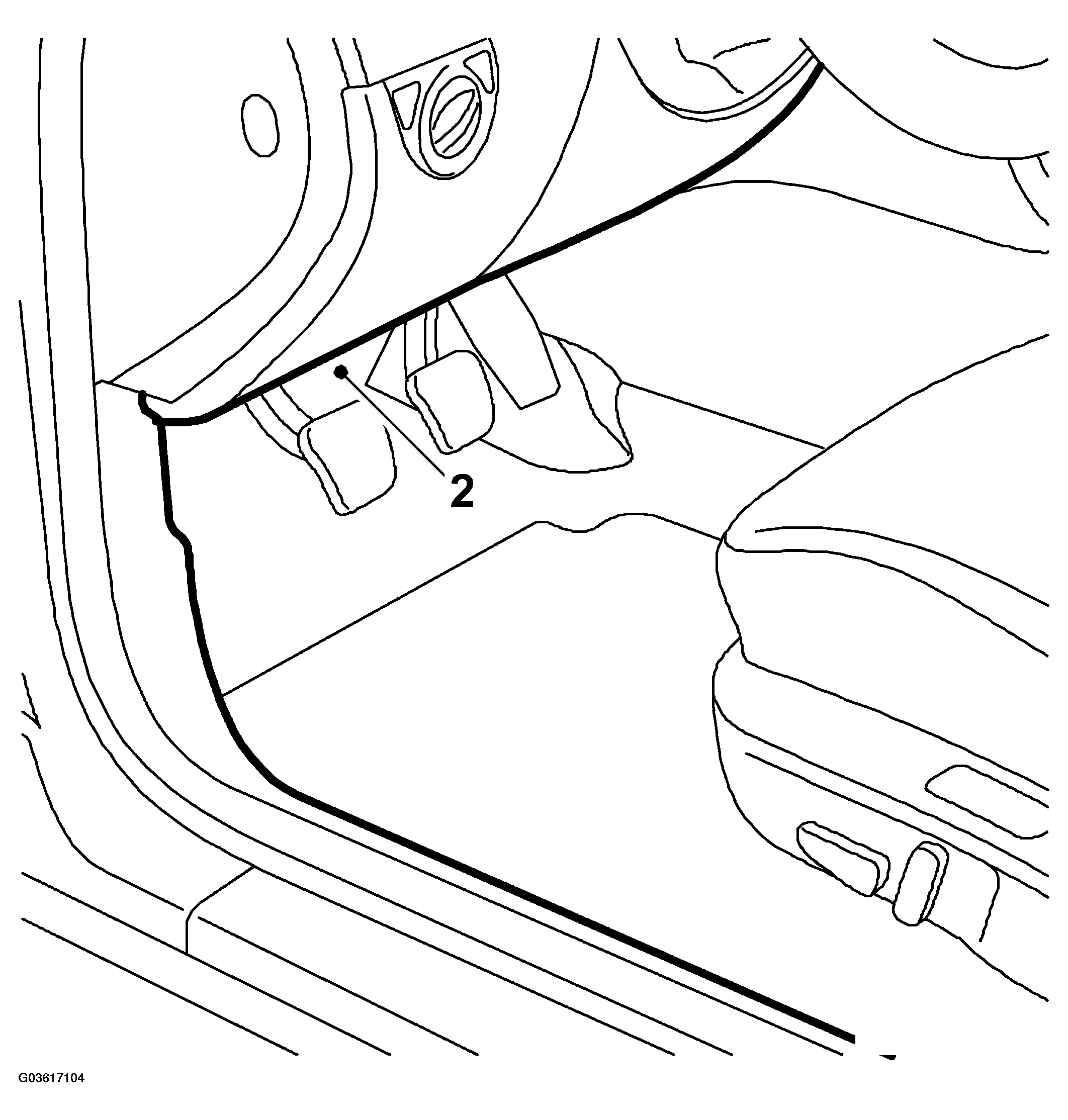

    Fig 1: Illustration For Step 2
    G03617104Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
  3. Unplug the control module connector.

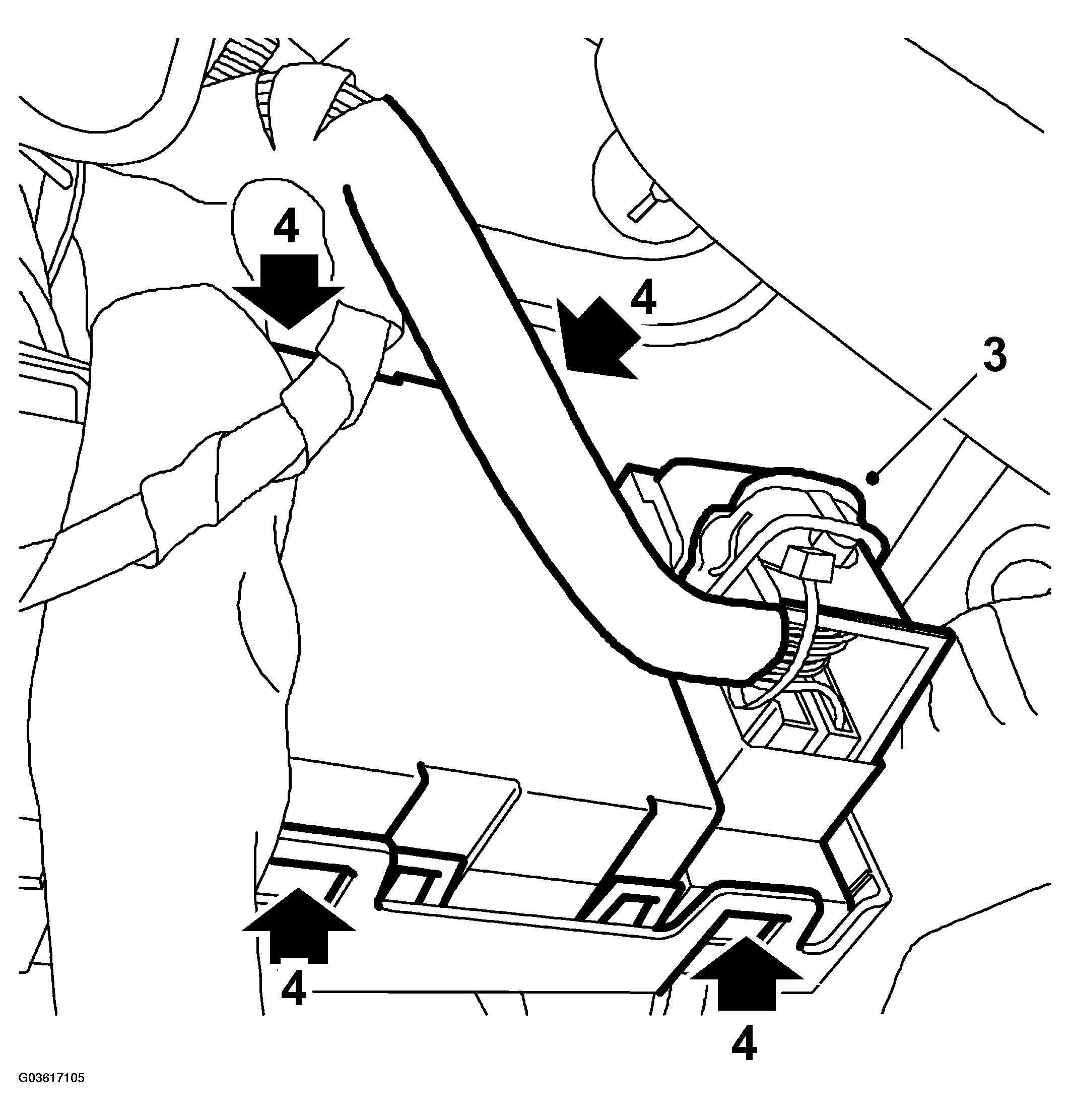

    Fig 2: Illustration For Step 3 And 4
    G03617105Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the control module by pressing in the 4 snap fasteners.
