System reaction to a fault:

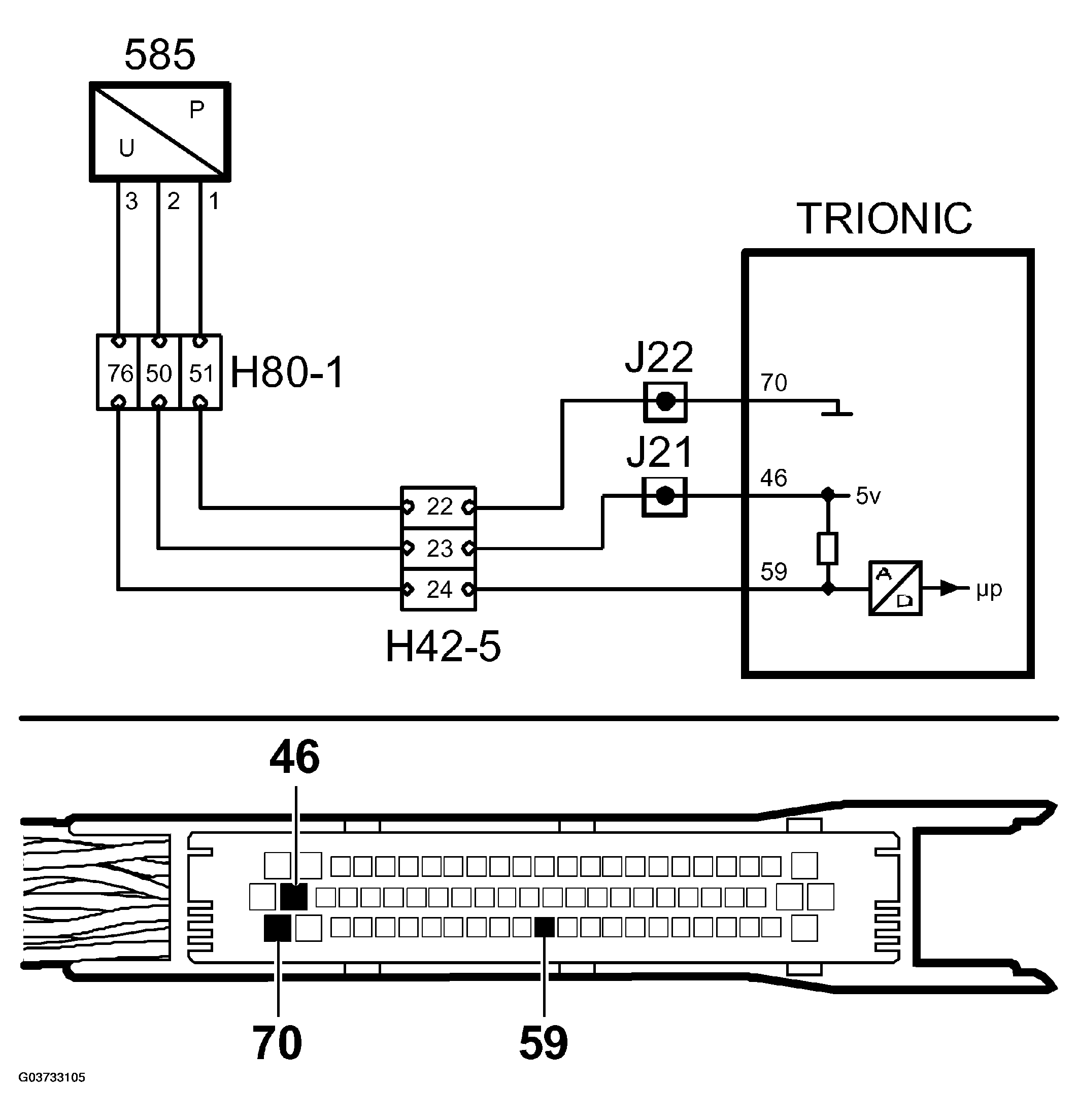

Fig 1: Trionic Circuit Diagram

G03733105

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Integrity diagnosis of purge system blocked. Purge and fuel adaptation blocked.
