Home >> Saab >> 2004 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System >> Fault Diagnosis, Fault Codes >> DTC P1451: EVAP Tank Pressure Sensor - Performance Problem >> Notes

DTC P1451: EVAP Tank Pressure Sensor - Performance Problem: Notes

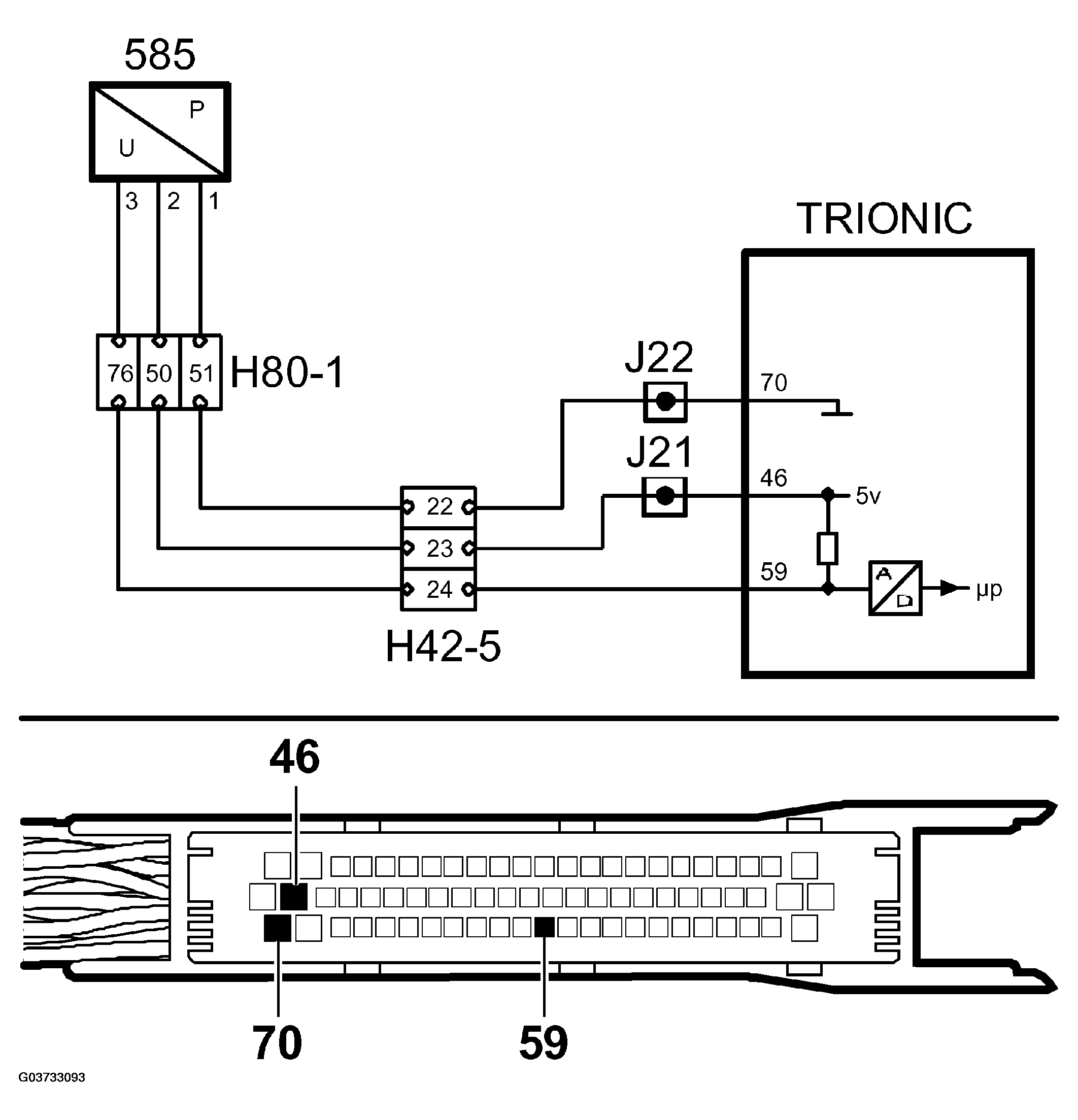

Fig 1: P1451 EVAP Tank Pressure Sensor Circuit Diagram

G03733093

Courtesy of SAAB-SCANIA OF AMERICA, INC.
