Home >> Saab >> 2004 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System >> Fault Diagnosis, Fault Codes >> DTC P1310: Ignition Discharge Module Not Powered - Bank 1 >> Notes

DTC P1310: Ignition Discharge Module Not Powered - Bank 1: Notes

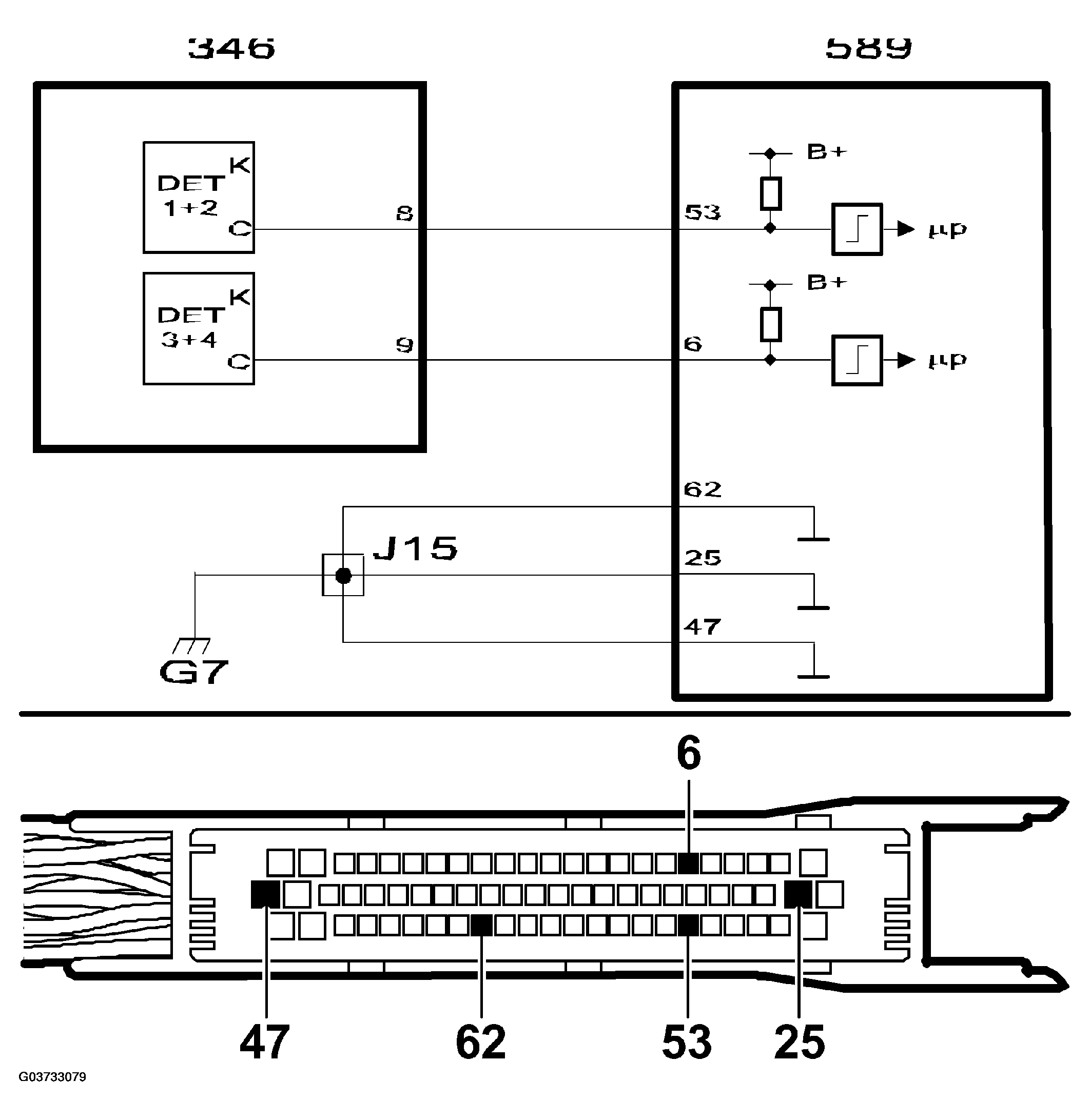

Fig 1: Identifying P1310 Ignition Discharge Module

G03733079

Courtesy of SAAB-SCANIA OF AMERICA, INC.
