DTC P0125: Excessive Time to Enter Closed Loop Fuel Control: Notes

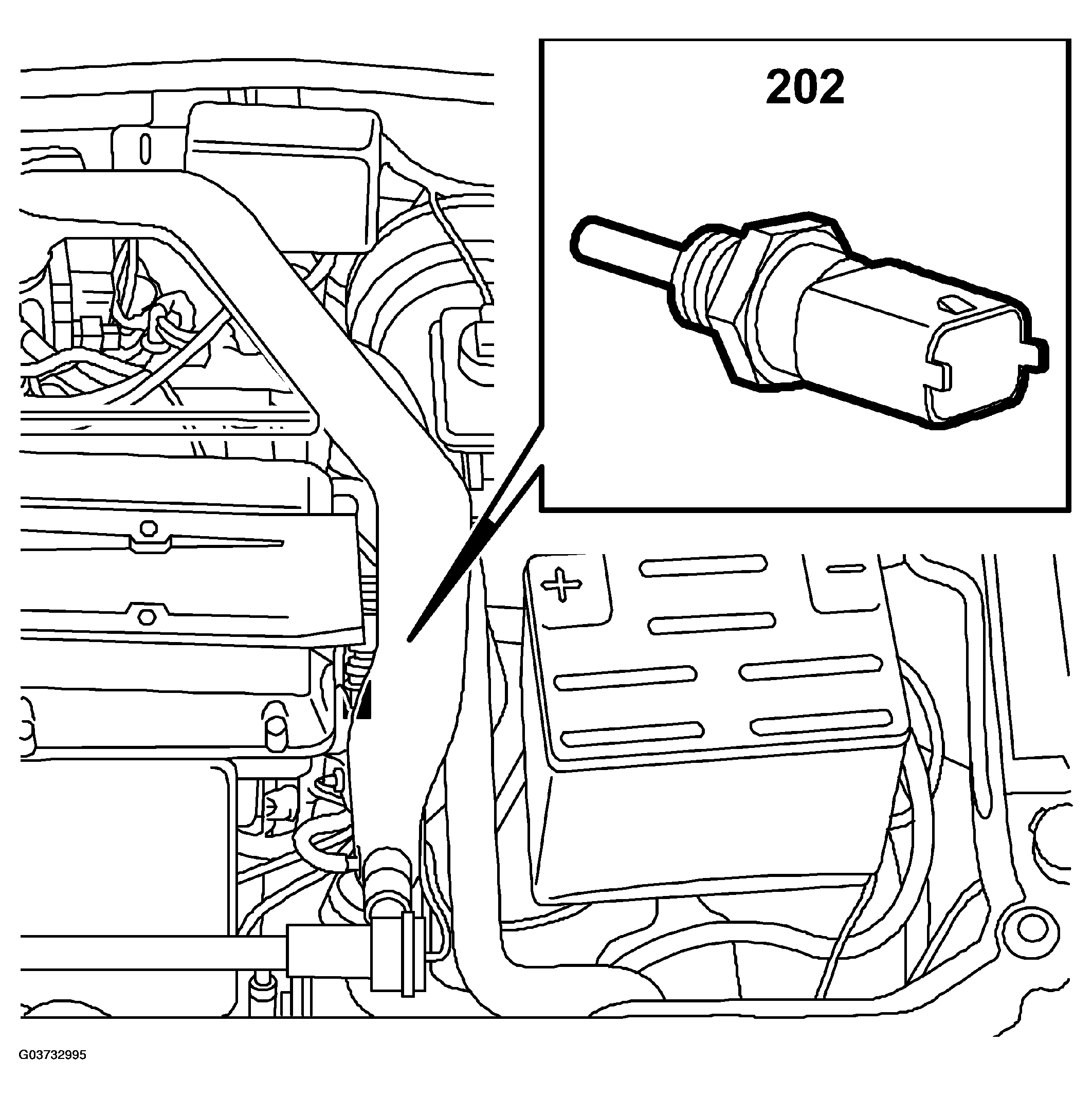

Fig 1: Identifying Coolant Temperature Sensor
G03732995Courtesy of SAAB-SCANIA OF AMERICA, INC.

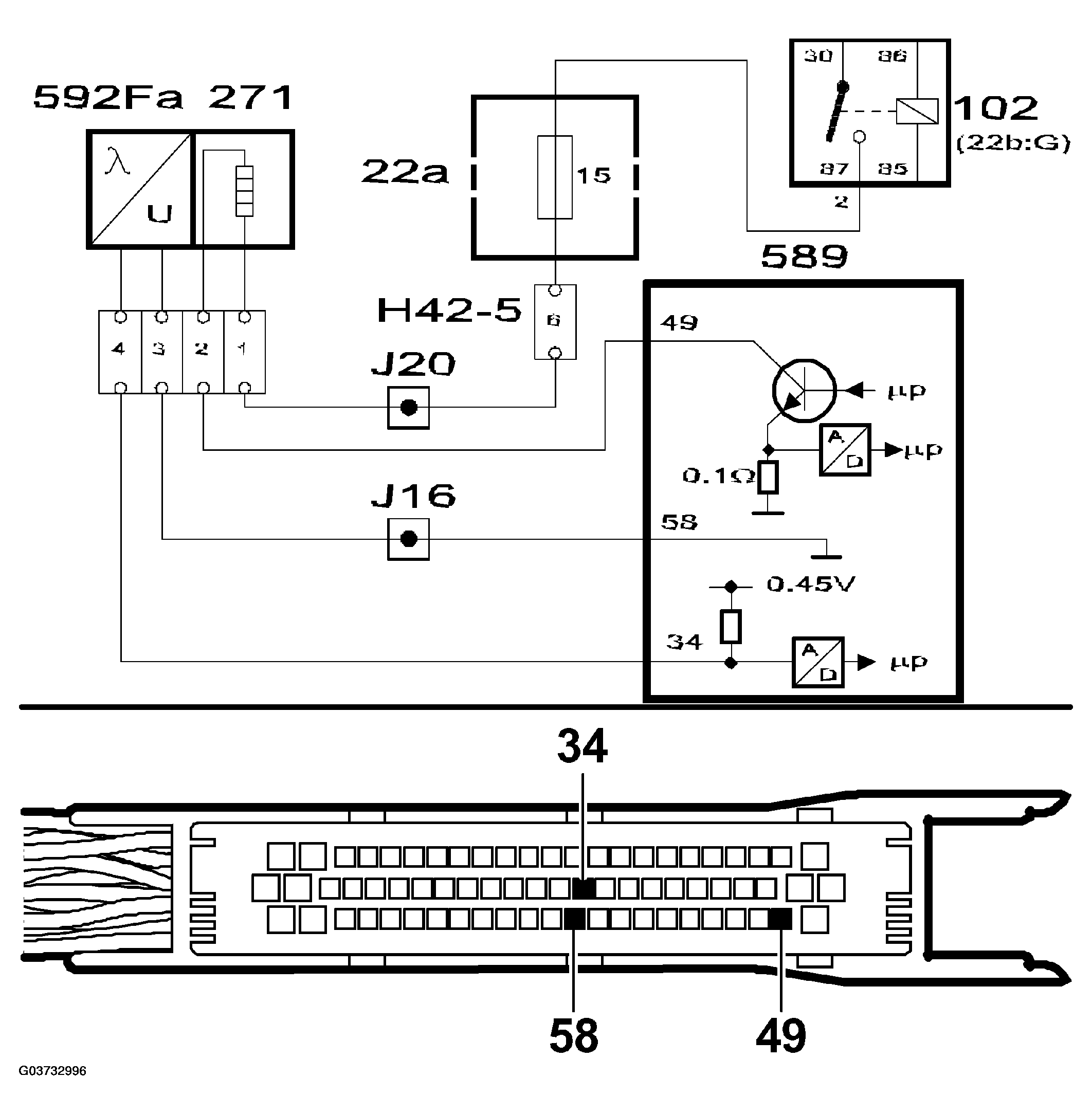

Fig 2: P0125 Excessive Time To Enter Closed Loop Fuel Control - Circuit Diagram
G03732996Courtesy of SAAB-SCANIA OF AMERICA, INC.
