Fuel pressure regulator, test readings

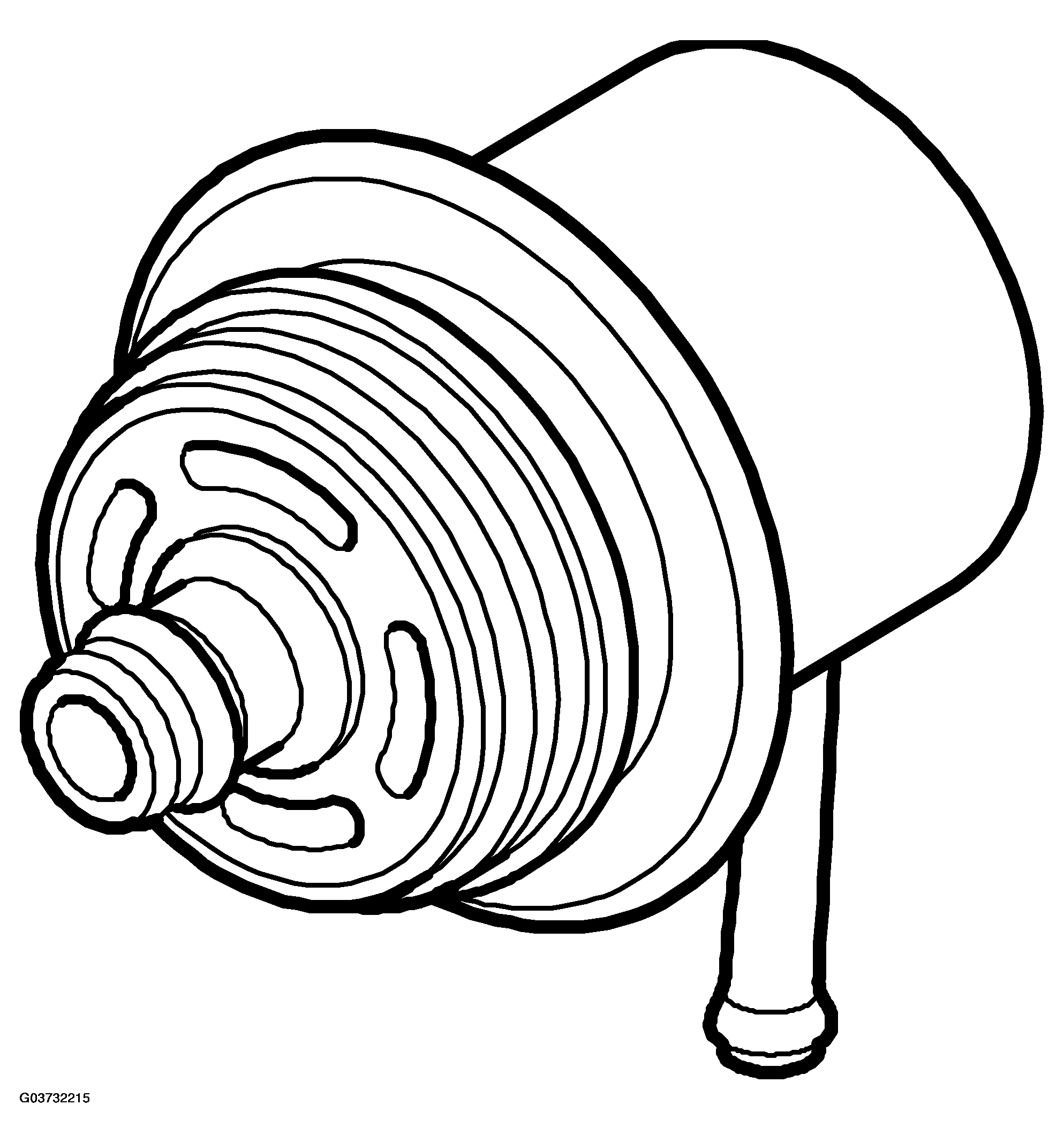

Fig 1: Identifying Fuel Pressure Regulator, Test Readings
G03732215Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL PRESSURE REGULATOR DESCRIPTION

System pressure bar (psi) 3,0 (43)
