To remove

  1. Cover the wings and remove the top engine cover.
  2. Fit 83 94 850 LIFTING BEAM  and take up the weight of the engine via the lifting eye.

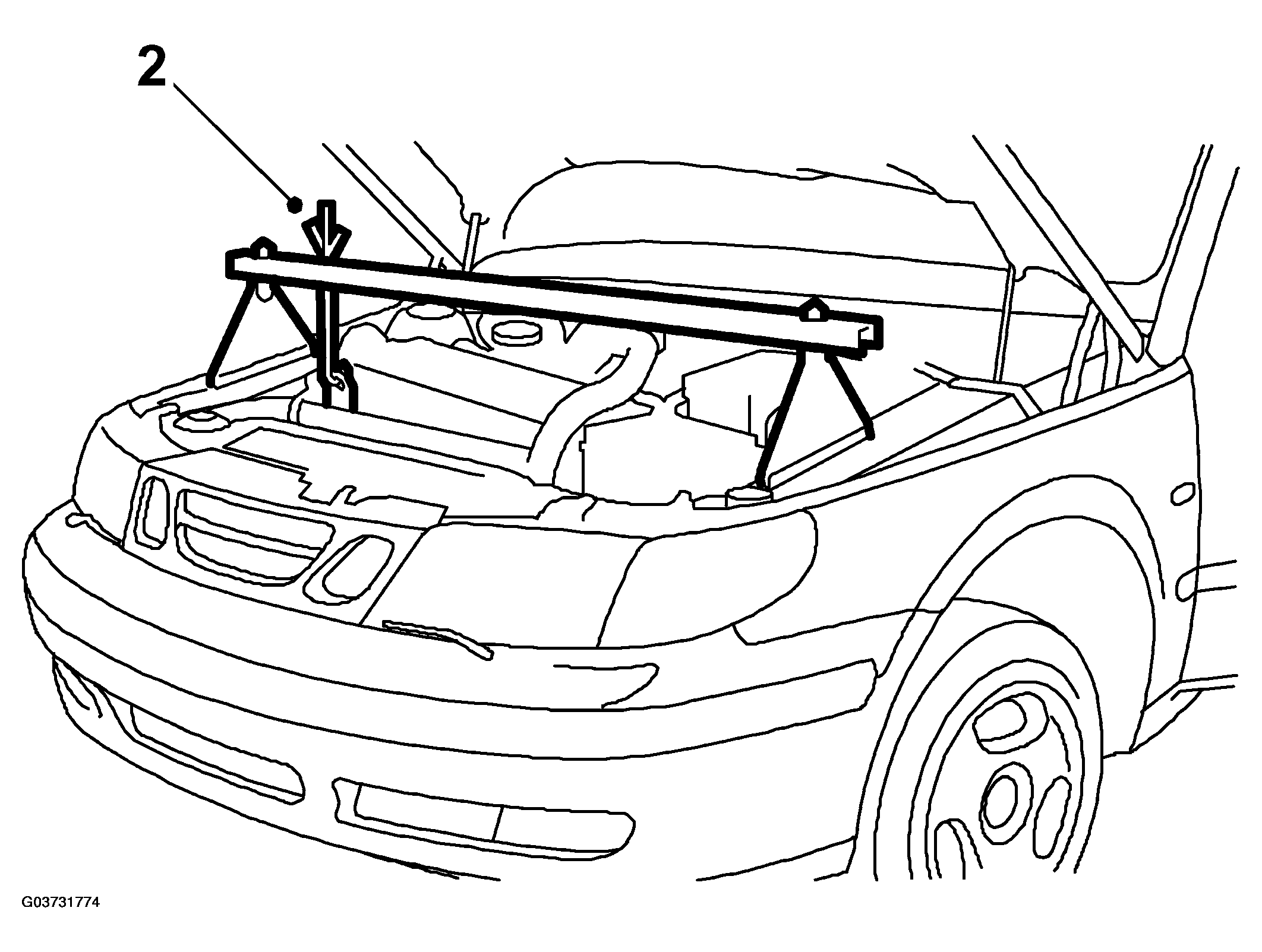

    Fig 1: Illustration For Step 2
    G03731774Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Detach the power steering hose from the clip under the engine mounting.
  4. Remove the engine mounting.

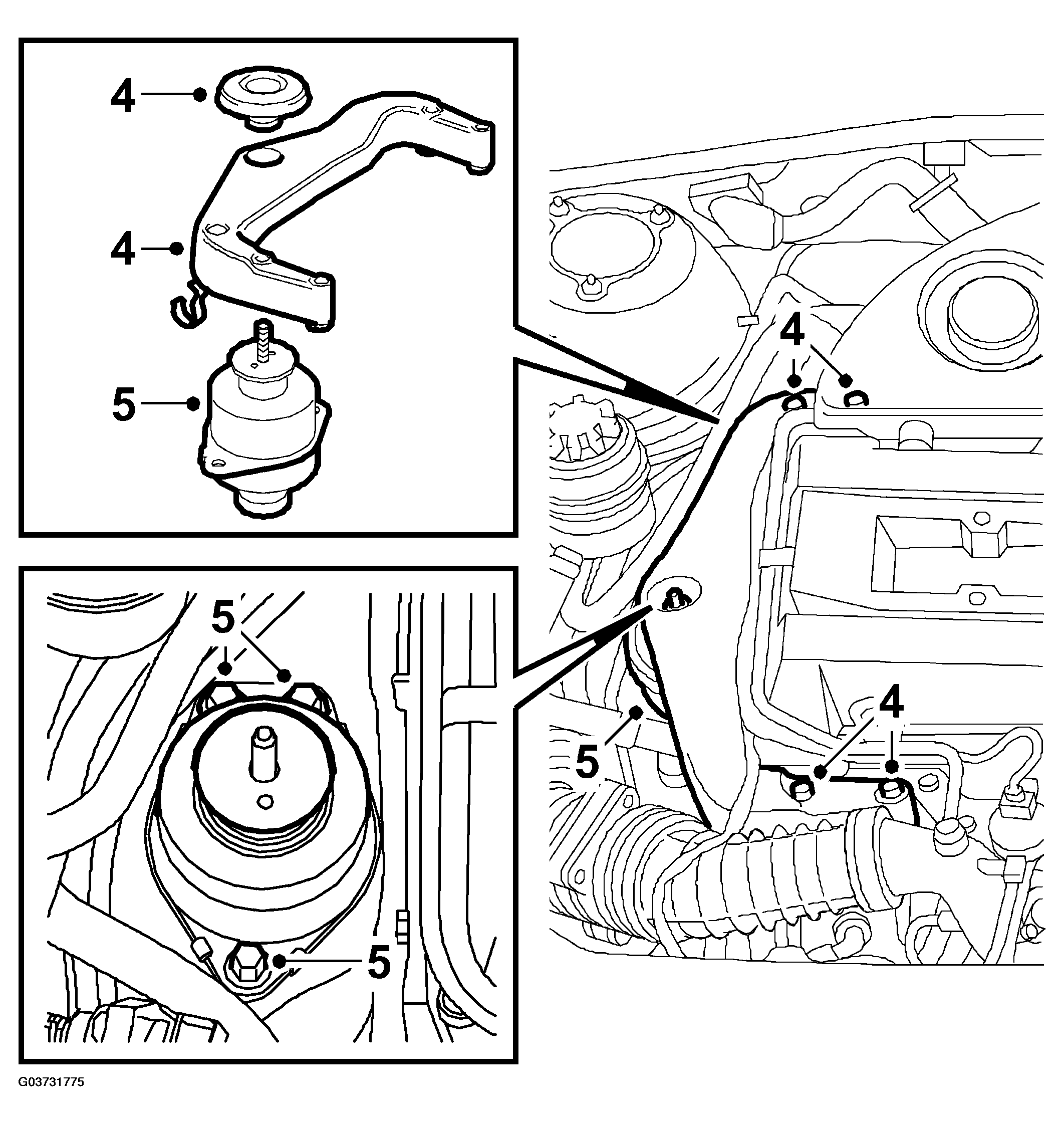

    Fig 2: Illustration For Steps 4-5
    G03731775Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the engine pad.
