Starter motor for 4-cyl diesel engine: Notes

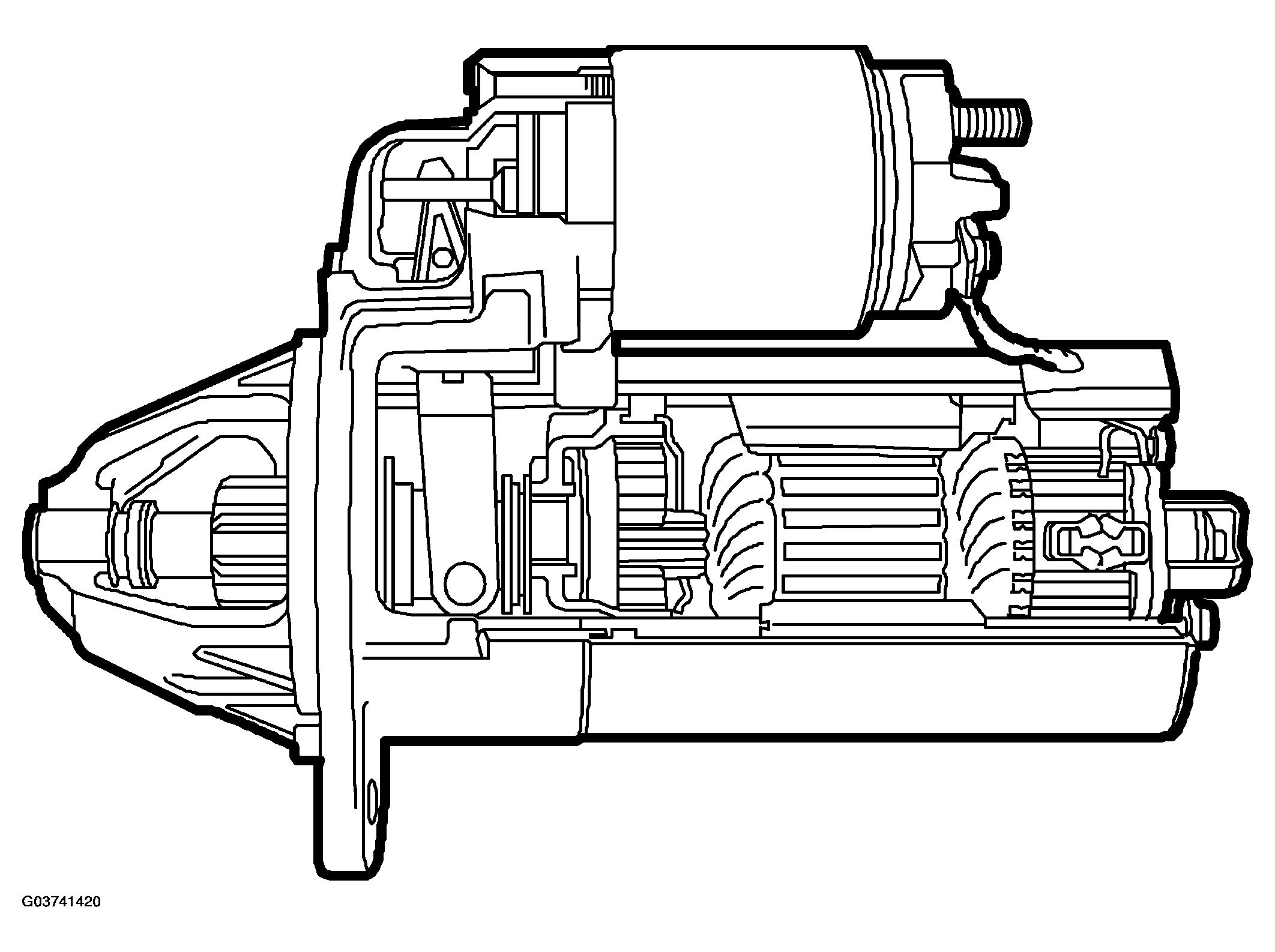

Fig 1: Identifying Starter Motor For 4-Cyl Diesel Engine

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA SPECIFICATION

Type designation	Bosch DW 12V 0 001 109 015
Power	2,0 kW
No. of teeth on starter motor pinion	10
Number of teeth on ring gear	135
Ratio engine/starter motor	13,5:1
