Main components, interior lighting 5D

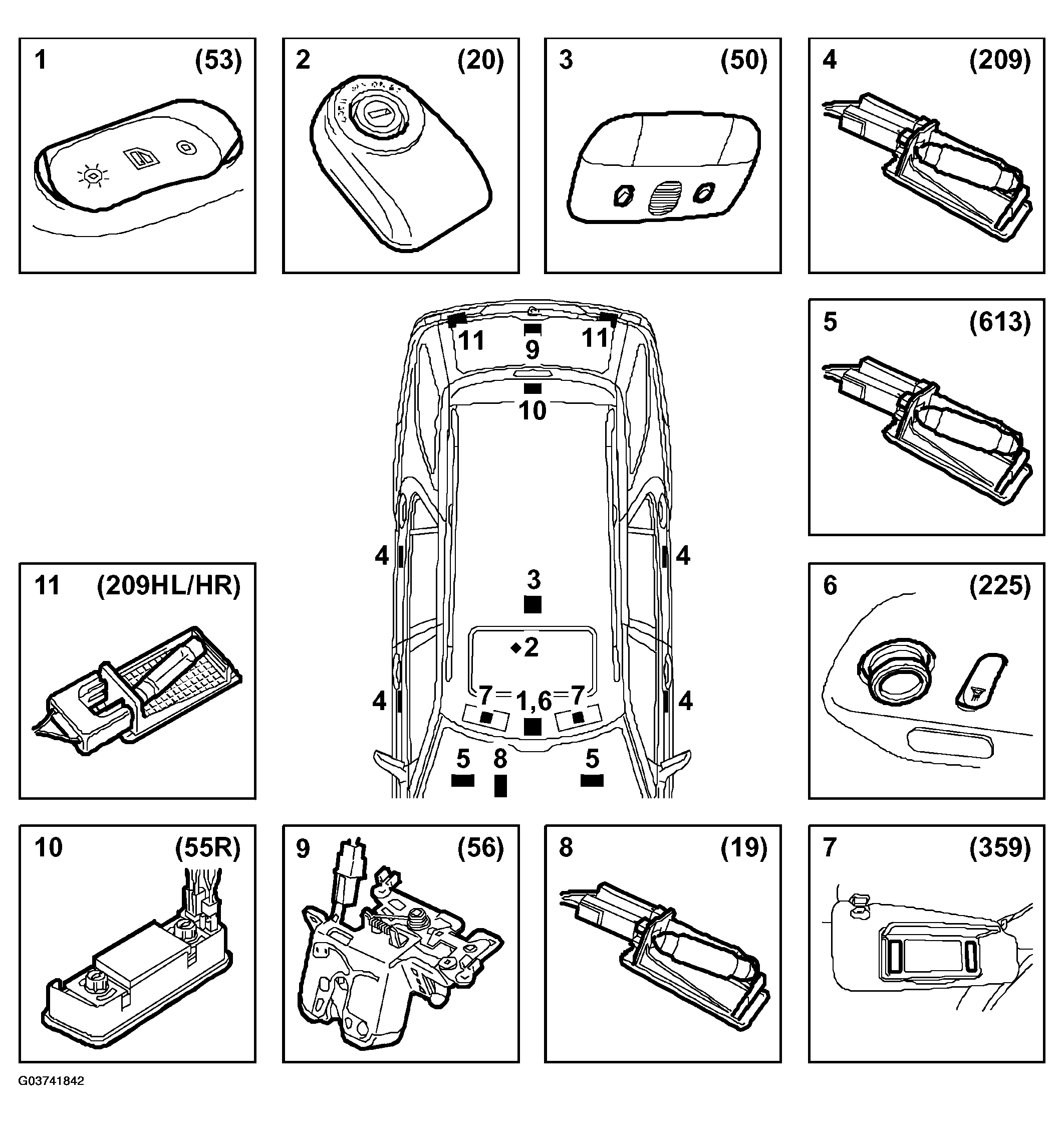

Fig 1: Identifying Interior Lighting 5D Main Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Interior lighting switch (53)
2. Ignition switch (20)
3. Center roof lamp (50)
4. Courtesy lights (209)
5. Front floor lighting (613)
6. Reading light (225)
7. Vanity mirror lighting (359)
8. Glove box light (19)
9. Luggage compartment light switch (56)
10. Luggage compartment lighting (55)
11. Tailgate illumination (209 HL/HR)
