Grounding point, G41P
>>
Notes
Grounding point, G41P: Notes

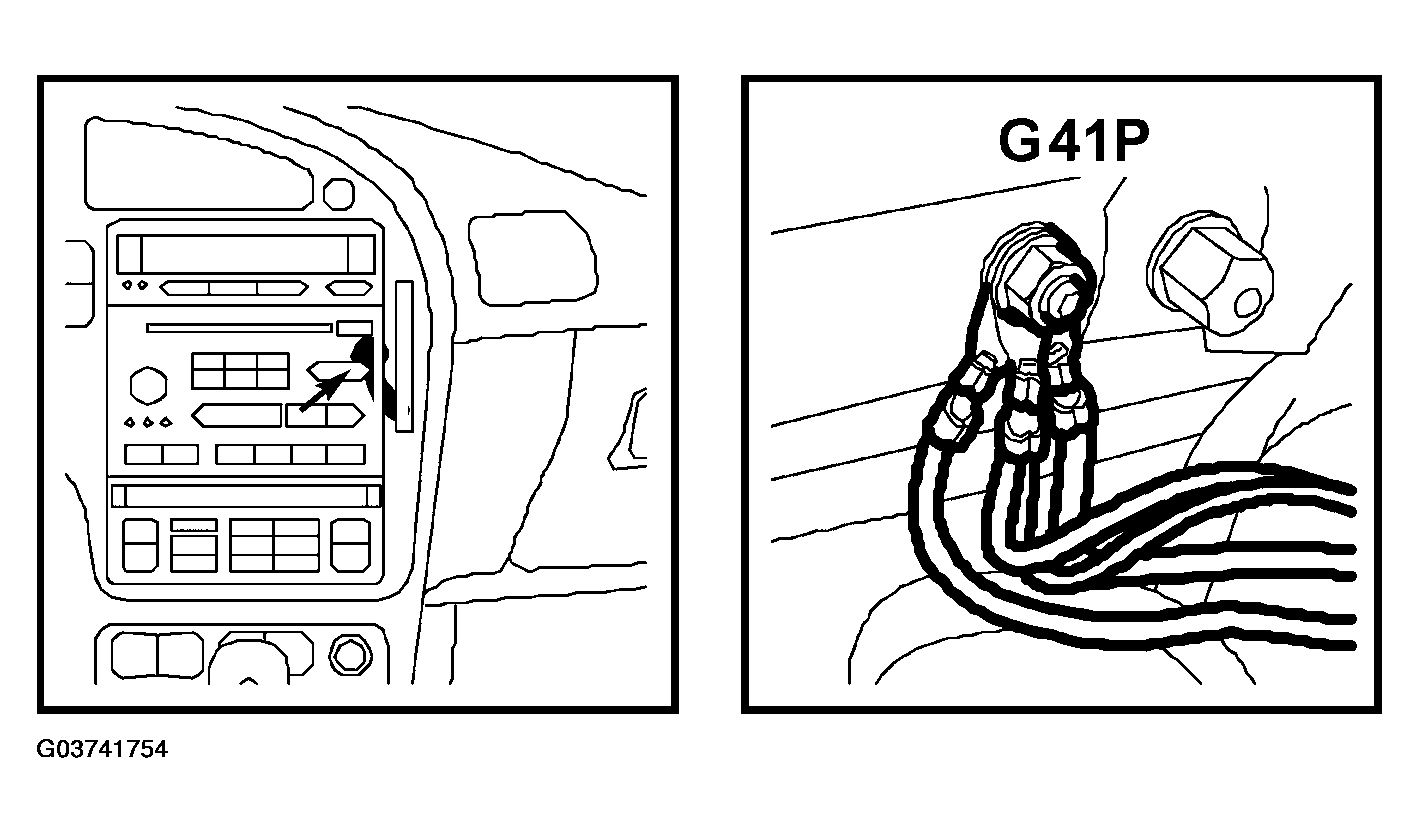

Fig 1: Identifying Grounding Point, G41P
Courtesy of SAAB-SCANIA OF AMERICA, INC.

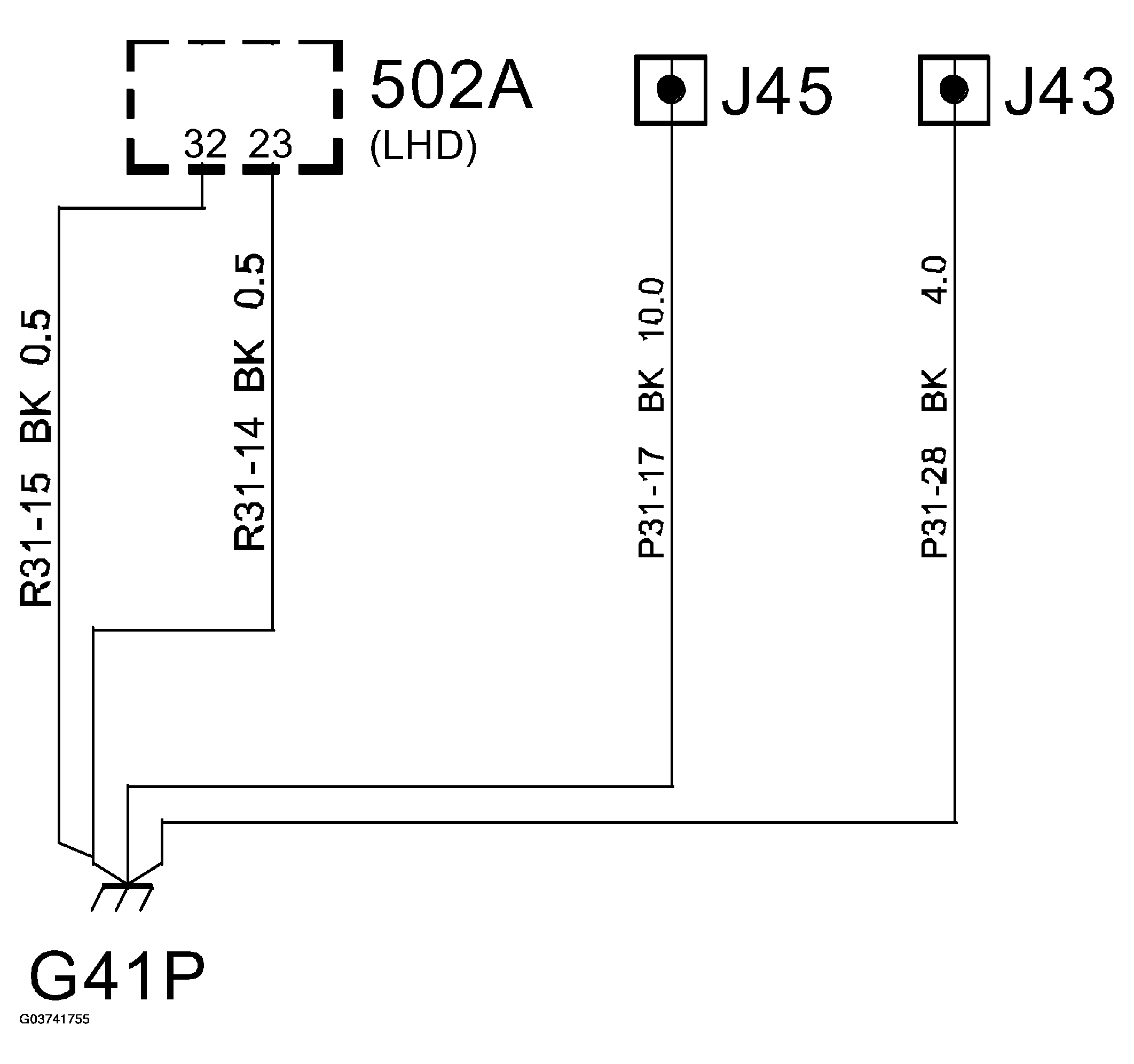

Fig 2: Wiring Diagram - Grounding Point, G41P
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
