Emblems 5D

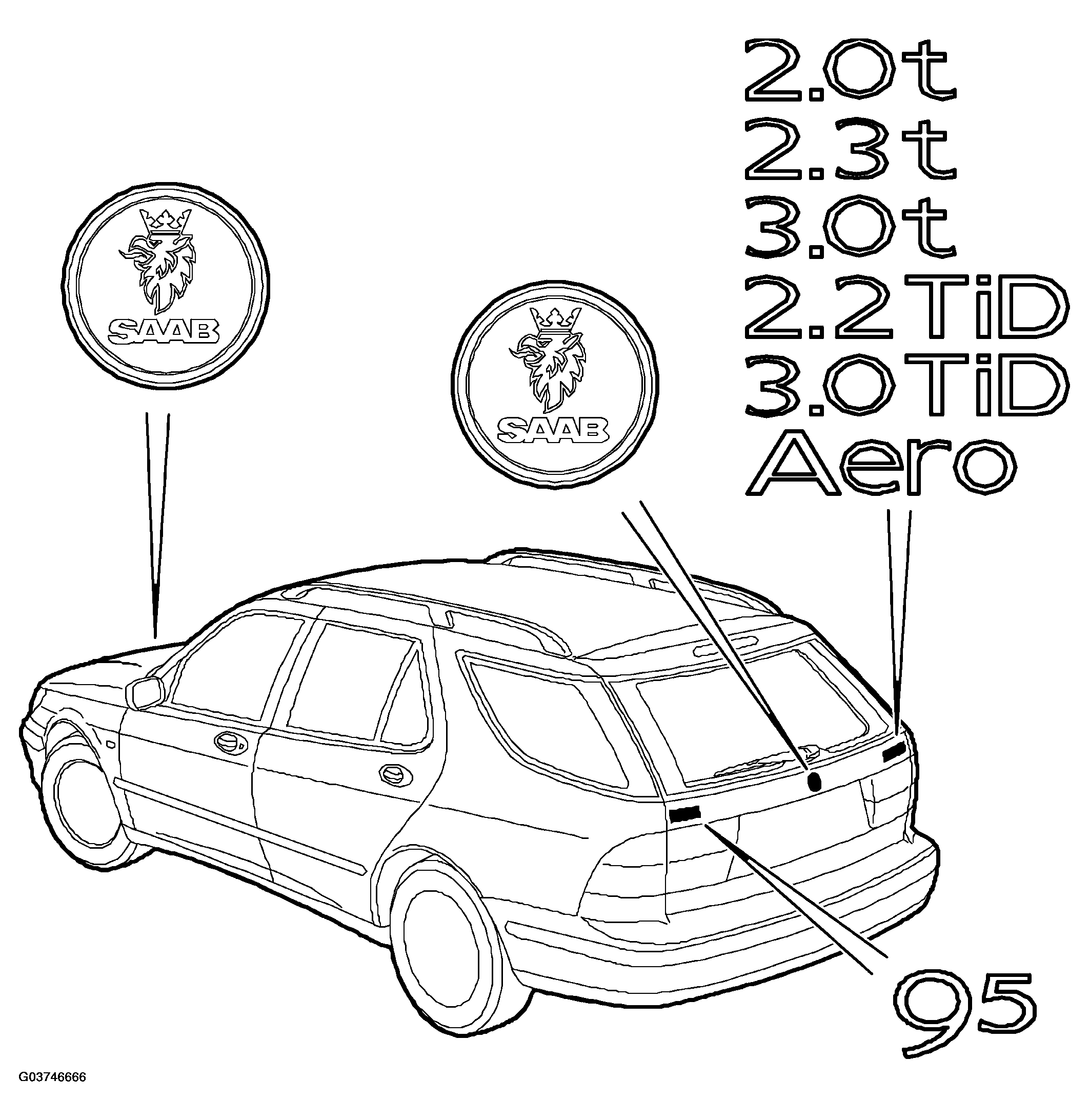

Fig 1: Locating Emblems 5D

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The emblems on the Saab 9-5 5D are attached in the same manner as on the 4D 9-5, with doublesided adhesive tape.

The emblems are fitted the same way as on 4D. The 9-5 emblem is on the LH side of the tailgate and the engine variant emblem is on the RH side. Carefully follow measurement instructions when fitting the emblems on the tailgate. See EMBLEMS, 5D TAILGATE  .

First clean the body thoroughly with benzine before mounting the emblems on the tailgate.
