Emblems 4D

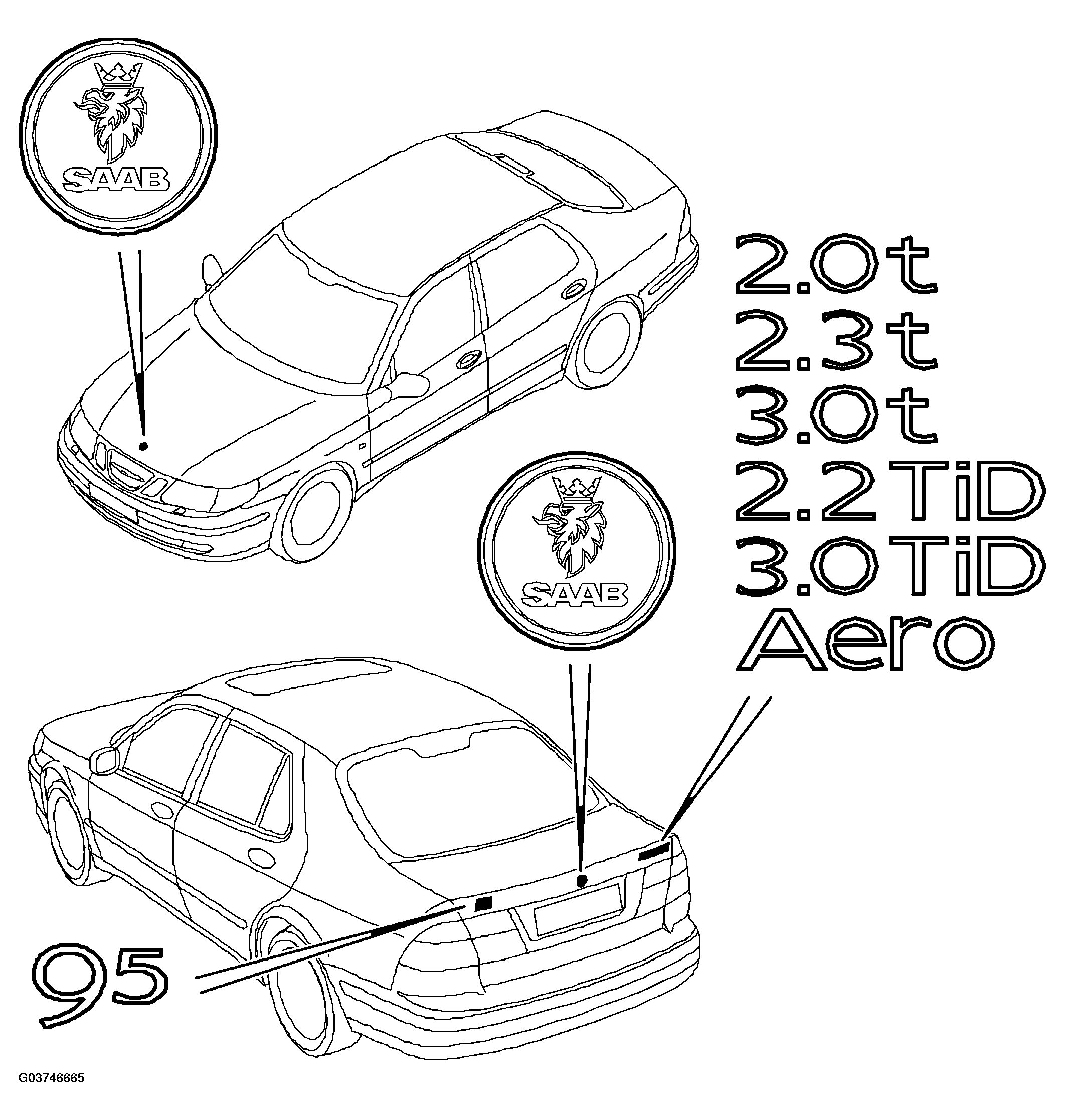

Fig 1: Locating Emblems 4D

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The emblems on the bonnet and boot lid are fixed with double-sided tape.

The 9-5 emblem is fitted on the LH side of the boot lid and the engine variant emblem is on the RH side. Carefully follow measurement instructions when fitting the emblems on the boot lid. see EMBLEM, 4D BOOT LID  .

It is important that the bodywork is cleaned with pure benzine before mounting emblems on the boot lid.
