To remove

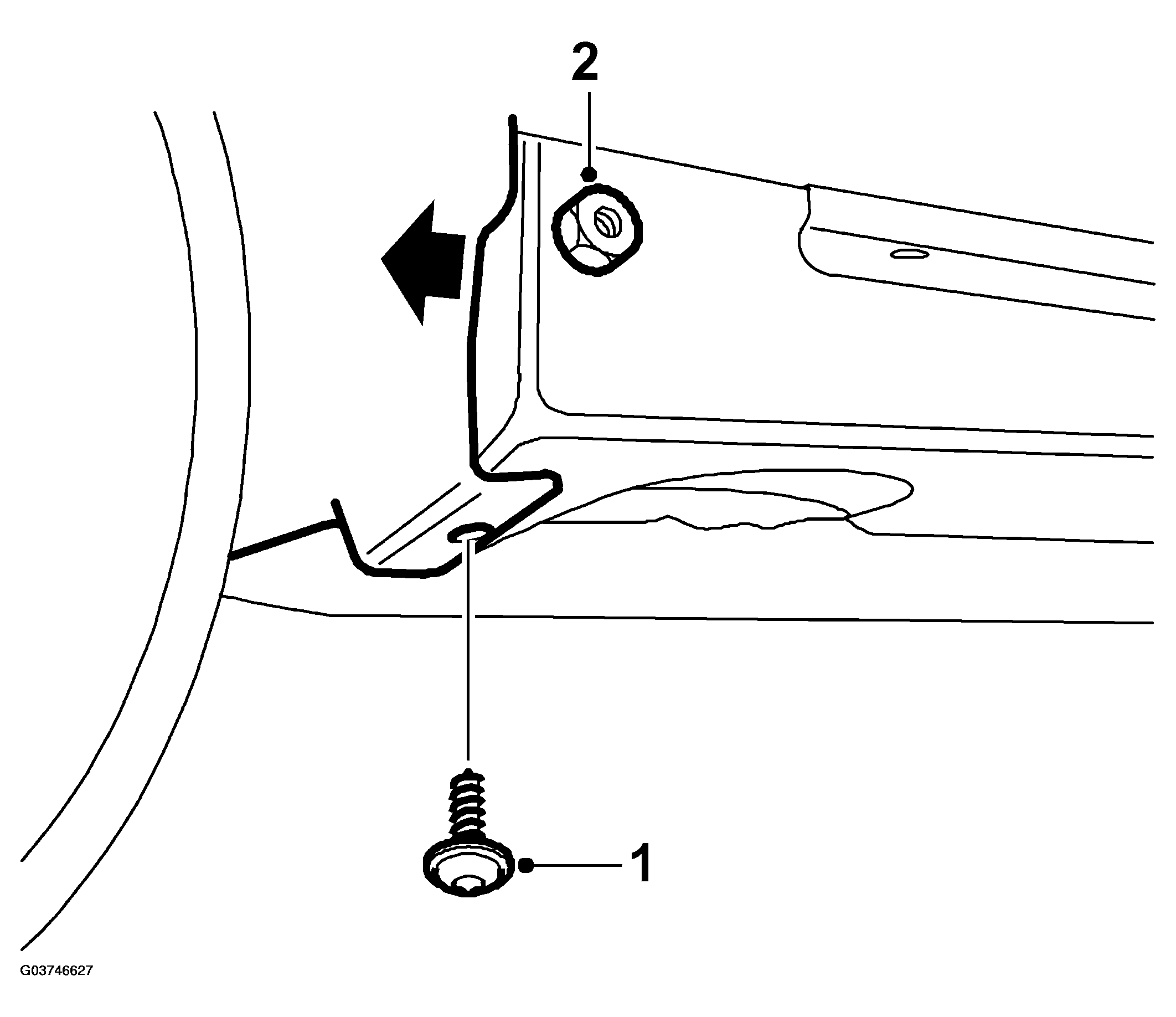

Fig 1: Illustration For Steps 1-2
G03746627Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the screw securing the front wing liner to the scuff plate.
  2. Unscrew the nut holding the scuff plate to the front wing.
  3. Remove the rubber strip.

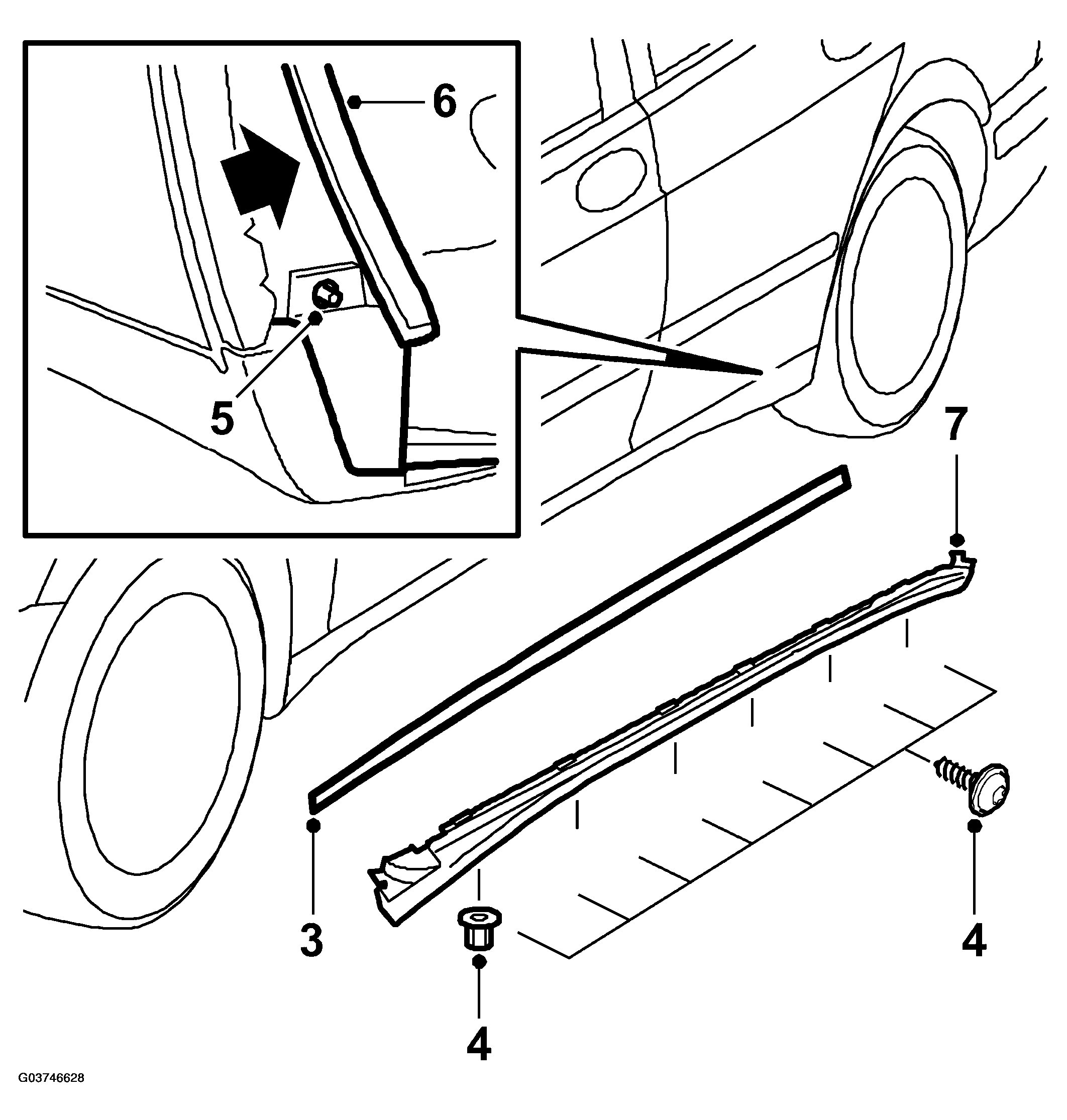

    Fig 2: Illustration For Steps 3-7
    G03746628Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the screws and plastic nuts securing the scuff plate to the body.
  5. Remove the lower front plastic nut on the rear wing liner.
  6. Pry out the front edge of the wing liner and scuff plate so that the scuff plate comes away from the screw.
  7. Lift away the scuff plate.
