Home >> Saab >> 2004 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Exterior >> Adjustment-Replacement >> Lower grille >> To remove

To remove

  1. Raise the car.
  2. Remove the spoiler shield.

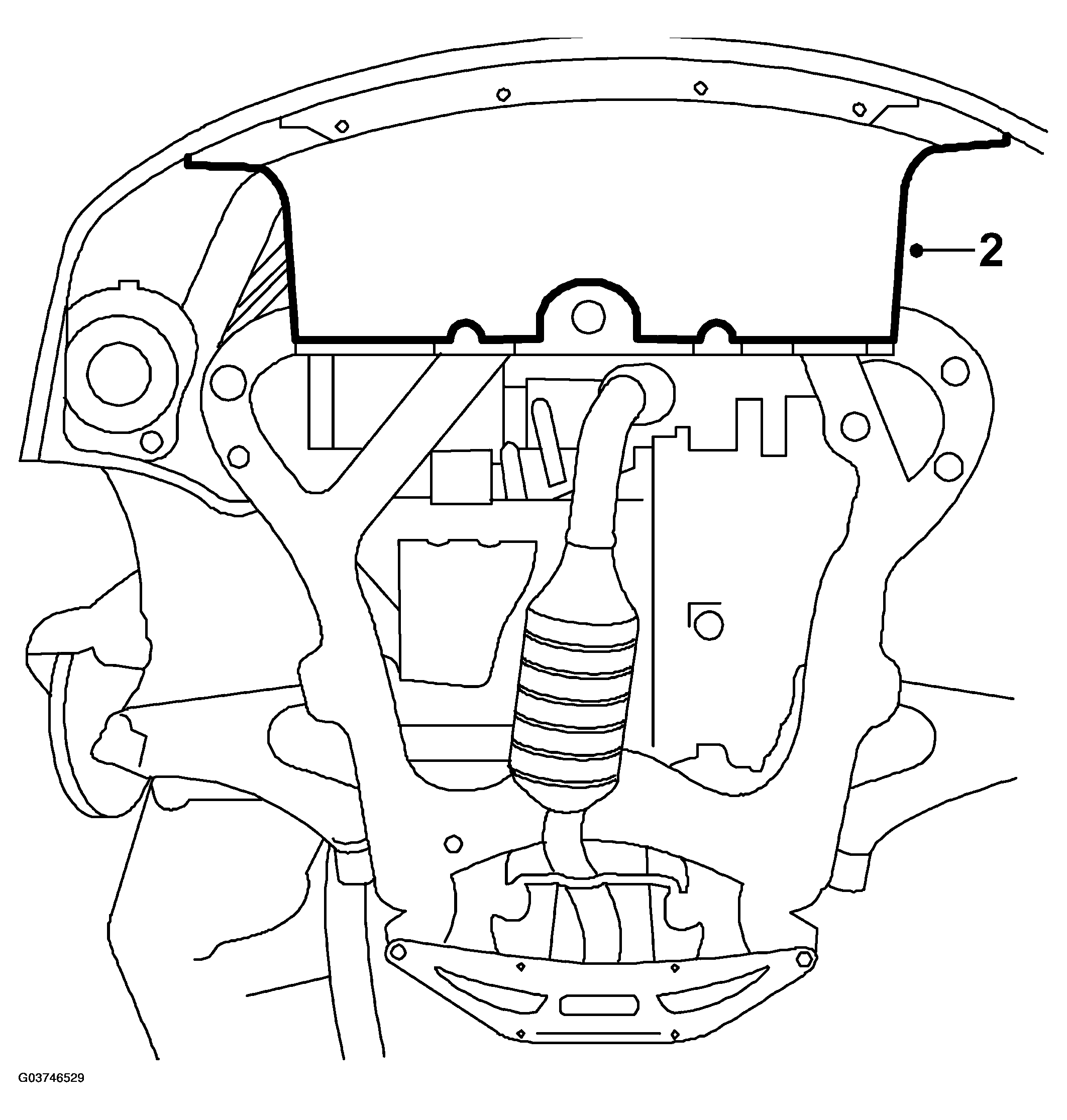

    Fig 1: Illustration For Steps 2
    G03746529Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Detach the temperature sensor.

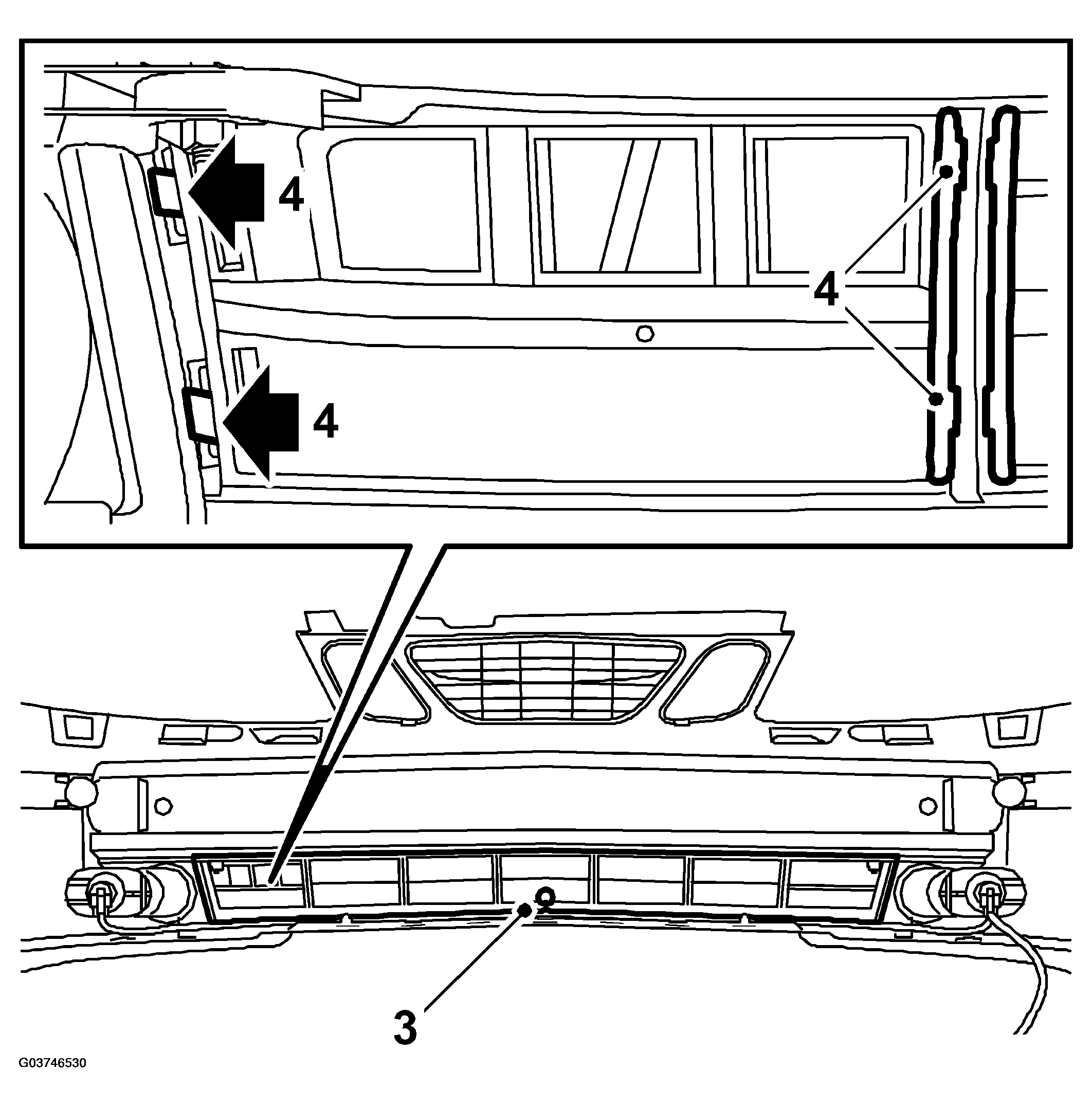

    Fig 2: Illustration For Steps 3-4
    G03746530Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Begin by loosening the clips on one side by pressing them in with a screwdriver. Then continue with the other grille clips.
  5. Carefully lift out the grille.
