Home >> Saab >> 2004 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Exterior >> Adjustment-Replacement >> Front wing liners >> To remove

To remove

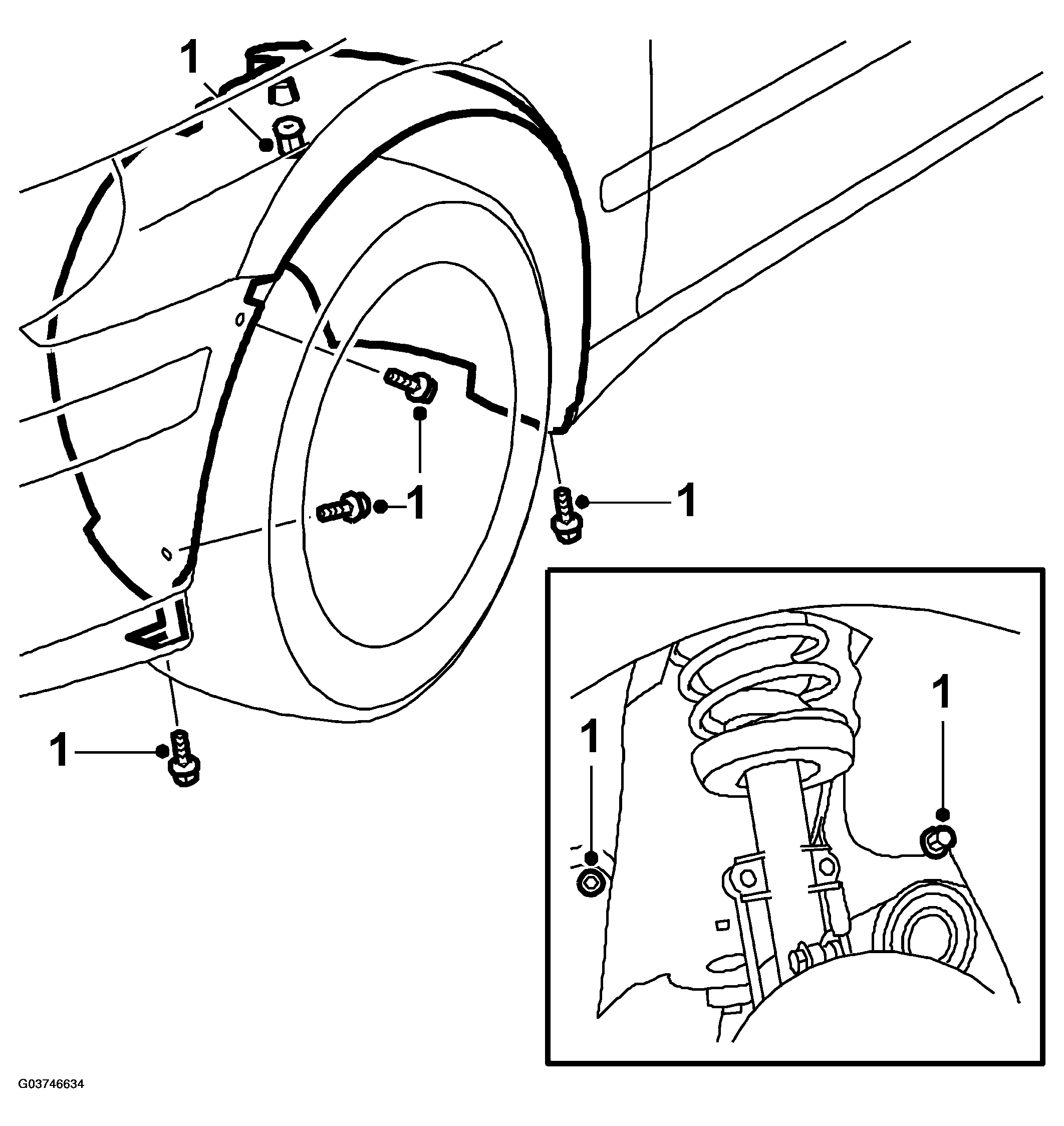

Fig 1: Illustration For Steps 1
G03746634Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the wing liner retaining bolts and plastic nuts.
  2. Press in the wing liner so that it comes loose from the wheel arch.
  3. Remove it from the wheel housing.
