To remove

  1. Remove the number plate, if fitted.
  2. Use 82 93 474 Removal tool.
  3. First remove the corner decor mouldings by carefully inserting the tool under the corner of the moulding. Then pull the clips from the bumper shell.

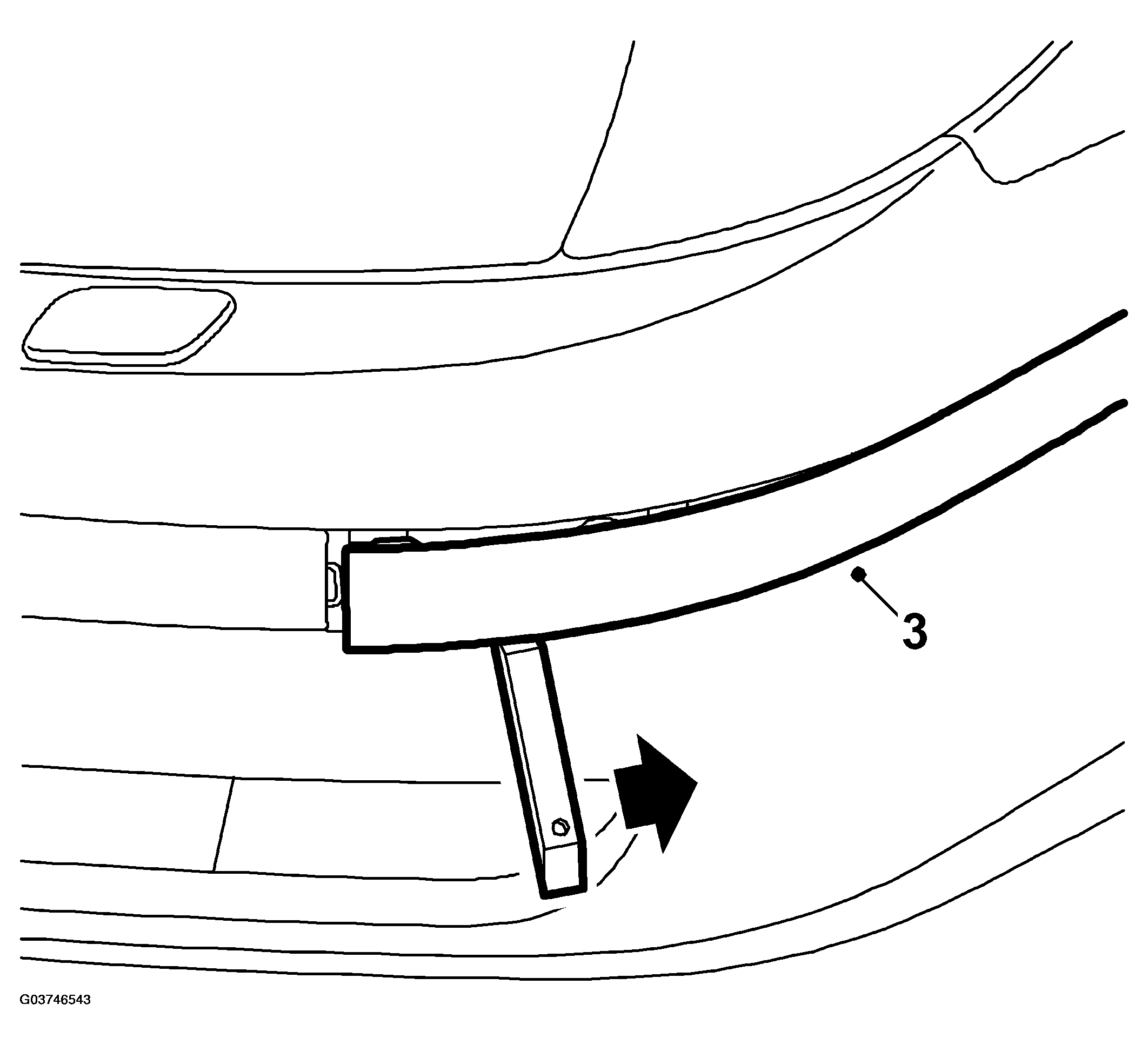

    Fig 1: Illustration For Steps 3
    G03746543Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Carefully insert the tool under the corner of the centermost moulding.

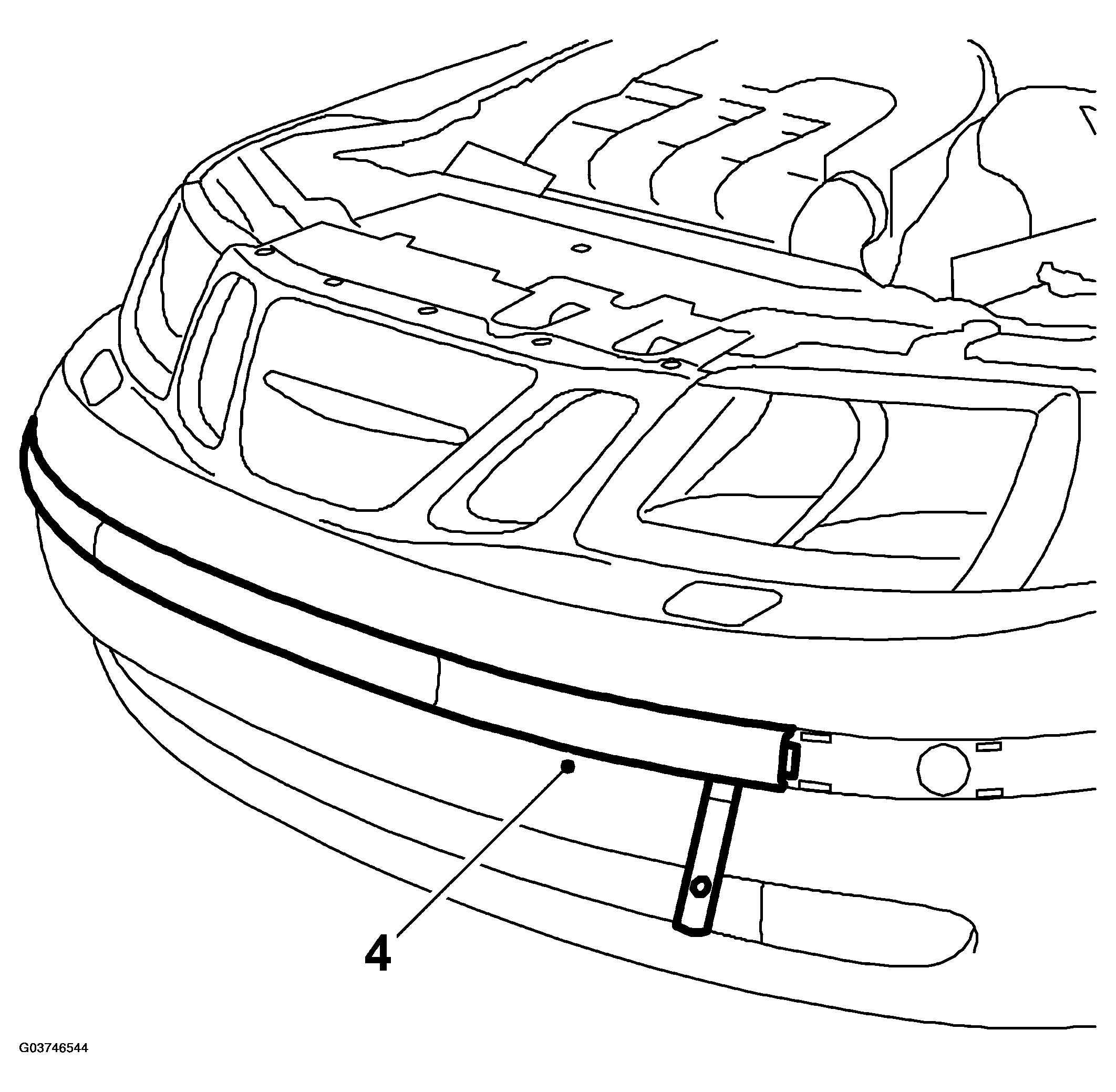

    Fig 2: Illustration For Steps 4
    G03746544Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Carefully pull the clips from the bumper shell.
