To fit

  1. Fit the protective moulding by using the guide lug to position it correctly.

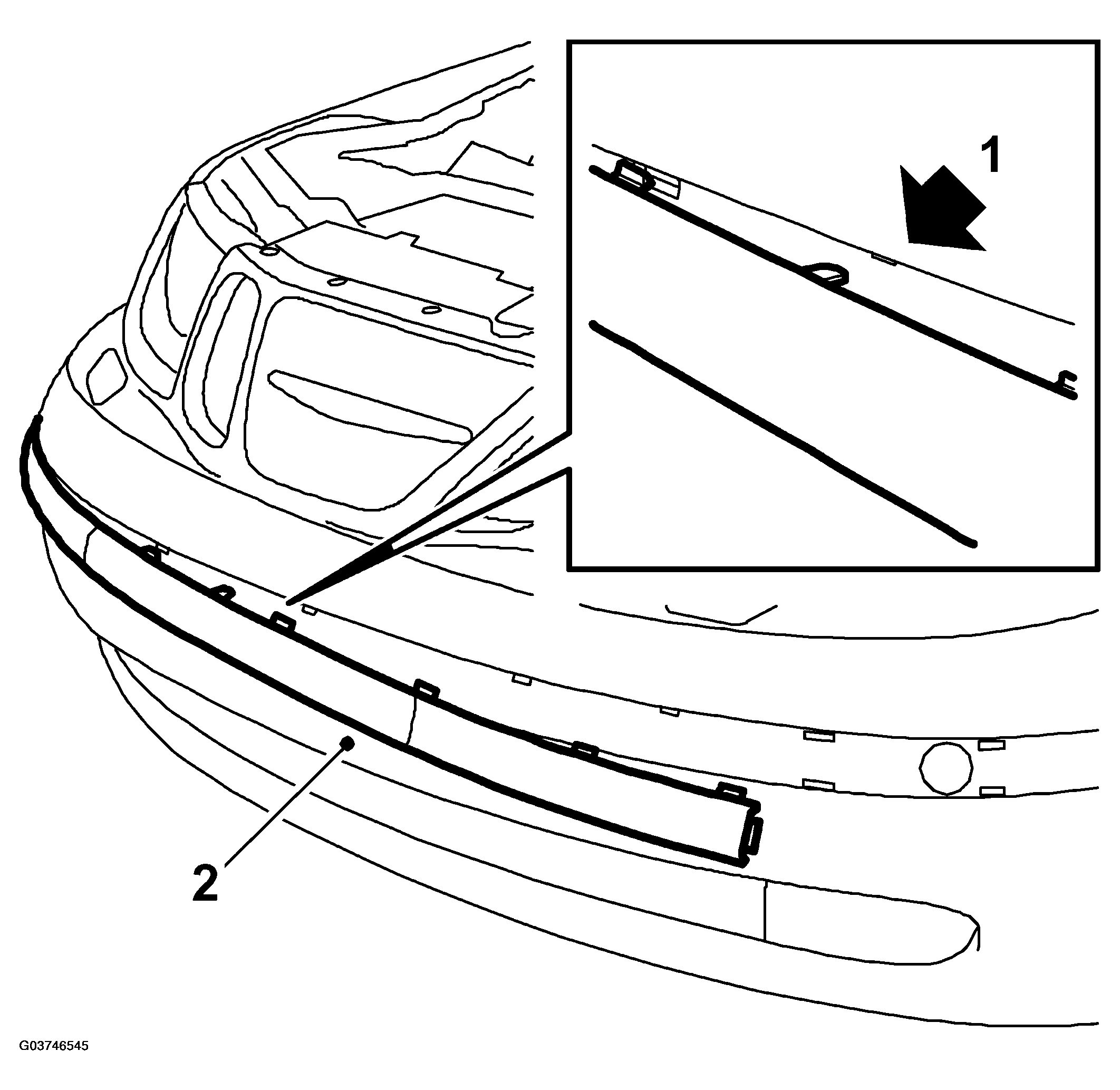

    Fig 1: Illustration For Steps 1-2
    G03746545Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Press in the moulding.
  3. Fit the corner mouldings by using the guide lug to position them correctly.

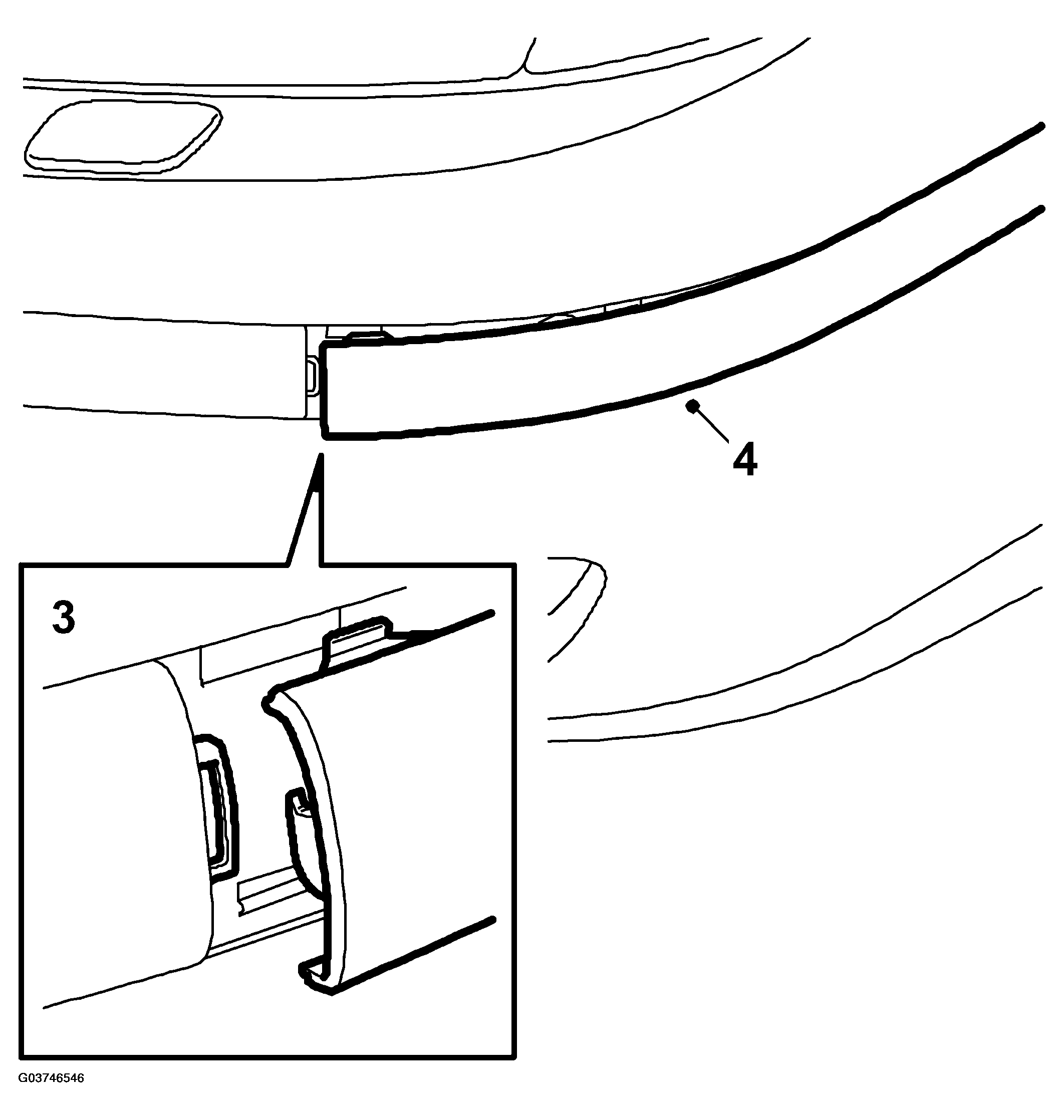

    Fig 2: Illustration For Steps 3-4
    G03746546Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Make sure that all clips are secure in the bumper shell.
  5. Fit the number plate, if fitted.
