To remove

Open the bonnet.
Raise the car to a suitable work height.

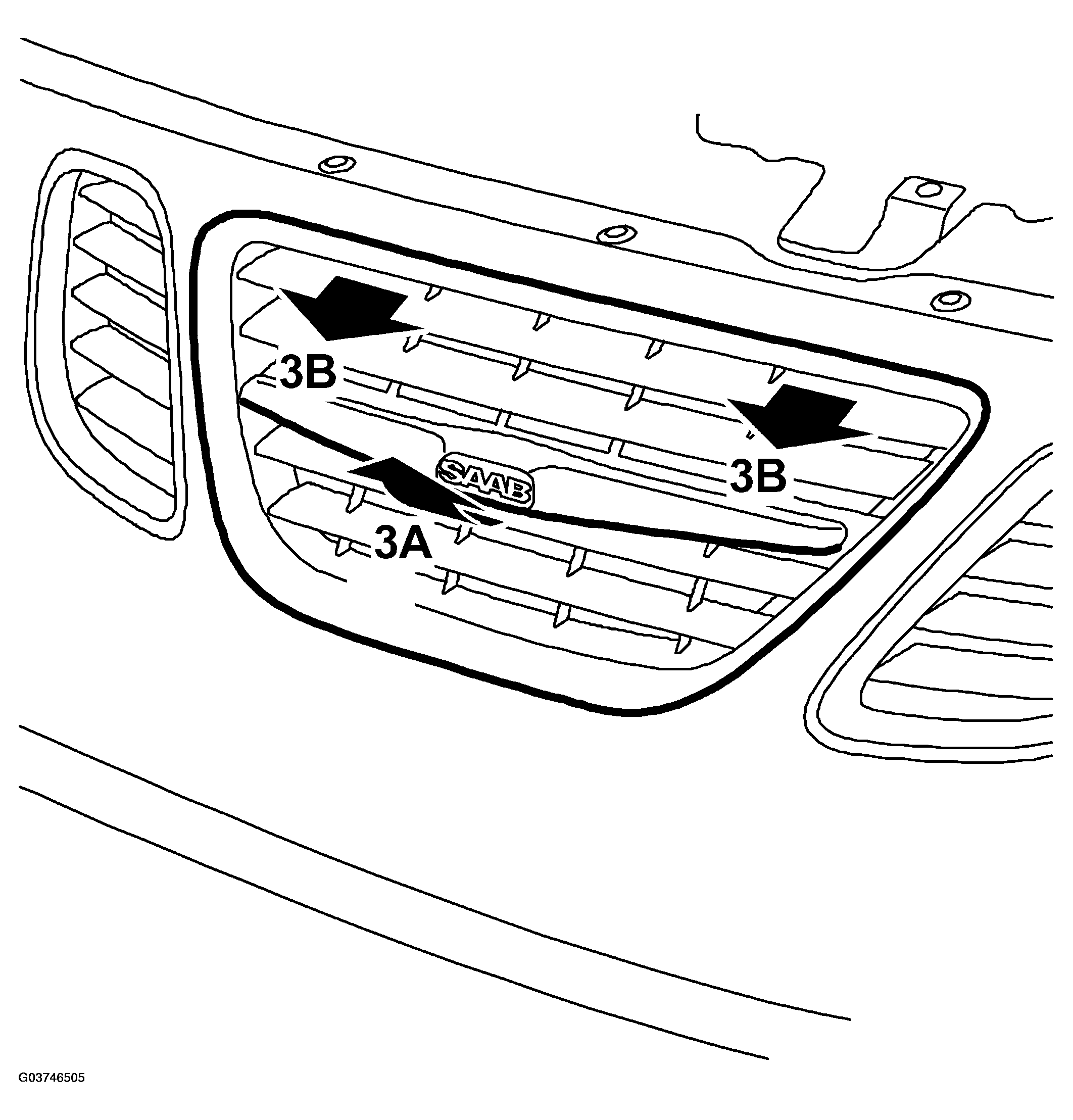

Remove the center grille as follows:
1. 3.A. Lift it slightly to loosen the bottom.
2. 3.B. Pull it forward and down so that the spring clips loosen.

  Fig 1: Illustration For Steps 3A, 3B
  Courtesy of SAAB-SCANIA OF AMERICA, INC.

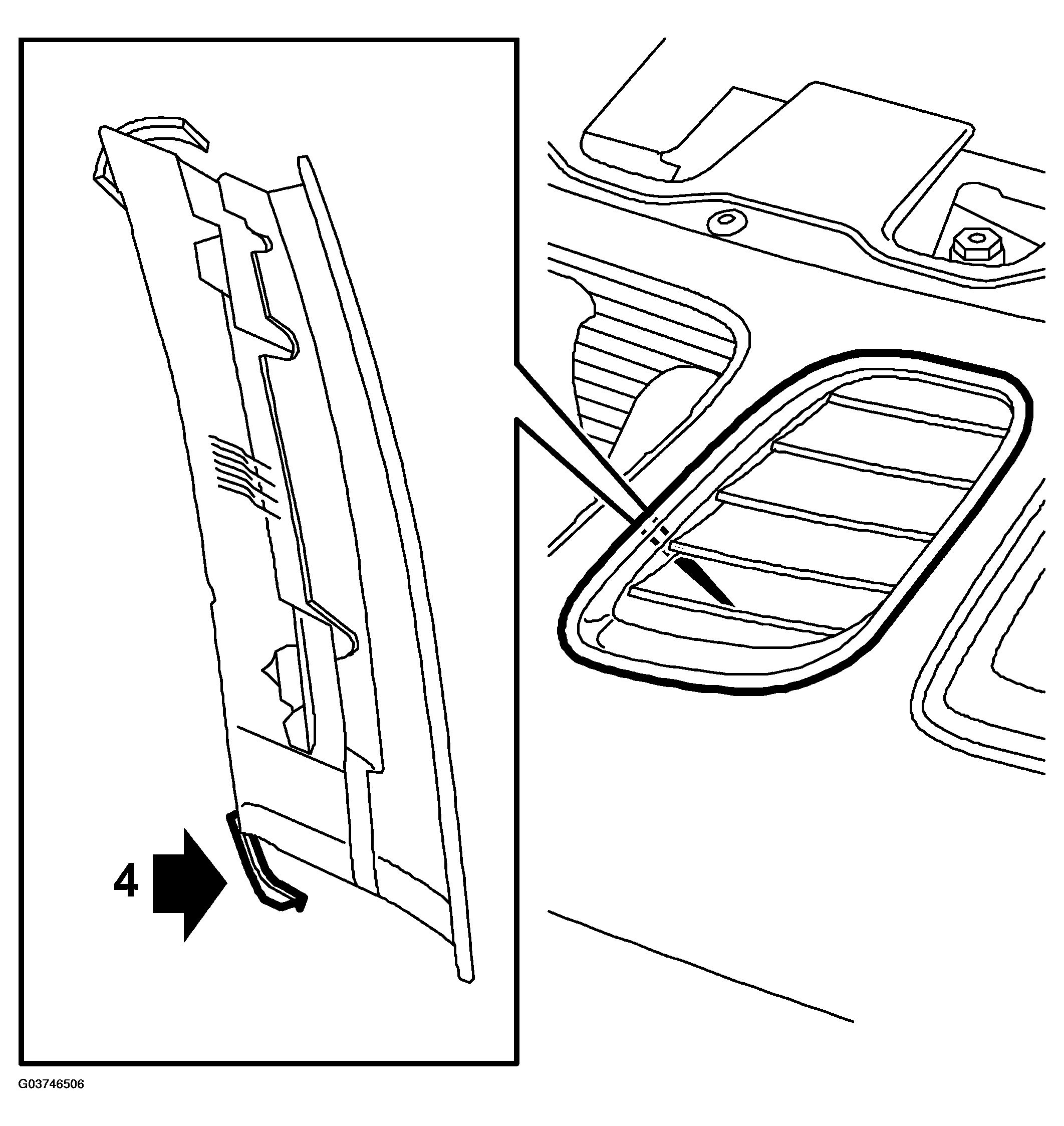

Remove the side grille from the back by bending up the lower clips so that they loosen. Lift away the side grille.

Fig 2: Illustration For Steps 4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the battery cover.

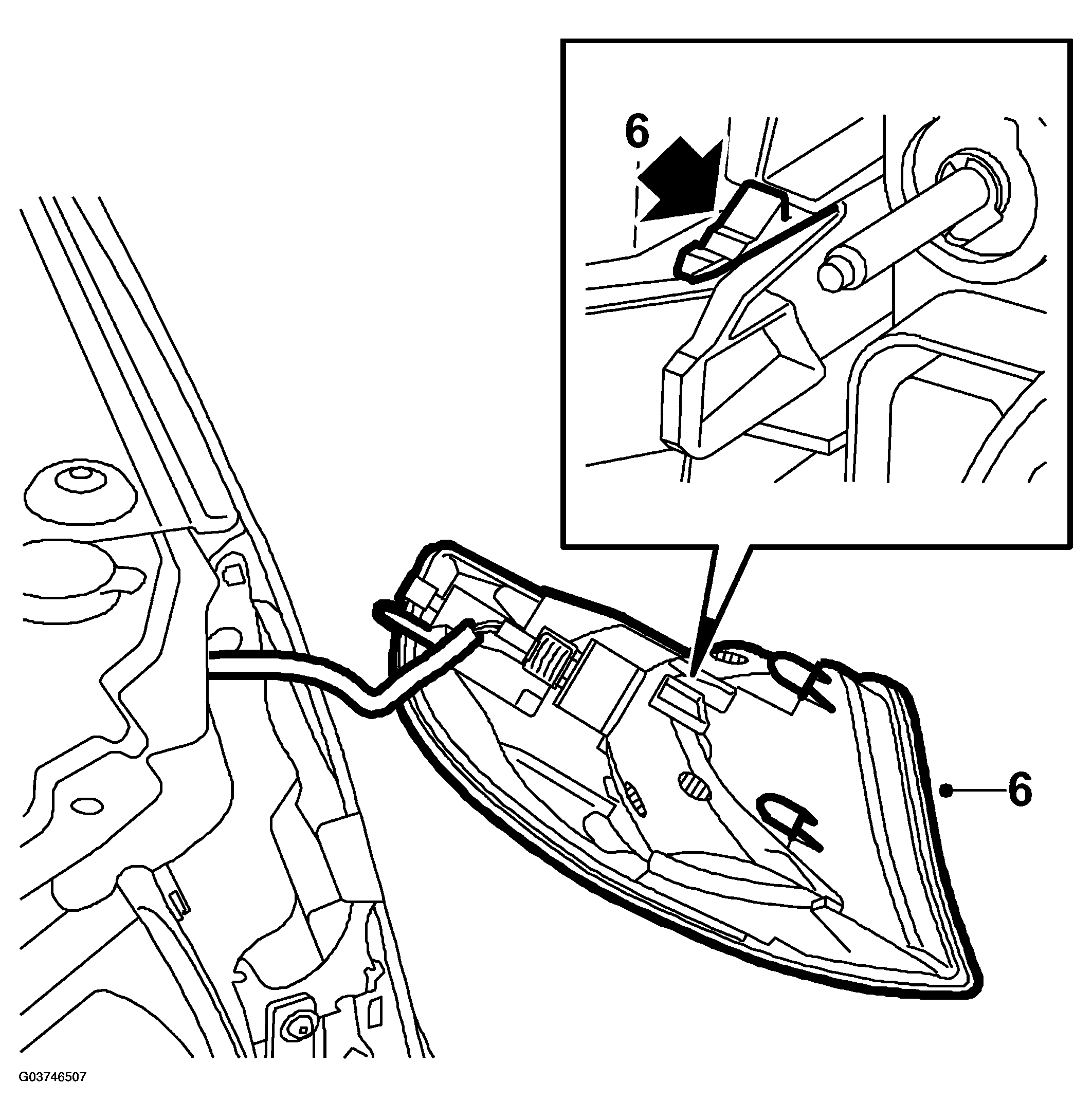

Loosen the direction indicator lamp by pressing the catch down. Unplug the connector and remove the lamp.

Fig 3: Illustration For Steps 6
Courtesy of SAAB-SCANIA OF AMERICA, INC.

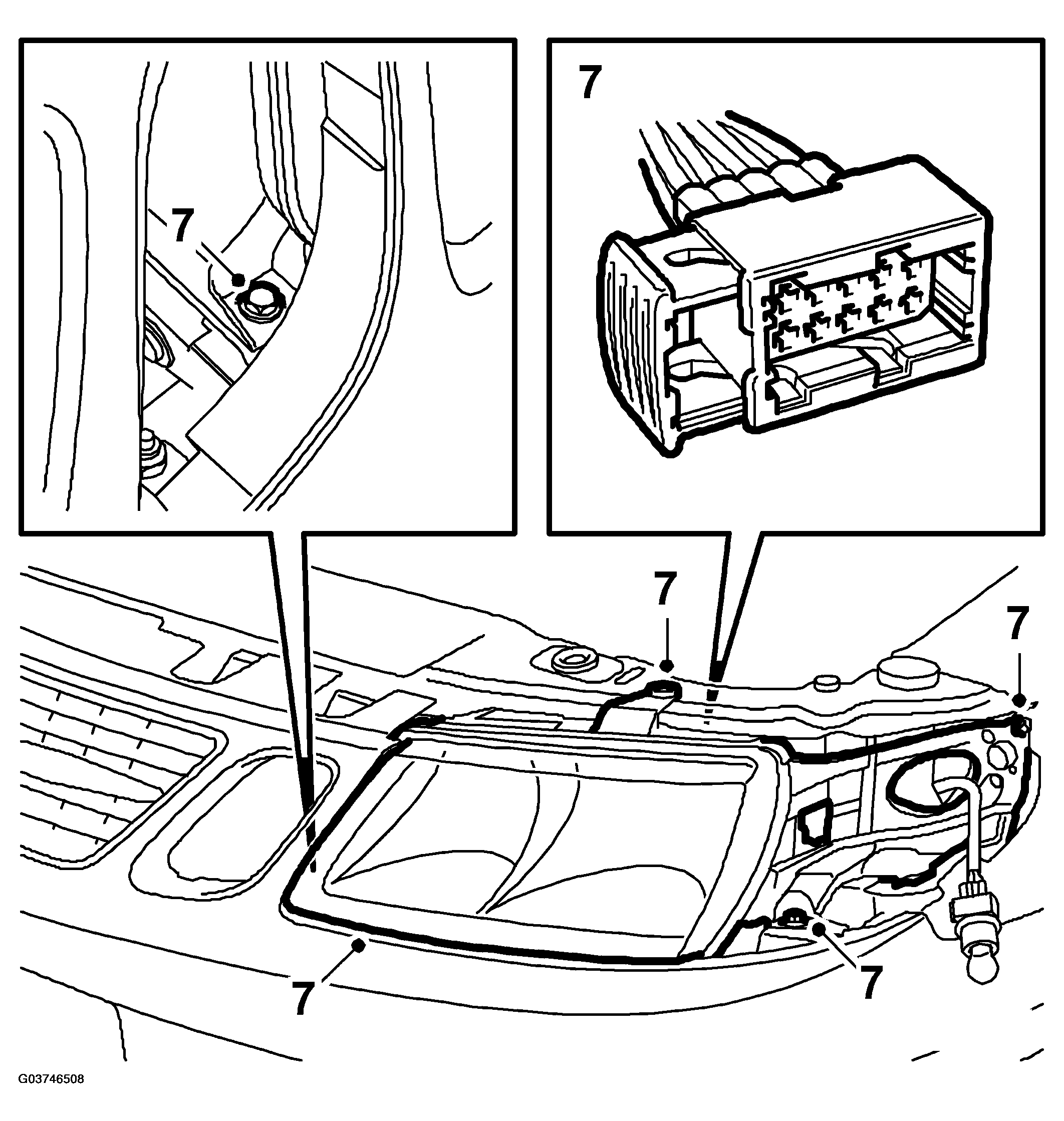

Remove the protective cover of the bulb to facilitate removal. Remove the screws and loosen the clip in the front wing.
Lift out the headlamp slightly to facilitate lamp connector removal. Unplug the connector and lift out the headlamp.

Fig 4: Illustration For Steps 7
Courtesy of SAAB-SCANIA OF AMERICA, INC.

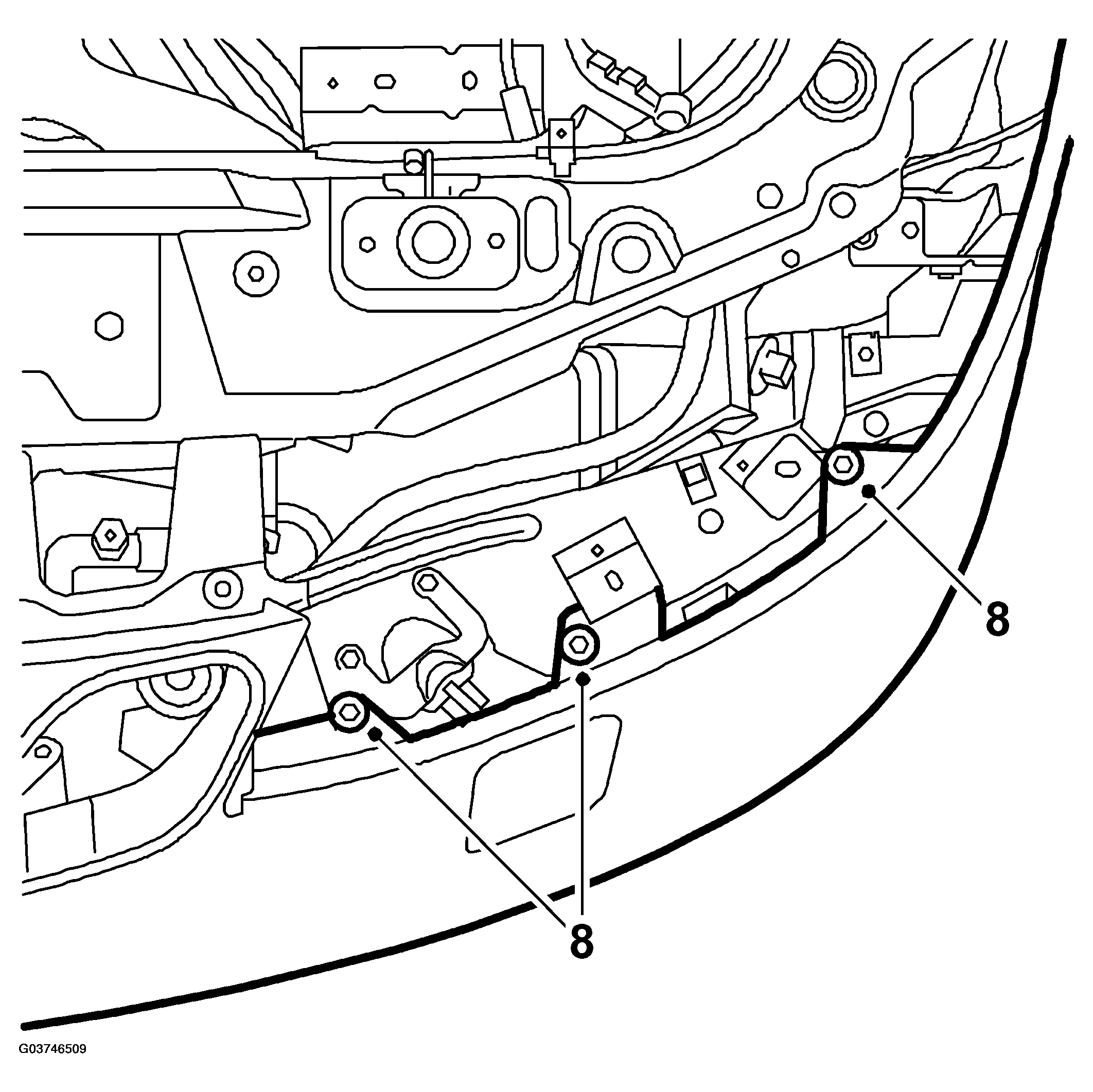

Remove the screws holding the bumper shell to the bumper member.

Fig 5: Illustration For Steps 8
Courtesy of SAAB-SCANIA OF AMERICA, INC.

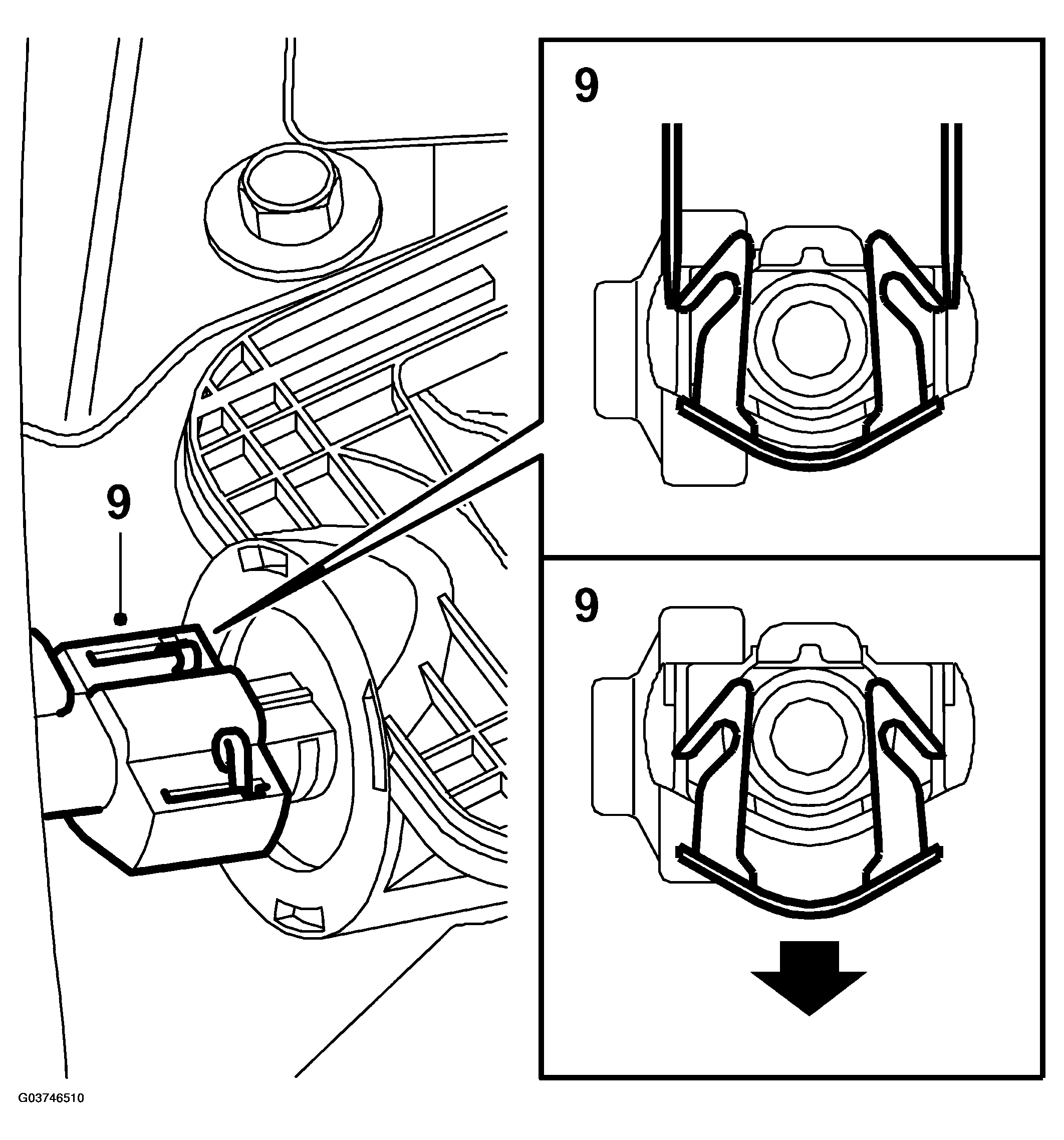

Remove the washer nozzle with protective cover by pressing in the clips on both sides with two small chisels. Press the clip down so that it releases and the nozzle can be removed. The refit the clip on the nozzle.
IMPORTANT: Check that the clip locks correctly. If not, use a new clip.

Fig 6: Illustration For Steps 9
Courtesy of SAAB-SCANIA OF AMERICA, INC.

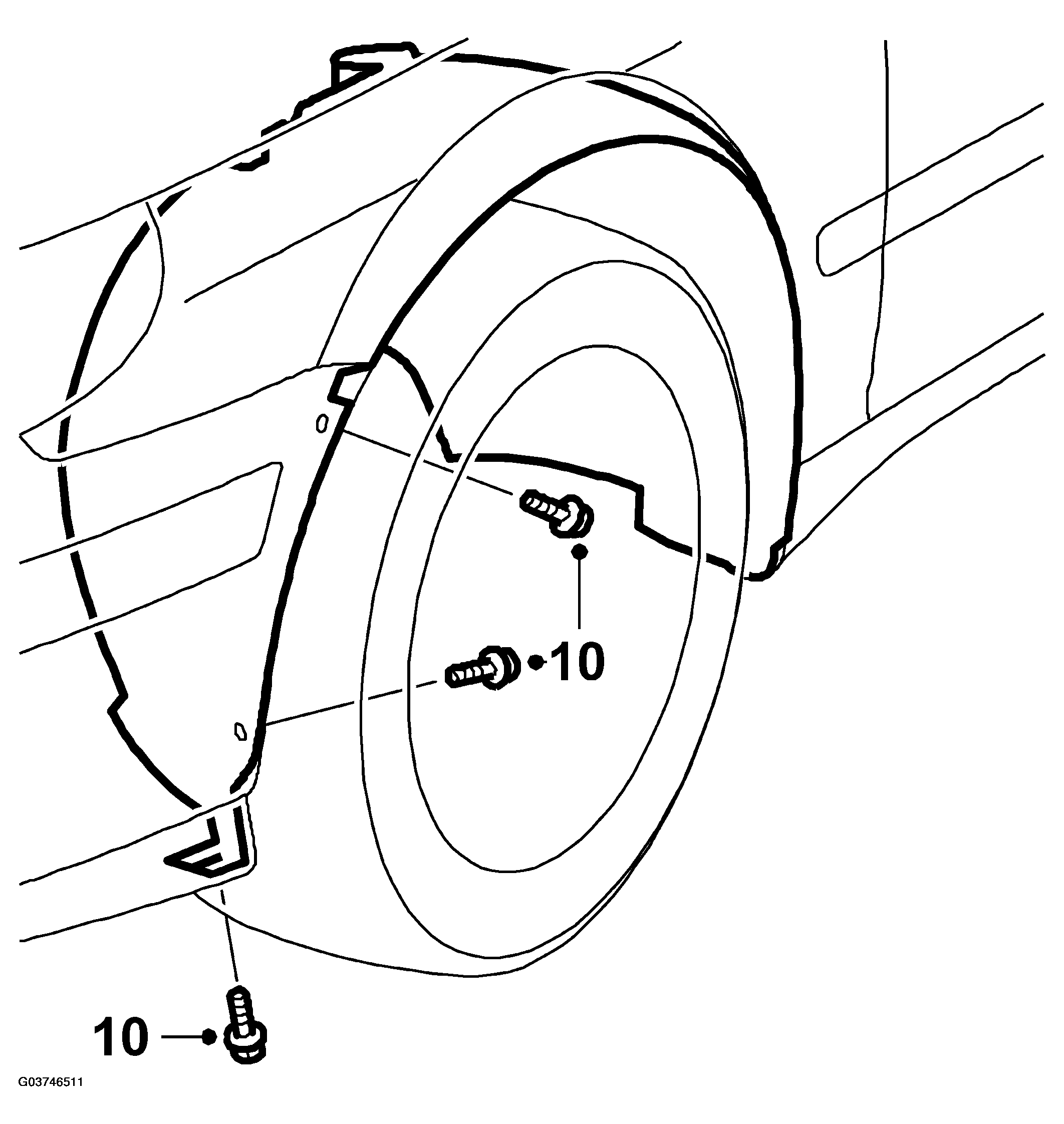

Remove the screws holding the bumper shell to the wing liners.

Fig 7: Illustration For Steps 10
Courtesy of SAAB-SCANIA OF AMERICA, INC.

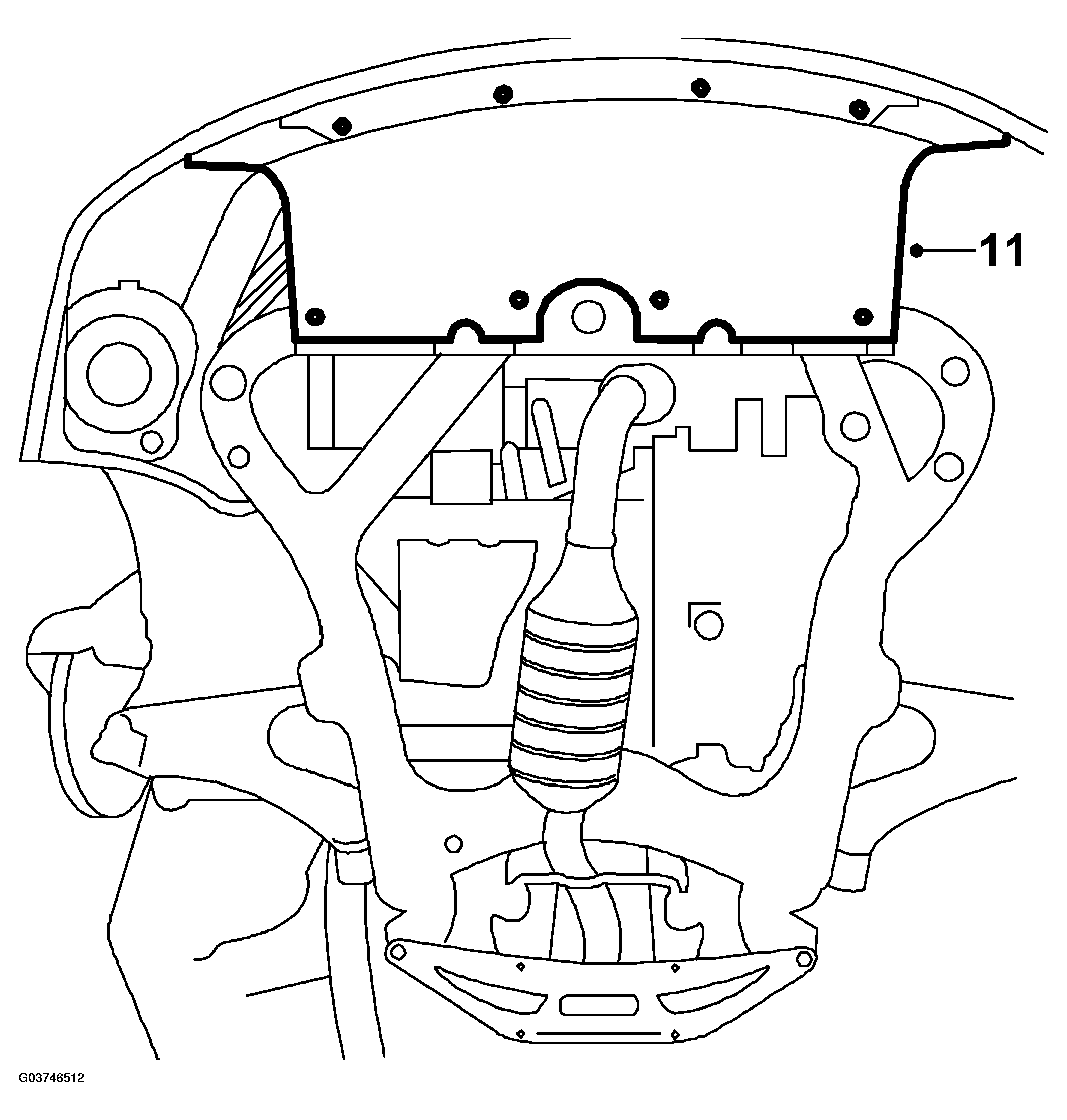

Remove the spoiler shield screws. Bend the bottom of the bumper shell down and remove the spoiler shield.

Fig 8: Illustration For Steps 11
Courtesy of SAAB-SCANIA OF AMERICA, INC.

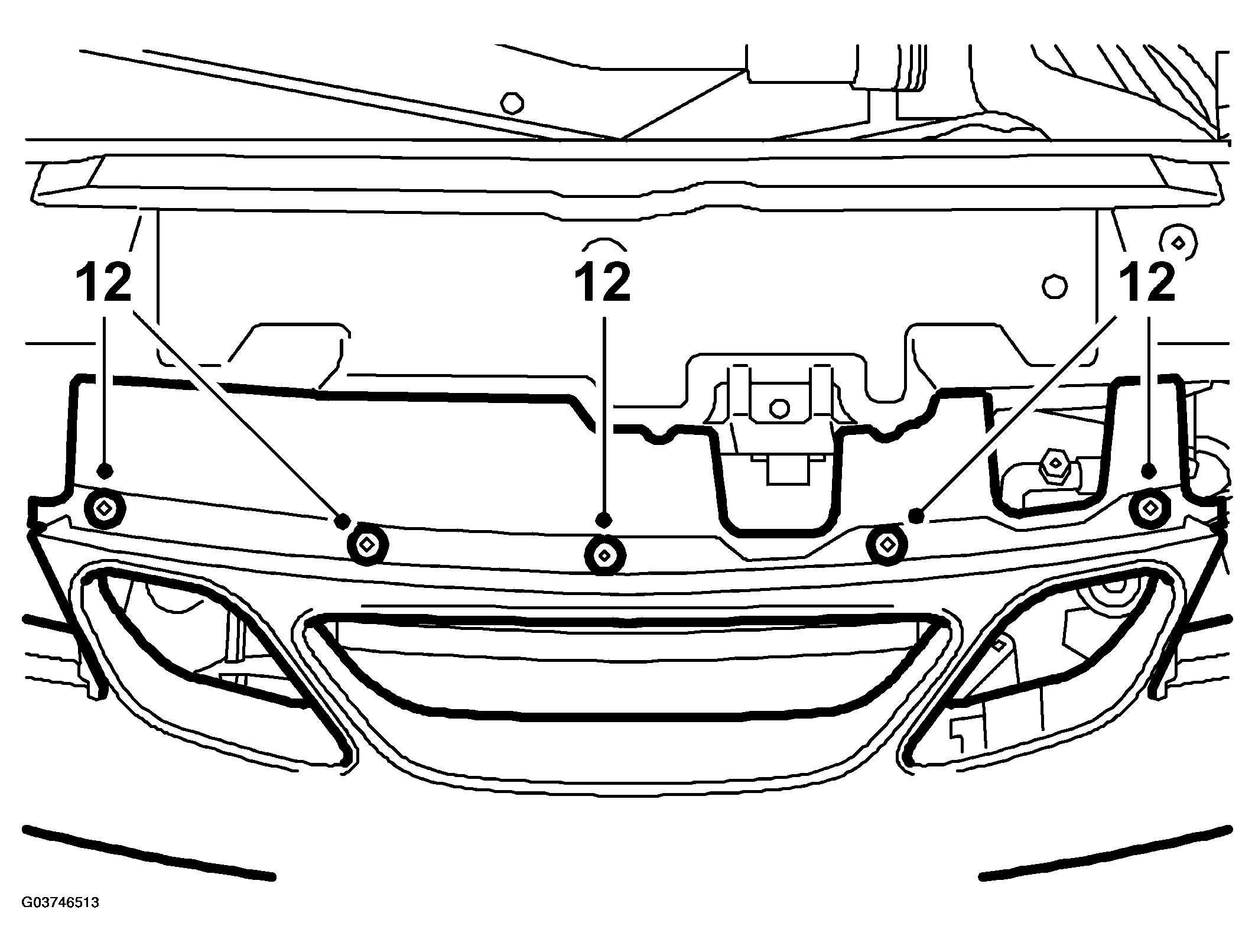

Remove the clips.

Fig 9: Illustration For Steps 12
Courtesy of SAAB-SCANIA OF AMERICA, INC.

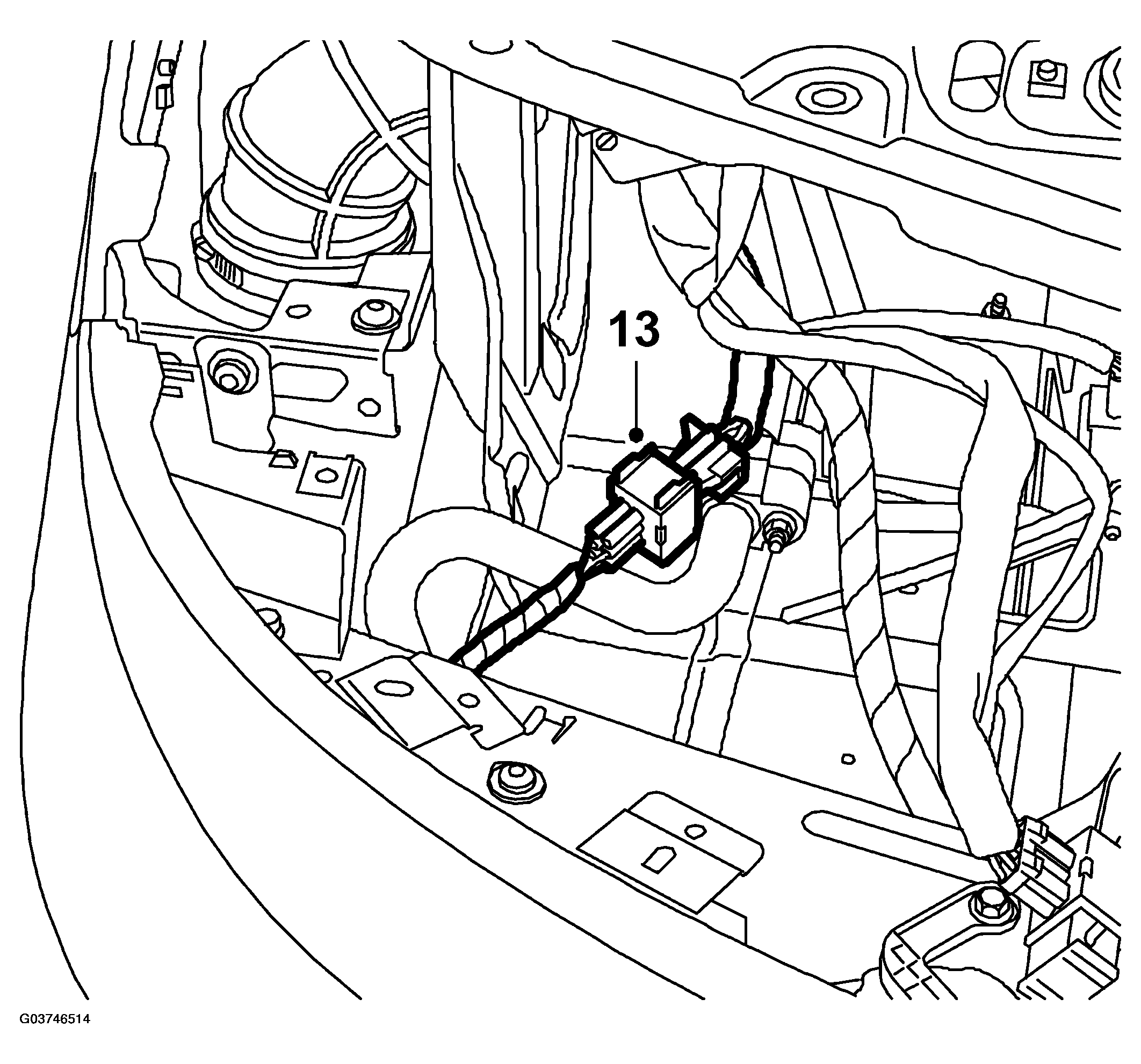

Unplug the connectors for the temperature sensor and the fog lights, if fitted.

Fig 10: Illustration For Steps 13
Courtesy of SAAB-SCANIA OF AMERICA, INC.

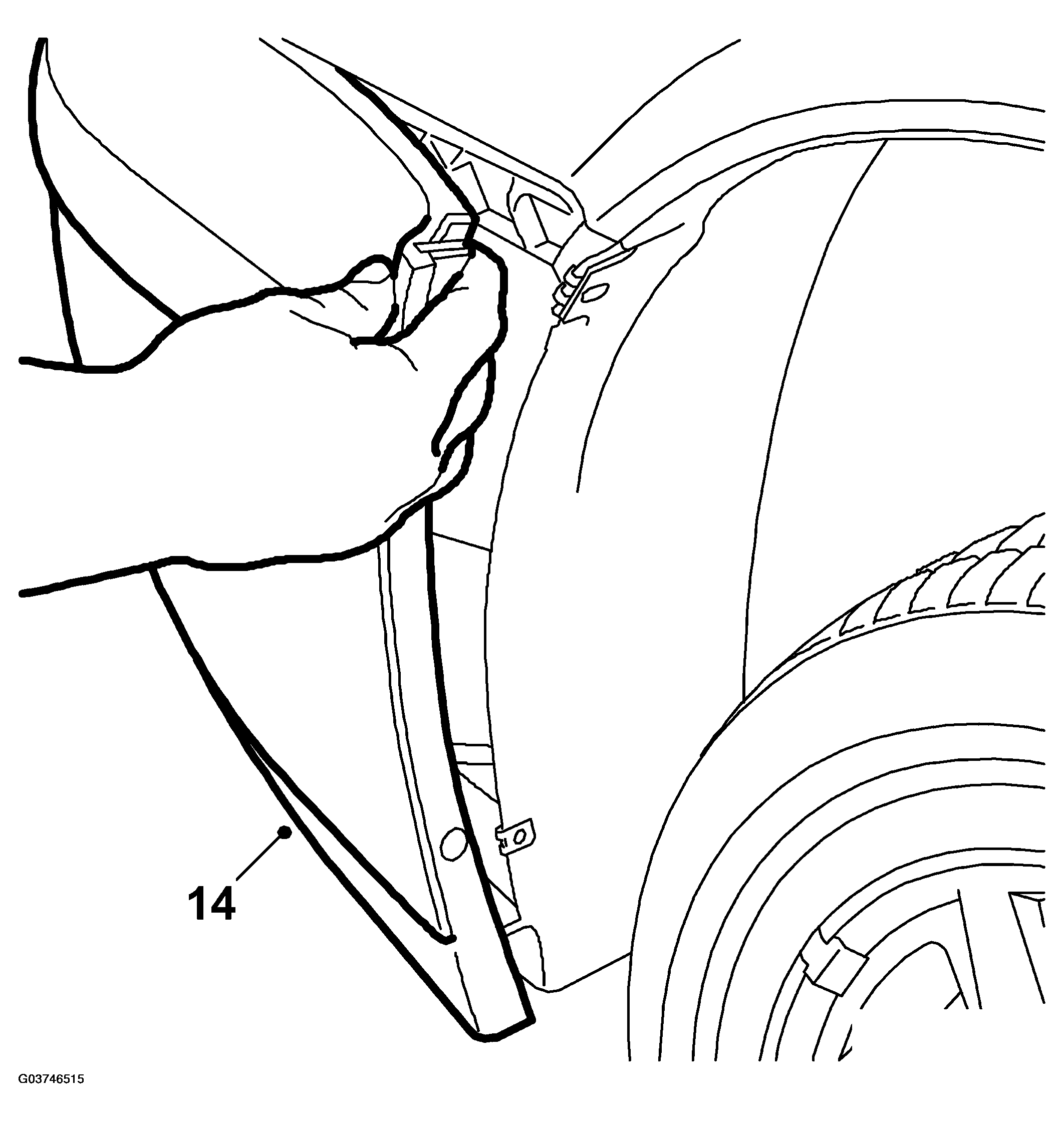

First loosen the outer corners of both sides of the bumper so that they release from the wing and wing liner.

Fig 11: Illustration For Steps 14
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Loosen the bumper from the side and pull out the 6 tabs from the attachments.
NOTE: When replacing the bumper shell, the spoiler, number plate, protective mouldings, cell block, the fog light (if any) and the lower grille must be transferred to the new bumper shell.
