Home >> Saab >> 2004 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Navigation With Audio >> Adjustment/Replacement >> Switch, Nav/Tele >> To remove

To remove

  1. Remove the glove box.
  2. Press the bracket to the left and release the RH catch.

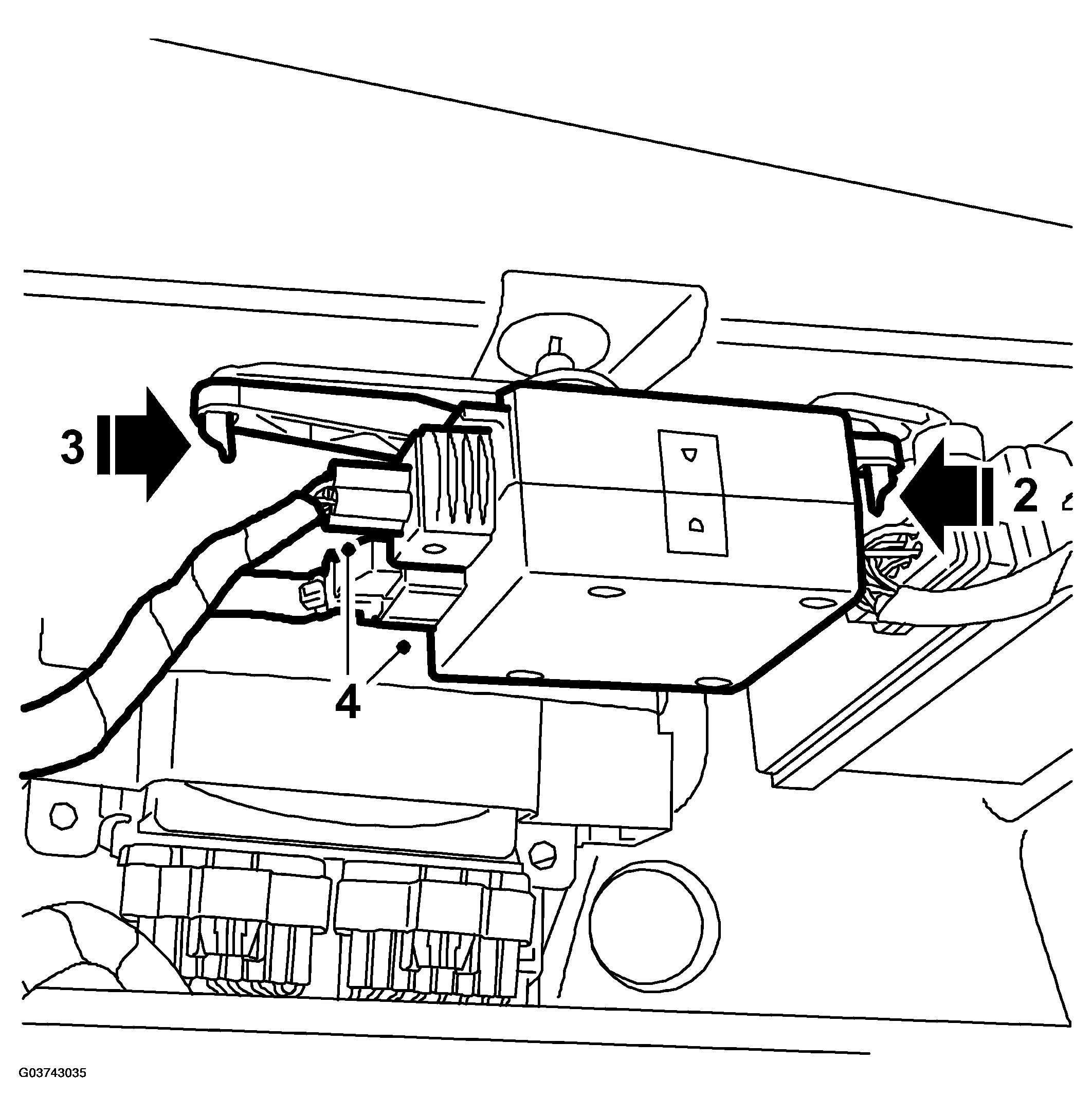

    Fig 1: Illustration For Step 2-4
    G03743035Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the bracket by releasing the LH catch.
  4. Unplug the connector.
