To remove

  1. Remove the control panel using 84 71 161 REMOVAL TOOL, AUDIO SYSTEM  .

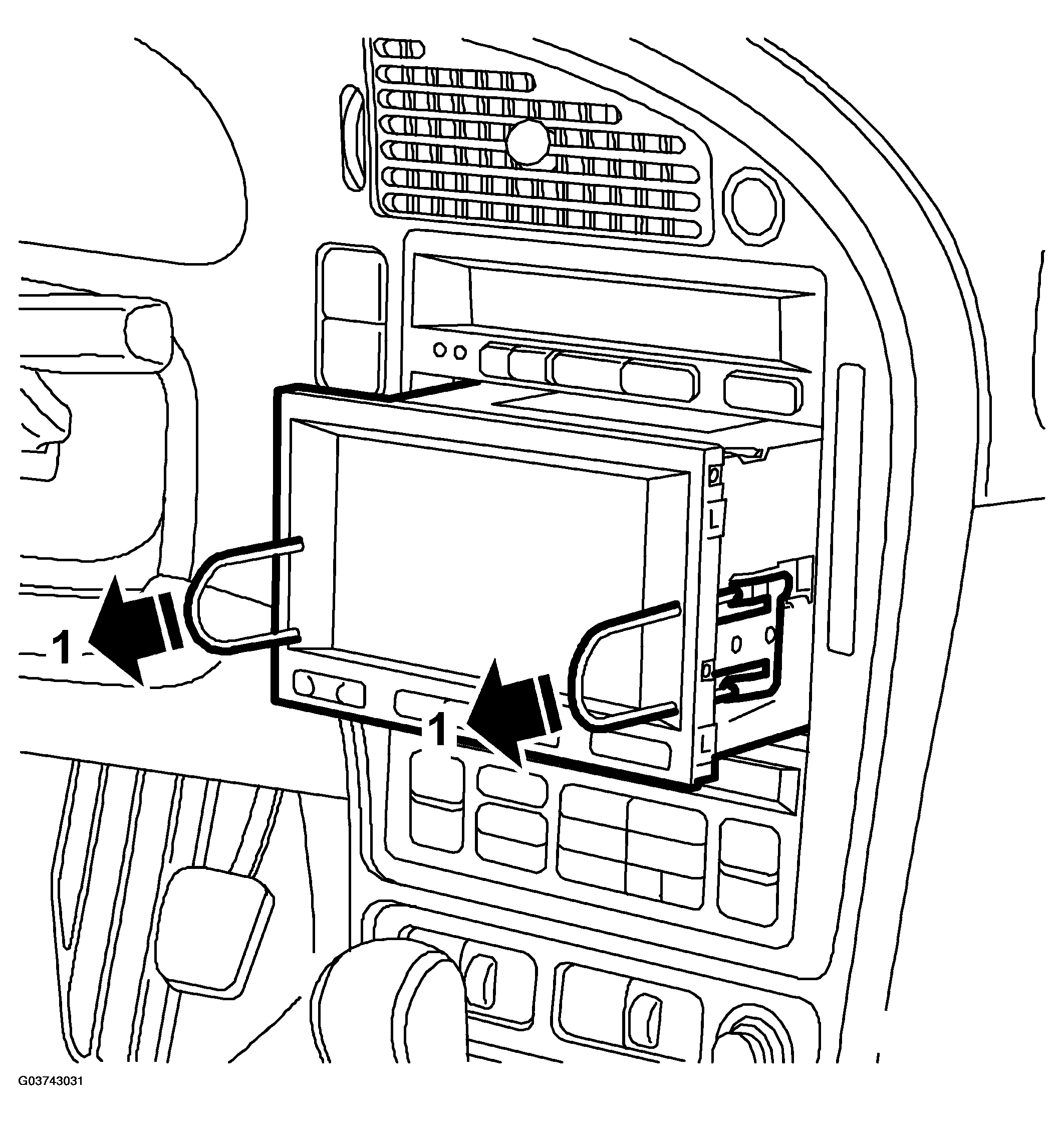

    Fig 1: Illustration For Step 1
    G03743031Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the insulation from the connectors.

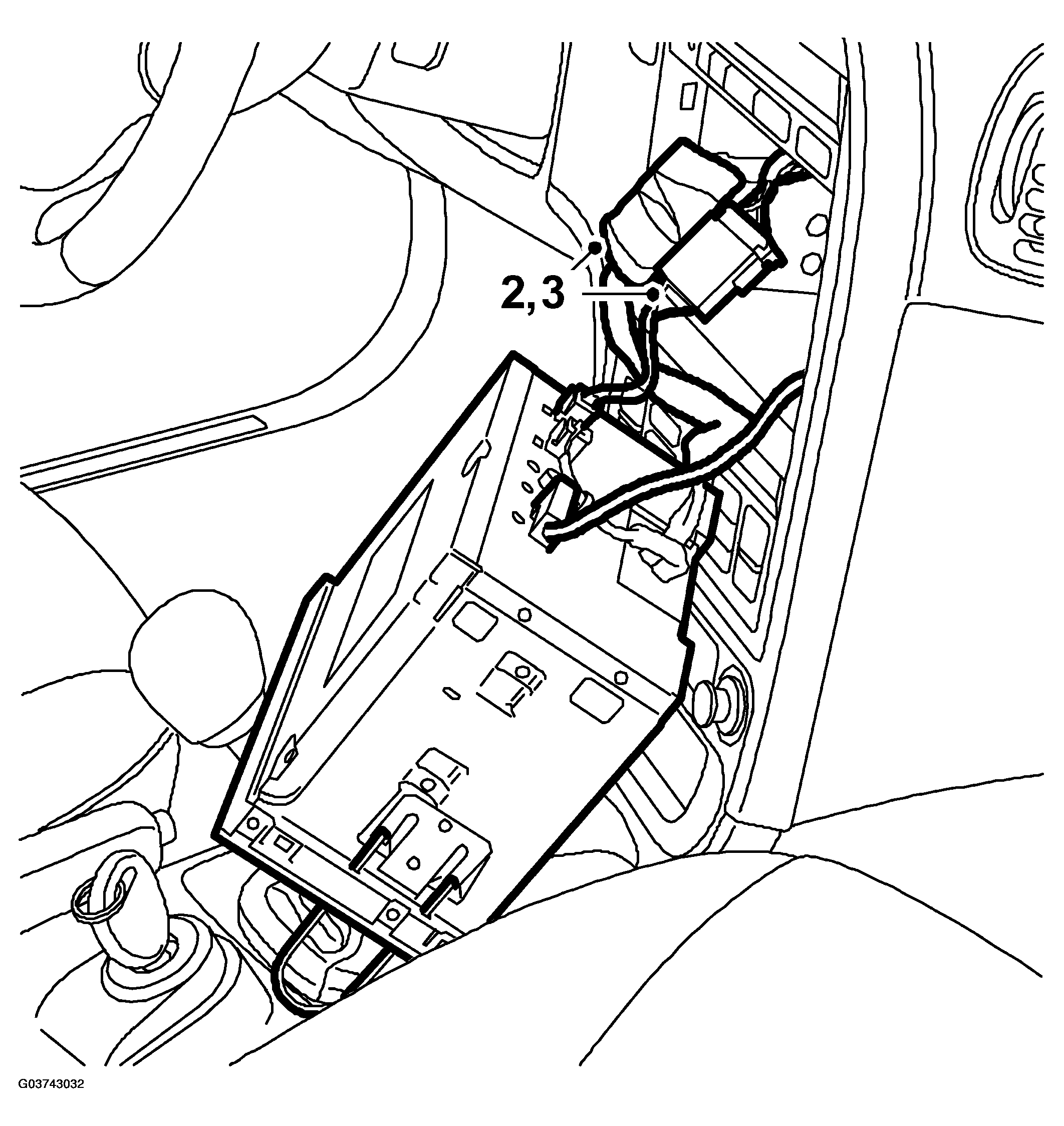

    Fig 2: Illustration For Step 2-3
    G03743032Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the connectors.
