Main unit ground: Notes

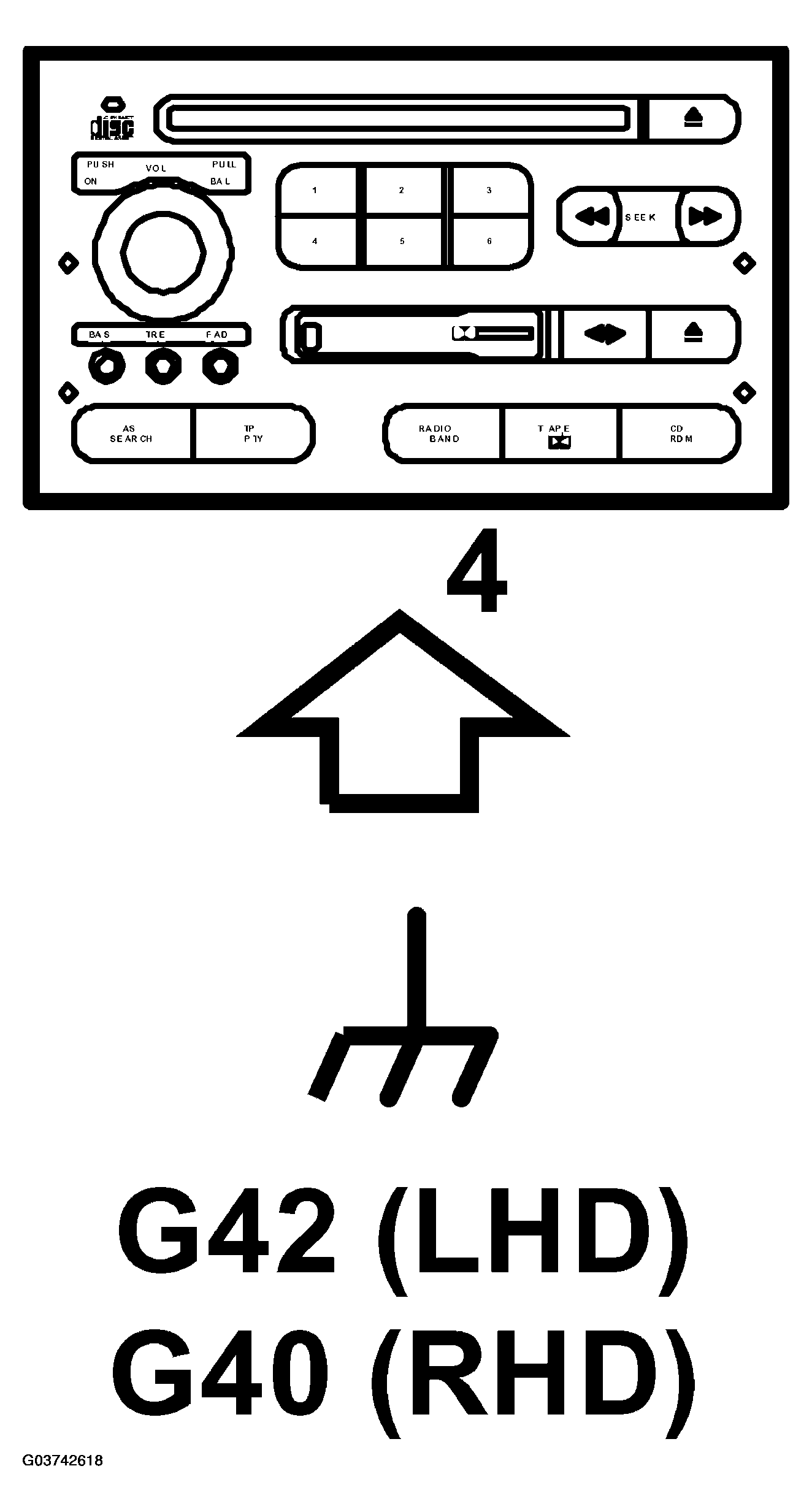

Fig 1: Identifying Main Unit Ground Communication Diagram
G03742618Courtesy of SAAB-SCANIA OF AMERICA, INC.

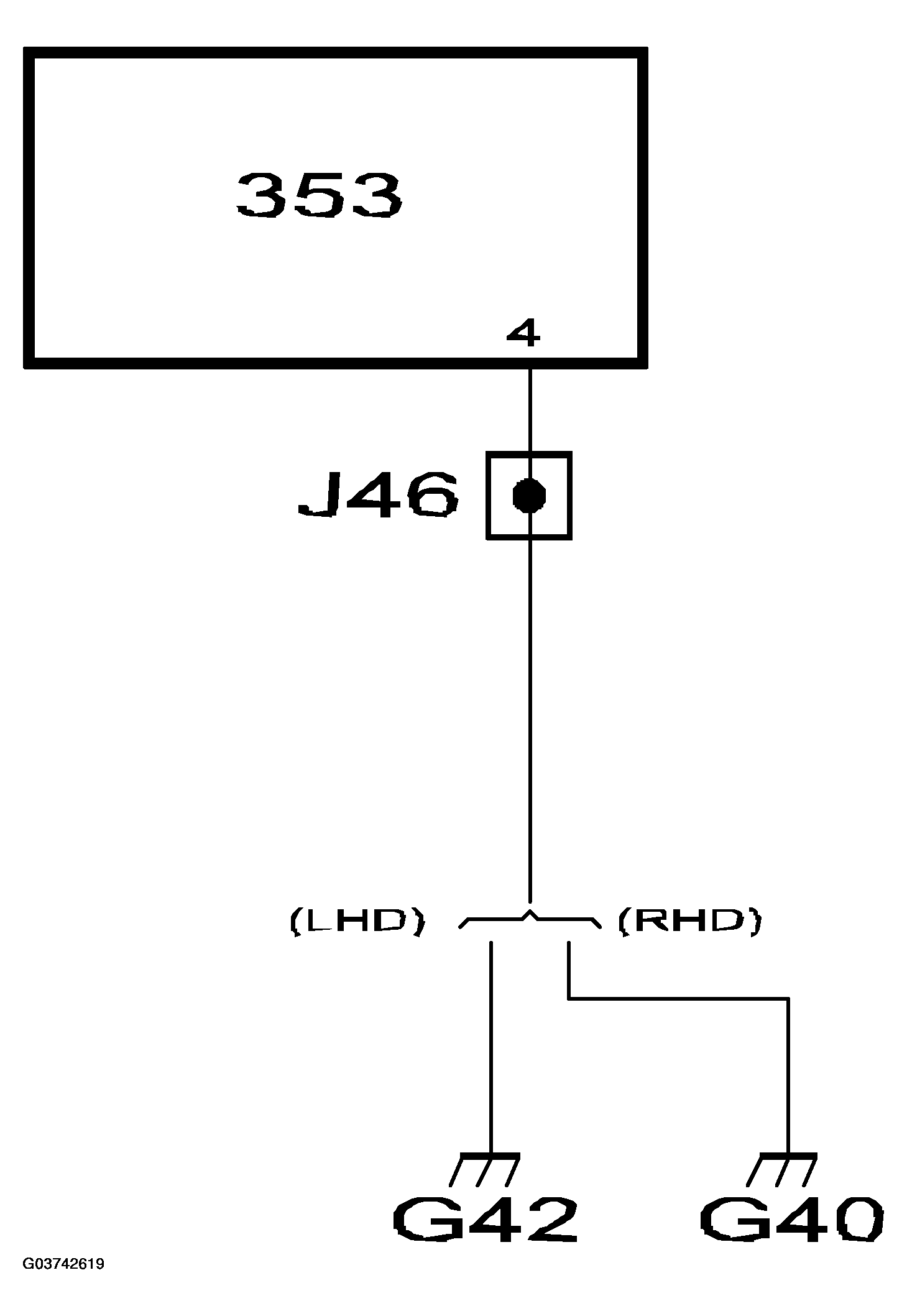

Fig 2: Identifying Main Unit Ground - Circuit Diagram
G03742619Courtesy of SAAB-SCANIA OF AMERICA, INC.
