Technical Description
>>
CD changer
>>
Notes
CD changer: Notes

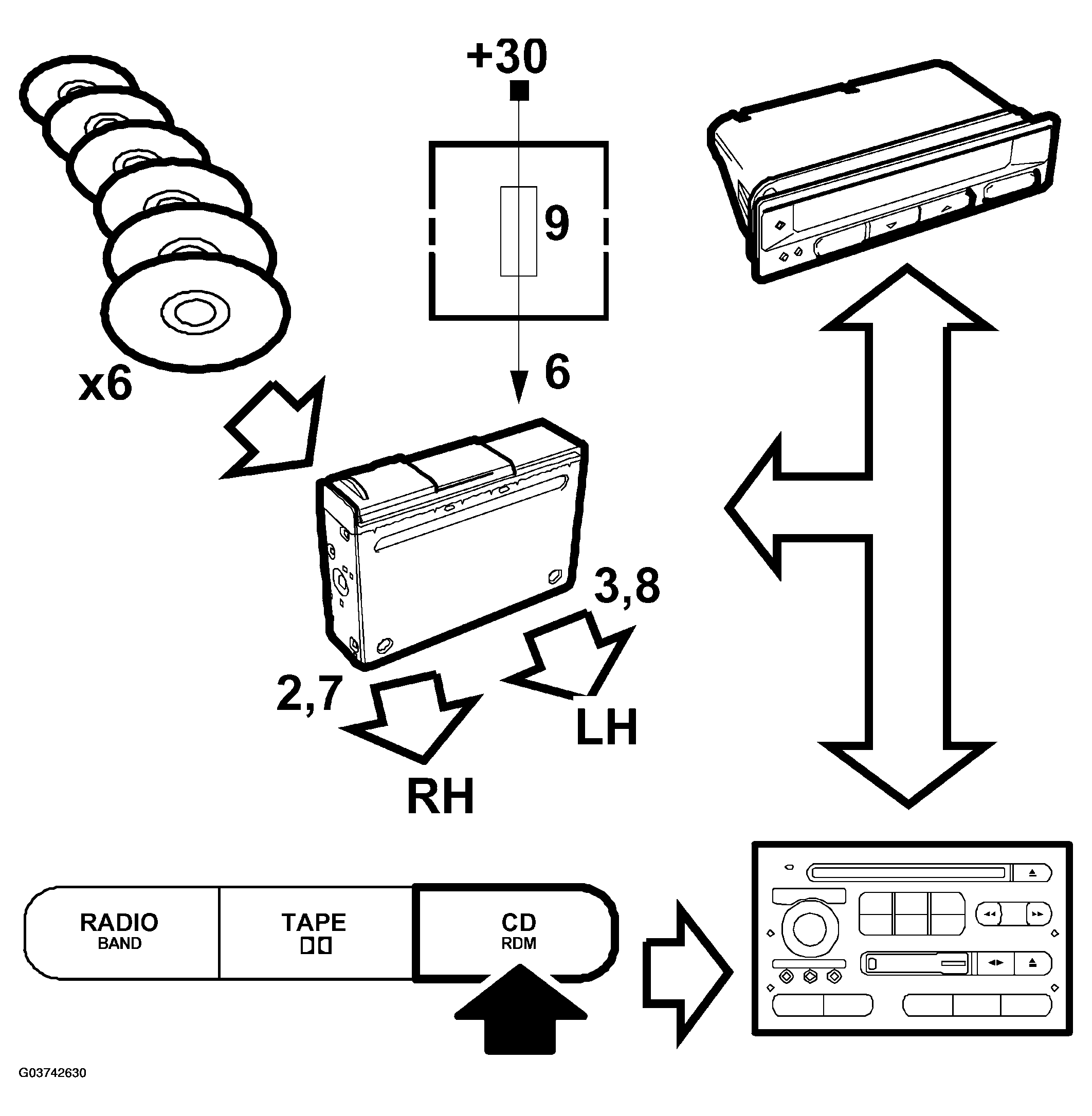

Fig 1: Identifying Communication Diagram Of CD Changer
Courtesy of SAAB-SCANIA OF AMERICA, INC.

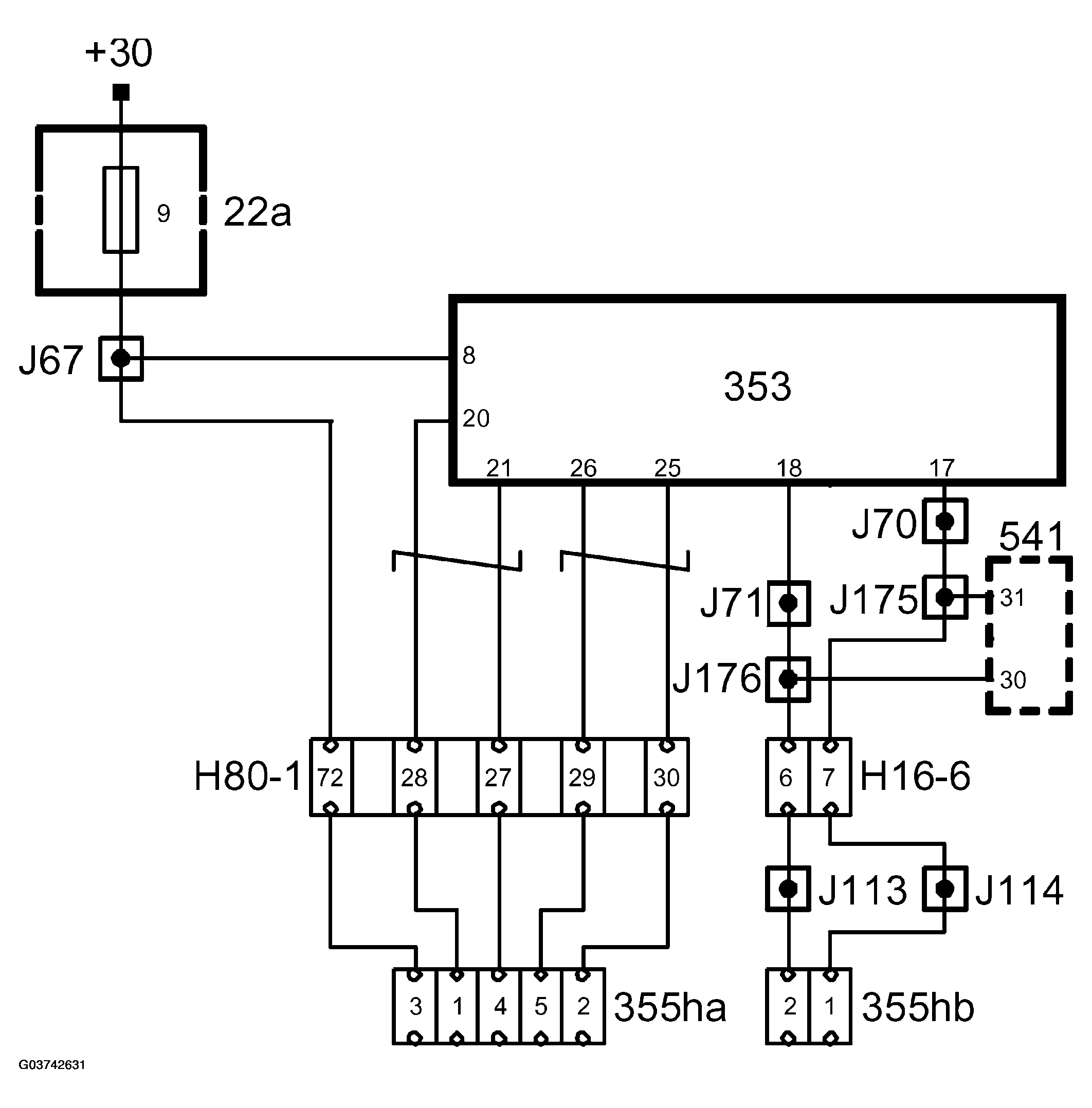

Fig 2: Circuit Diagram - CD Changer
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
