Grounding point, G41P: Notes

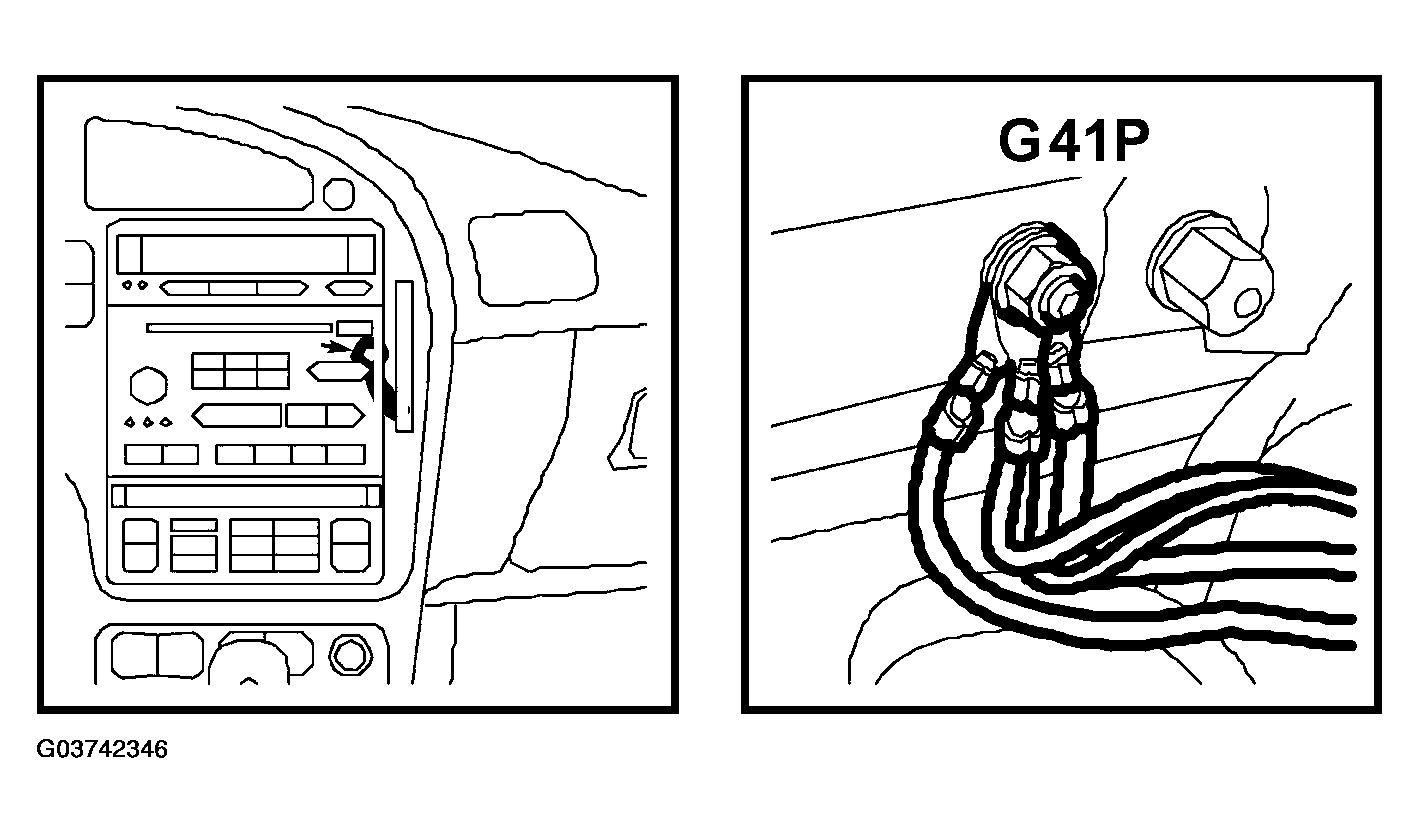

Fig 1: Identifying Grounding Point, G41P
G03742346Courtesy of SAAB-SCANIA OF AMERICA, INC.

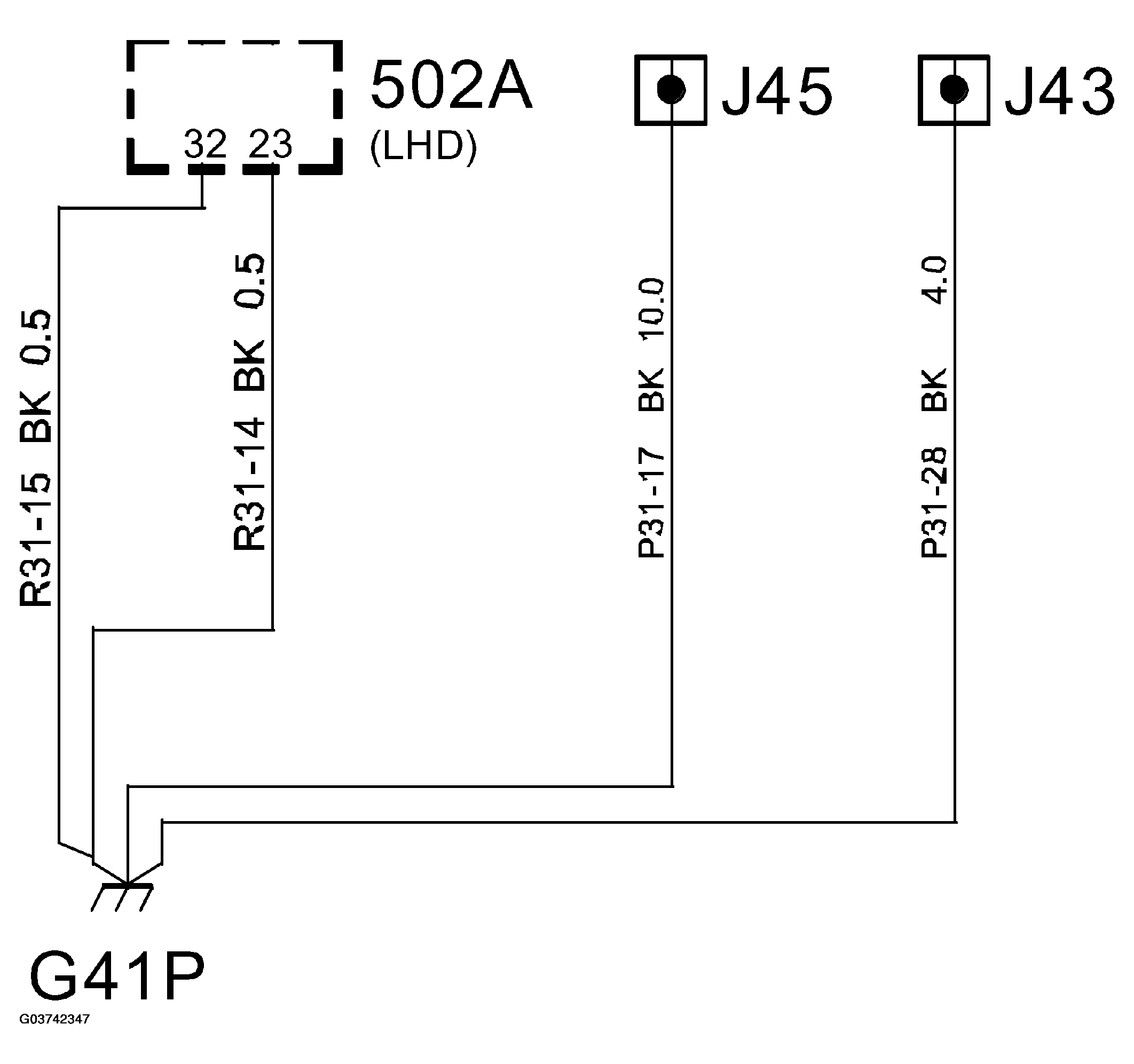

Fig 2: Identifying Grounding point, G41P Circuit Diagram
G03742347Courtesy of SAAB-SCANIA OF AMERICA, INC.
