To remove

  1. Remove the gearbox, see AUTOMATIC TRANSMISSION ASSEMBLY .

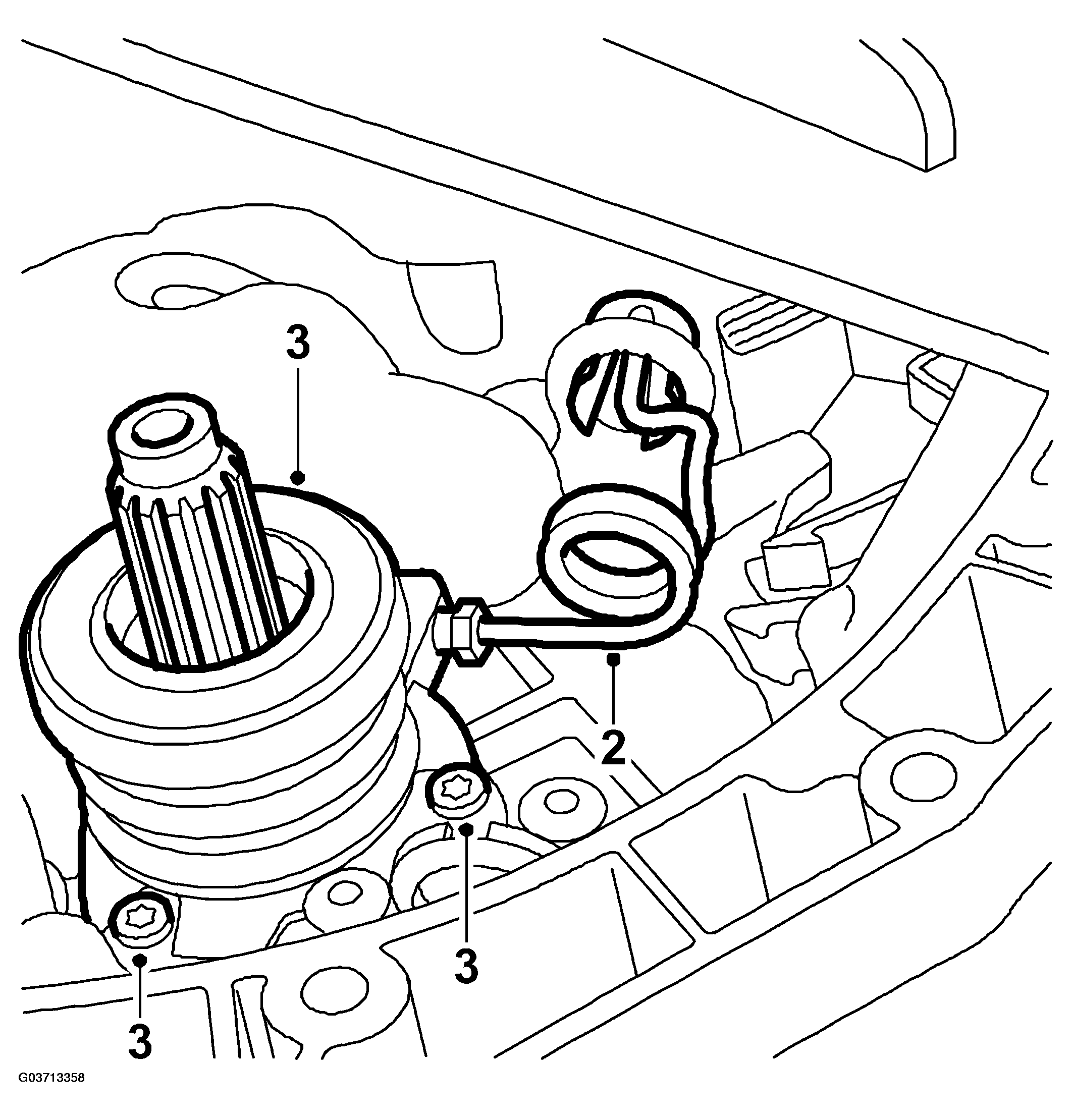

    Fig 1: Illustration For Step 2-3
    G03713358Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Detach the delivery pipe.
  3. Remove the three retaining bolts for the slave cylinder and pull it out.
