Home >> Saab >> 2004 >> 9-3 Linear, Standard >> Repair and Diagnosis >> Transmission >> Clutch System >> Adjustment - Replacement >> Flywheel >> To remove

To remove

  1. Remove Gearbox assembly 5-speed or Gearbox assembly 6-speed.
  2. Remove CLUTCH ASSEMBLY
  3. Remove the flywheel

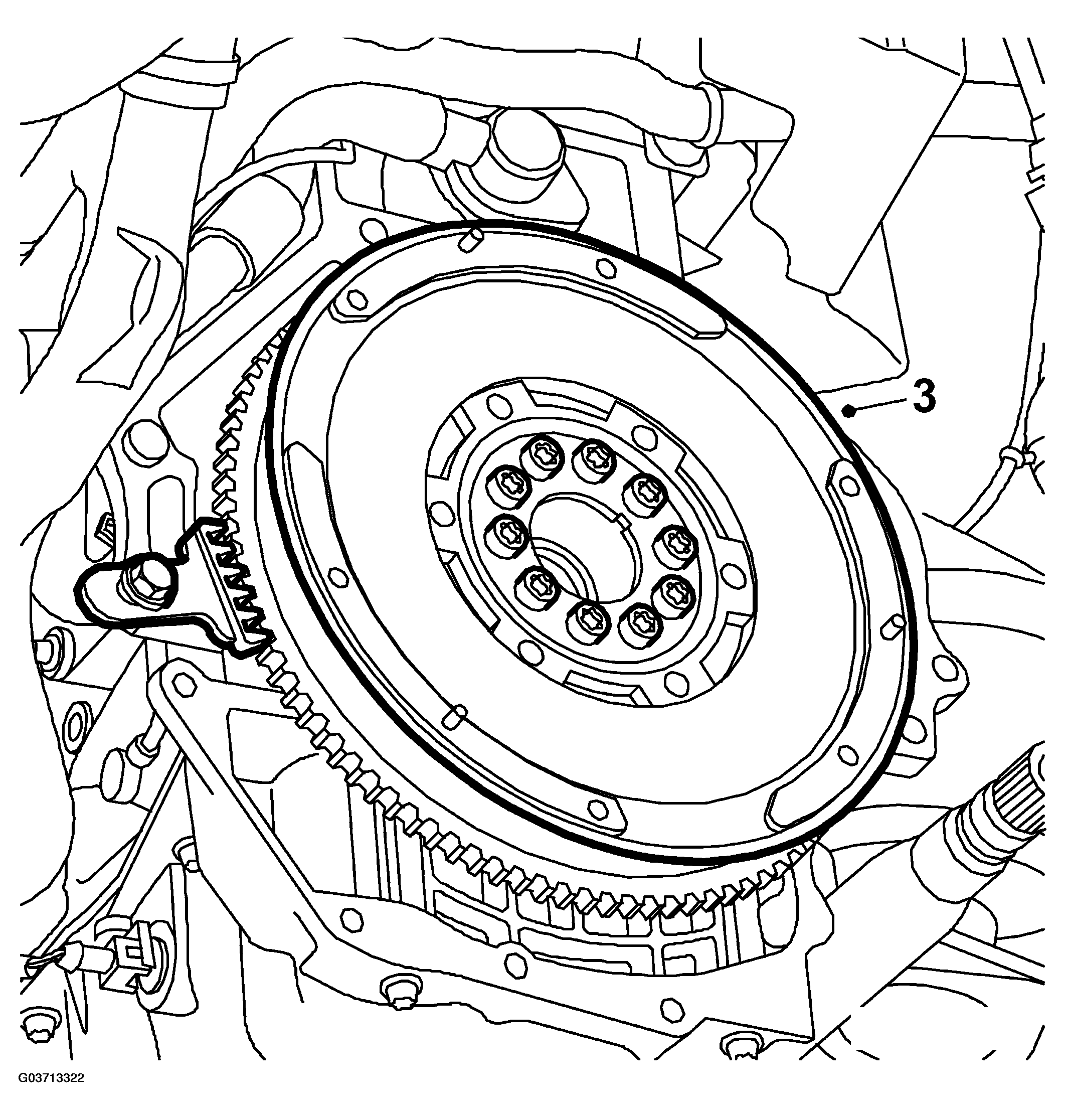

    Fig 1: Illustration For Step 3
    G03713322Courtesy of SAAB-SCANIA OF AMERICA, INC.
