To remove

  1. Apply wing covers.
  2. Remove Hydraulic unit, TCS/ESP
  3. Connect 88 19 096 BLEEDING EQUIPMENT  hose to the bleed nipple on the slave cylinder and draw out the brake fluid from the clutch system.

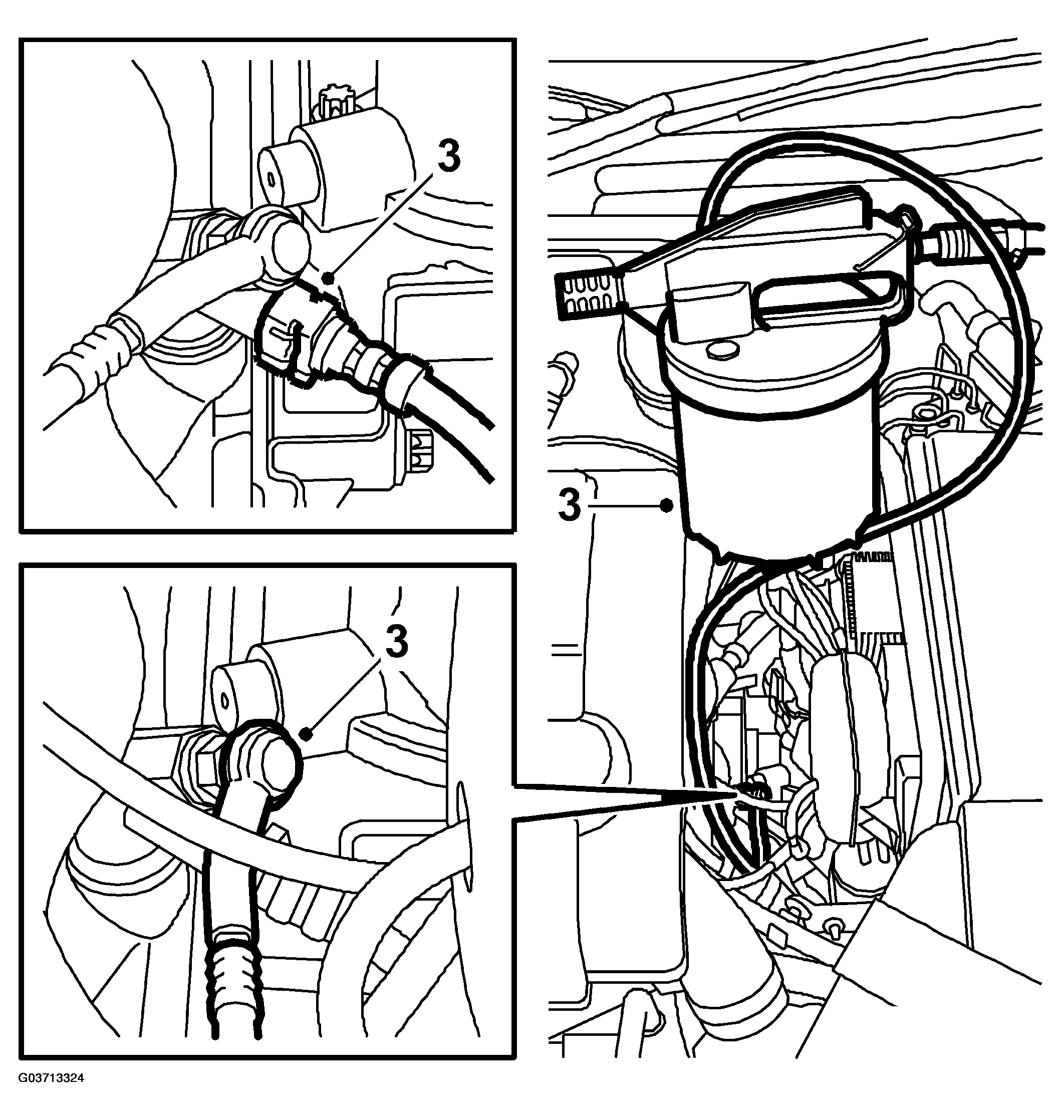

    Fig 1: Illustration For Step 3
    G03713324Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Undo the clip securing the delivery pipe to the master cylinder.
  5. Remove the delivery pipe from the master cylinder.

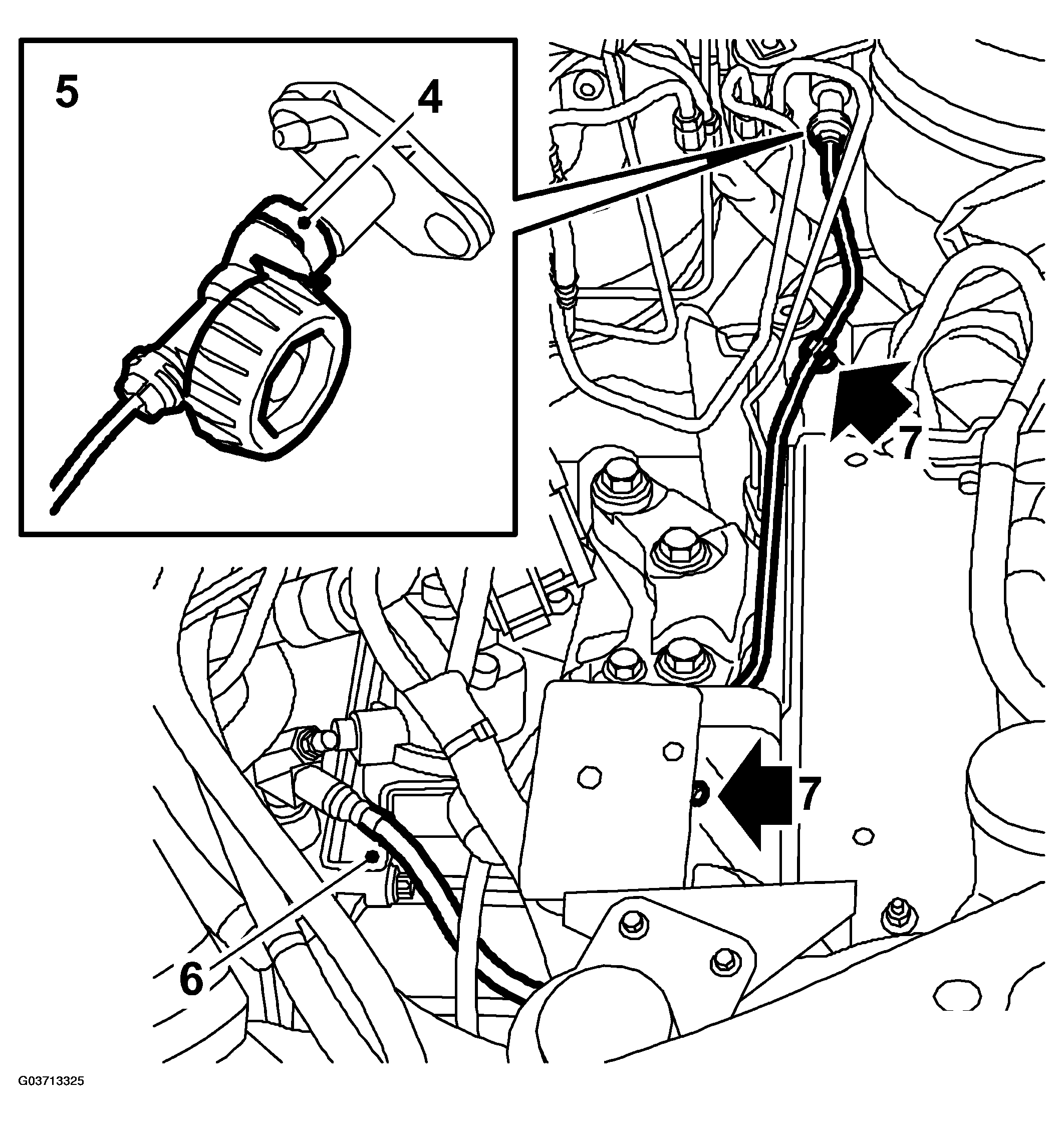

    Fig 2: Illustration For Step 4 And 7
    G03713325Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Detach the delivery pipe from the slave cylinder connection.
  7. Remove the pipe.
