Power steering pump, B207 engine

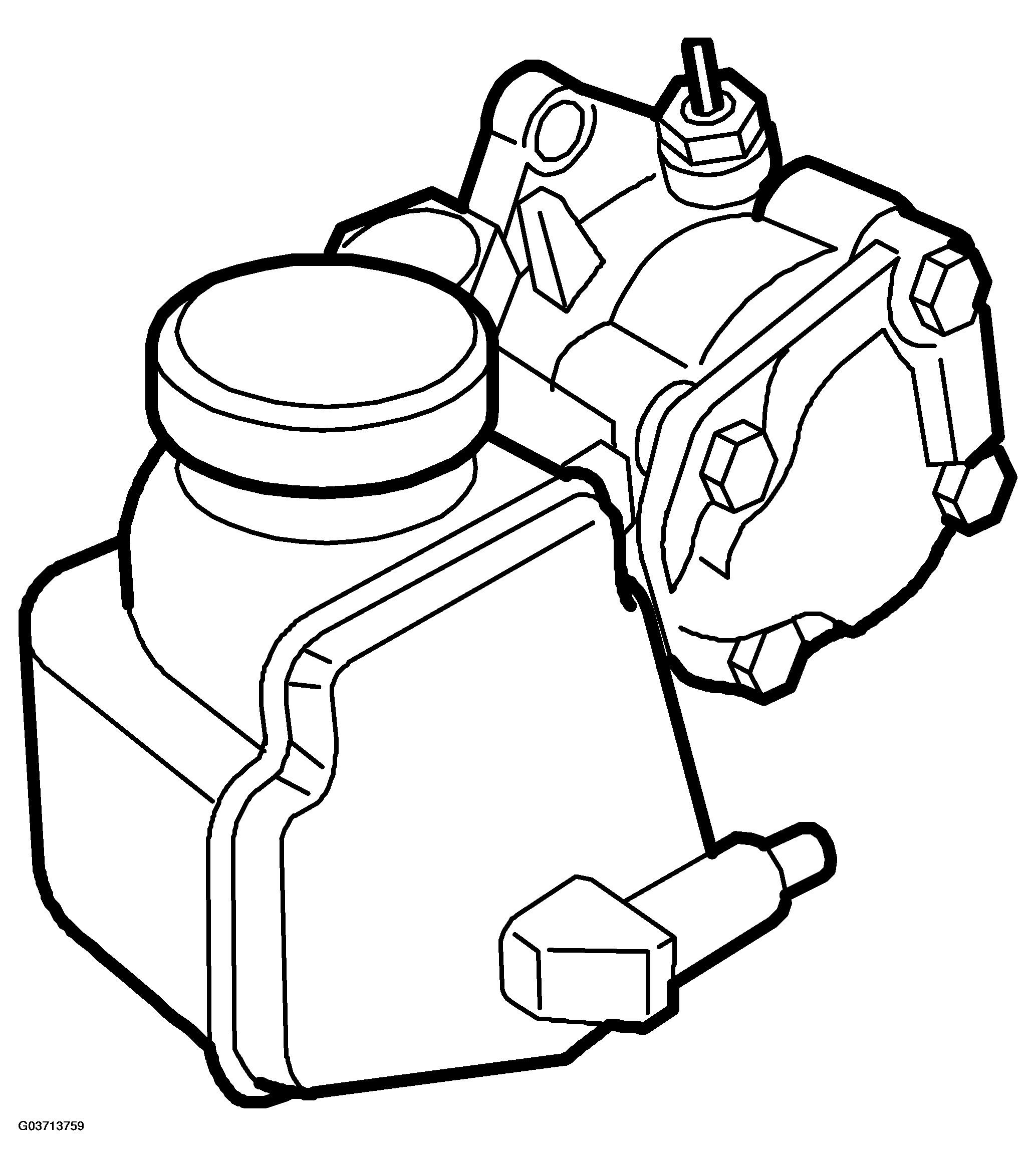

Fig 1: Identifying Power Steering Pump, B207 Engine
G03713759Courtesy of SAAB-SCANIA OF AMERICA, INC.
SPECIFICATION POWER STEERING PUMP

Maximum pressure 120 bar
Maximum flow 7.2 L/min
