To remove

  1. Raise the car.
  2. Remove the front right wheel.
  3. Remove the right-hand wheel arch liner.

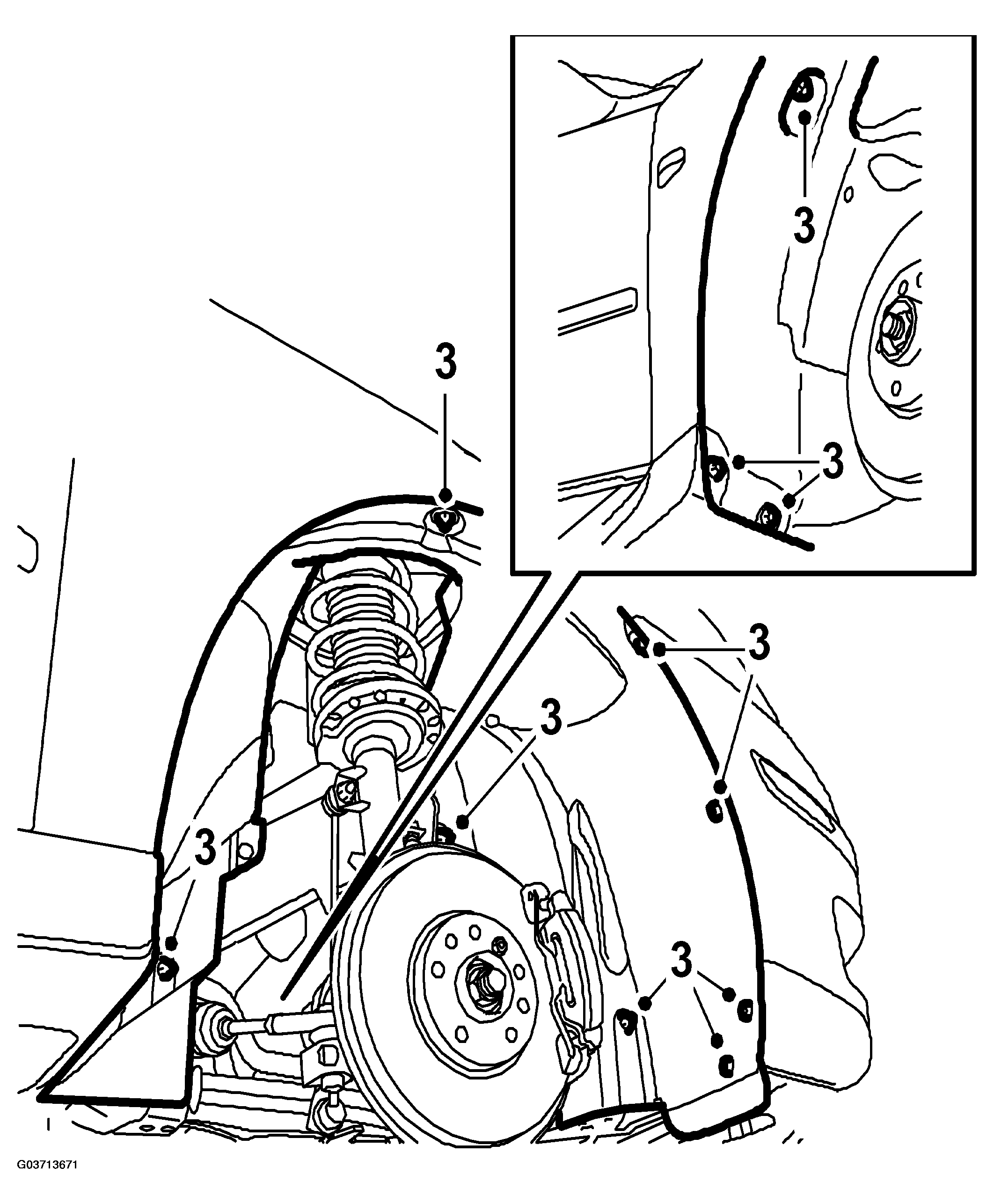

    Fig 1: Illustration For Step 3
    G03713671Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the lower engine cover and spoiler shield.
  5. Remove the bolt holding the charge air pipe of the turbocharger to the radiator.

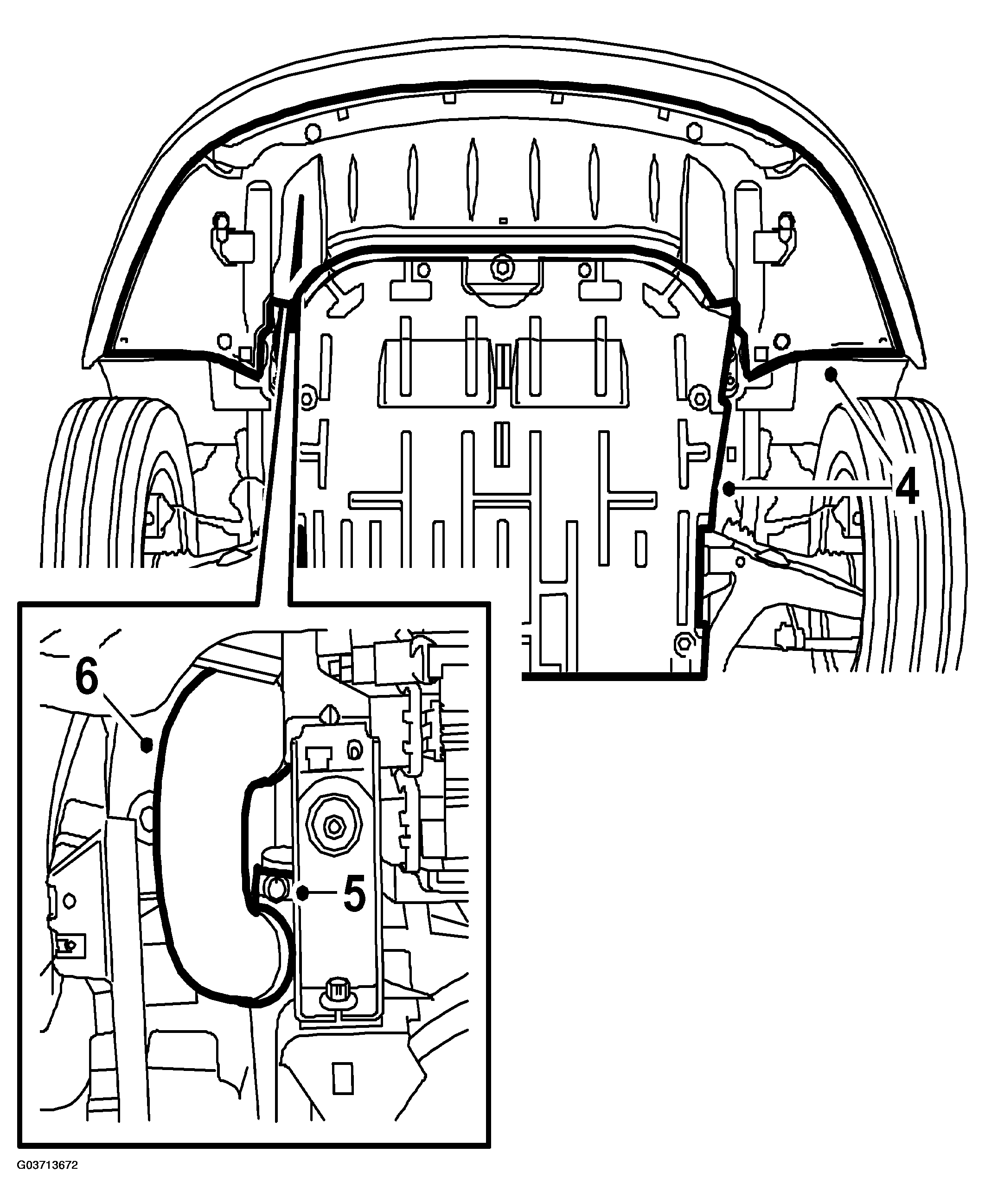

    Fig 2: Illustration For Step 4-6
    G03713672Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Detach the lower charge air hose from the charge air pipe and move the hose aside.
  7. Lower the car to the floor.
  8. Remove the upper engine cover.

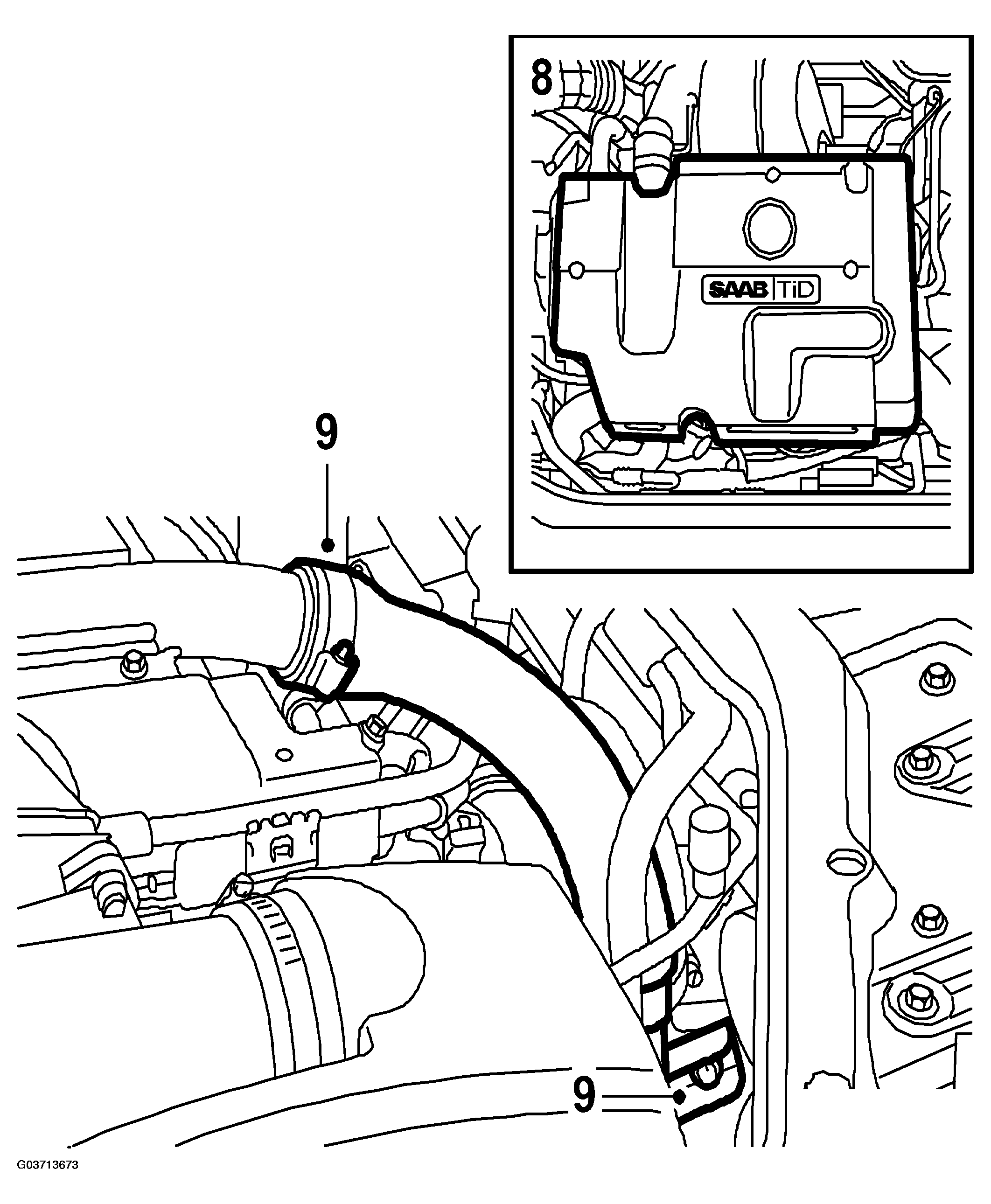

    Fig 3: Illustration For Step 9
    G03713673Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Remove the charge air pipe of the turbocharger as well as the upper charge air hose.
  10. Pinch the intake hose to the power steering pump and the return hose with two 30 07 739 HOSE PINCH-OFF PLIERS  .

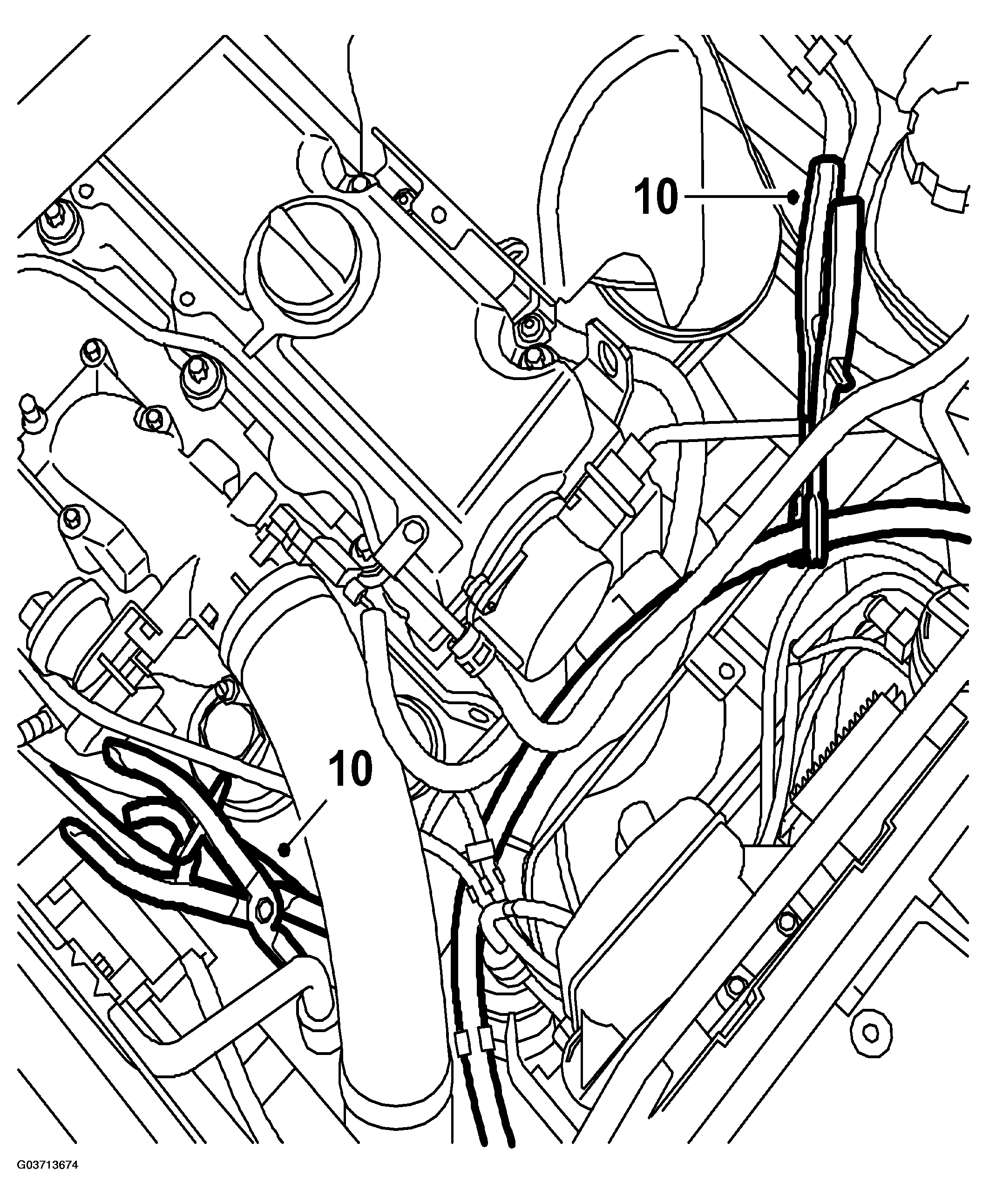

    Fig 4: Illustration For Step 10
    G03713674Courtesy of SAAB-SCANIA OF AMERICA, INC.
  11. Place a suitable receptacle under the pump.
    IMPORTANT: Power steering fluid must not come in contact with the belt pulley or belt.
  12. Remove the intake hose and the delivery pipe's banjo nipple from the pump.

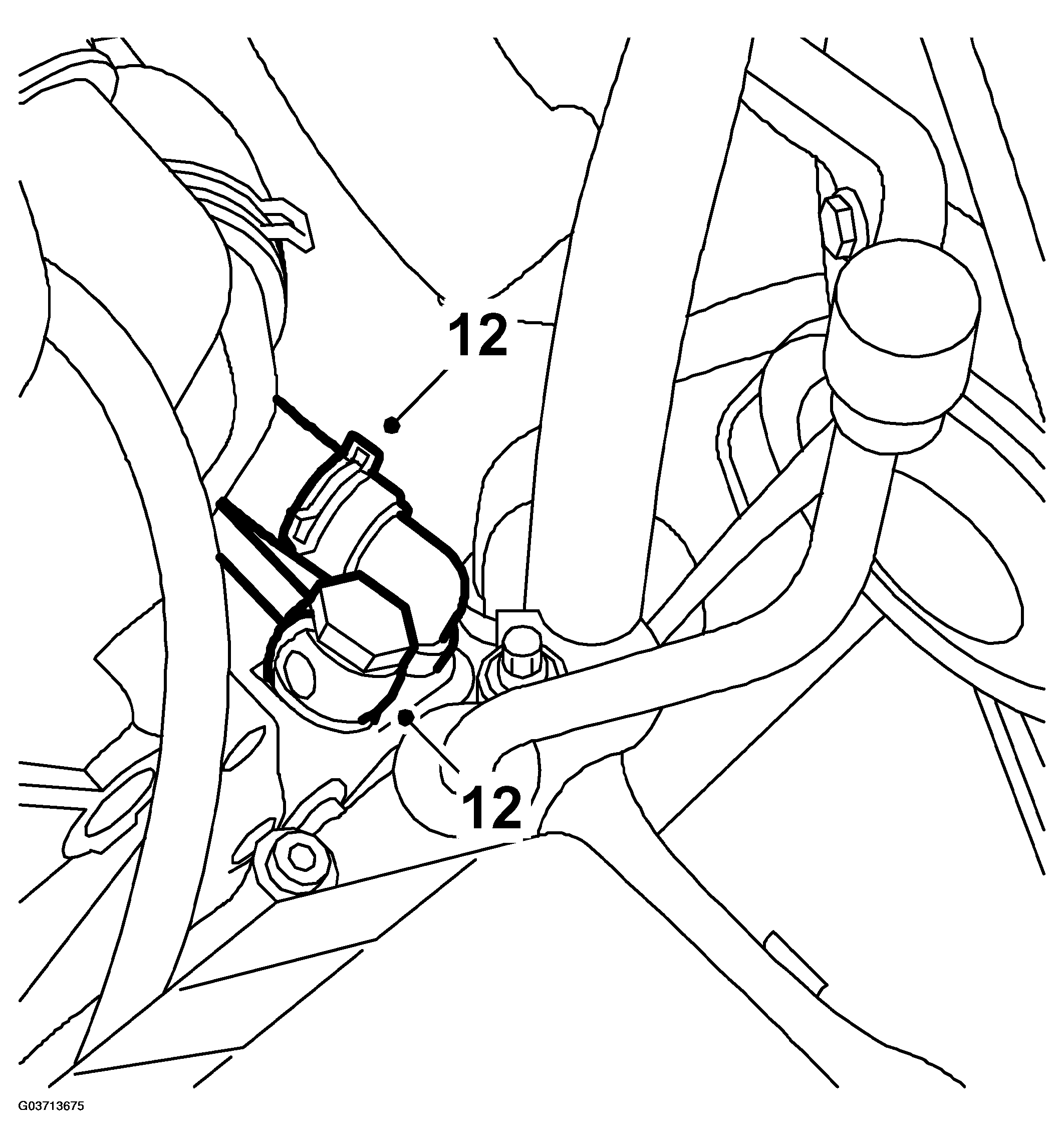

    Fig 5: Illustration For Step 12
    G03713675Courtesy of SAAB-SCANIA OF AMERICA, INC.
  13. Pry the engine to the left and fit a wedge between the engine and the structural member.

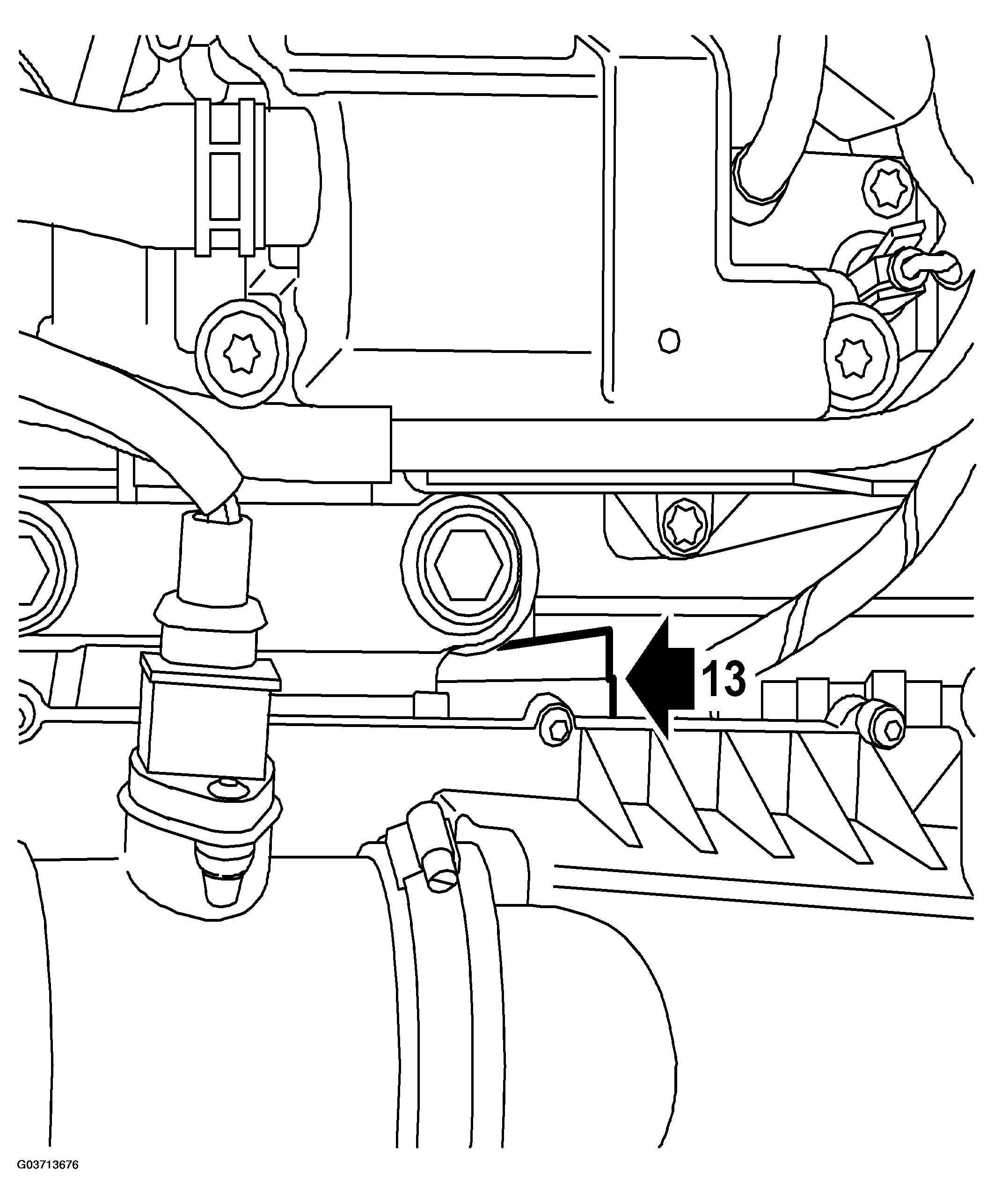

    Fig 6: Illustration For Step 13
    G03713676Courtesy of SAAB-SCANIA OF AMERICA, INC.
  14. Raise the car.
  15. Slightly loosen the belt pulley bolts.

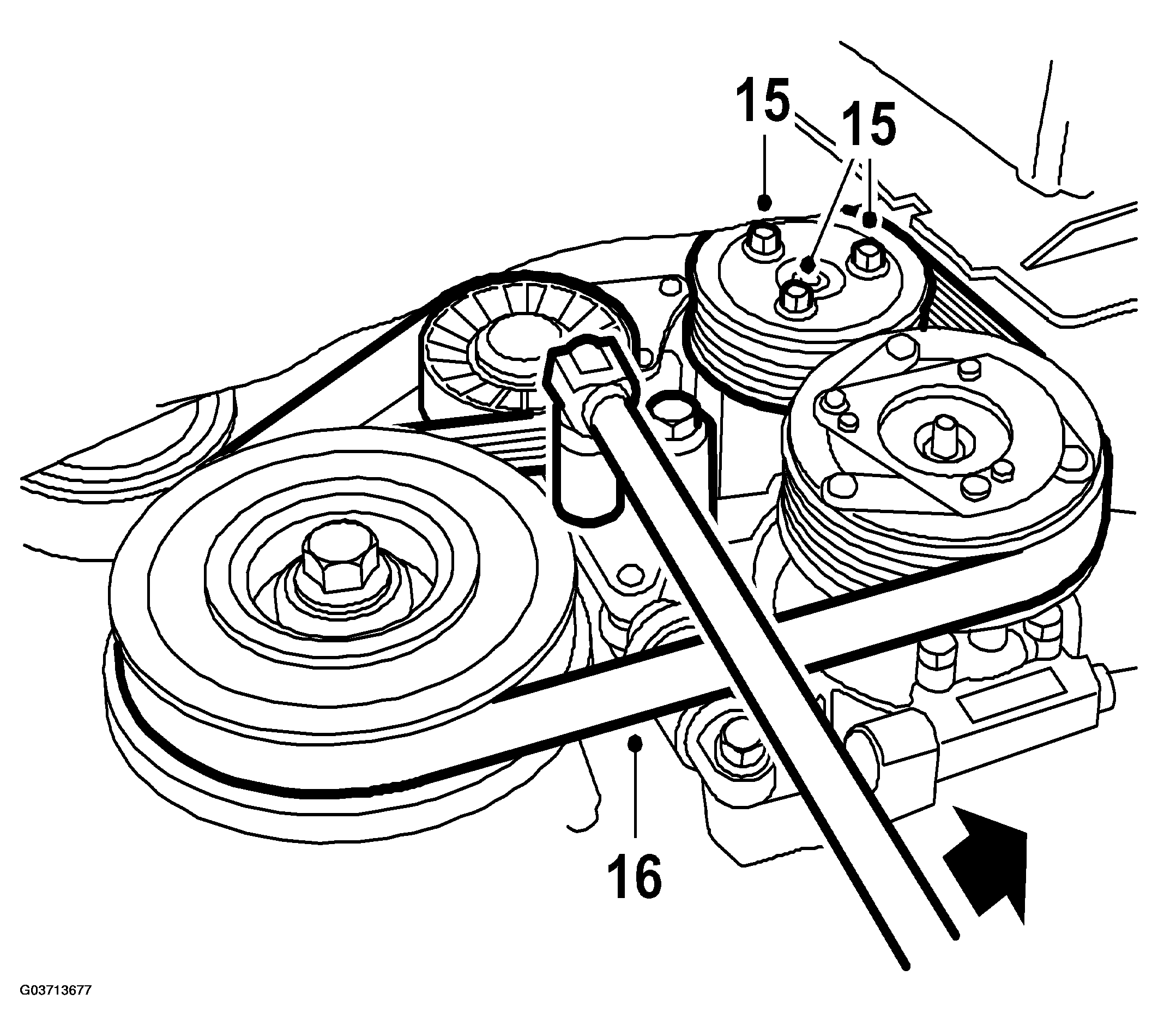

    Fig 7: Illustration For Step 15-16
    G03713677Courtesy of SAAB-SCANIA OF AMERICA, INC.
  16. Unload the belt tensioner. Detach the belt and put it to the side.
  17. Remove the belt pulley.

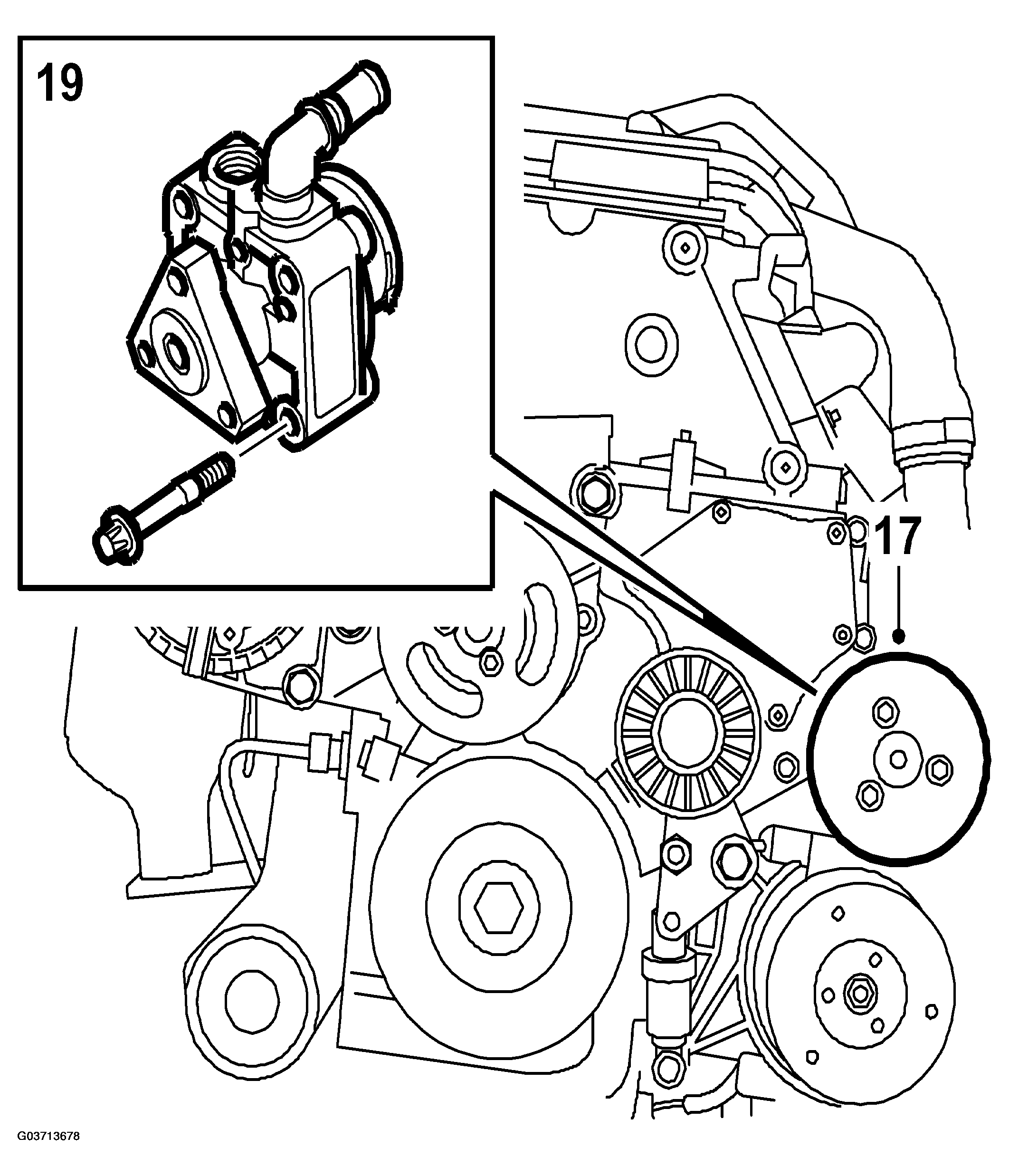

    Fig 8: Illustration For Step 17 And 19
    G03713678Courtesy of SAAB-SCANIA OF AMERICA, INC.
  18. Cover the A/C compressor's belt pulley with a plastic bag.
  19. Remove the power steering pump. Collect any fluid spill.
