Front speaker amplifier (354F): Connection

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
9	Ground
10	+30
1	O-bus	Reception. Own bus connection.
2	O-bus	Transmission. Own bus connection.

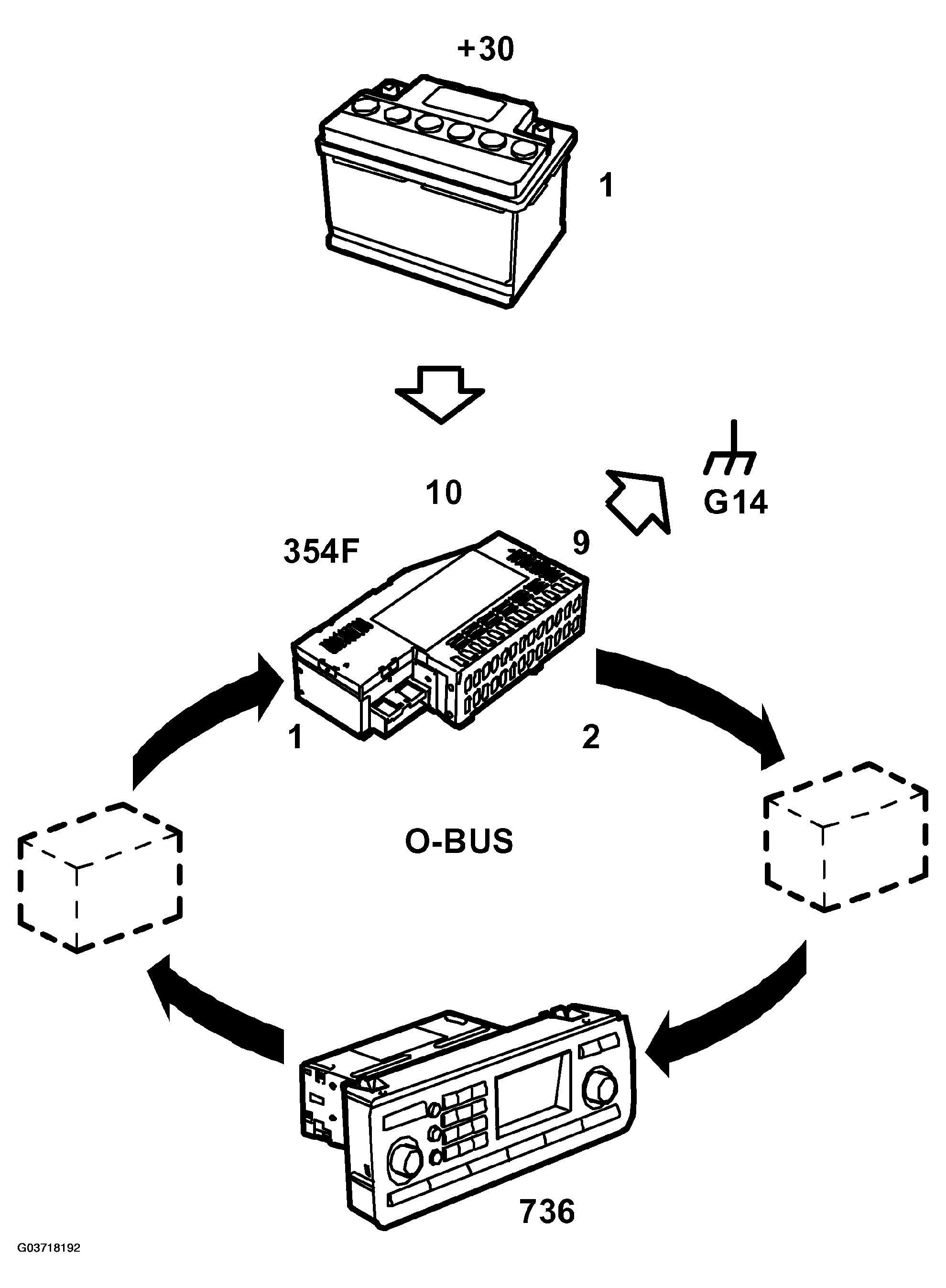

Fig 1: Identifying Communication Flow Front Speaker Amplifier (354F)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

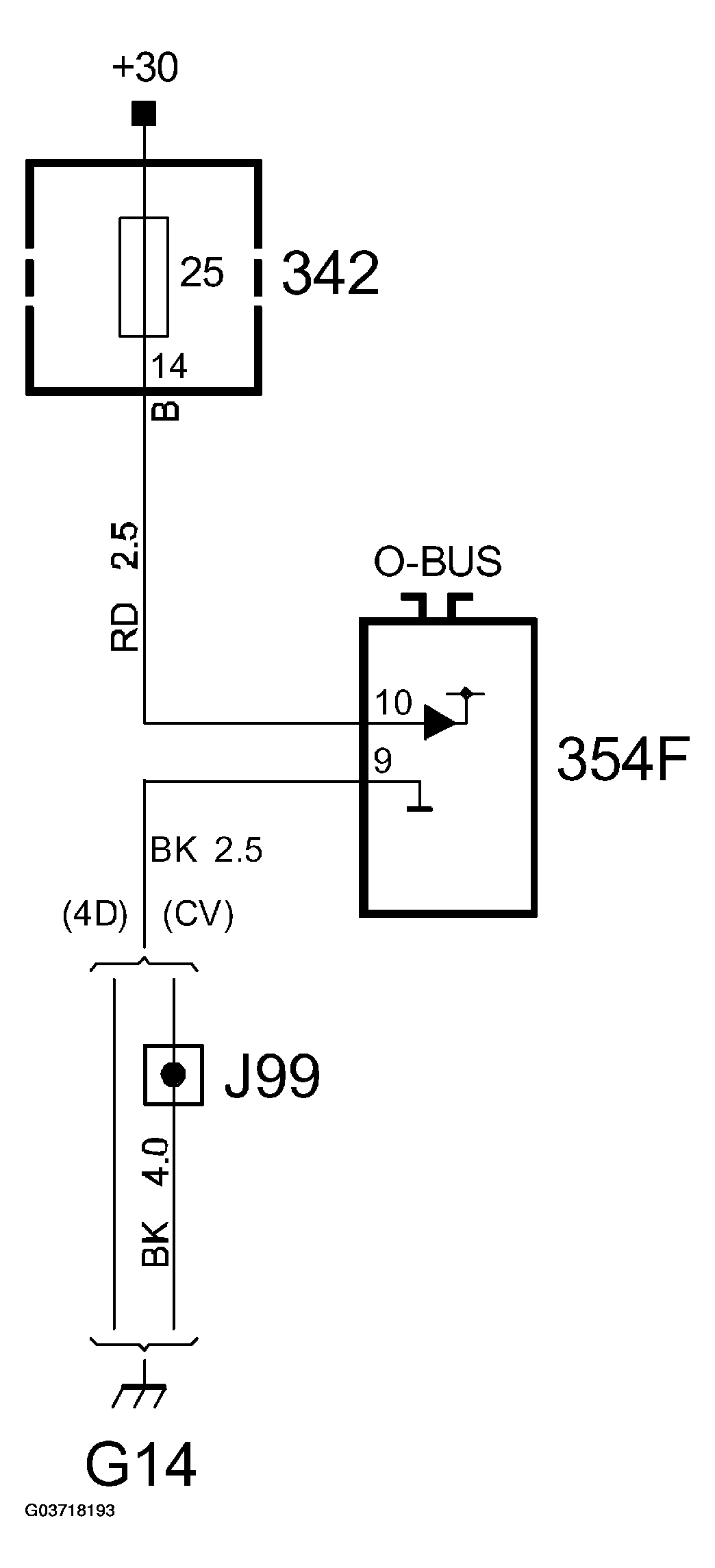

Wiring diagram, power supply

Fig 2: Circuit Diagram Front Speaker Amplifier (354F)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
