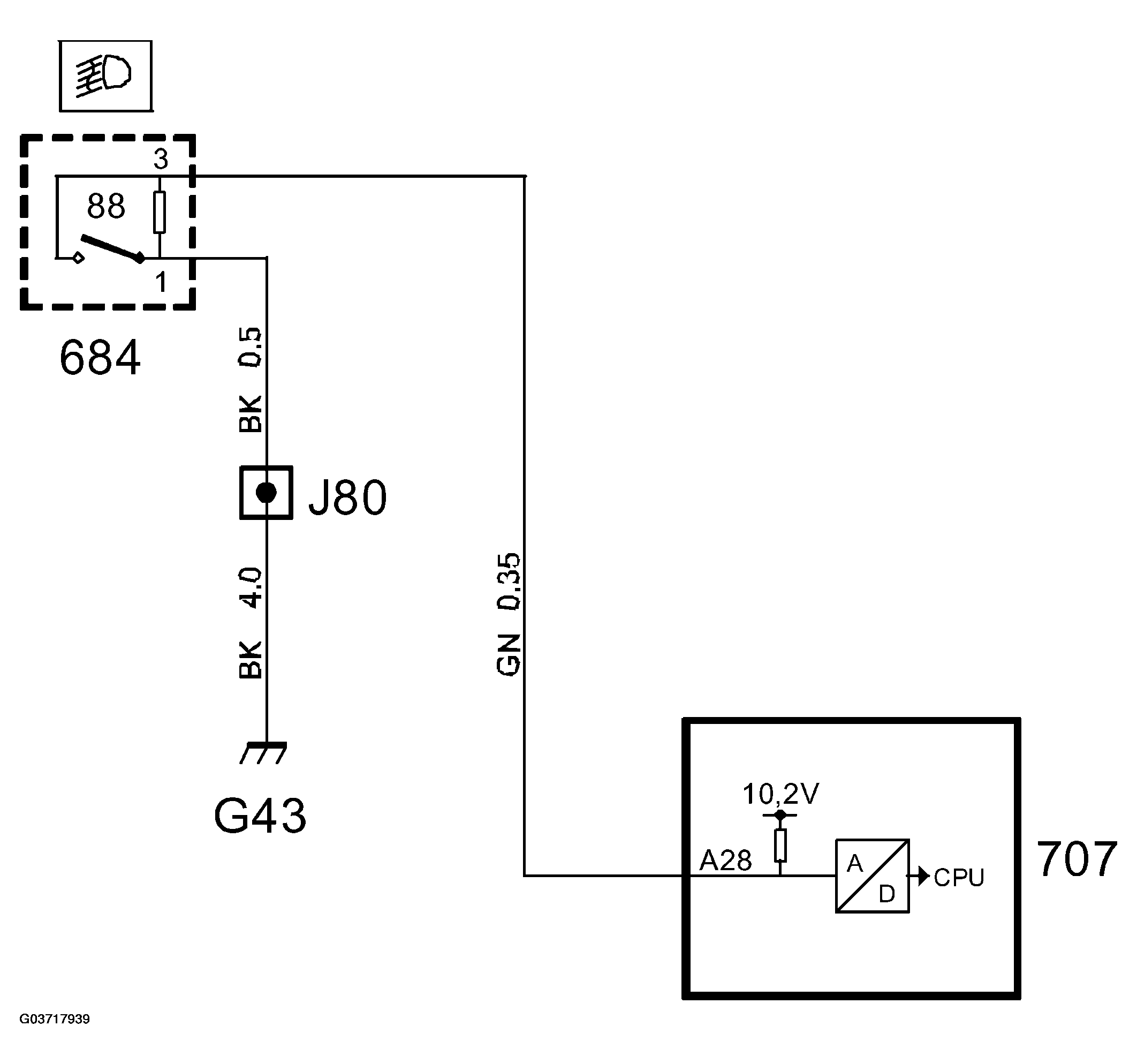

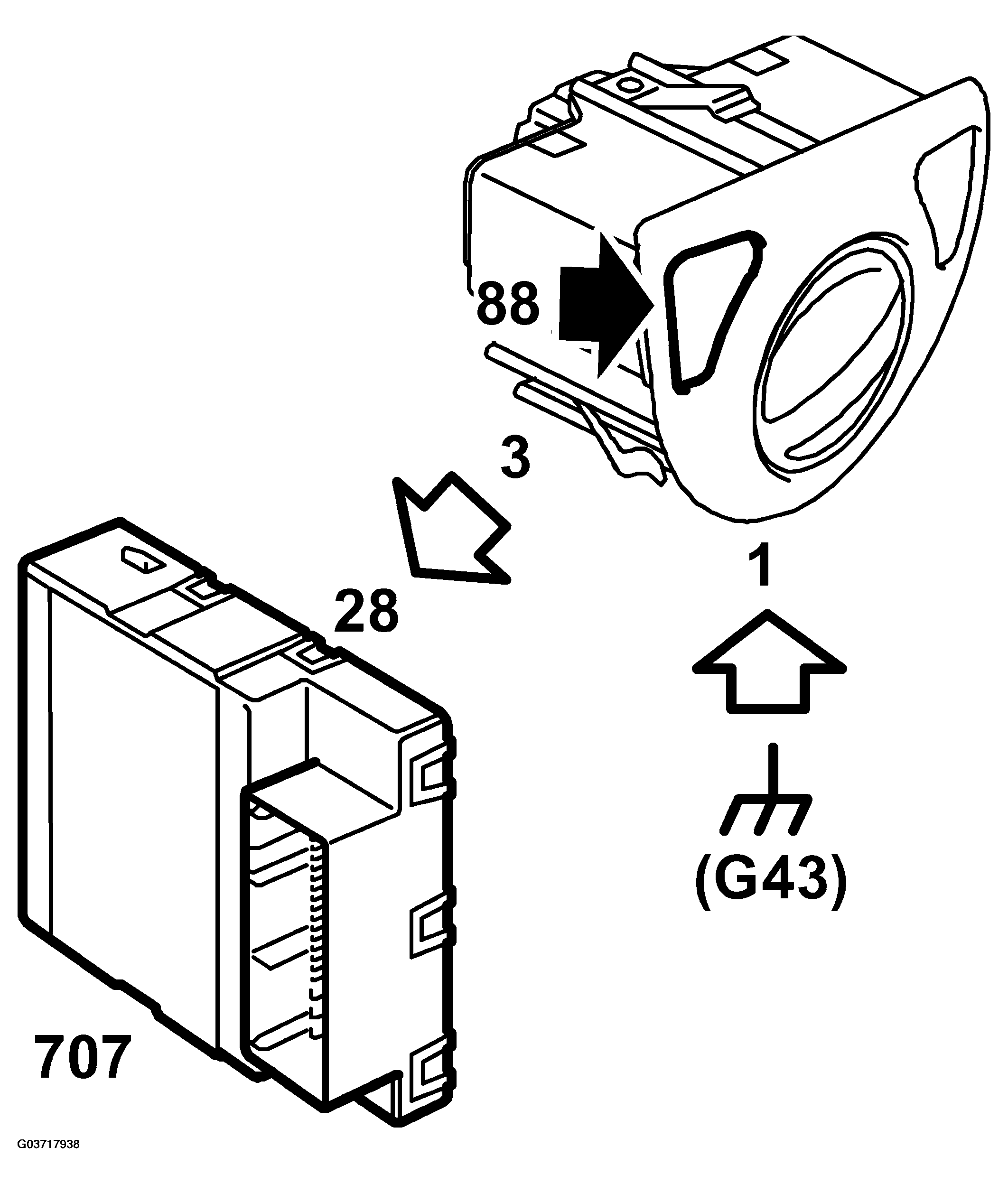

Fog light switch (88): Connection
CONNECTOR PINOUTS REFERENCE
| Pin No. |
Signal type |
Description |
| 1 |
Ground |
Grounded when the button is depressed |
| 3 |
Front fog lights |
To BCM. Grounded when the button is depressed |
