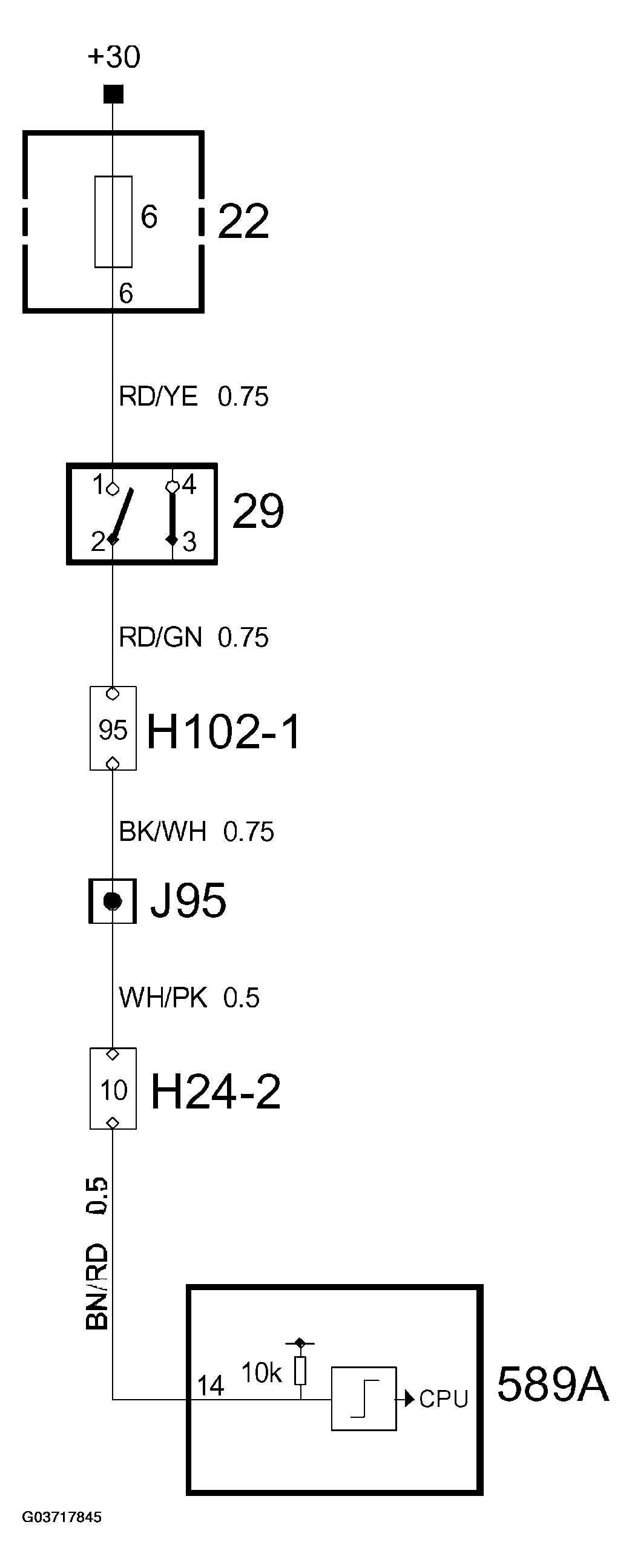

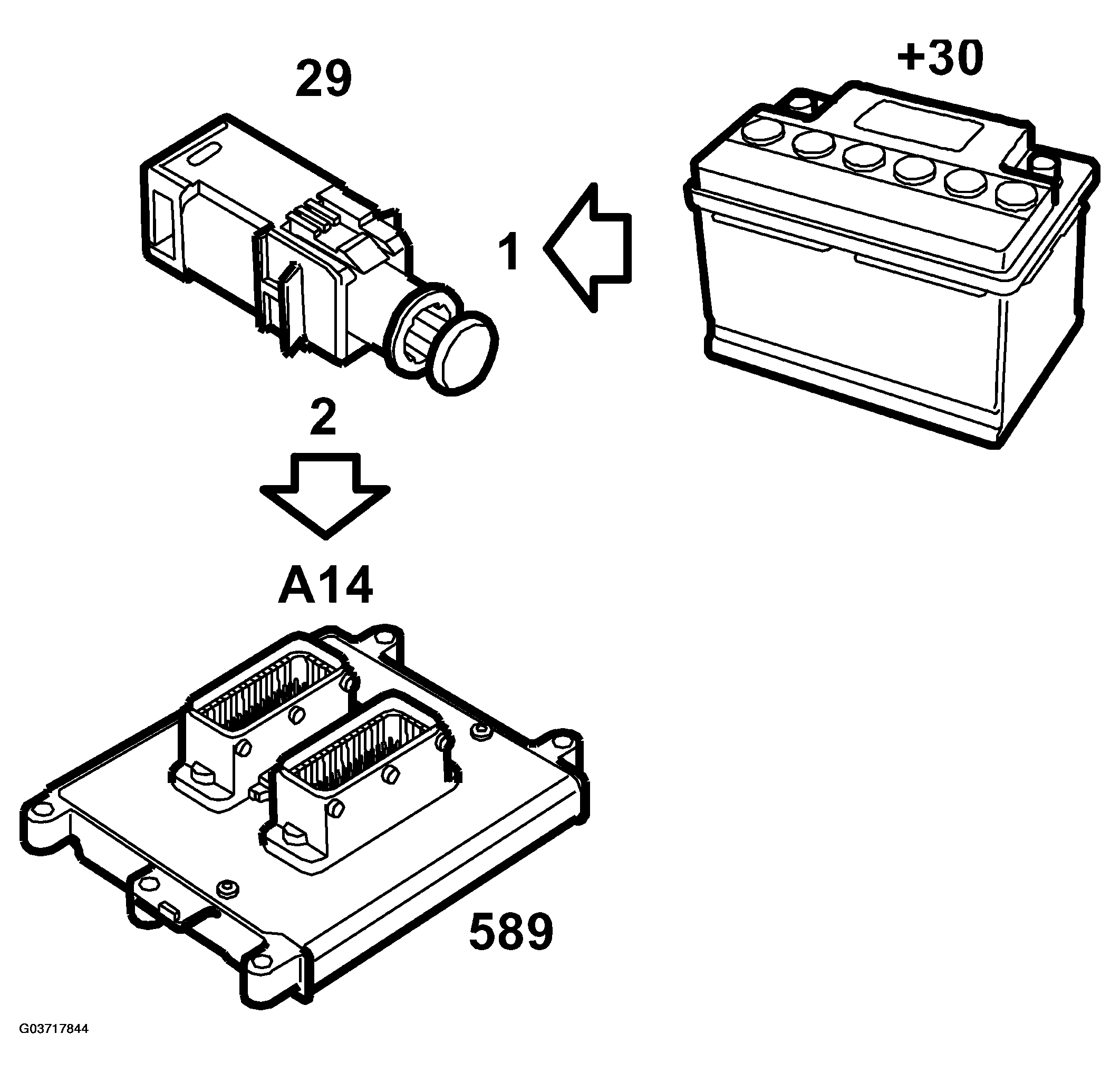

Brake light switch (29), T8: Connection
CONNECTOR PINOUTS REFERENCE
| Pin No. |
Signal type |
Description |
| 1 |
+30 |
Power supply from fuse 6. |
| 2 |
Signal |
The pin receives B+ when the brake pedal is depressed. Connected to ECM pin 14(A). |
