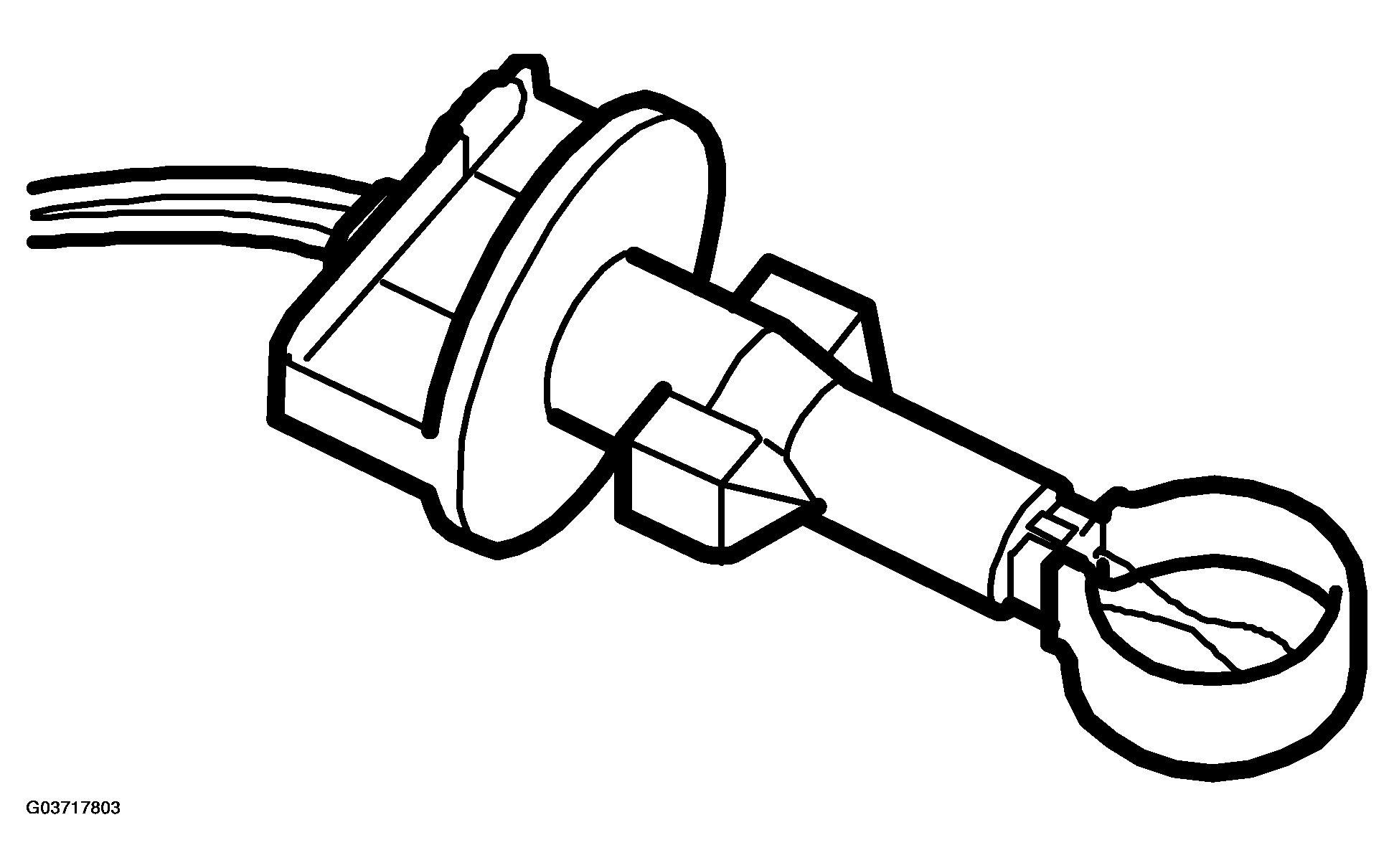

Temperature sensor, evaporator (621)
Courtesy of SAAB-SCANIA OF AMERICA, INC.

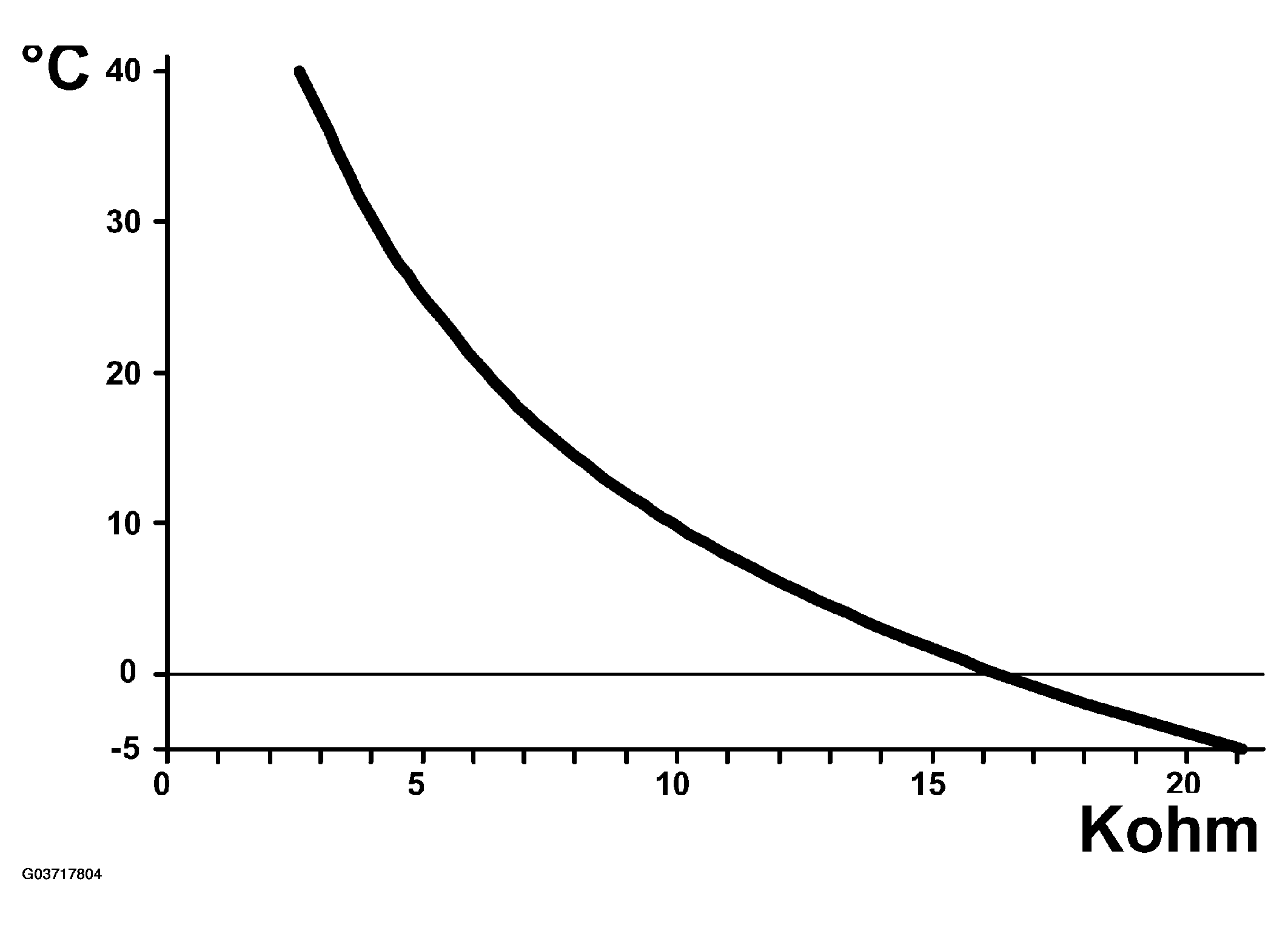

Courtesy of SAAB-SCANIA OF AMERICA, INC. TECHNICAL DATA - TEMPERATURE SENSOR, EVAPORATOR (621)
| °C (°F) |
kOhm |
| 40 (104) |
2,66 |
| 30 (86) |
4,02 |
| 20 (68) |
6,25 |
| 15 (59) |
7,8 |
| 10 (50) |
9,9 |
| 5 (41) |
12,7 |
| 0 (32) |
16,3 |
| -2 (28,4) |
18,0 |
| -5 (23) |
21,1 |
Resistor tolerances is +/- 5 % at the stated temperature.
