Position sensor, first bow locked (561c)

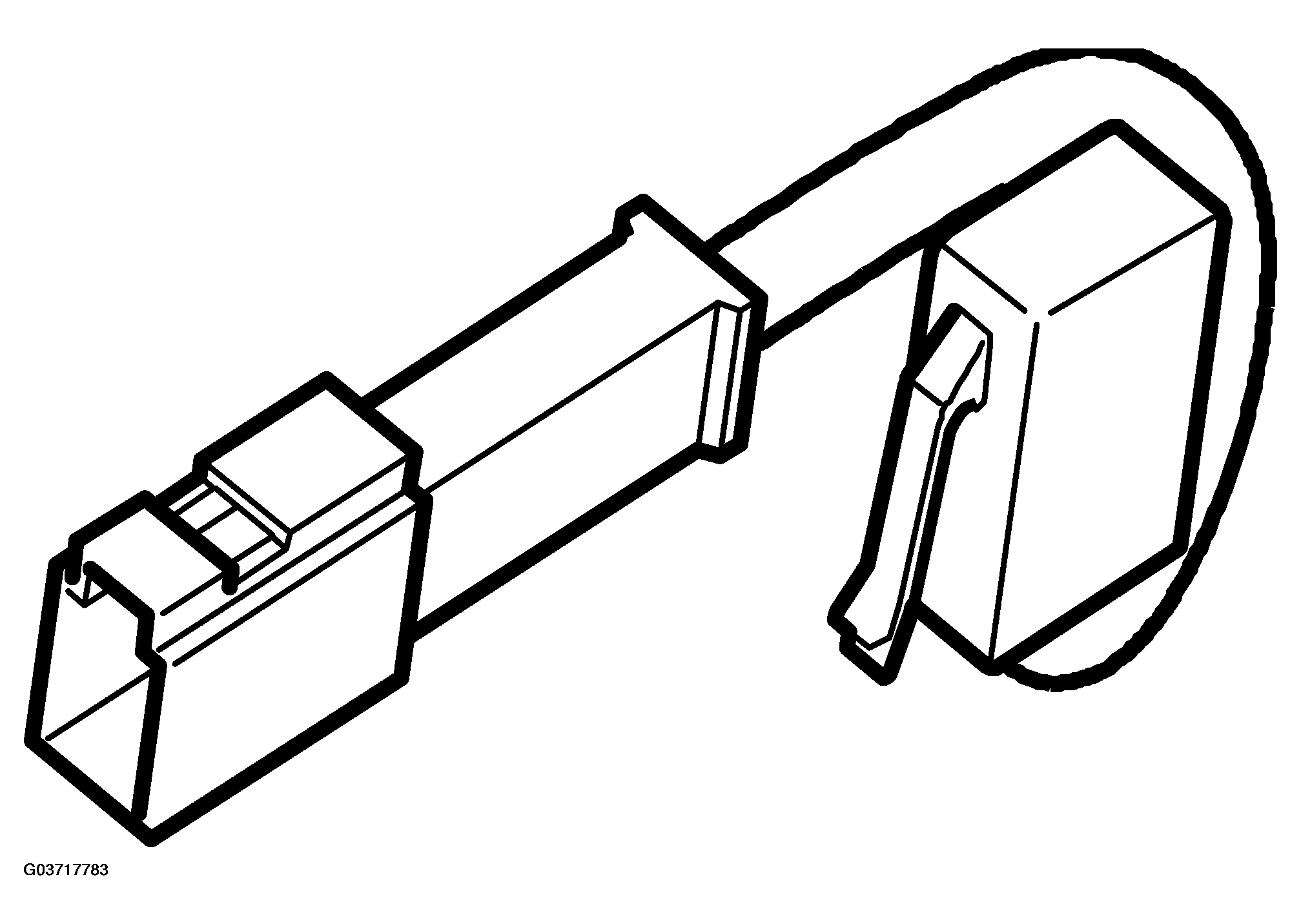

Fig 1: Identifying Position Sensor (First Bow Locked)
G03717783Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - POSITION SENSOR, FIRST BOW LOCKED (561C)

Type Hall sensor
Connector AMP / Tyco 1-929103

Connection
