Intake air sensor (688), PSG16

TECHNICAL DATA - INTAKE AIR SENSOR (688), PSG16

Working voltage (V)

5 +/-0.25

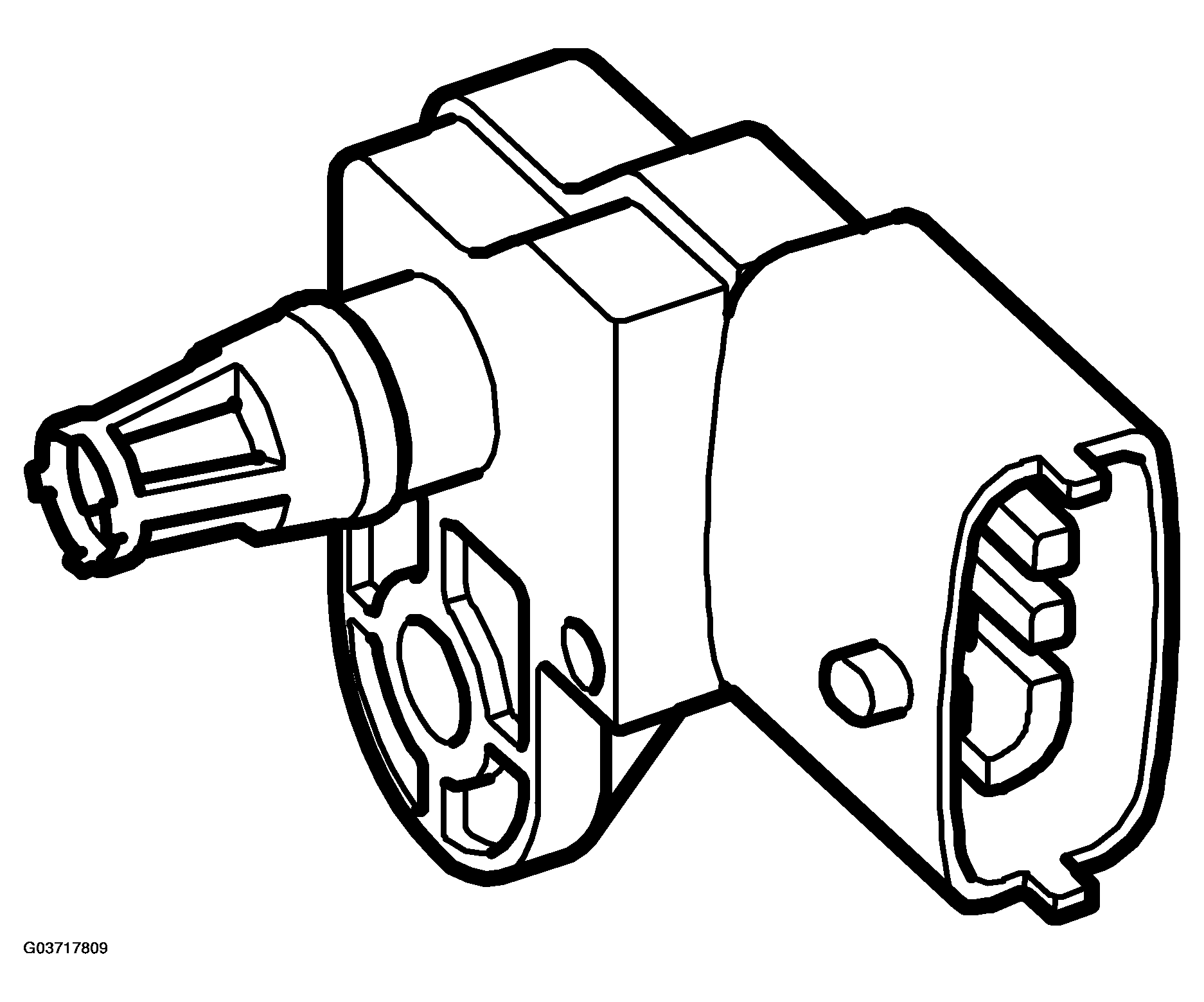

Fig 1: Identifying Intake Air Sensor

G03717809

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 2: Identifying Graph (Intake Air Sensor)

G03717810

Courtesy of SAAB-SCANIA OF AMERICA, INC.

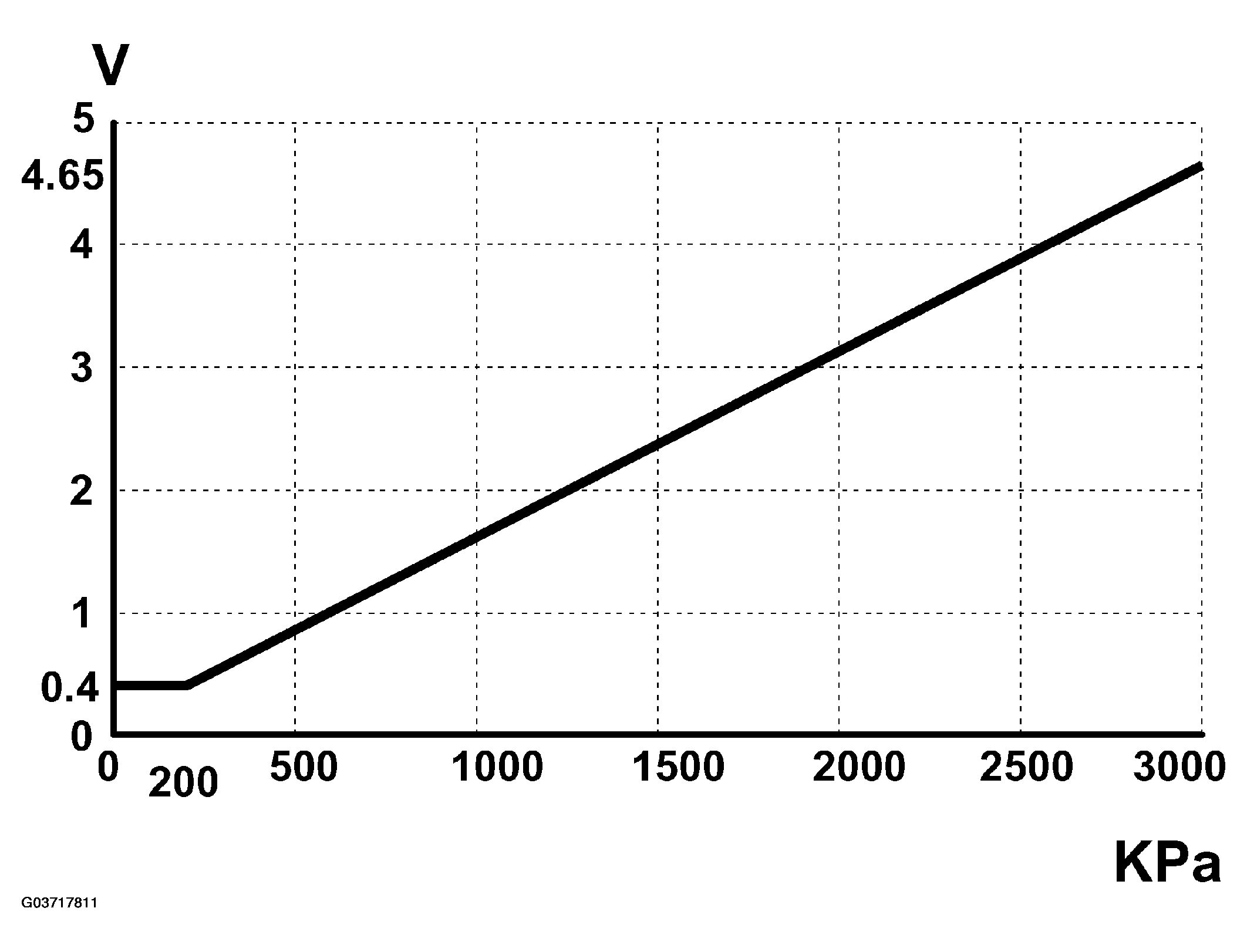

Fig 3: Identifying Graph (Intake Air Sensor)

G03717811

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA - INTAKE AIR SENSOR (688), PSG16

Temperature (°C)	Nominal resistance (kOhm)
-40	48.153
-30	26.855
-20	15.614
-10	9.476
0	5.886
10	3791
20	2.510
30	1.715
40	1.199
50	0.851
60	0.612
70	0.446
80	0.329
90	0.246
100	0.186
110	0.142
120	0.109
130	0.085
