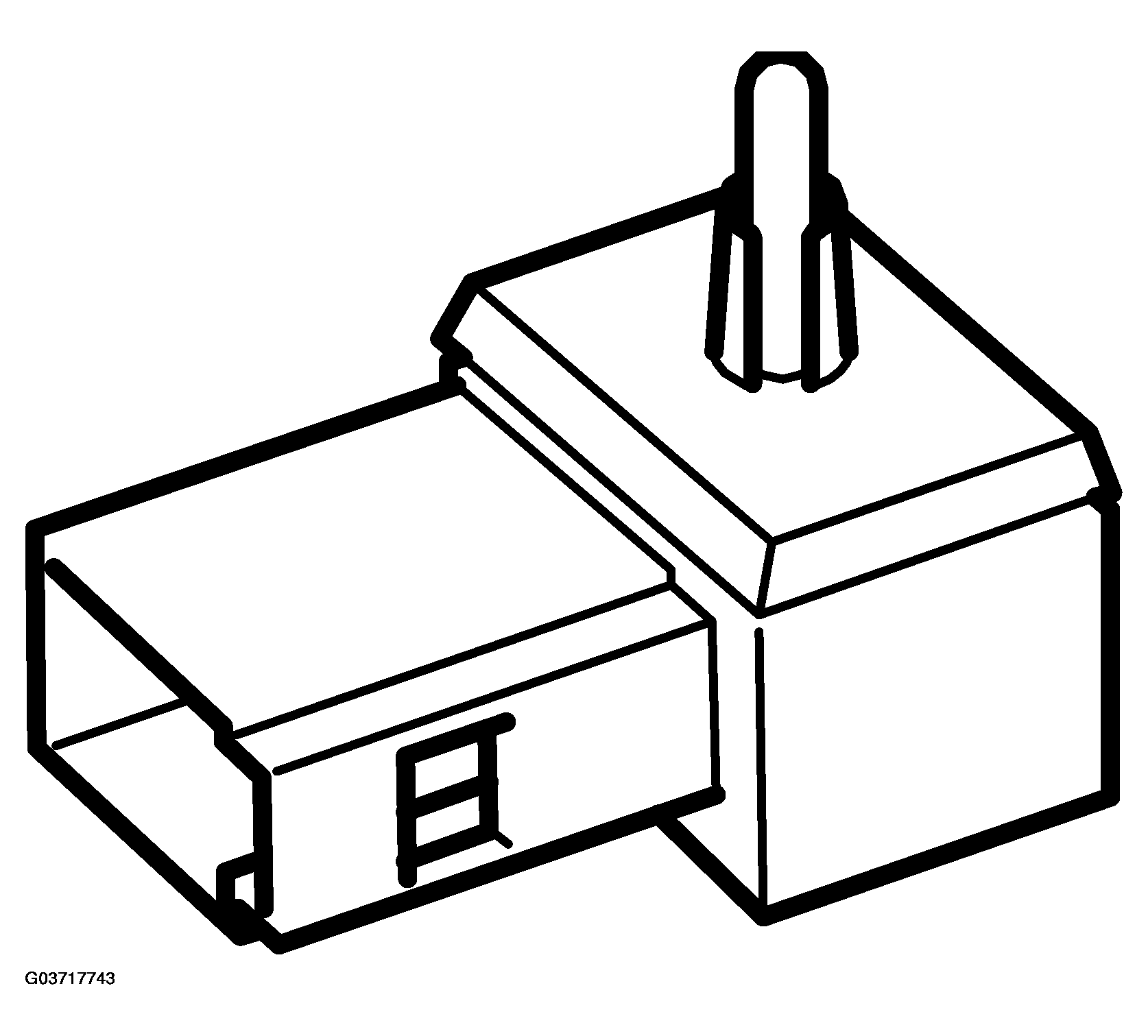

Cabin temperature sensor (218)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Voltage fed with 5 V through a 19.6 kOhm resistor in the control module.

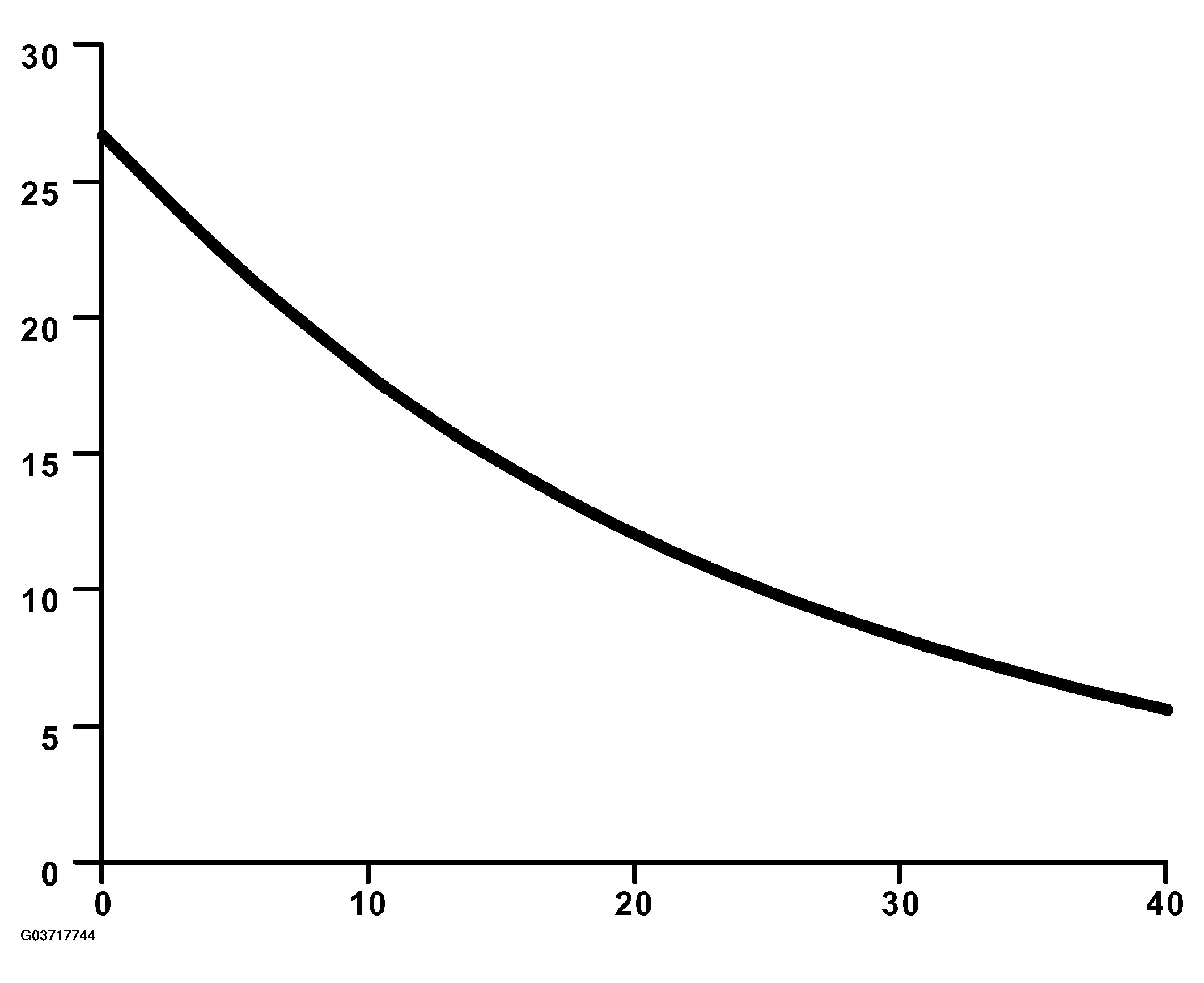

CABIN TEMPERATURE SENSOR (218) TECHNICAL DATA
| °C (°F) |
kOhm |
| 0 (32) |
26.7-29.3 |
| 10 (50) |
17.5-18.9 |
| 20 (68) |
11.8-12.5 |
| 25 (77) |
9.8-10.3 |
| 30 (86) |
8.1-8.5 |
| 40 (104) |
5.6-6.0 |
