ACC unit (216)

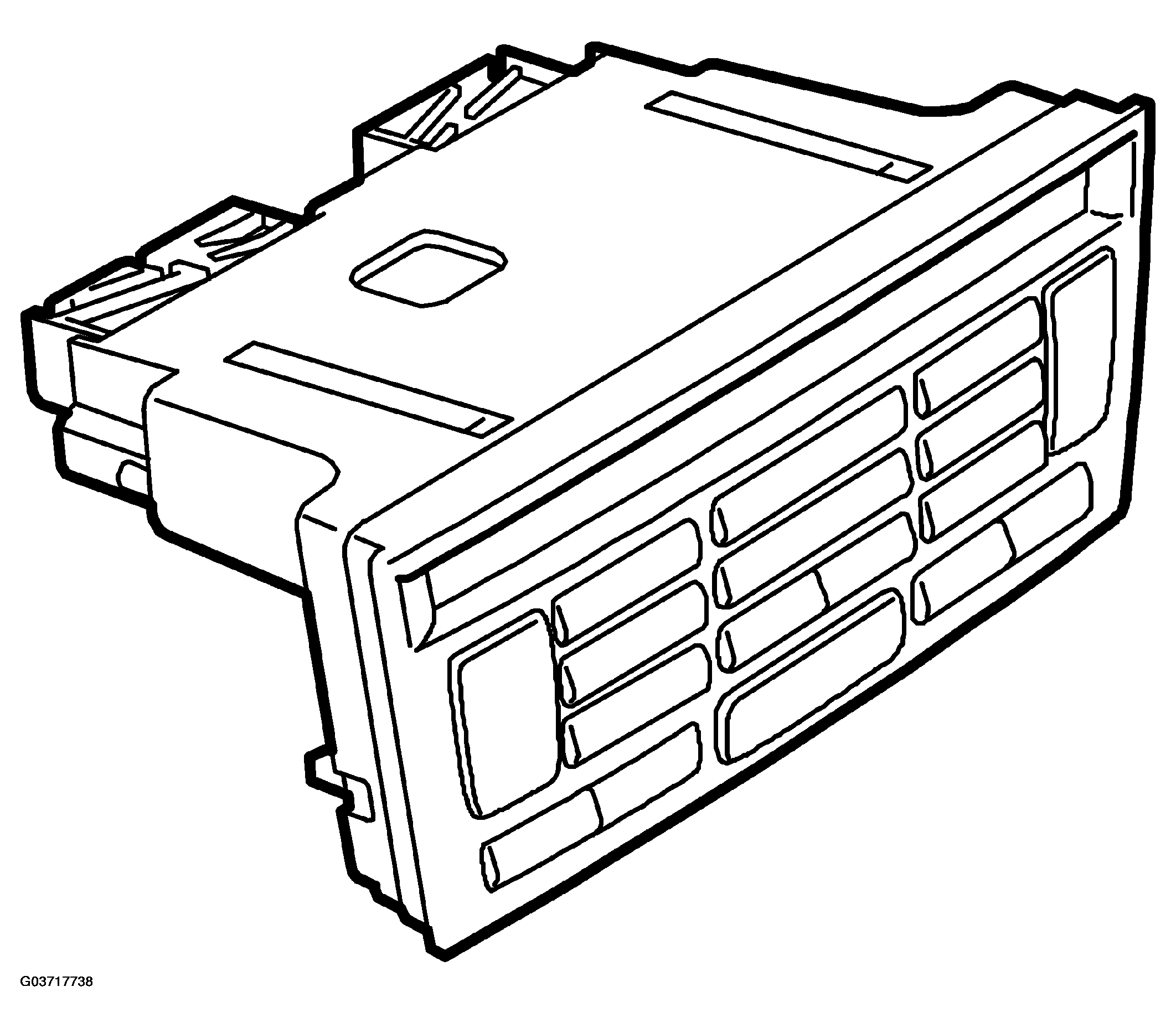

Fig 1: View Of ACC Unit (216)
G03717738Courtesy of SAAB-SCANIA OF AMERICA, INC.
ACC UNIT (216) TECHNICAL DATA

Number of connector pins pcs Connector K32, 32
Connector K42, 42
Power supply +30 pin no 16 (K32)
Ground pin no 15 (K32)
