To fit

WARNING: This page is about a different car, the 2005 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

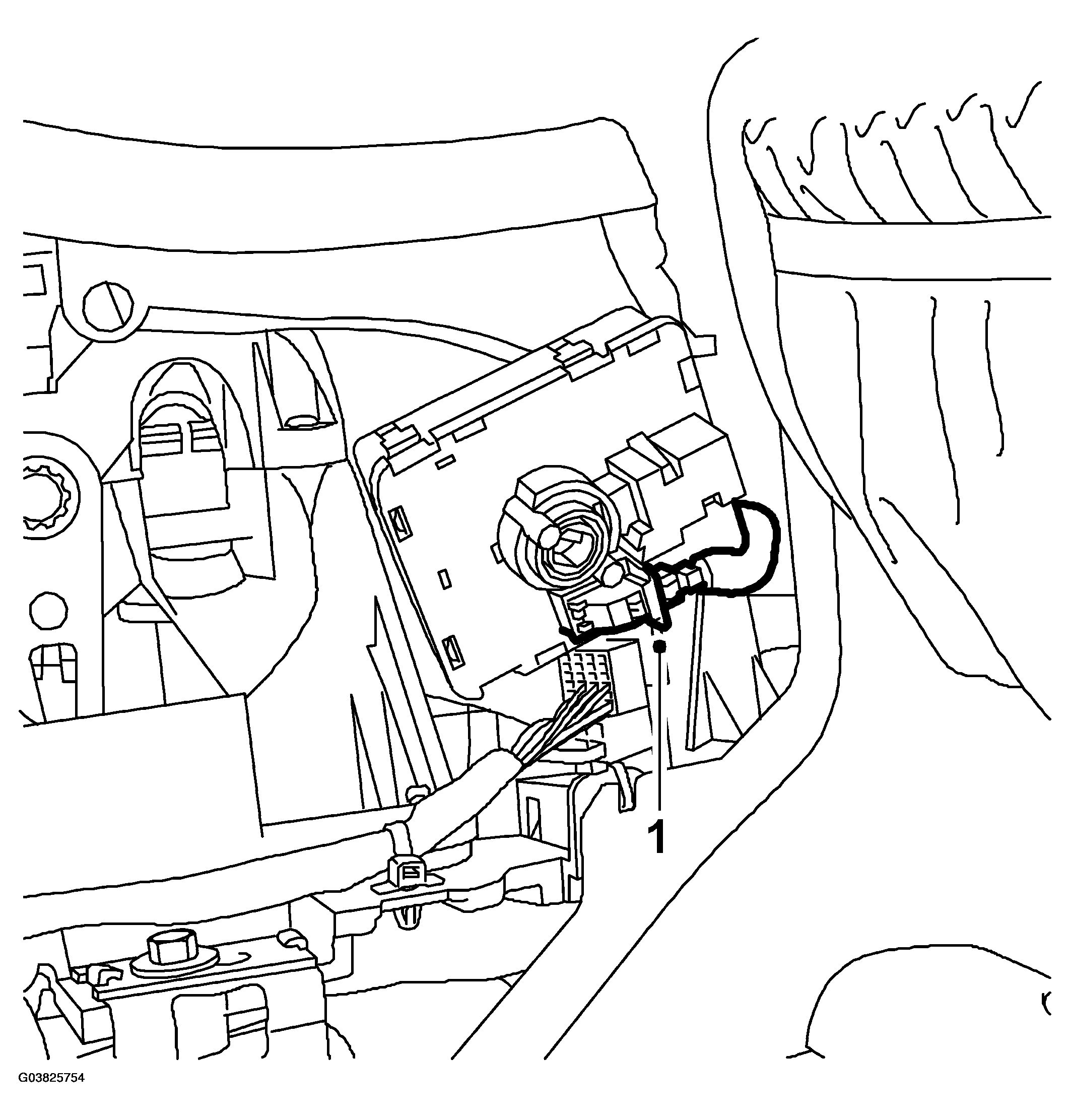

Plug in the connector to the ignition switch module, see CONNECTORS, HANDLING AND CHECKING item 1D.

Fig 1: Illustration For Step - 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.

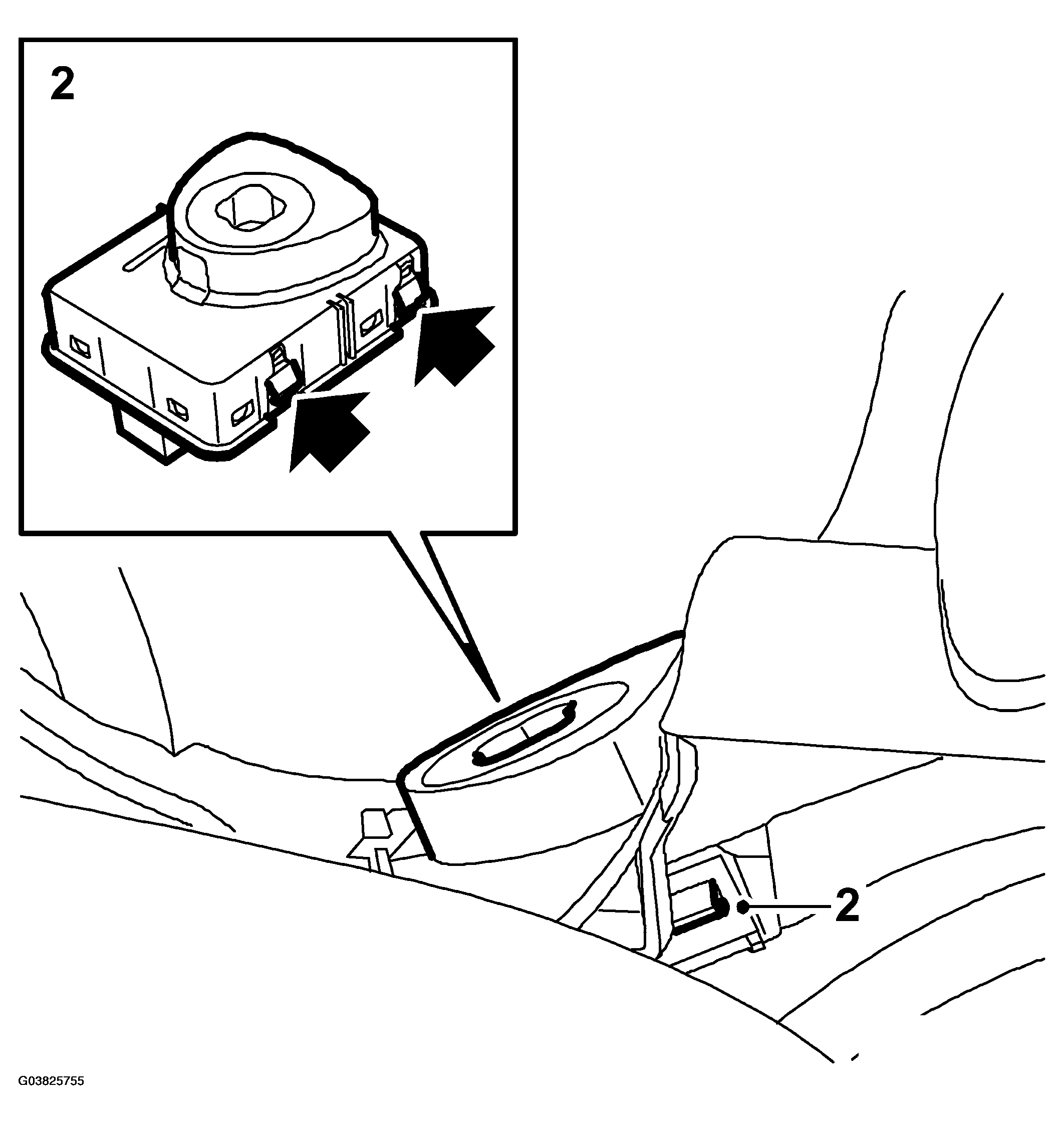

Lift up the floor console slightly and fit the ignition switch module. Make sure all four catches are in the correct position.

Fig 2: Illustration For Step - 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.

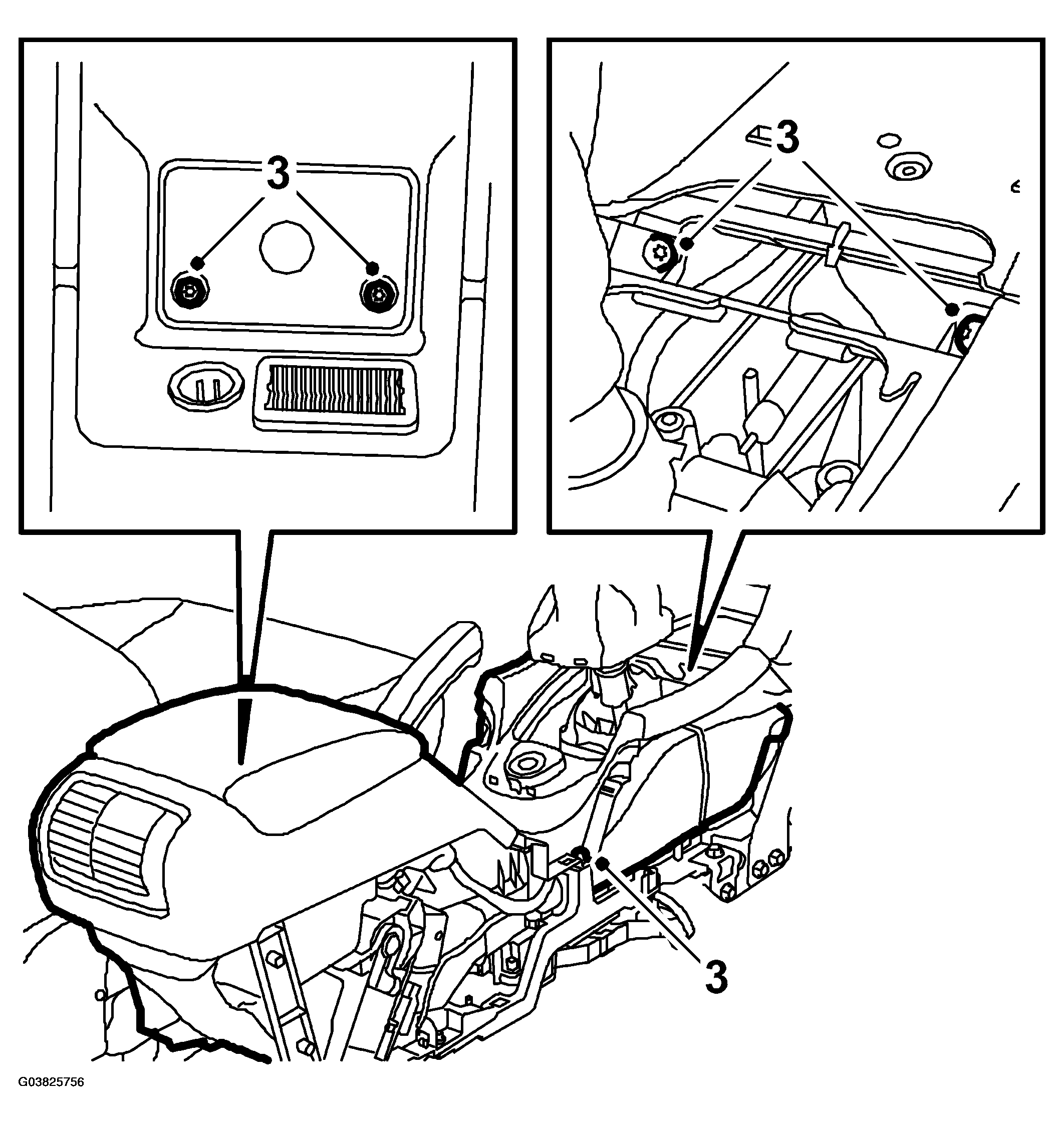

Fit the floor console screws and tighten them. Put the rubber mat back into the storage compartment.

Fig 3: Illustration For Step - 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.

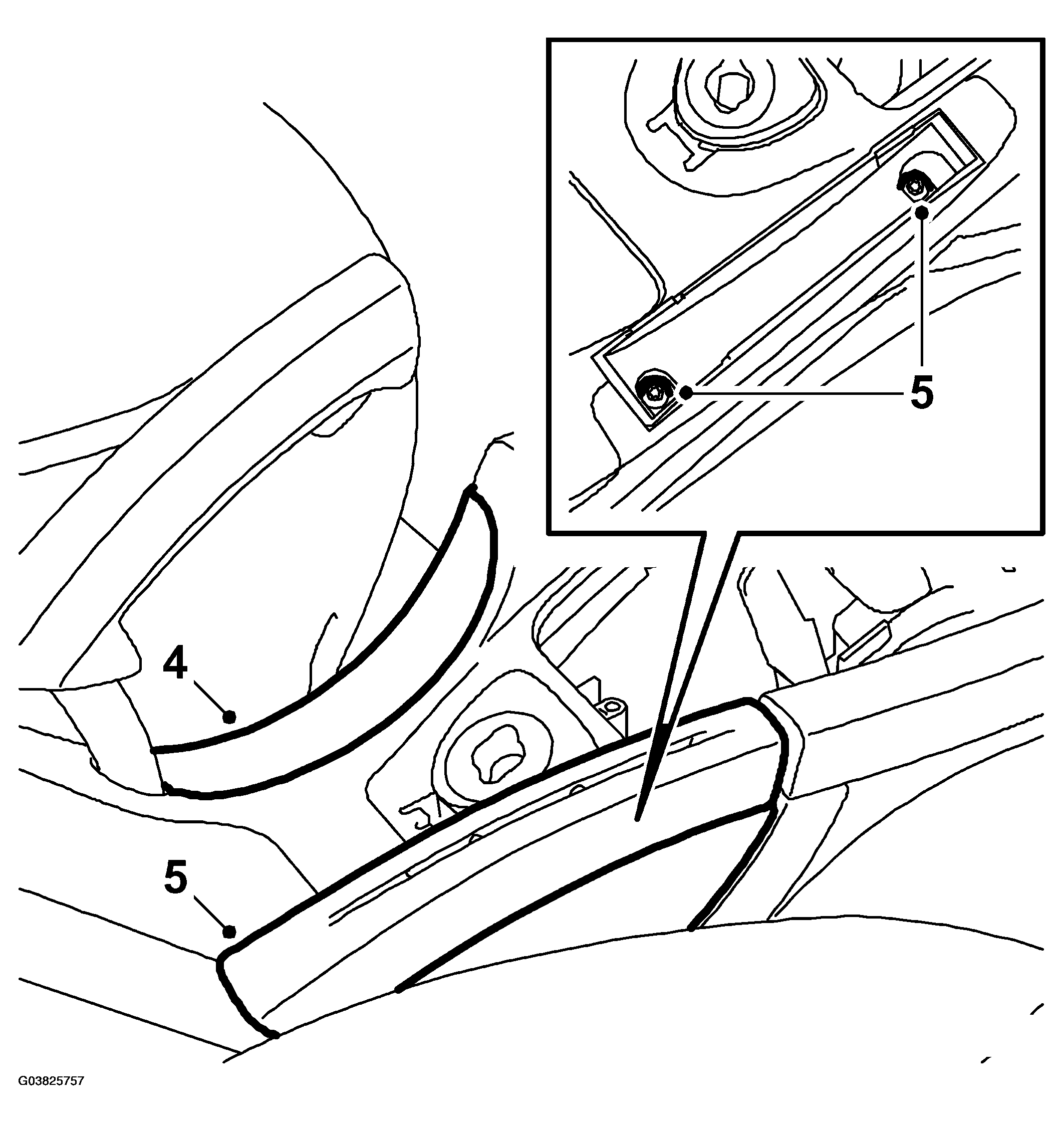

Fit the cover under the handbrake lever.

Fig 4: Illustration For Step - 4-5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the compartment and cover on the passenger side.

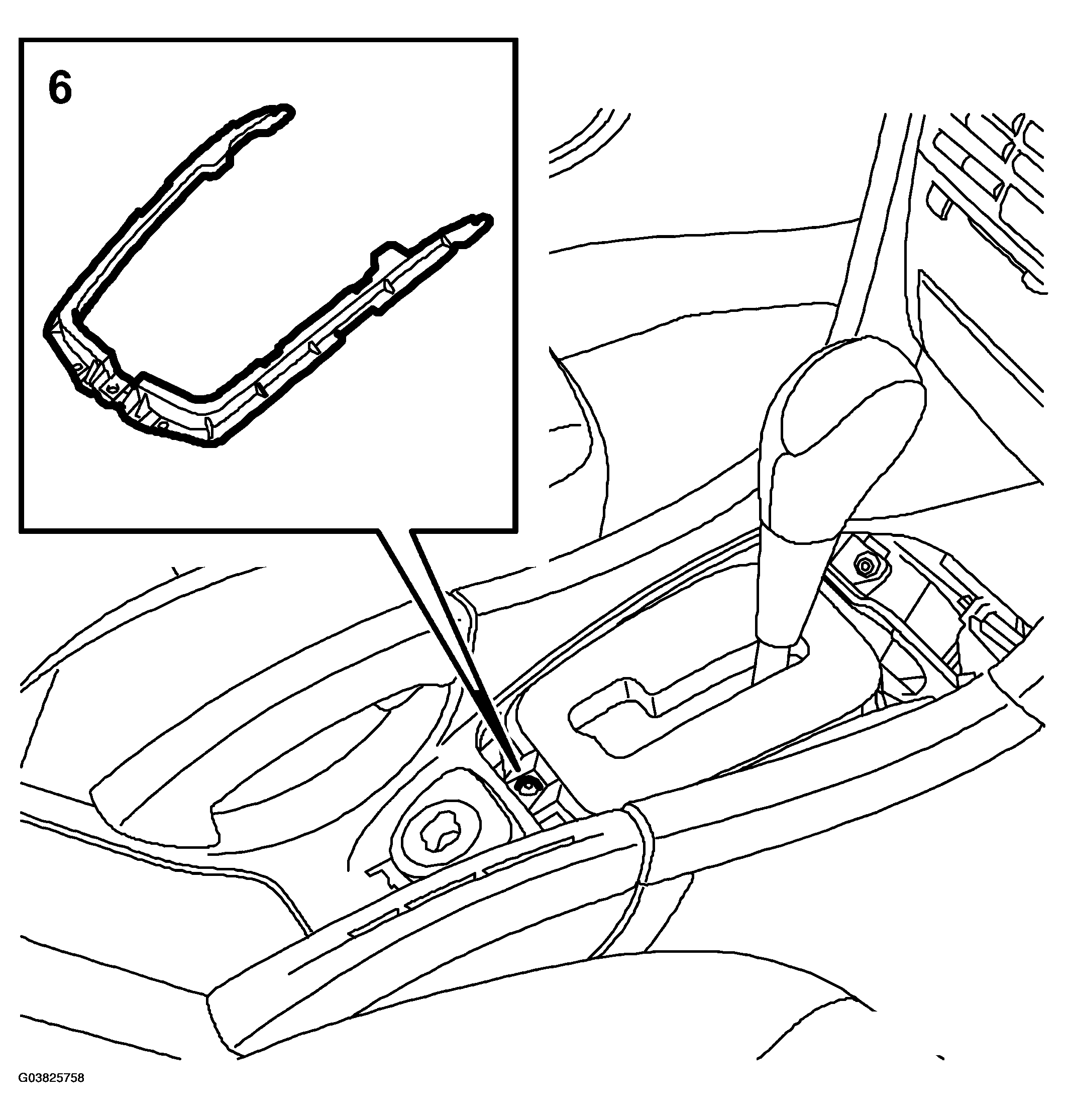

AUT: Fit the clamp.

Fig 5: Locating Clamp
Courtesy of SAAB-SCANIA OF AMERICA, INC.

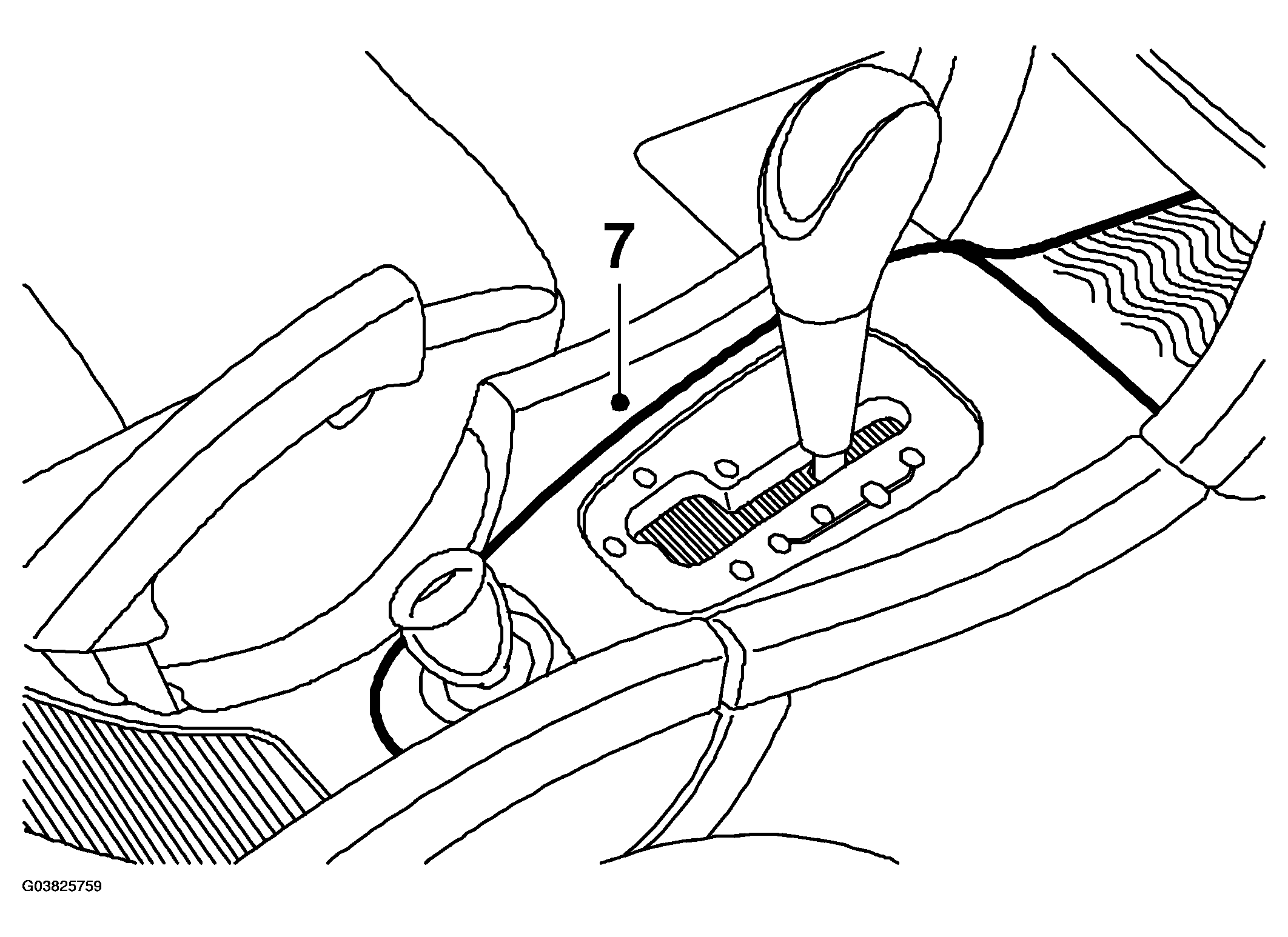

Fit the cover over the gear lever housing.

Fig 6: Illustration For Step - 7
Courtesy of SAAB-SCANIA OF AMERICA, INC.

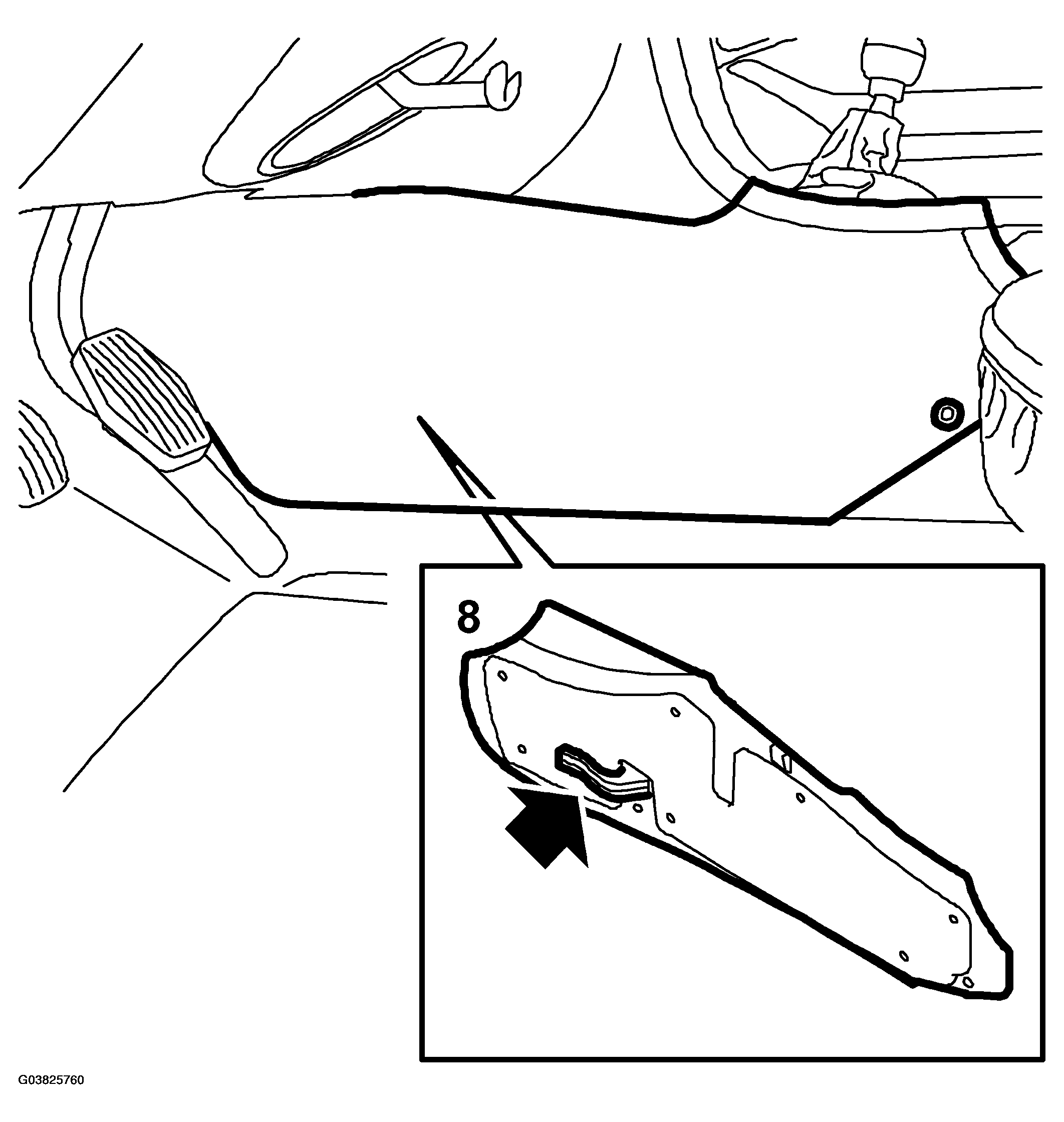

Fit the front side pieces on the floor console.

Fig 7: Illustration For Step - 8
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Connect Tech2 and clear any DTCs.
