Drive-belt tension

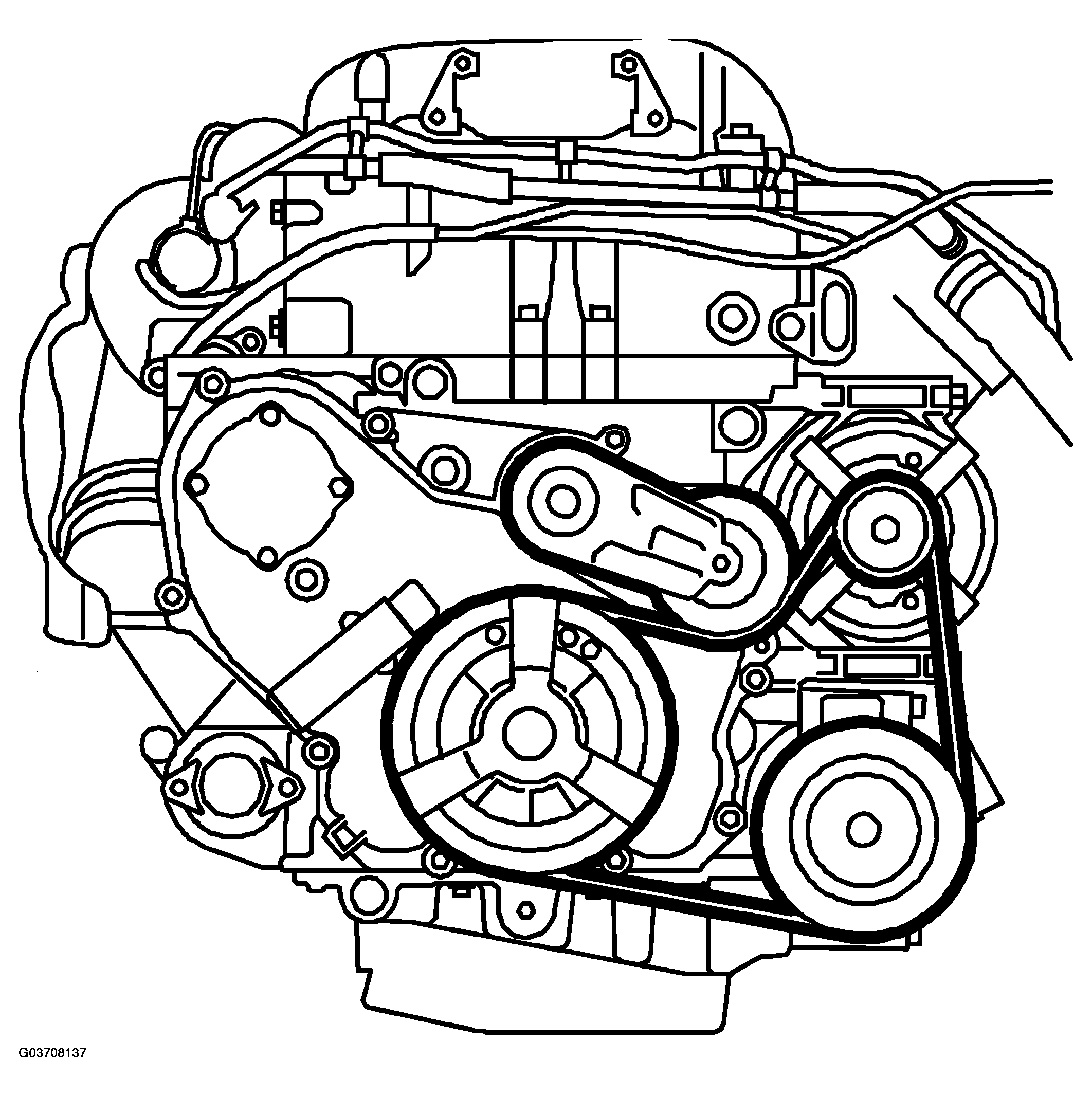

Fig 1: View Of Drive -Belt Arrangement

G03708137

Courtesy of SAAB-SCANIA OF AMERICA, INC.

DRIVE -BELT TENSION SPECIFICATIONS

Check value

N (lbf)

289 +/- 35 (70.4 +/- 5.6)
