To remove

  1. Detach the turbocharger inlet hose from the filter casing. Remove the cover and filter from the filter casing.

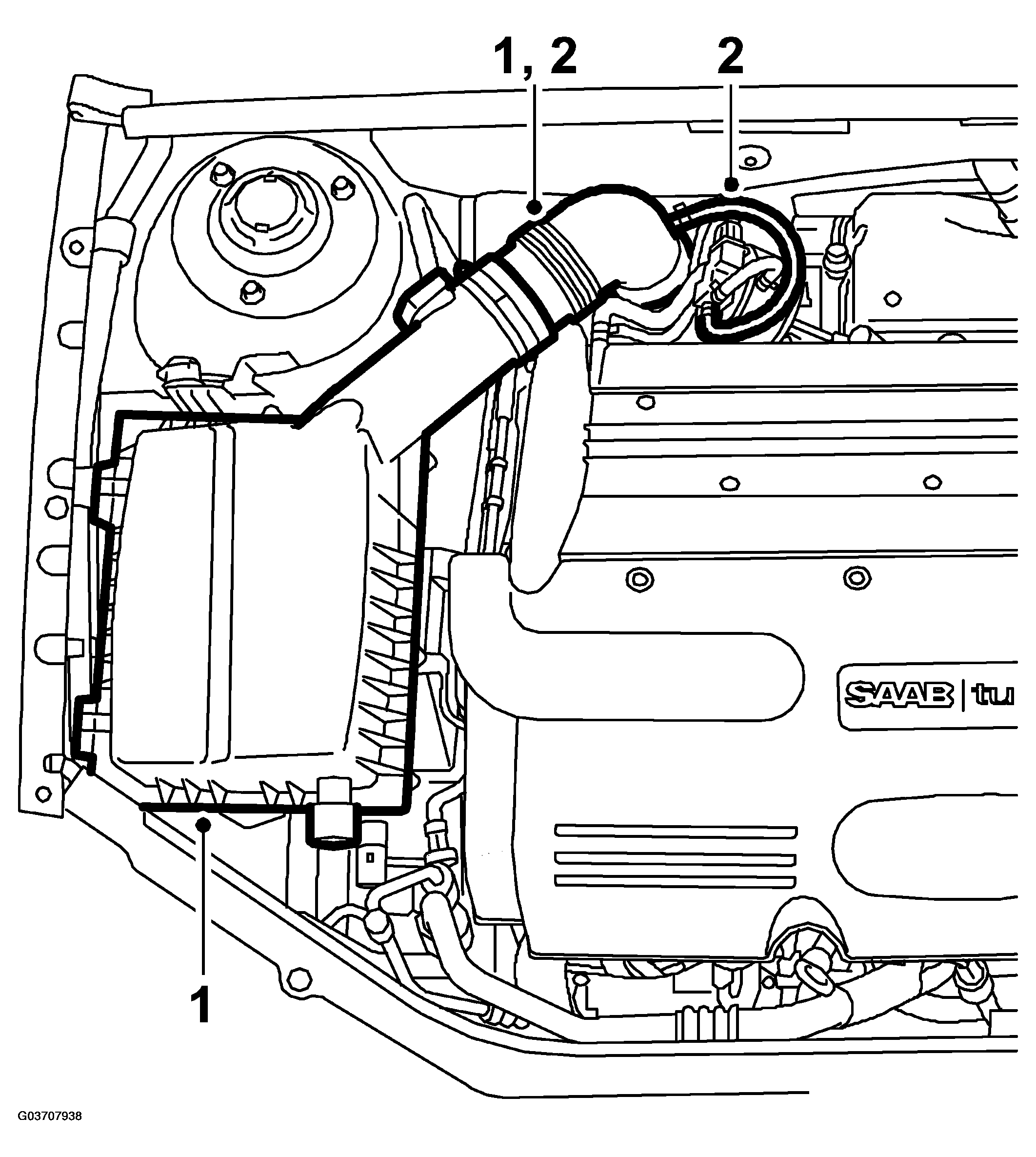

    Fig 1: Illustration For Step 1, 2
    G03707938Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Detach the hoses from the inlet hose. Remove the inlet hose.
  3. Remove the chain tensioner. Use 83 96 129 OIL FILTER TOOL, B207, AND CAMSHAFT DRIVE CHAIN TENSIONER  .

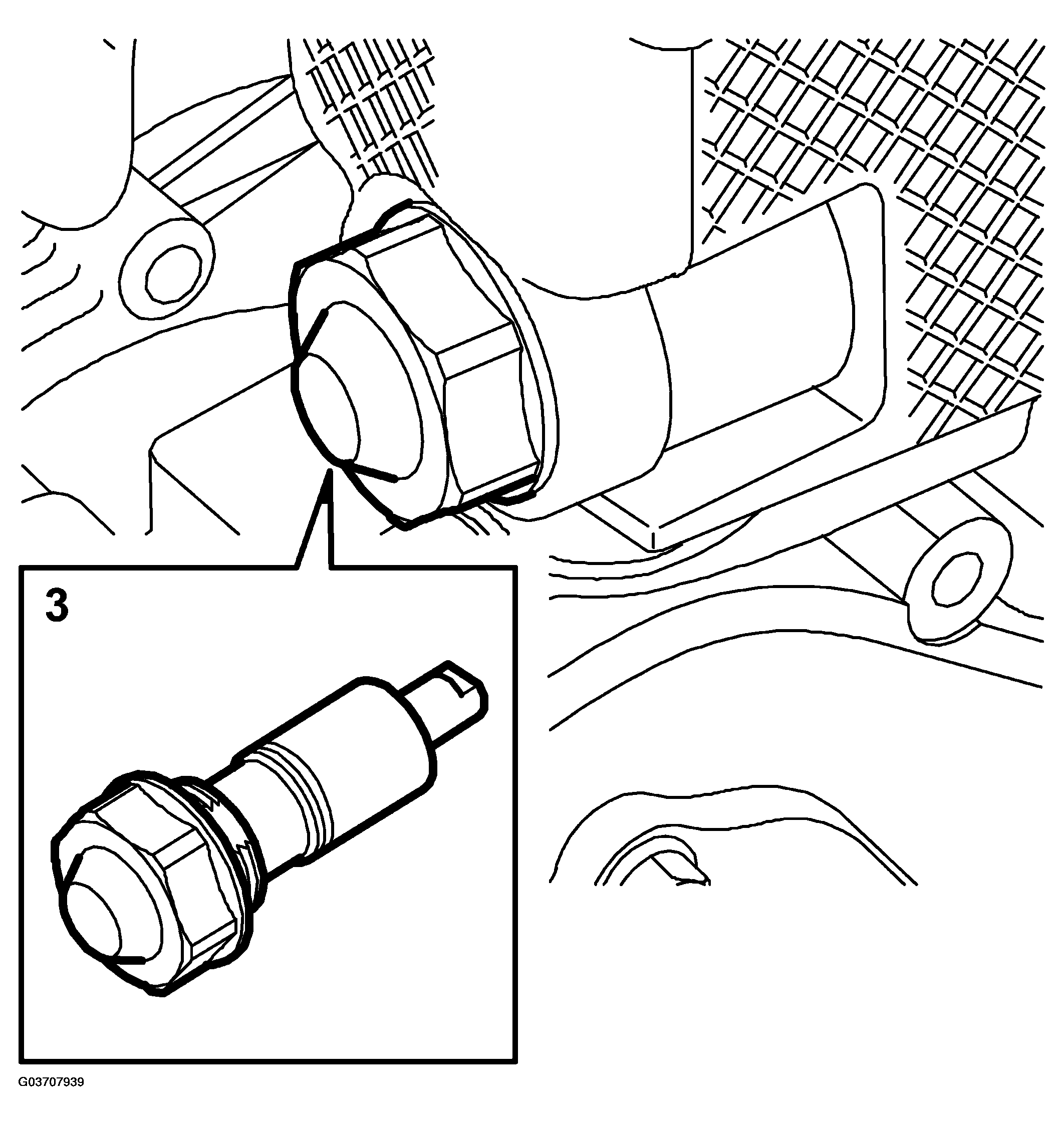

    Fig 2: Illustration For Steps 3
    G03707939Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the lock ring from the chain tensioner and remove the piston.

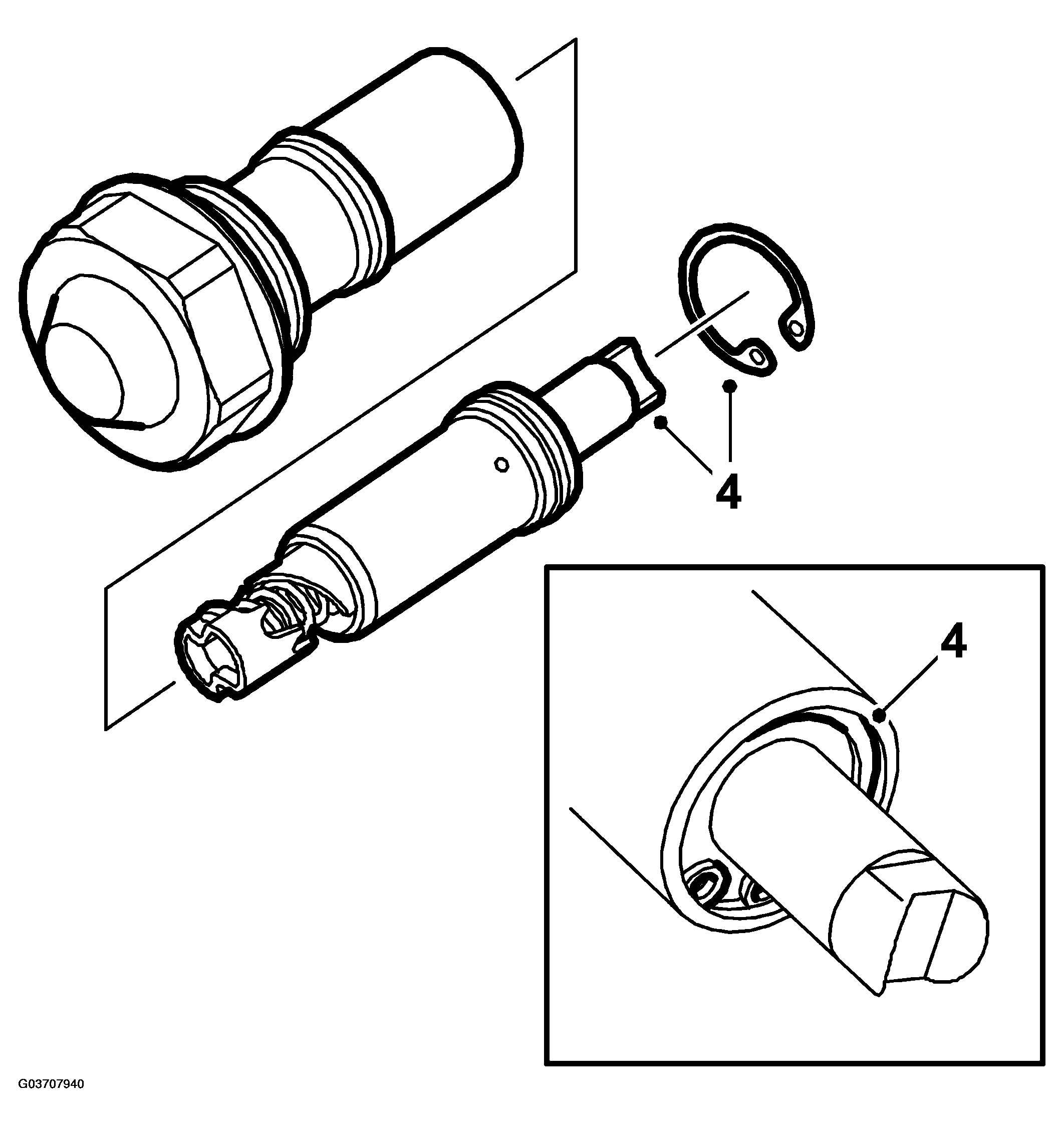

    Fig 3: Illustration For Steps 4
    G03707940Courtesy of SAAB-SCANIA OF AMERICA, INC.
