To fit

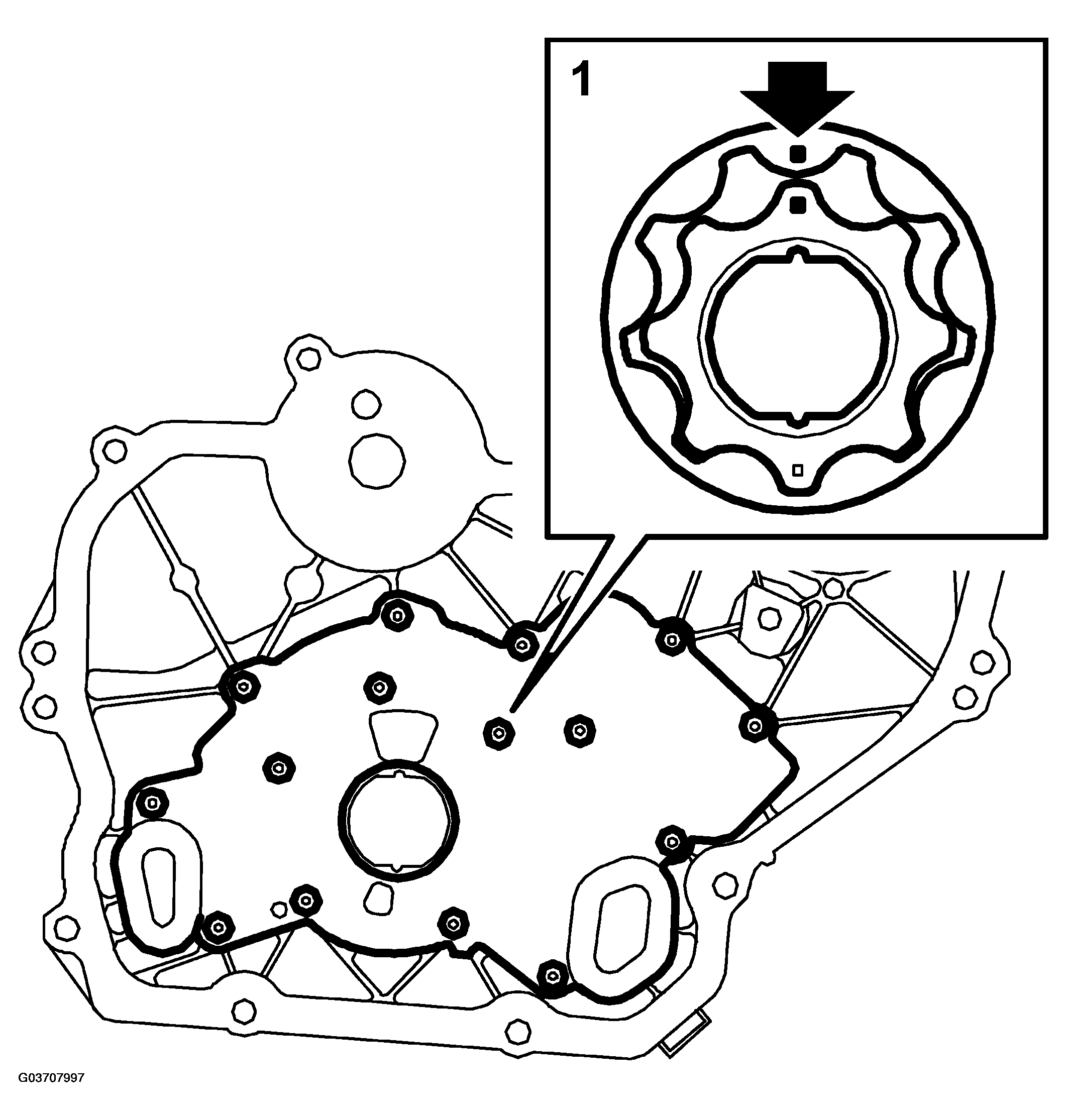

  1. Fit the oil pump pinions. The markings on the pinions must be turned to the timing cover.

    Lubricate the pinions with engine oil.

    Fig 1: Illustration For Step 1
    G03707997Courtesy of SAAB-SCANIA OF AMERICA, INC.

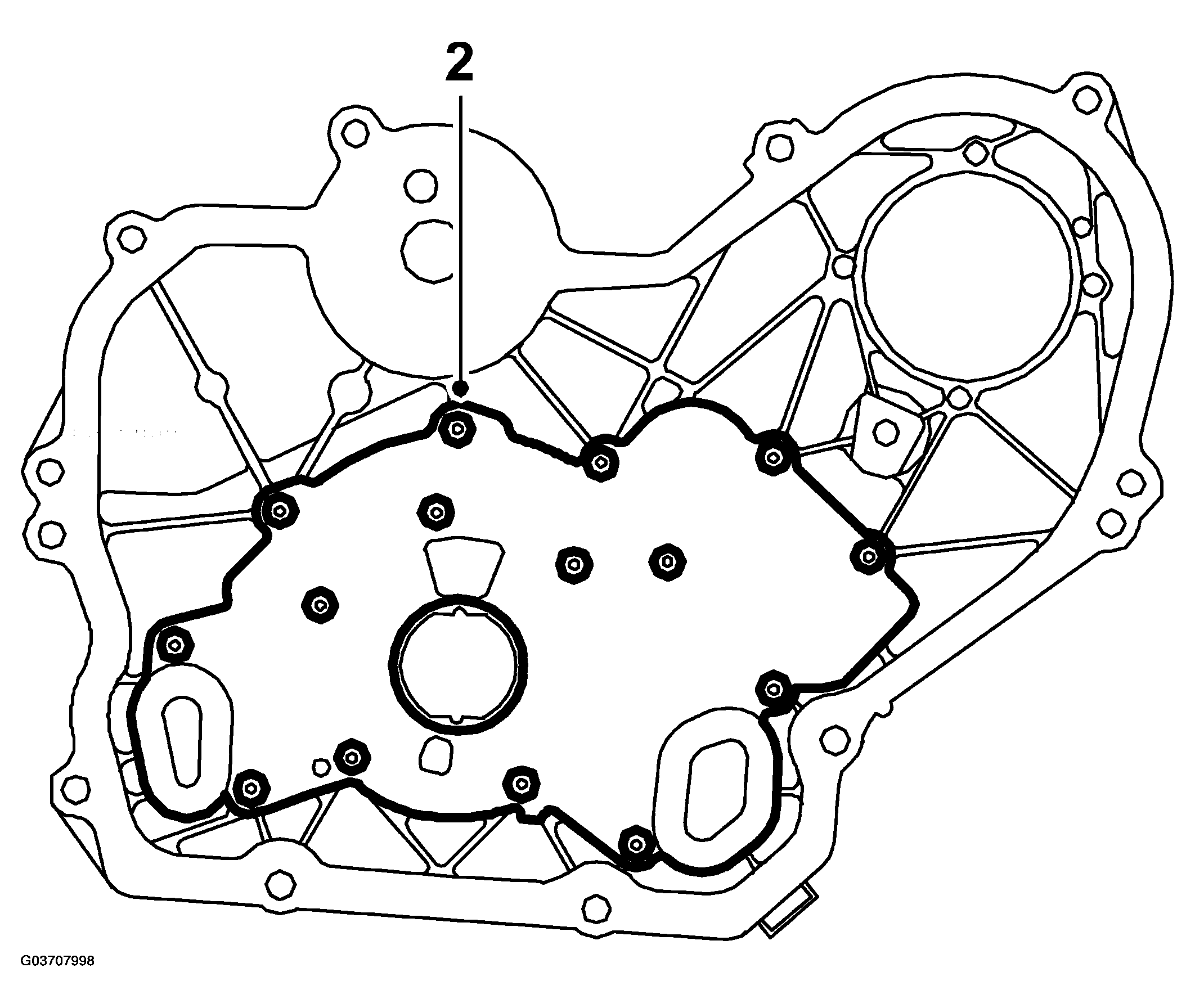

  2. Fit the oil pump cover.

    Tightening torque 6Nm (4 lbf ft)

    Fig 2: Illustration For Step 2
    G03707998Courtesy of SAAB-SCANIA OF AMERICA, INC.

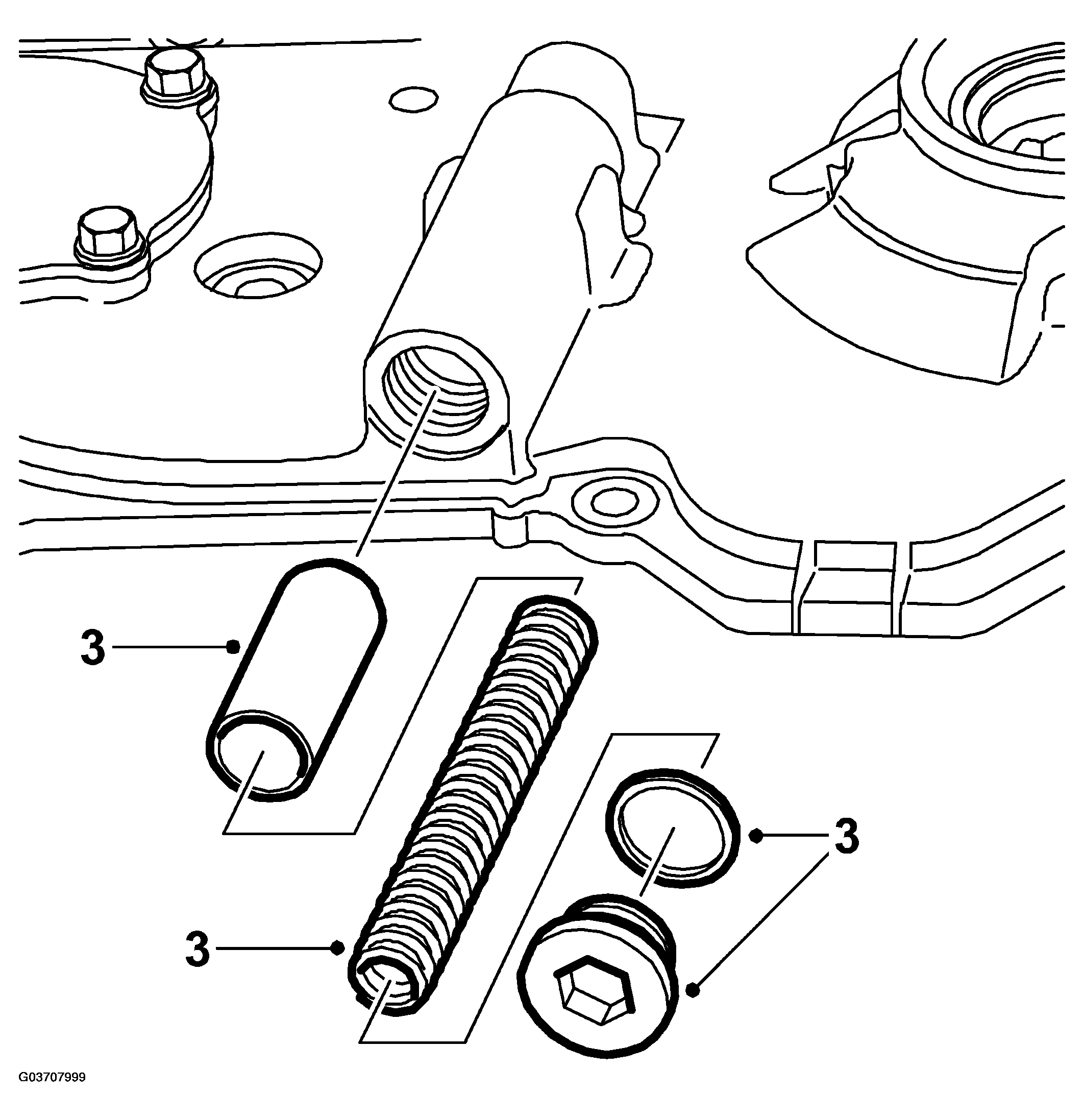

  3. Fit the oil pressure valve with the piston and the spring. Replace the gasket.

    Tightening torque 40 Nm (29 lbf ft)

    Fig 3: Illustration For Step 3
    G03707999Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the TIMING COVER  .
