Home >> Saab >> 2004 >> 9-3 Linear, Standard >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Basic Engine >> Adjustment-Replacement >> Oil pressure valve >> To remove

To remove

  1. Remove the right-hand Drive shaft
  2. Remove the oil pressure valve. Maintain a grip when unscrewing the plug so that it does not fall away.

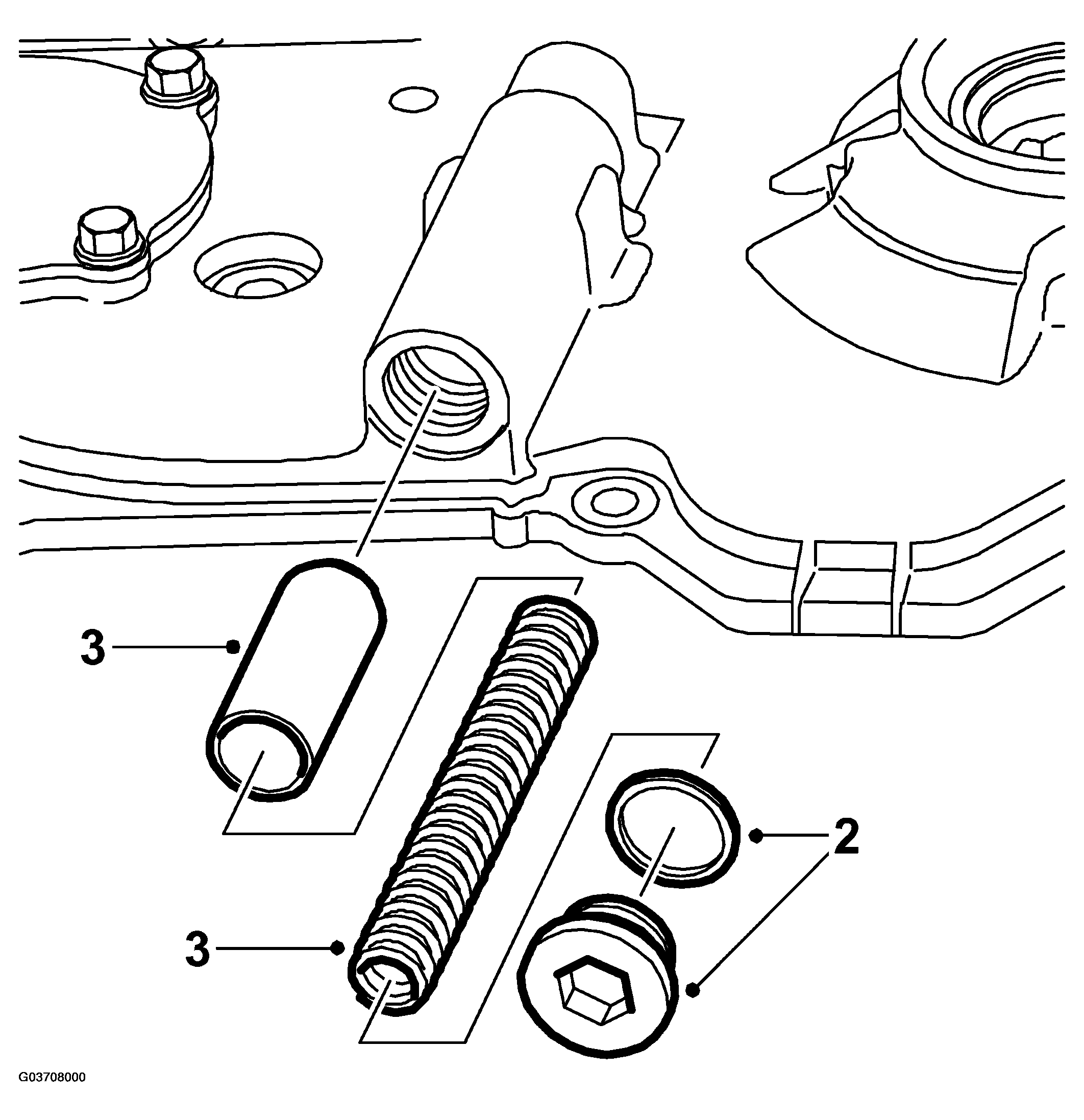

    Fig 1: Illustration For Step 2, 3
    G03708000Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the spring and the piston.
