To remove

  1. Raise the car, remove the right front wheel.
  2. Remove the right wing liner.

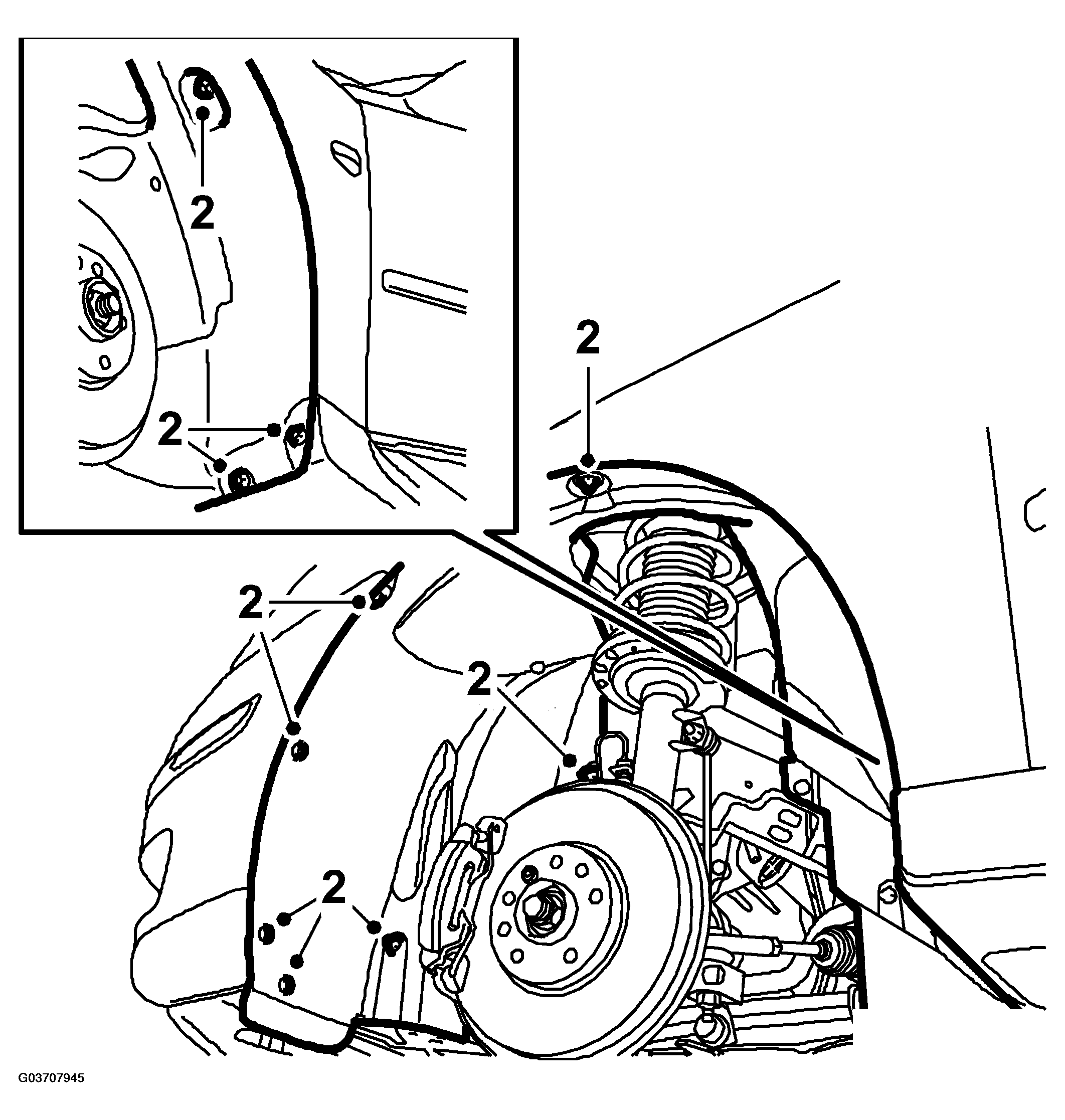

    Fig 1: Illustration For Step 2
    G03707945Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Mark the belt direction of rotation. Relieve the belt tensioner using 83 96 095 BELT CIRCUIT RELIEVING TOOL B207  and remove the poly-V-belt.

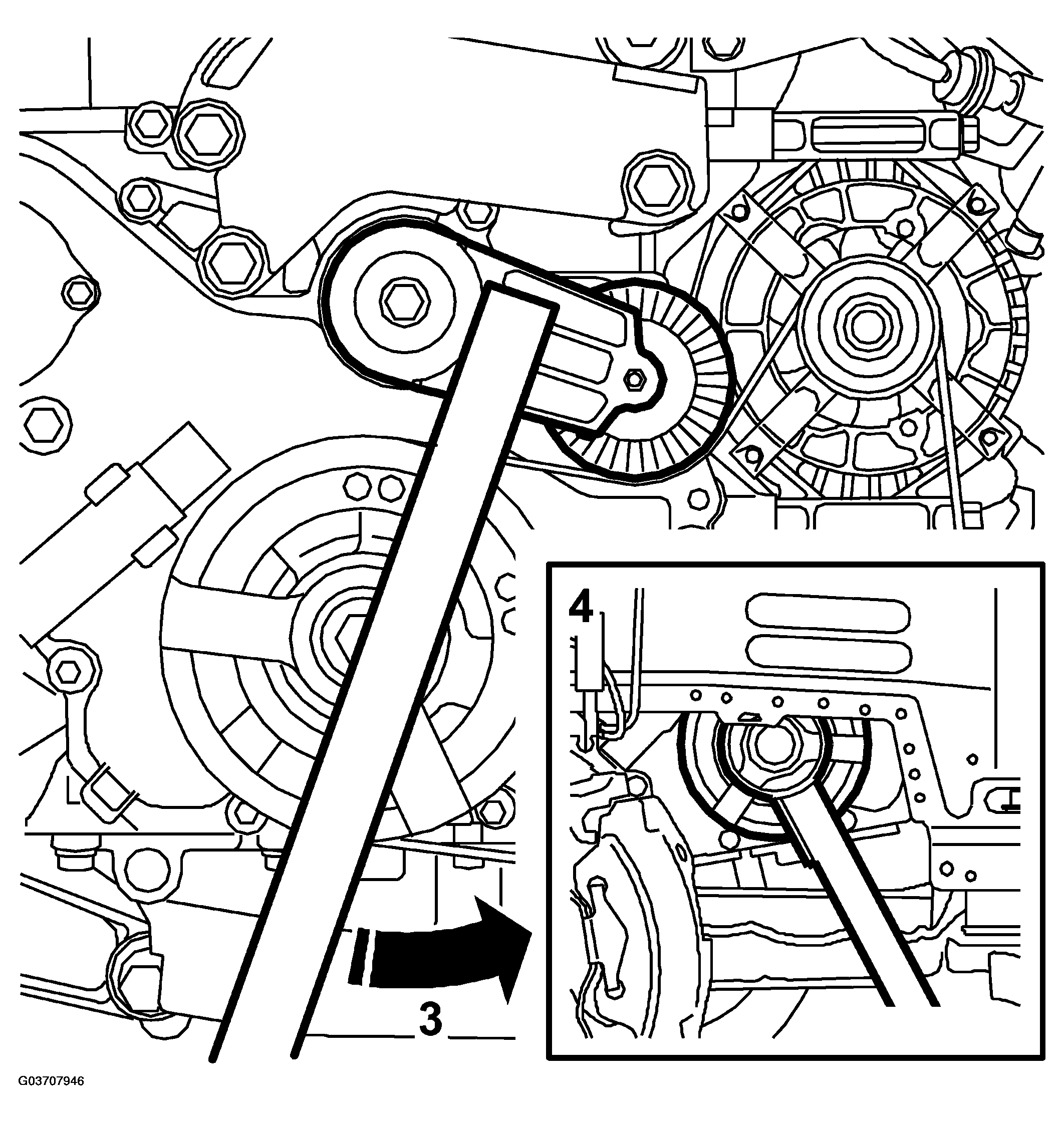

    Fig 2: Illustration For Steps 3, 4
    G03707946Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the crankshaft pulley using 83 95 360 HOLDING TOOL, CRANKSHAFT PULLEY  (shaft only) and 83 96 210 HOLDING TOOL, CRANKSHAFT PULLEY, B207  . Fold up the plate and carefully hold the engine down slightly with a bracket to gain access to the bolt.

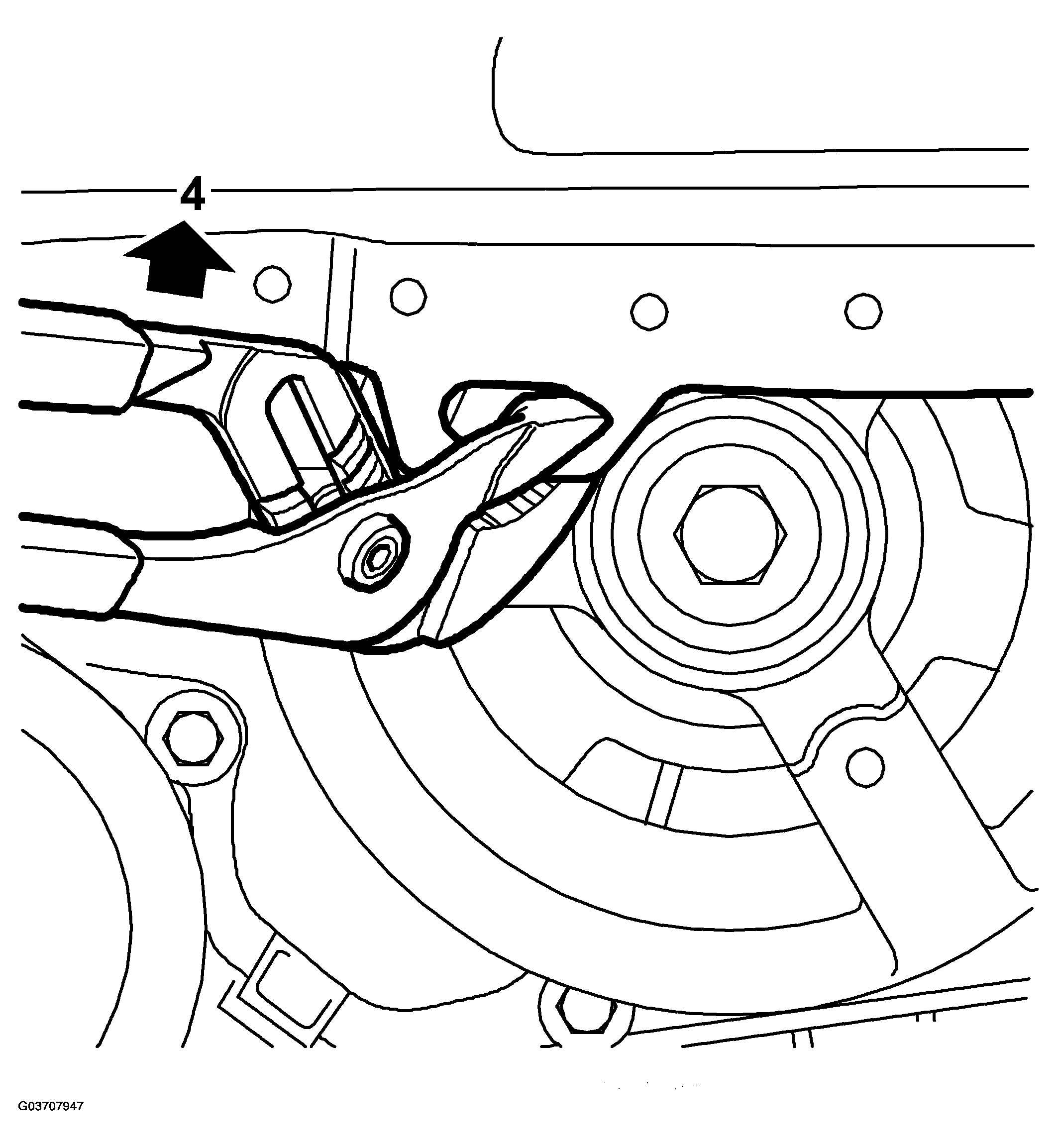

    Fig 3: Illustration For Step 4
    G03707947Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the gasket using a 87 91 360 Extractor

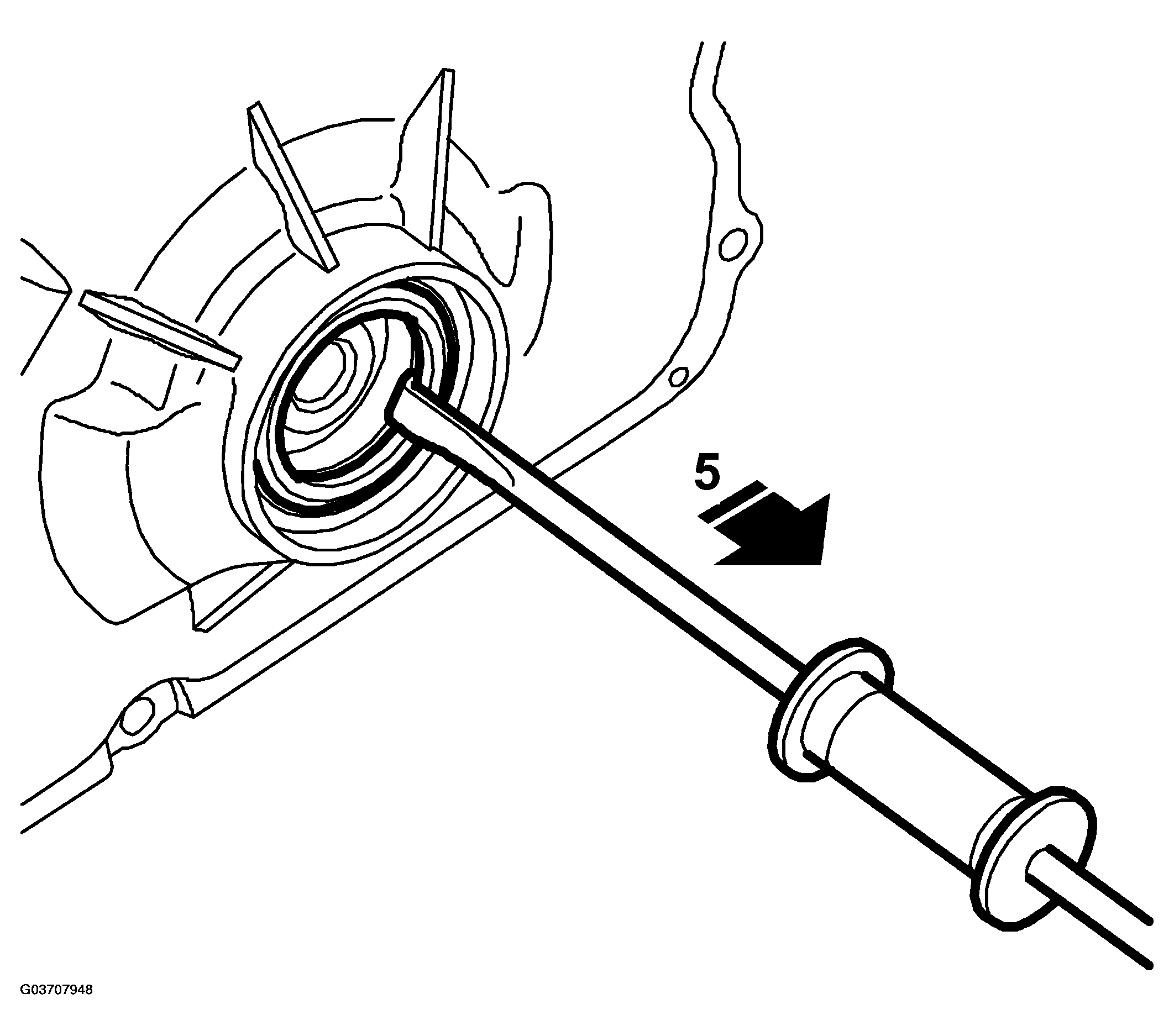

    Fig 4: Illustration For Step 5
    G03707948Courtesy of SAAB-SCANIA OF AMERICA, INC.
