To fit

Fit the engine pad into place. Tighten.
Tightening torque 15 Nm + 30° (11 lbf ft + 30°)

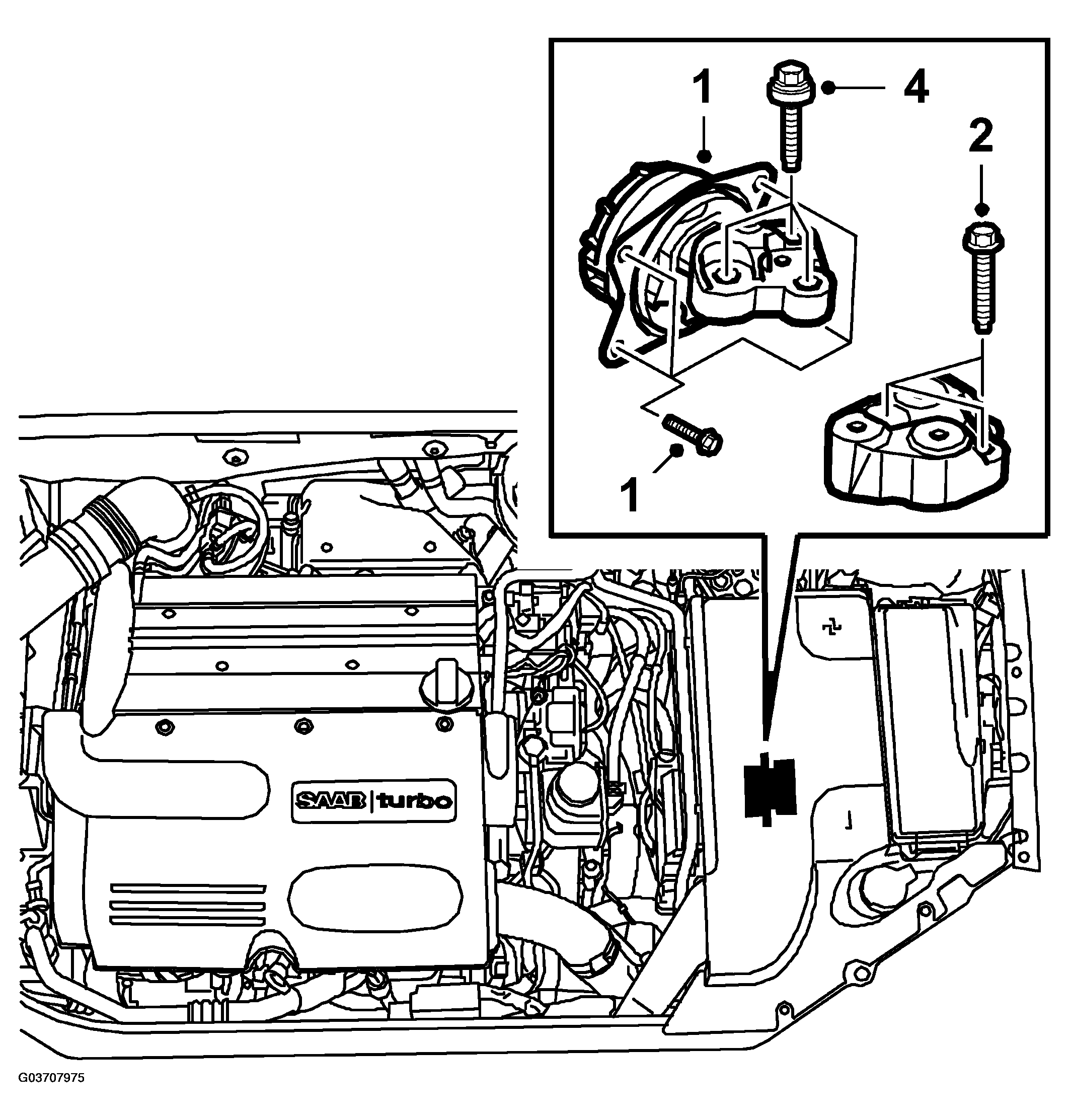

Fig 1: Illustration For Steps 1, 2, 4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the gearbox bracket.
Tightening torque Nm + 90° ( lbf ft +90°)
Fit the engine pad bolts to the bracket.
Tightening torque 70 Nm + 45° (52 lbf ft + 30°)
Fit the ground cable to the engine pad.

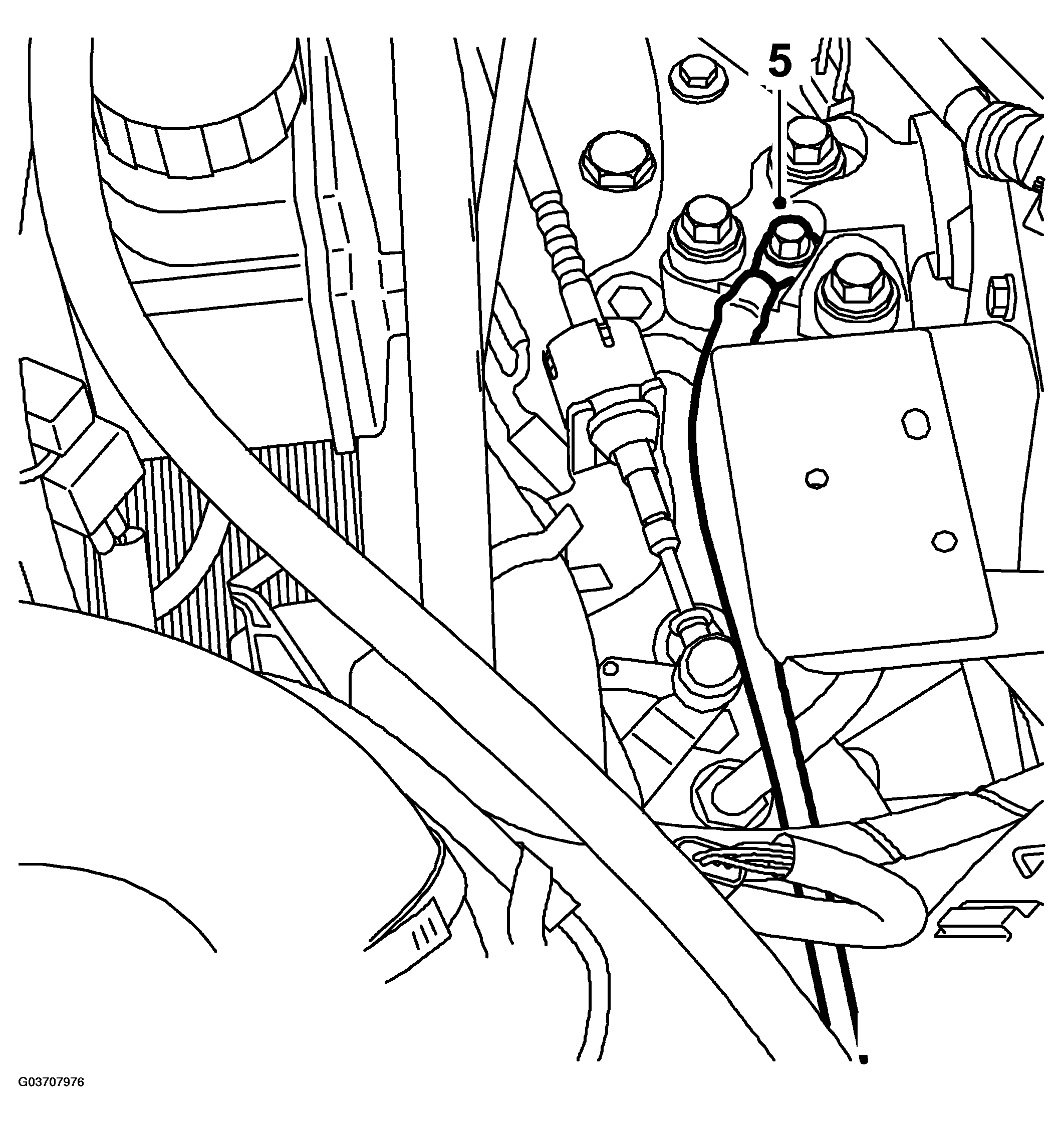

Fig 2: Illustration For Step 5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the battery shelf and the battery.

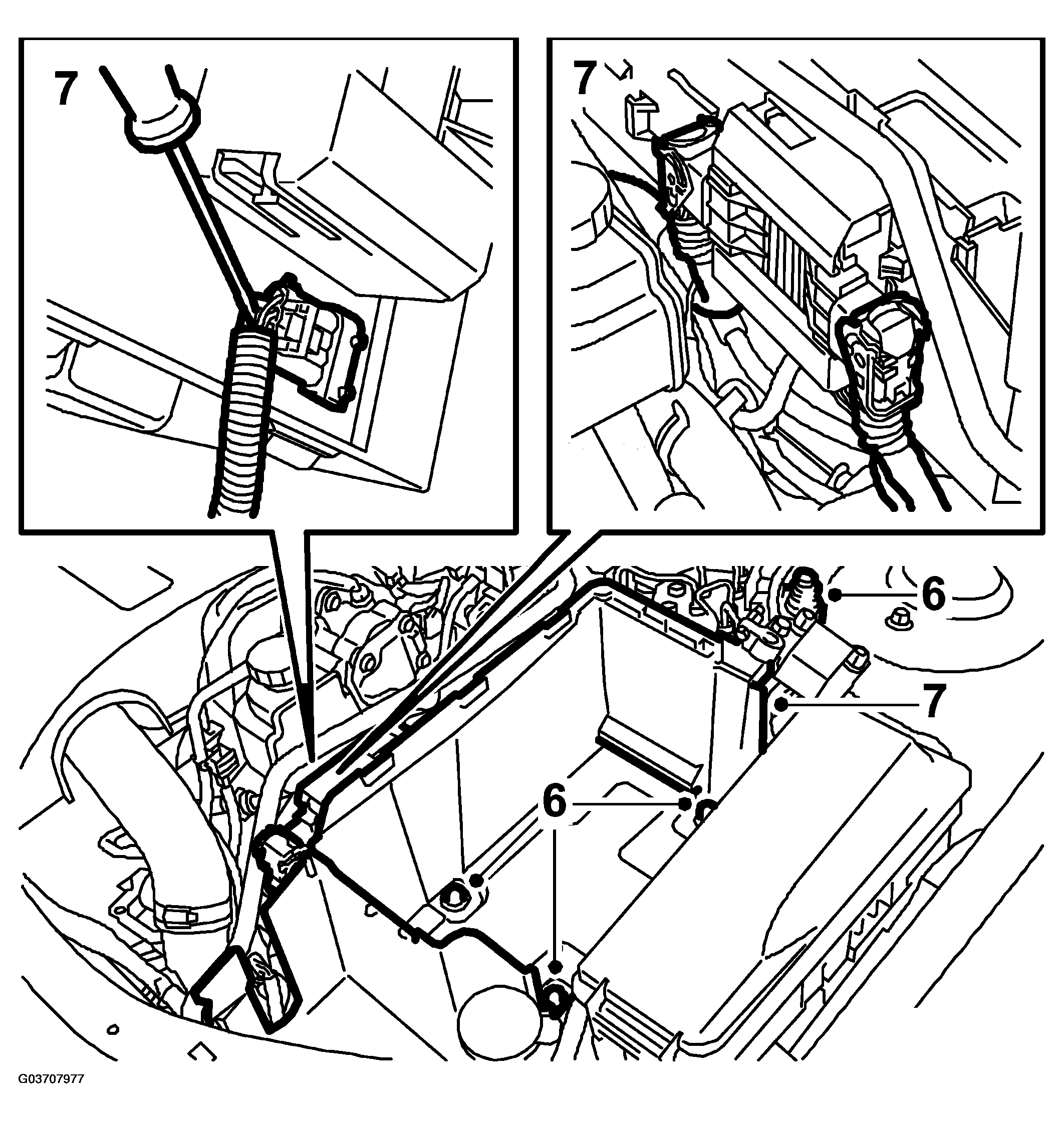

Fig 3: Illustration For Steps 6, 7
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Raise the car and remove 83 96 152 CENTERING TOOL, POWER TRAIN from the subframe.

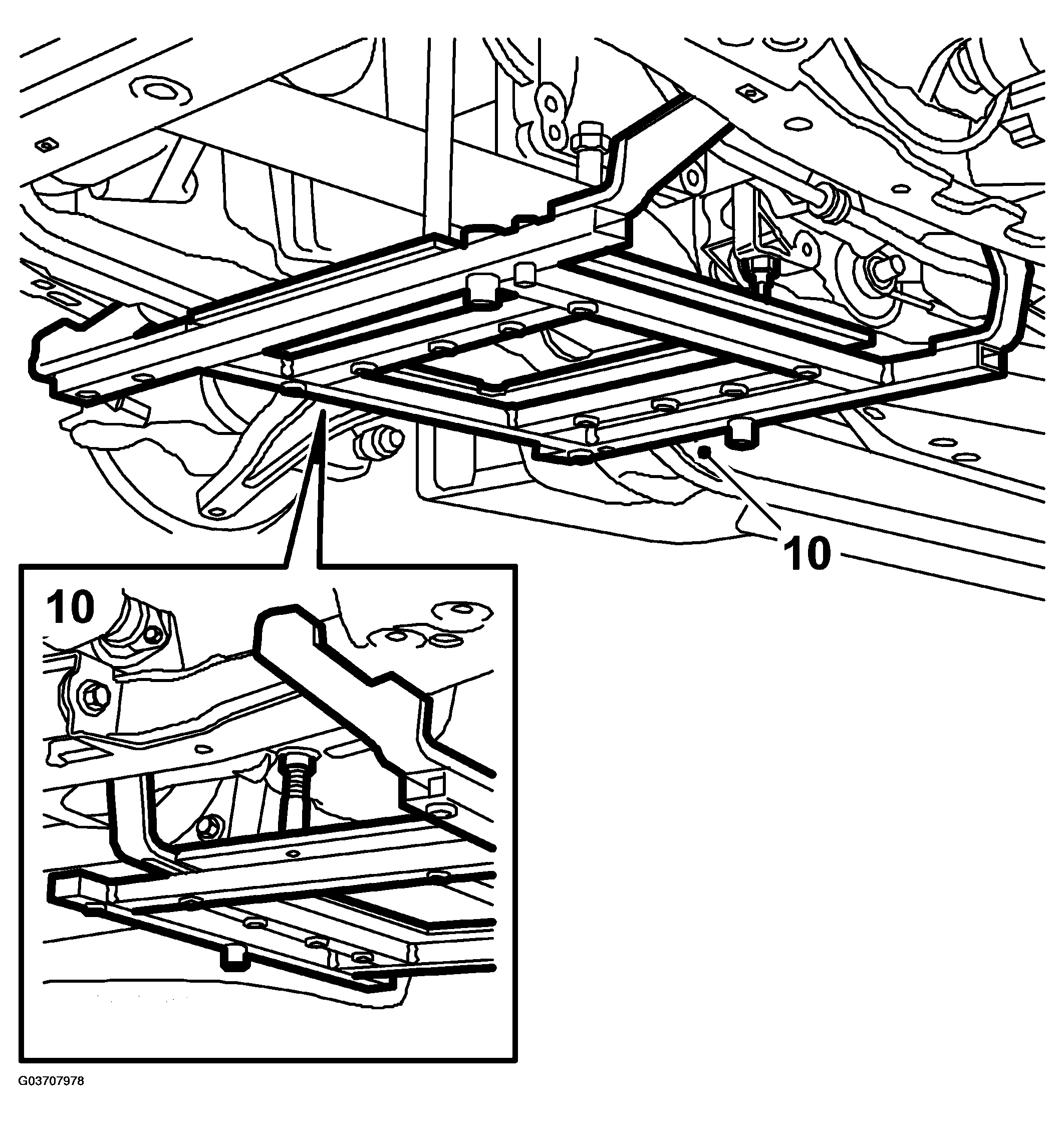

Fig 4: Illustration For Steps 10
Courtesy of SAAB-SCANIA OF AMERICA, INC.
CV: Fit the cross brace. See CHASSIS REINFORCEMENT, FRONT SUBFRAME, CV
Lower the car and remove the wing protectors.
Carry out PROCEDURES AFTER RECONNECTING THE BATTERY
