To fit

  1. Raise the car, relieve the belt tensioner and refit the belt in the direction of rotation marked.
  2. Refit the right wing liner.

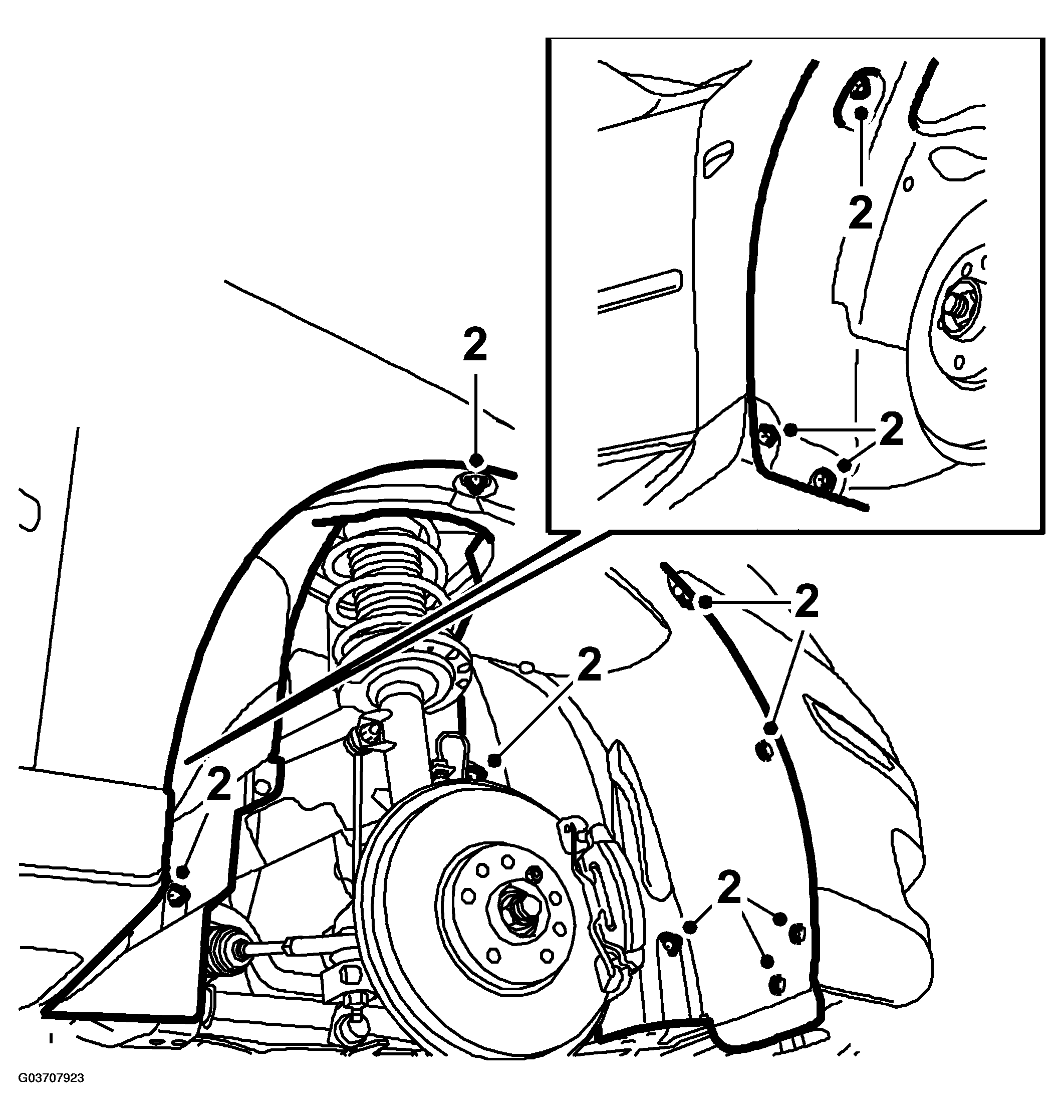

    Fig 1: Illustration For Step 2
    G03707923Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit Wheel
  4. Lower the car and fit the camshaft cover with new gasket. Check that the gaskets remain correctly seated during fitting.

    Tightening torque 10 Nm (8 lbf ft)

  5. Fit the heat shield over the turbocharger. Ensure that the clip under the heat shield is fastened to the holder.
  6. Connect the ground cable to the camshaft cover.

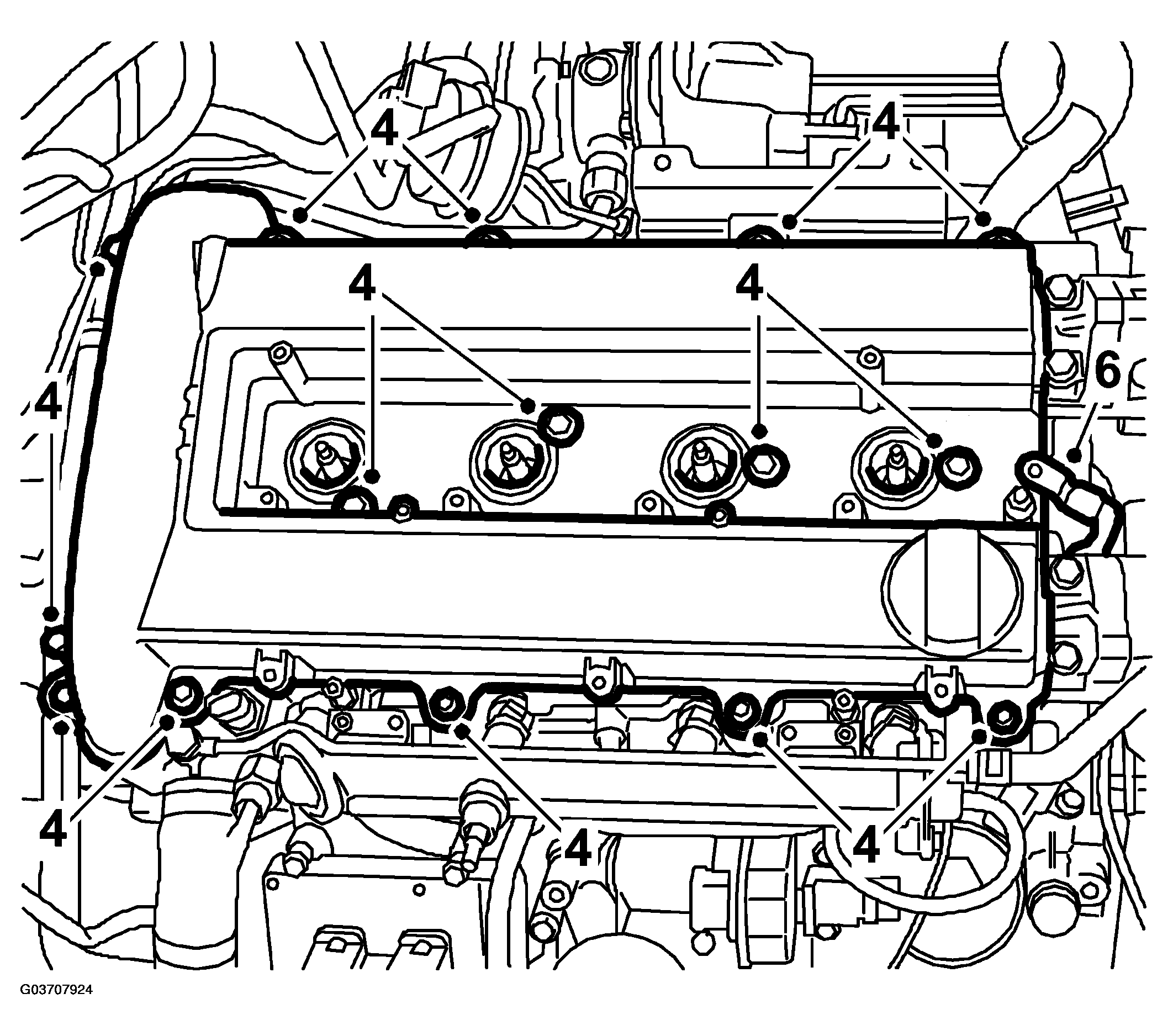

    Fig 2: Illustration For Steps 4
    G03707924Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Fit the cable duct on the camshaft cover.

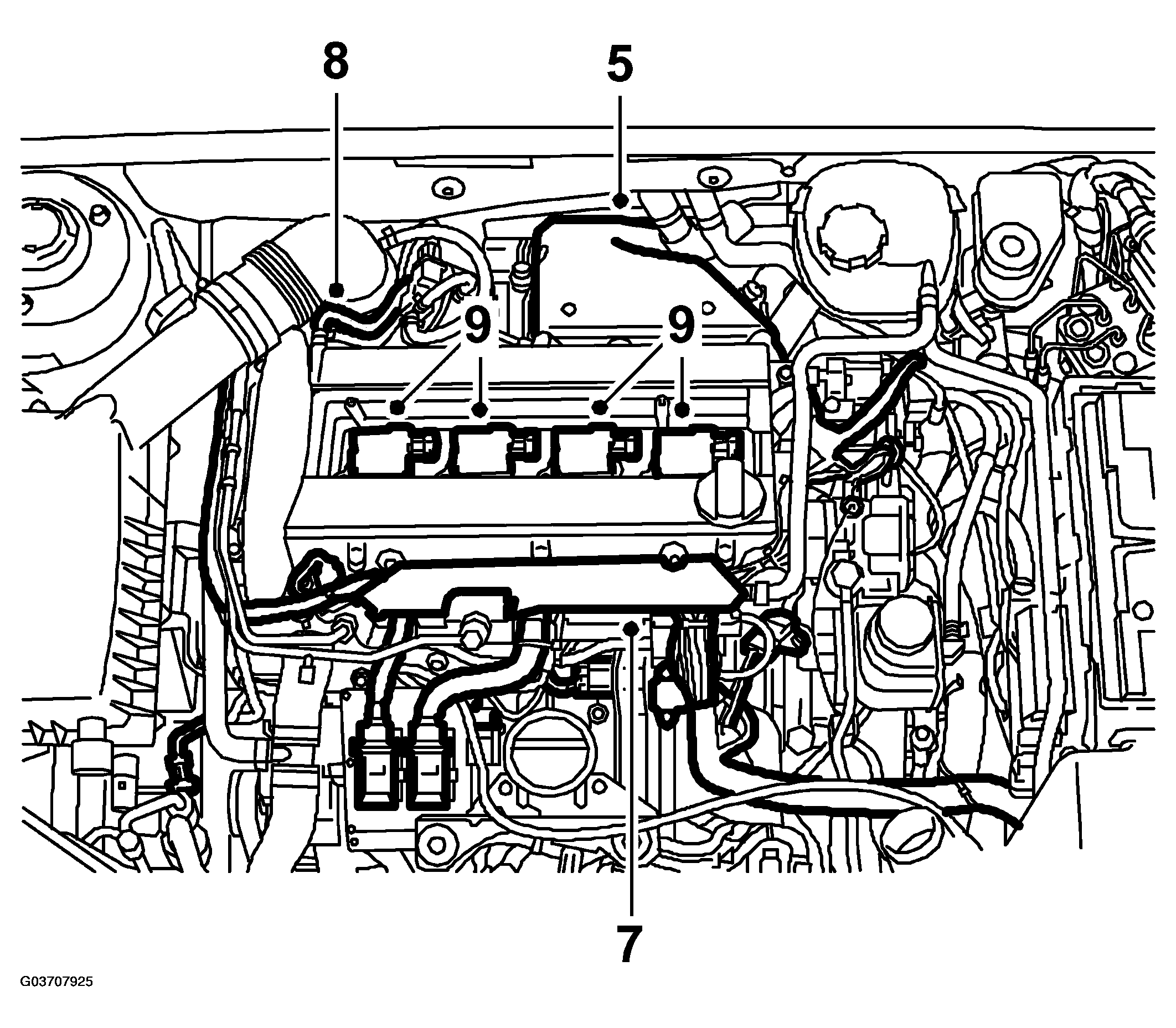

    Fig 3: Illustration For Step 5, 7-9
    G03707925Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Connect the crankcase ventilation hose to the camshaft cover.
  9. Refit ignition coils. Start with the ignition coil for cyl. 4.

    Tightening torque 8 Nm (6 lbf ft)  .

  10. Fit the cover over the ignition coils.

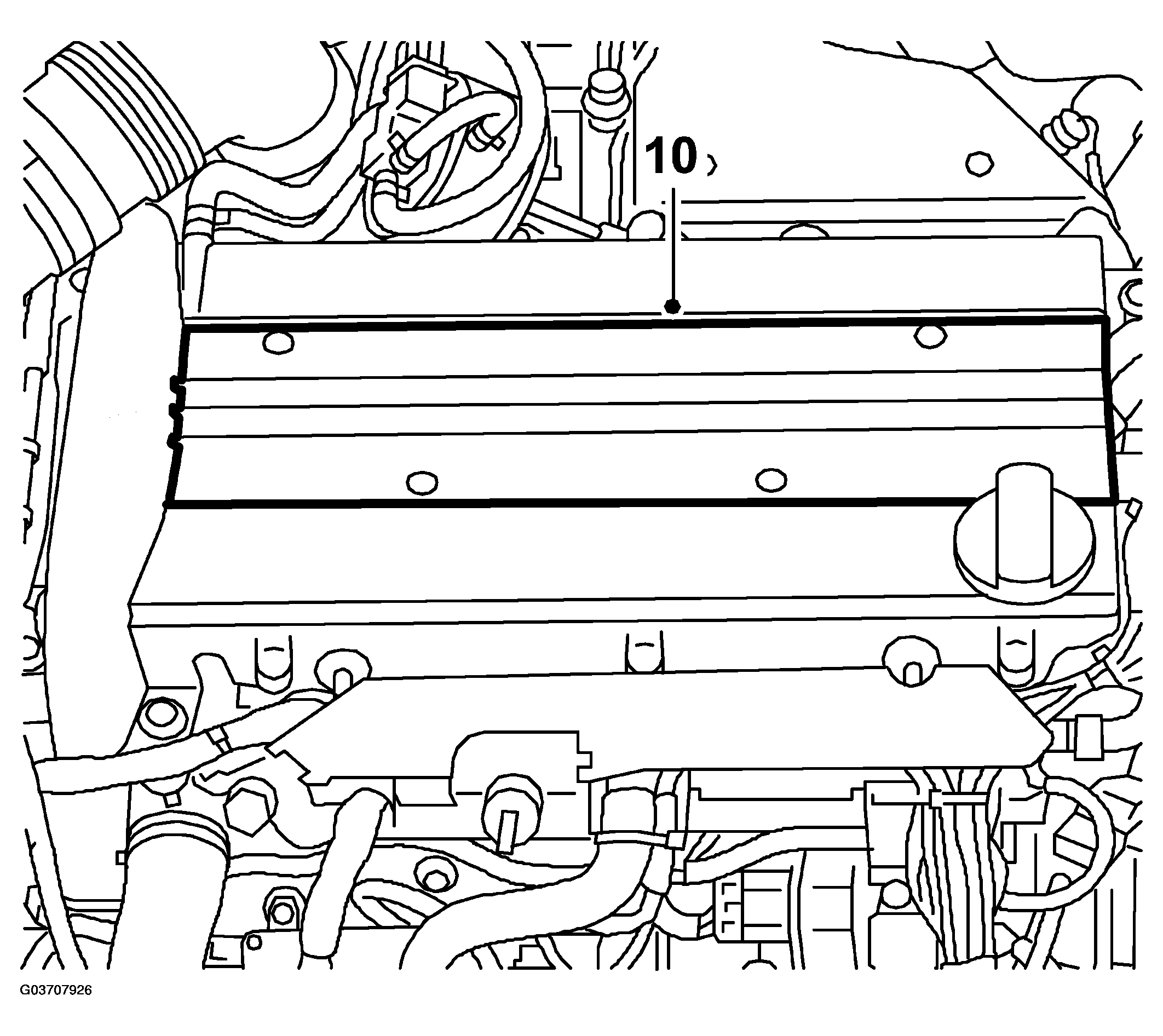

    Fig 4: Illustration For Step 10
    G03707926Courtesy of SAAB-SCANIA OF AMERICA, INC.
  11. Fit the bolts for the camshaft cover mounting and fit the fuel pipe in the snap fastening.

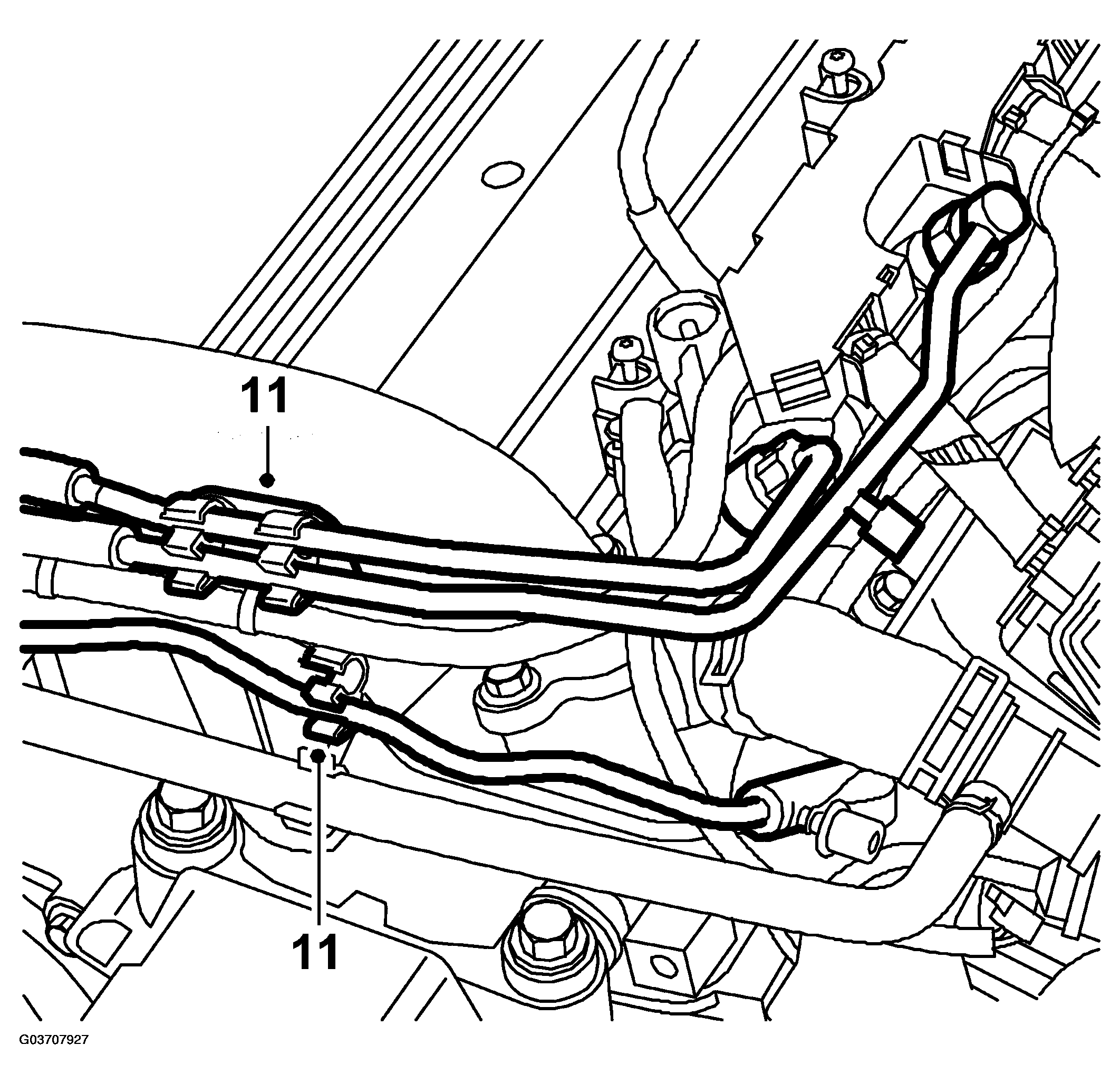

    Fig 5: Illustration For Step 11
    G03707927Courtesy of SAAB-SCANIA OF AMERICA, INC.
  12. Refit the air filter.

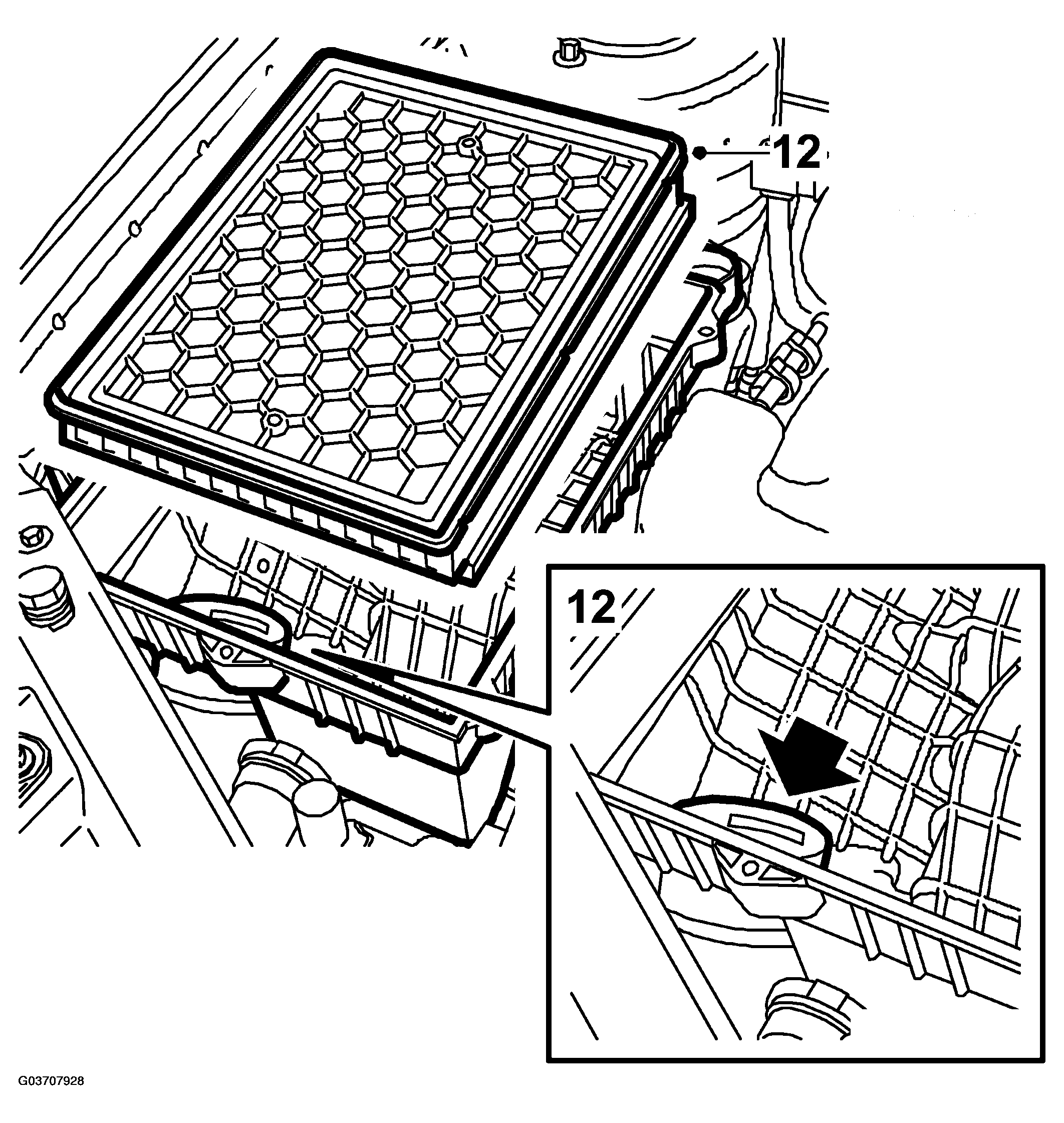

    Fig 6: Illustration For Step 12
    G03707928Courtesy of SAAB-SCANIA OF AMERICA, INC.
  13. Fit the filter housing cover. Connect the mass air flow sensor connector.

    Connect the turbo inlet hose to the air filter.

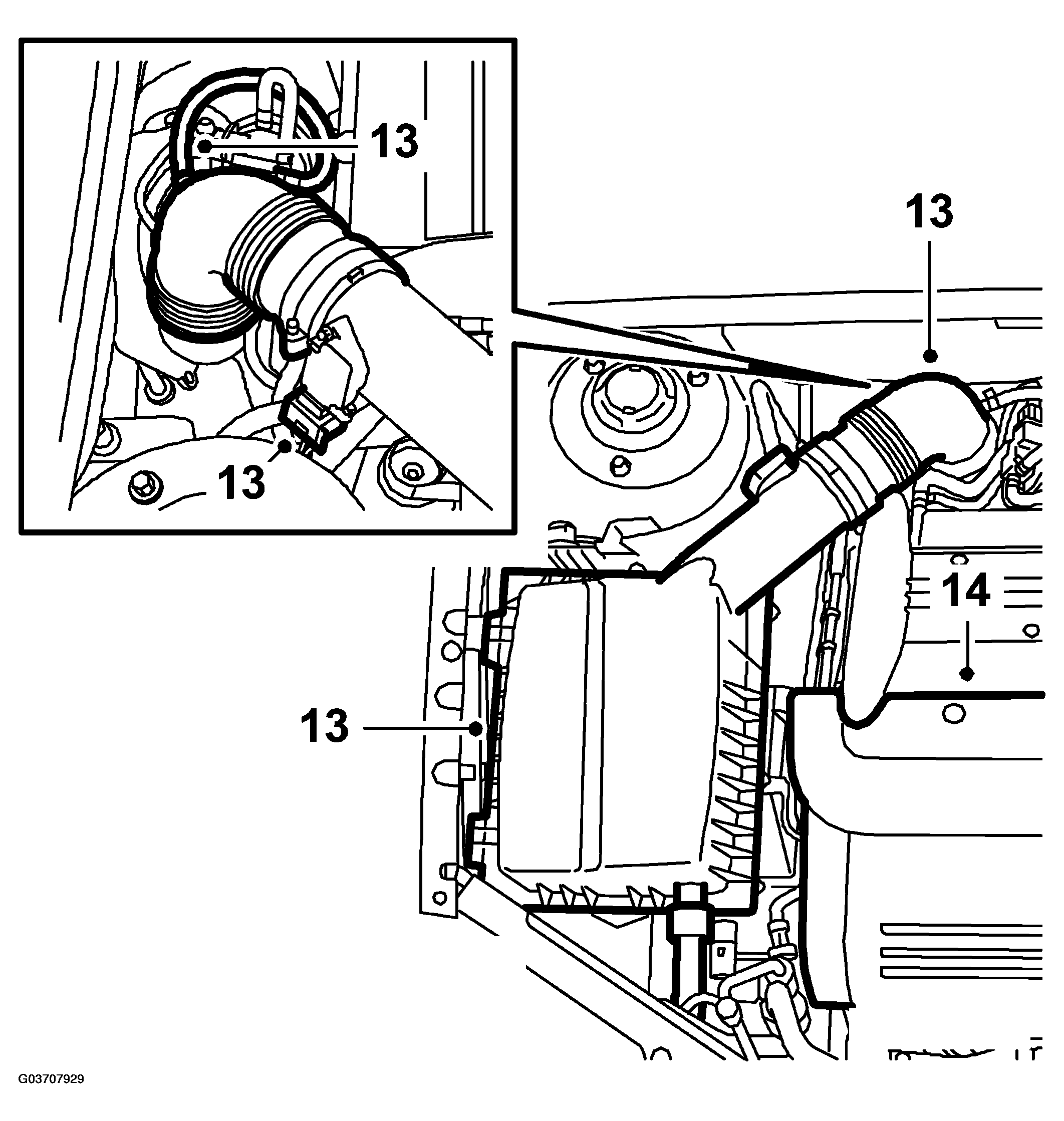

    Fig 7: Illustration For Step 13, 14
    G03707929Courtesy of SAAB-SCANIA OF AMERICA, INC.
  14. Fit the upper engine cover.
